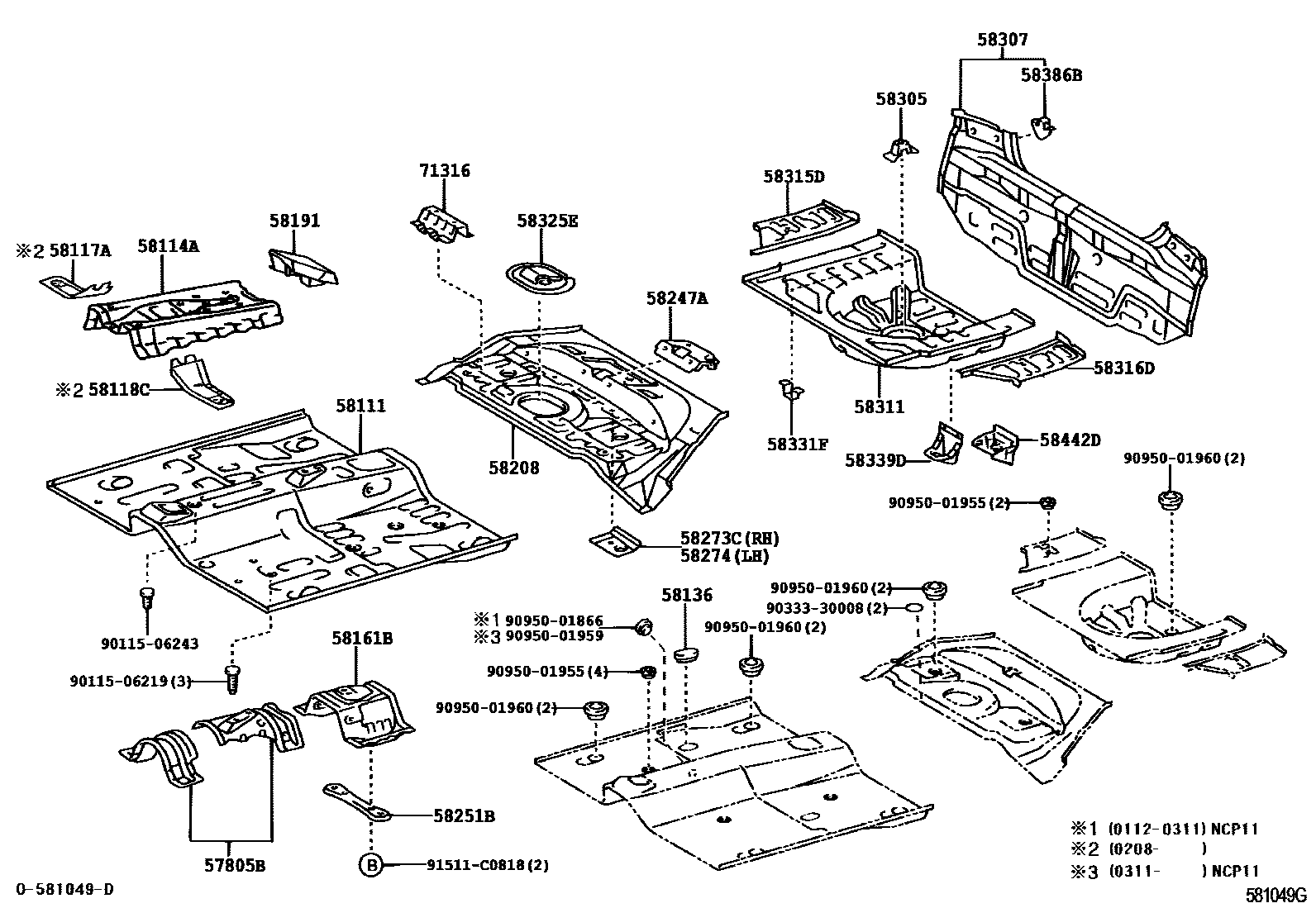

Toyota YARIS 浅盘形地板和车身下背板 — Figure 5801
Toyota YARIS EPC diagram 5801, 浅盘形地板和车身下背板, with 1 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 57805B | Right seat belt anchor reinforcement sub-assembly | 57805-52021 · 57805-52022 · 57805-52120 |
| 58111 | front floor pan | 58111-52900 · 58111-52906 |
| 58114A | front floor reinforcement | 58103-52010 · 58103-52011 · 58114-52010 |
| 58117A | Front floor right reinforcement | 58117-52040 |
| 58118C | Front floor left reinforcement | 58118-52030 |
| 58136 | Front floor hole cover | 58136-52010 |
| 58161B | Seat belt anchor to floor pan reinforcement | 58161-52010 |
| 58191 | Front floor footrest | 58191-52010 · 58191-52060 · 58191-52061 |
| 58208 | central floor base | 58211-52050 · 58211-52051 · 58211-52060 · 58211-52061 |
| 58247A | Rear right seat cushion hinge reinforcement | 58247-52010 · 58247-52020 |
| 58251B | front floor bracket | 58251-52010 |
| 58273C | Seat belt anchors to center floor reinforcement | 58273-52030 · 58273-52031 |
| 58274 | Seat belt anchor No. 1 to center floor reinforcement | 58274-52020 · 58274-52021 |
| 58305 | Spare tire clamp bracket sub-assembly | 58351-32010 · 58351-33010 |
| 58307 | Body lower back panel sub-assembly | 58307-52080 · 58307-52090 · 58307-52240 · 58307-52270 |
| 58311 | rear floor pan | 58311-52050 |
| 58315D | Rear floor pan right extension | 58315-52050 |
| 58316D | Rear floor pan left extension | 58316-52050 |
| 58325E | Rear floor access hole cover | 58325-52010 |
| 58331F | Rear floor insulation pad bracket No. 3 | 58331-10010 |
| 58339D | Lift the bracket | 58339-52010 |
| 58386B | Rear bumper cover bracket No. 2 | 58386-52020 |
| 58442D | jack cover | 58442-52030 |
| 71316 | Rear seat bracket | 71316-52060 · 71316-52061 |
