Toyota YARIS 前翼子板挡泥板和前围板 — Figure 5304

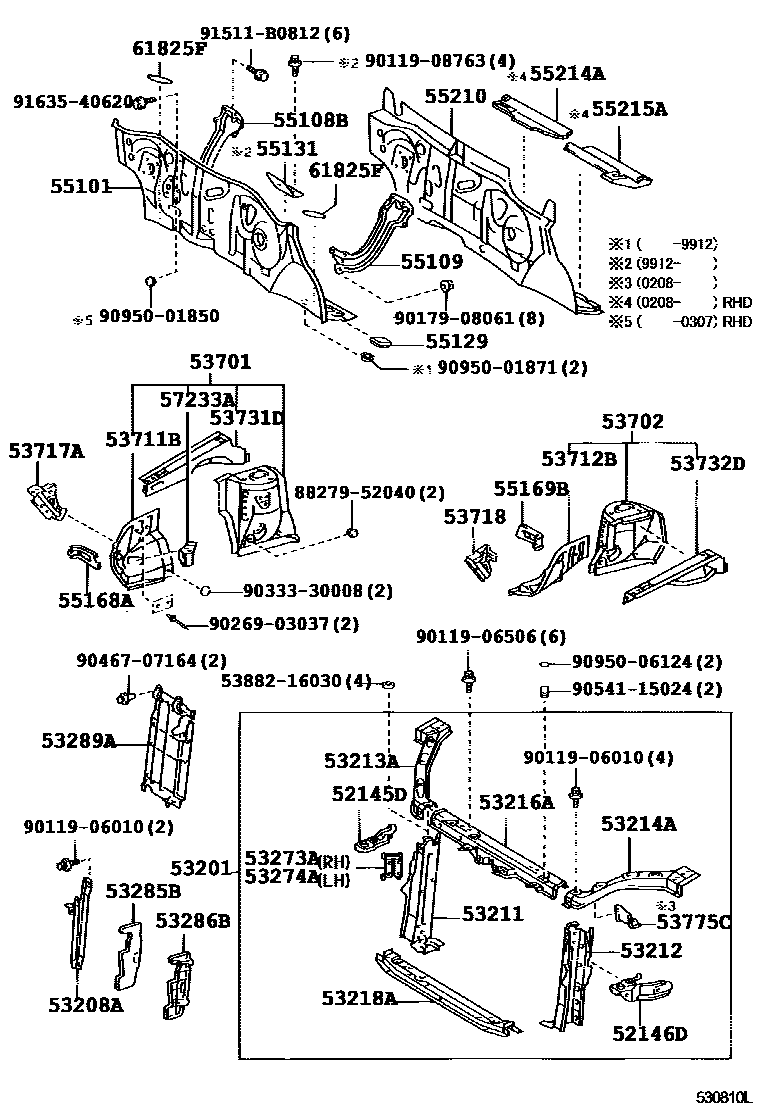

Toyota YARIS EPC diagram 5304, 前翼子板挡泥板和前围板, with 1 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52145D | Front bumper right side mounting bracket | 52145-52040 · 52145-52100 |
| 52146D | Front bumper left mounting bracket | 52146-52040 · 52146-52100 |
| 53201 | Radiator bracket sub-assembly | 53210-52040 · 53210-52060 · 53210-52130 · 53210-52131 · 53210-52140 · 53210-52141 |
| 53208A | Engine cover lock bracket sub-assembly | 53208-52030 · 53208-52031 · 53208-52070 |
| 53211 | Radiator right side support | 53211-52010 · 53211-52040 |
| 53212 | Radiator left support | 53212-52010 · 53212-52040 |
| 53213A | Radiator upper right bracket | 53213-52040 · 53213-52070 |
| 53214A | Radiator upper left bracket | 53214-52040 · 53214-52070 |
| 53216A | Radiator upper bracket | 53205-52050 · 53205-52051 · 53216-52010 |
| 53218A | Radiator lower support | 53218-52010 · 53218-52020 |
| 53273A | Radiator right side bracket reinforcement | 53273-52010 |
| 53274A | Radiator left bracket reinforcement | 53273-52010 |
| 53285B | Radiator side 1 air seal | 53285-52020 · 53285-52021 · 53285-52090 |
| 53286B | Radiator No. 2 side air seal | 53286-52010 · 53286-52011 · 53286-52060 |
| 53289A | Radiator bracket opening cover | 53289-52010 |
| 53701 | Right front fender fender sub-assembly | 53701-52040 · 53701-52900 |
| 53702 | Left front fender fender sub-assembly | 53702-52040 · 53702-52900 |
| 53711B | Right front fender front fender | 53711-52010 |
| 53712B | Left front fender front fender | 53712-52010 |
| 53717A | fender fender | 53717-52020 · 53717-52060 |
| 53718 | Left fender fender side panel | 53718-52020 · 53718-52070 |
| 53731D | Right front fender to cowl side upper beam | 53731-52010 |
| 53732D | Left front fender to cowl side upper beam | 53732-52010 |
| 53775C | Cold air intake pipe mounting bracket | 53775-52010 |
| 55101 | Front apron sub-assembly | 55101-52060 · 55101-52061 · 55101-52062 · 55101-52080 · 55101-52081 · 55101-52082 · 55101-52090 · 55101-52091 · 55101-52100 · 55101-52101 · 55101-52461 |
| 55108B | Right side bracket sub-assembly (front wall to frame) | 55108-52010 · 55108-52020 · 55108-52070 |
| 55109 | Left side bracket sub-assembly (front wall to frame) | 55109-52010 · 55109-52020 · 55109-52060 |
| 55129 | Front panel hole cover | 55129-52010 · 55129-52020 · 55129-52030 |
| 55131 | Front apron reinforcement | 55132-52010 · 55132-52020 |
| 55168A | Right front fender mounting bracket | 55168-52040 · 55168-52090 |
| 55169B | Left front fender mounting bracket | 55169-52040 · 55169-52090 |
| 55210 | Front wall insulation pad assembly | 55210-52010 · 55210-52011 · 55210-52020 · 55210-52021 · 55210-52022 · 55210-52023 · 55210-52150 |
| 55214A | No. 2 insulation pad for front wall panel | 55214-52090 |
| 55215A | No. 3 insulation pad for front wall panel | 55215-52060 |
| 57233A | Engine right front bracket fixing piece | 57233-52010 · 57233-52011 |
| 61825F | Noise control panel | 61826-47010 |
