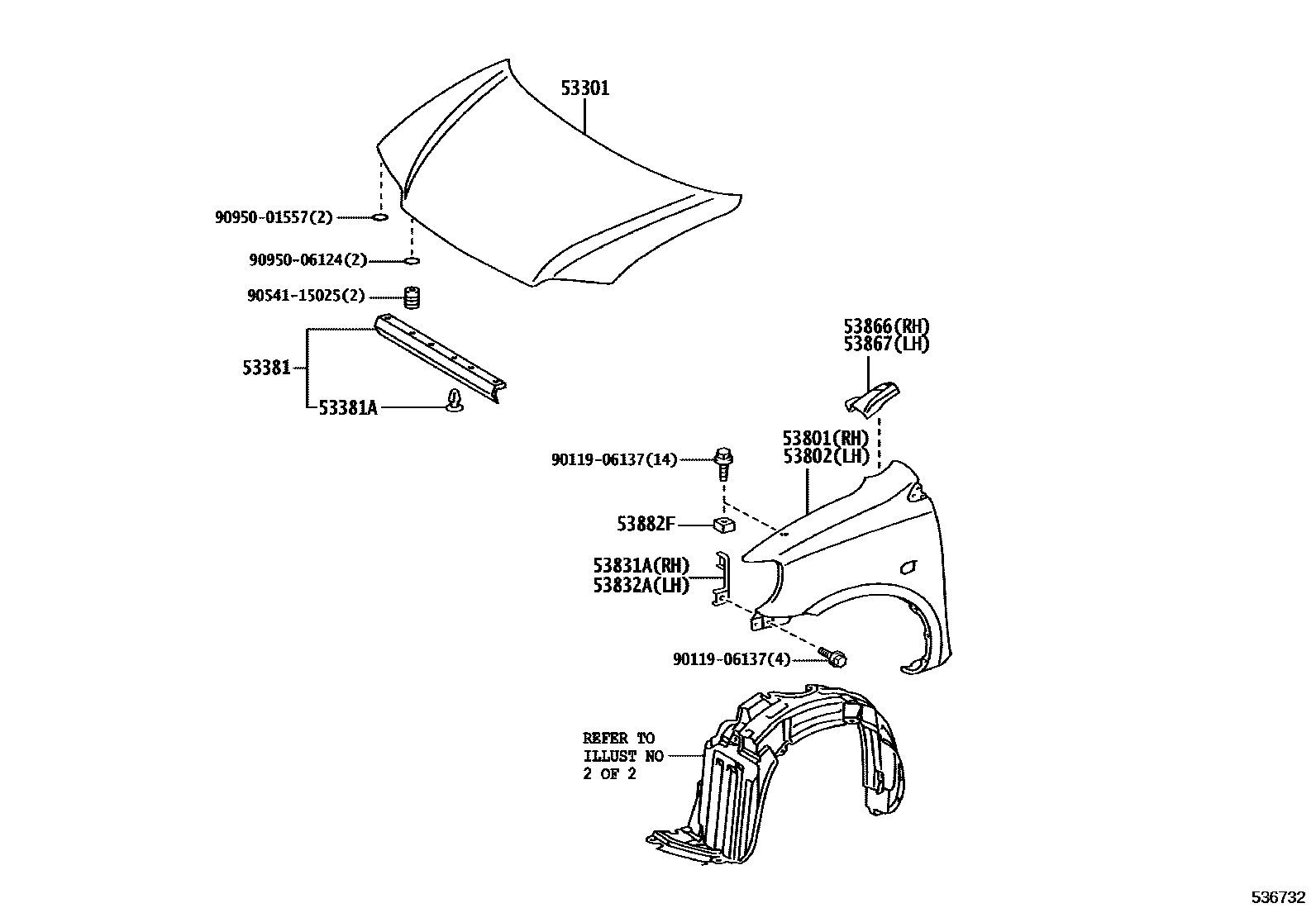

Toyota YARIS 发动机盖和前翼子板 — Figure 5302
Toyota YARIS EPC diagram 5302, 发动机盖和前翼子板, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53301 | Engine cover sub-assembly | 53301-52060 · 53301-52140 |
| 53381 | Engine cover to radiator bracket seal | 53381-52010 |
| 53381A | Clip (for engine cover to radiator bracket seal) | 90467-08011 |
| 53801 | Right front fender sub-assembly | 53811-52050 · 53811-52060 · 53811-52070 · 53811-52150 · 53811-52160 · 53811-52170 · 53811-52180 |
| 53802 | Left front fender sub-assembly | 53812-52040 · 53812-52050 · 53812-52070 · 53812-52150 · 53812-52160 · 53812-52170 · 53812-52180 |
| 53831A | Right front fender side panel | 53831-52010 · 53831-52040 |
| 53832A | Left front fender side panel | 53832-52010 · 53832-52040 |
| 53866 | Right front fender to cowl side seal | 53866-52010 |
| 53867 | Left front fender to cowl side seal | 53867-52010 |

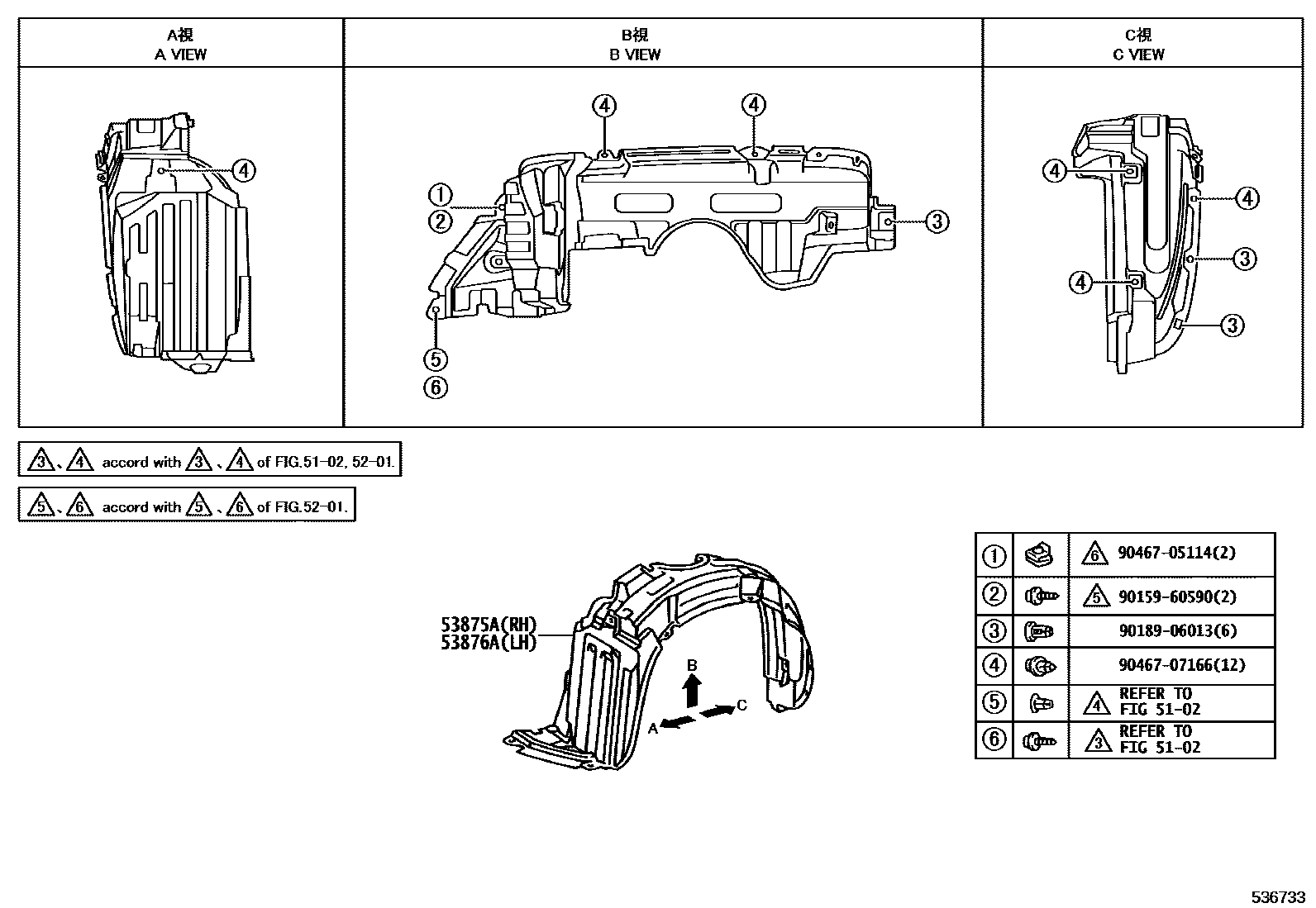

| 53875A | Right front fender lining | 53875-52010 · 53875-52011 · 53875-52012 |
| 53876A | Left front fender lining | 53876-52010 · 53876-52011 · 53876-52012 |
| 53882F | front fender seal | 53882-16030 |
