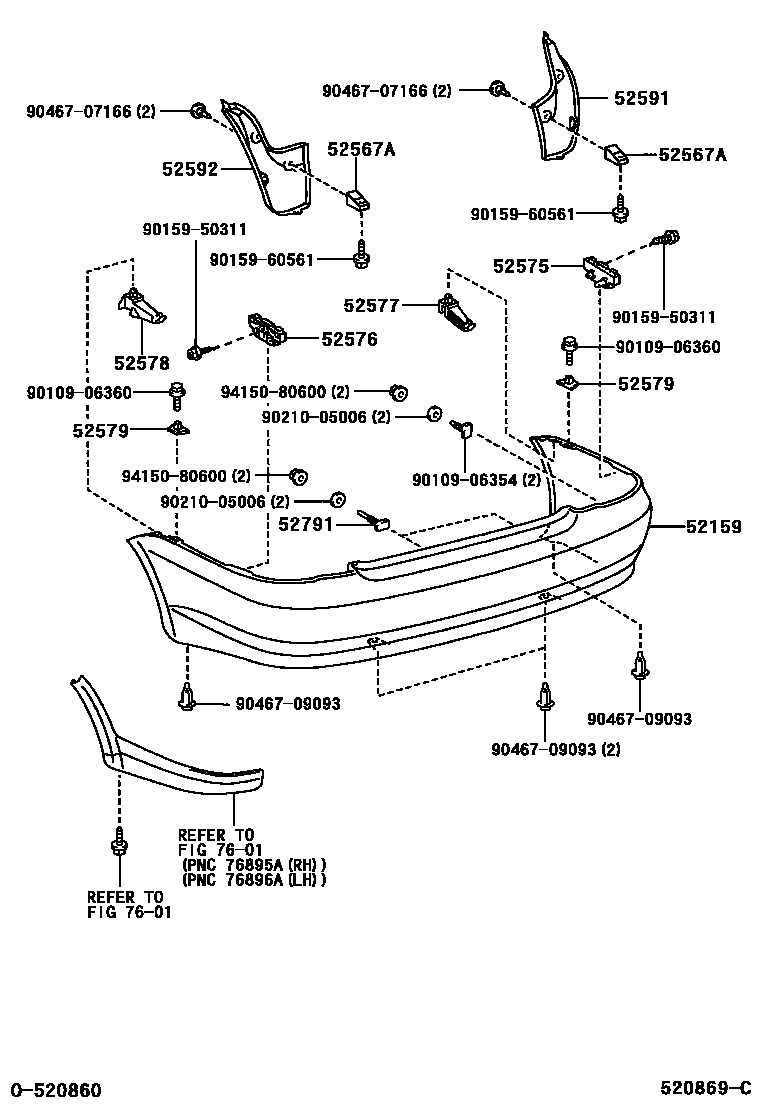

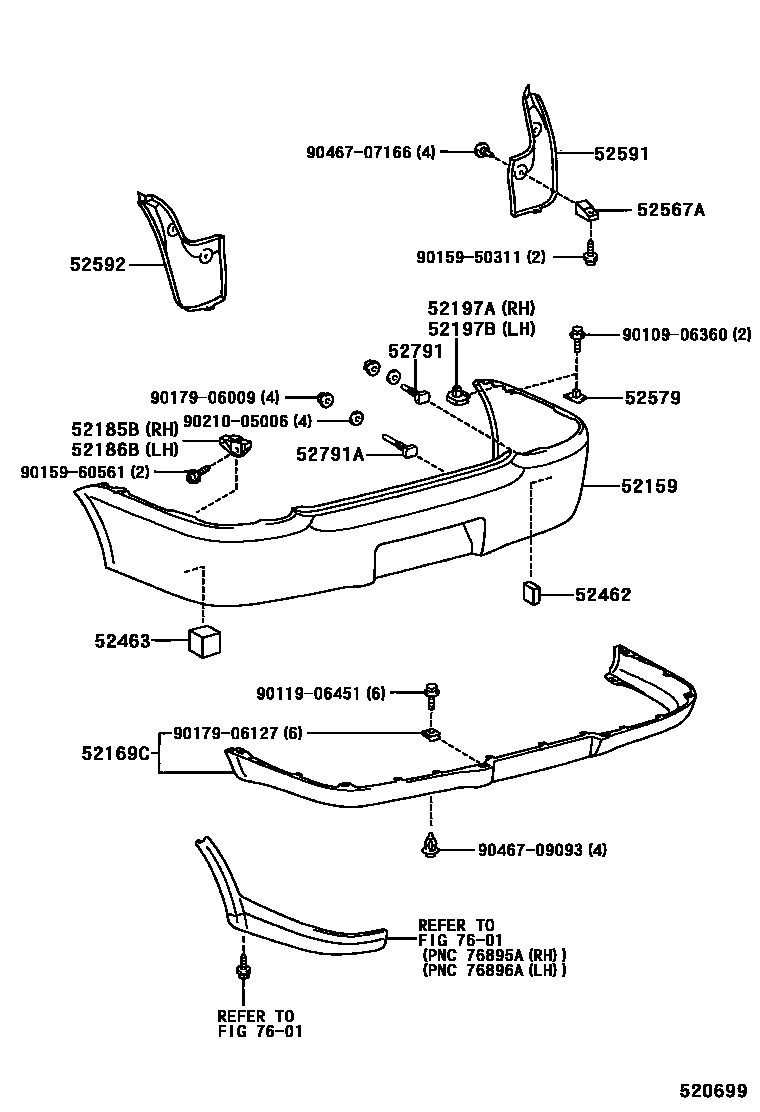

Toyota YARIS 后保险杠及附件 — Figure 5202
Toyota YARIS EPC diagram 5202, 后保险杠及附件, with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52159 | rear bumper cover | 52159-52090 · 52159-52200 · 52159-52340 · 52159-52380 · 52159-52901 |
| 52169C | Rear bumper lower cover | 52169-52010 · 52169-52030 |
| 52185B | Installation support on the right side of the rear bumper | 52185-52020 |
| 52186B | Rear bumper left side mounting support | 52185-52020 |
| 52197A | Rear bumper right seal support | 52197-52010 |
| 52197B | Rear bumper left seal support | 52197-52010 |
| 52462 | Rear bumper right side lining | 52462-52010 |
| 52463 | Rear bumper left lining | 52463-52010 |
| 52567A | Rear bumper lower side fixing bracket | 52567-52010 · 52567-52020 |
| 52575 | Rear bumper right side fixing bracket | 52575-52070 · 52575-52071 |
| 52576 | Rear bumper left side fixing bracket | 52575-52070 · 52575-52071 |
| 52577 | Rear bumper No. 2 right side fixing bracket | 52577-52010 |
| 52578 | Rear bumper No. 2 left side fixing bracket | 52578-52010 |
| 52579 | Rear bumper No. 3 side fixing bracket | 52579-52010 |
| 52591 | Rear bumper right seal | 52591-52040 · 52591-52100 |
| 52592 | Rear bumper left seal | 52592-52040 · 52592-52090 |
| 52791 | Bumper protection strip No. 1 fixing bolt | 52791-12010 · 52791-12040 · 90109-06354 |
| 52791A | Bumper protection strip No. 2 fixing bolt | 52791-12040 · 52791-32010 |
