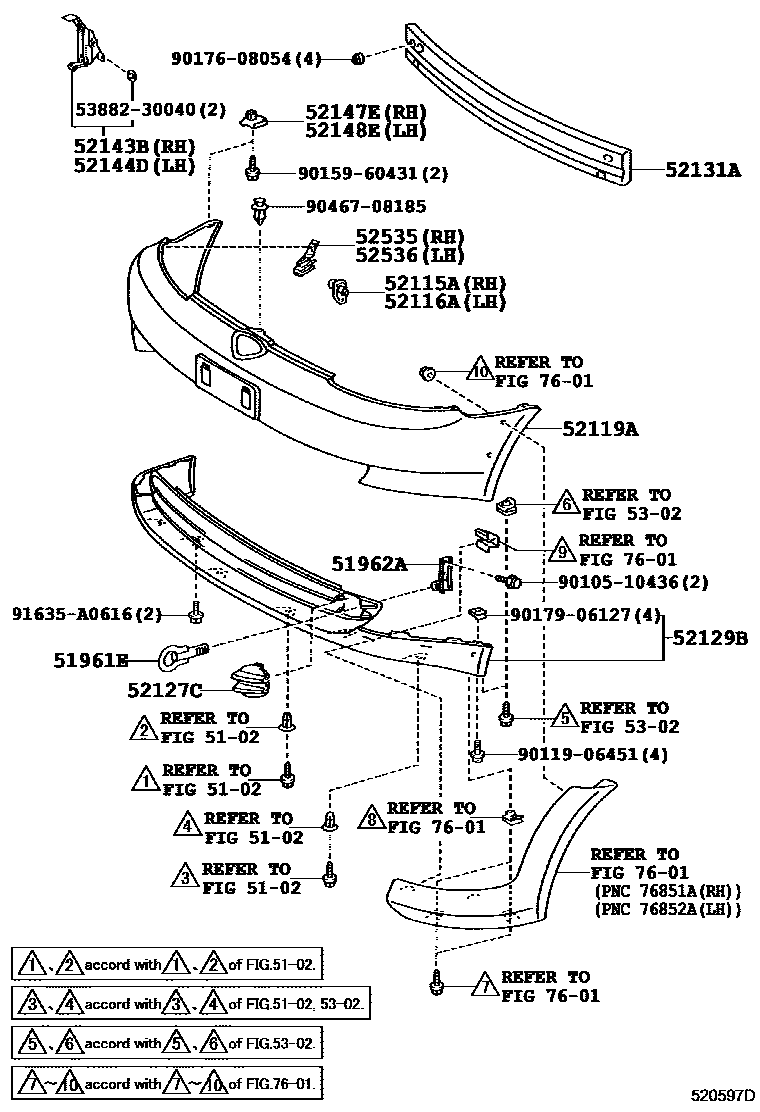

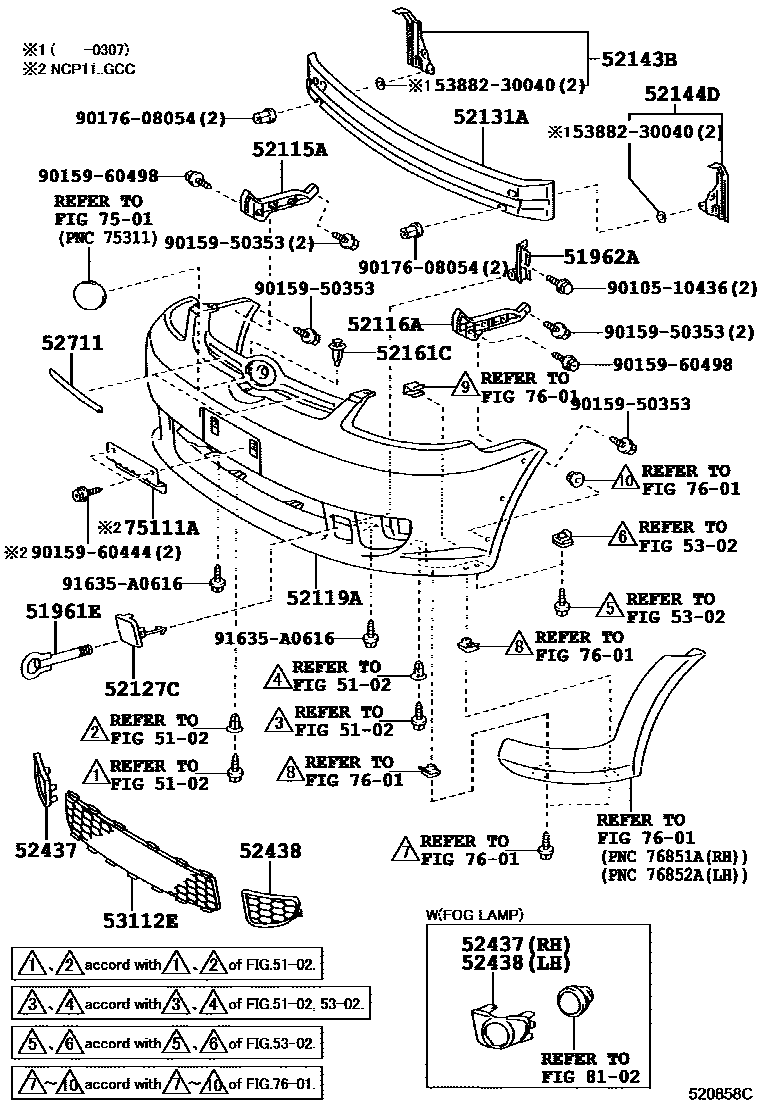

Toyota YARIS 前保险杠及附件 — Figure 5201
Toyota YARIS EPC diagram 5201, 前保险杠及附件, with 2 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51961E | front hook | 51960-52020 · 51960-52080 |
| 51962A | left front hook | 51962-52010 · 51962-52030 |
| 52115A | Front bumper right side bracket | 52115-52010 · 52115-52040 |
| 52116A | Front bumper left bracket | 52116-52010 · 52116-52040 |
| 52119A | front bumper cover | 52119-52090 · 52119-52150 · 52119-52220 · 52119-52240 · 52119-52903 |
| 52127C | Front bumper hole cover | 52127-52050 · 52127-52180 |
| 52129B | Front bumper lower cover | 52129-52040 · 52129-52050 |
| 52131A | Front bumper reinforcement | 52131-52030 · 52131-52070 |
| 52143B | Front bumper side bracket | 52143-52030 · 52143-52060 |
| 52144D | Front bumper left bracket | 52144-52030 · 52144-52060 |
| 52147E | Front bumper right side mounting support | 52147-16080 |
| 52148E | Front bumper left side mounting support | 52147-16080 |
| 52161C | front bumper insert | 52161-20010 |
| 52437 | Front bumper right side anti-collision bar cover | 52437-52020 · 52437-52030 |
| 52438 | Front bumper left anti-collision bar cover | 52438-52020 · 52438-52030 |
| 52535 | Front bumper right side fixing bracket | 52535-52030 |
| 52536 | Front bumper left fixed bracket | 52536-52030 |
| 52711 | Front bumper protection strip | 52711-52020 · 52711-52030 |
| 53112E | No. 1 radiator lower grille | 53112-52080 |
| 75111A | front license plate bracket | 75111-52010 · 75111-52011 |
