Toyota YARIS Rear Spring & Shock Absorber — Figure 4804

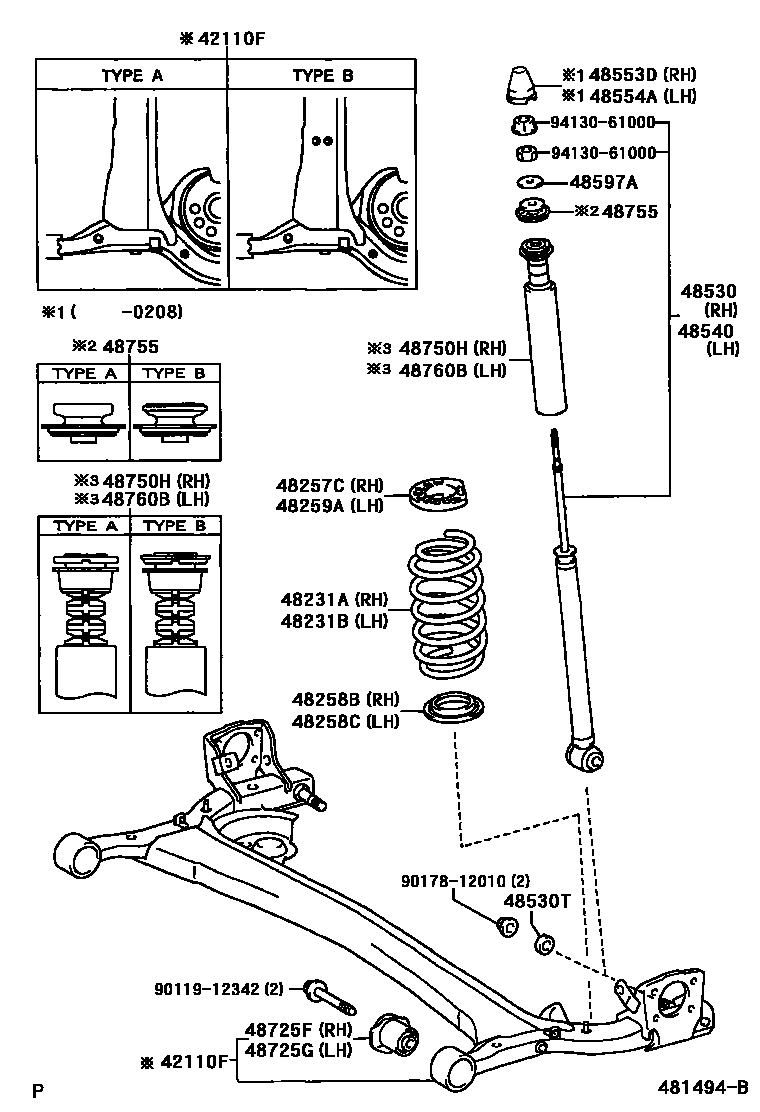

Toyota YARIS EPC diagram 4804, Rear Spring & Shock Absorber, with 1 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42110F | rear axle assembly | 42110-52010 · 42110-52041 · 42110-52042 · 42110-52050 · 42110-52120 · 42110-52130 · 42110-52140 |
| 48231A | Right rear coil spring | 48231-52060 · 48231-52080 · 48231-52120 · 48231-52430 · 48231-52690 |
| 48231B | Left rear coil spring | 48231-52060 · 48231-52080 · 48231-52120 · 48231-52430 · 48231-52690 |
| 48257C | Right rear coil spring upper vibration isolation pad | 48257-52010 |
| 48258B | Right rear coil spring lower vibration isolation pad | 48258-52010 |
| 48258C | Left rear coil spring lower vibration isolation pad | 48258-52010 |
| 48259A | Left rear coil spring upper vibration isolation pad | 48257-52010 |
| 48530 | Right rear shock absorber assembly | 48530-59175 · 48530-59176 · 48530-59177 · 48530-59325 · 48530-59326 · 48530-59327 · 48530-59335 · 48530-59385 · 48530-59386 · 48530-59735 · 48530-59835 · 48530-80227 · 48530-80228 |
| 48530T | Spacer (for rear shock absorber) | 90560-12065 |
| 48540 | Left rear shock absorber assembly | 48530-59175 · 48530-59176 · 48530-59177 · 48530-59325 · 48530-59326 · 48530-59327 · 48530-59335 · 48530-59385 · 48530-59386 · 48530-59735 · 48530-59835 · 48530-80227 · 48530-80228 |
| 48553D | Right rear shock absorber cover | 48553-52010 |
| 48554A | Left rear shock absorber cover | 48553-52010 |
| 48597A | Rear shock absorber buffer pad | 90201-10320 |
| 48725F | Right rear axle bracket bushing | 48725-52010 · 48725-52011 · 48725-52020 · 48725-52021 |
| 48725G | Left rear axle bracket bushing | 48725-52010 · 48725-52011 · 48725-52020 · 48725-52021 |
| 48750H | Right rear suspension support assembly | 48750-52010 · 48750-52090 |
| 48755 | rear suspension mount | 48755-52010 · 48755-52070 |
| 48760B | Left rear suspension support assembly | 48750-52010 · 48750-52090 |
