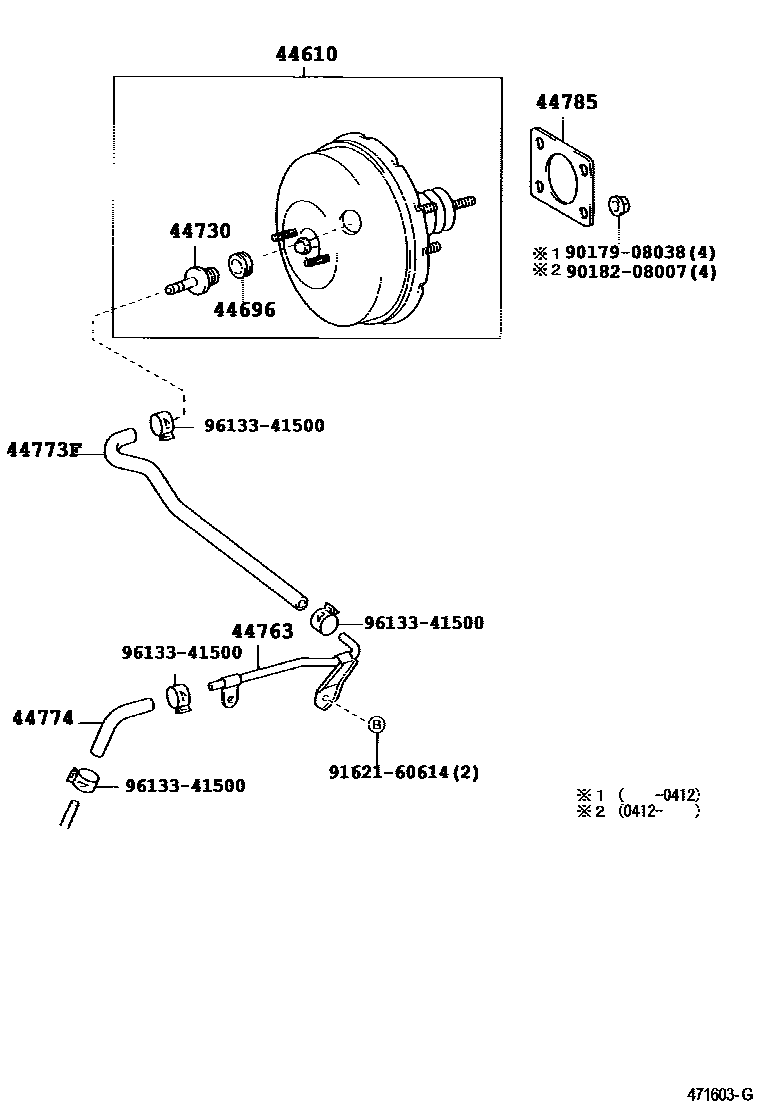

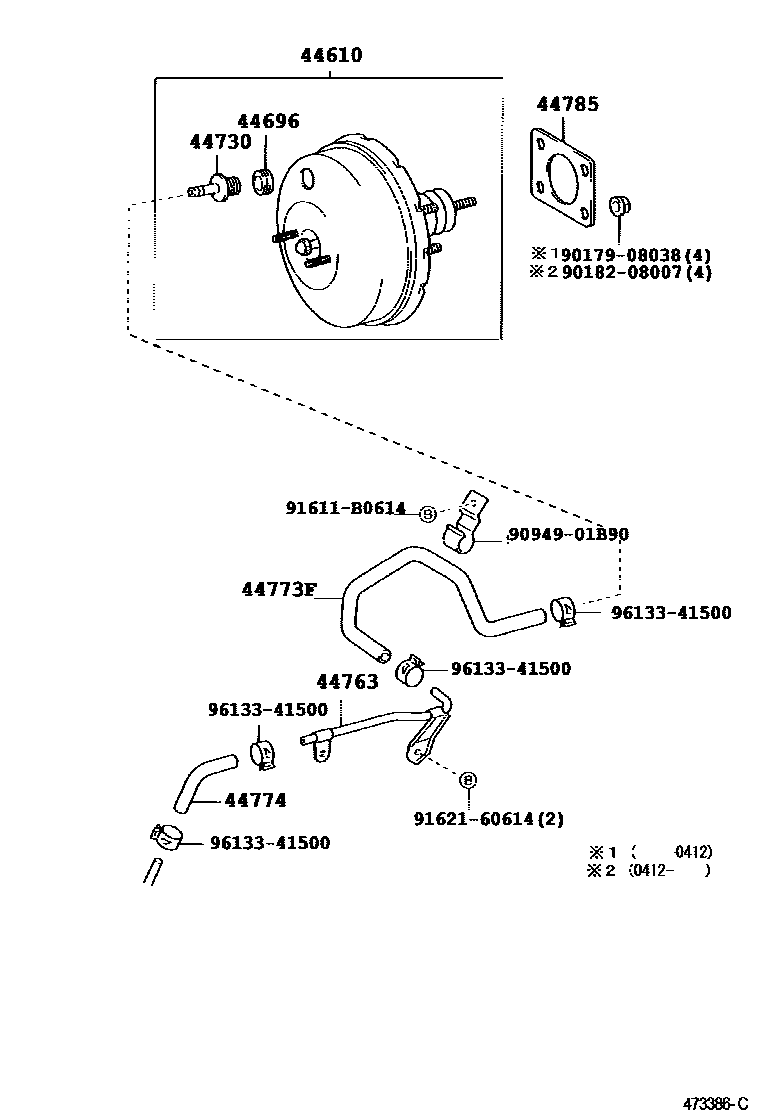

Toyota YARIS 制动助力器和真空管 — Figure 4703
Toyota YARIS EPC diagram 4703, 制动助力器和真空管, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-52020 · 44610-52021 · 44610-52022 · 44610-52030 · 44610-52040 · 44610-52050 · 44610-52051 |
| 44696 | One-way valve seal | 90480-24015 · 90480-24439 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-20080 · 44730-28030 · 44730-30010 |
| 44763 | booster vacuum tube | 44763-52010 |
| 44773F | Hoses (connector to check valve) | 44773-52020 · 44773-52040 |
| 44774 | Hoses (joints to connector tubes) | 95446-09130 |
| 44785 | brake booster pad | 44785-16020 |
