Toyota YARIS 制动总泵 — Figure 4702

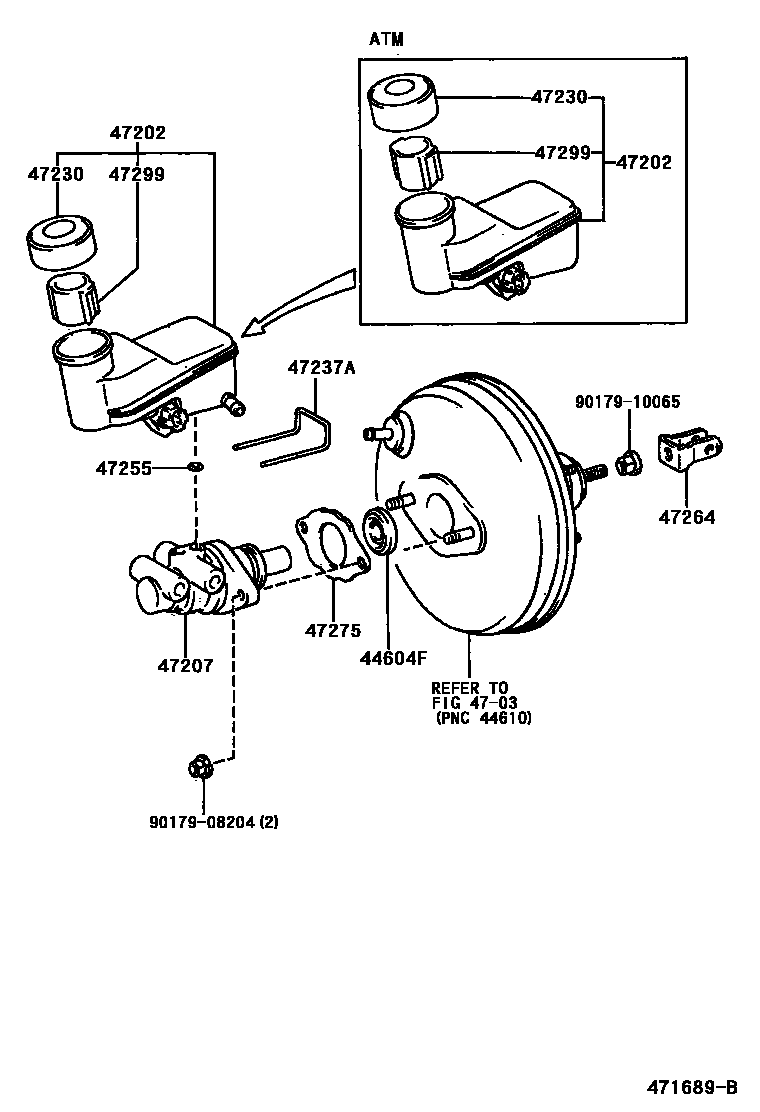

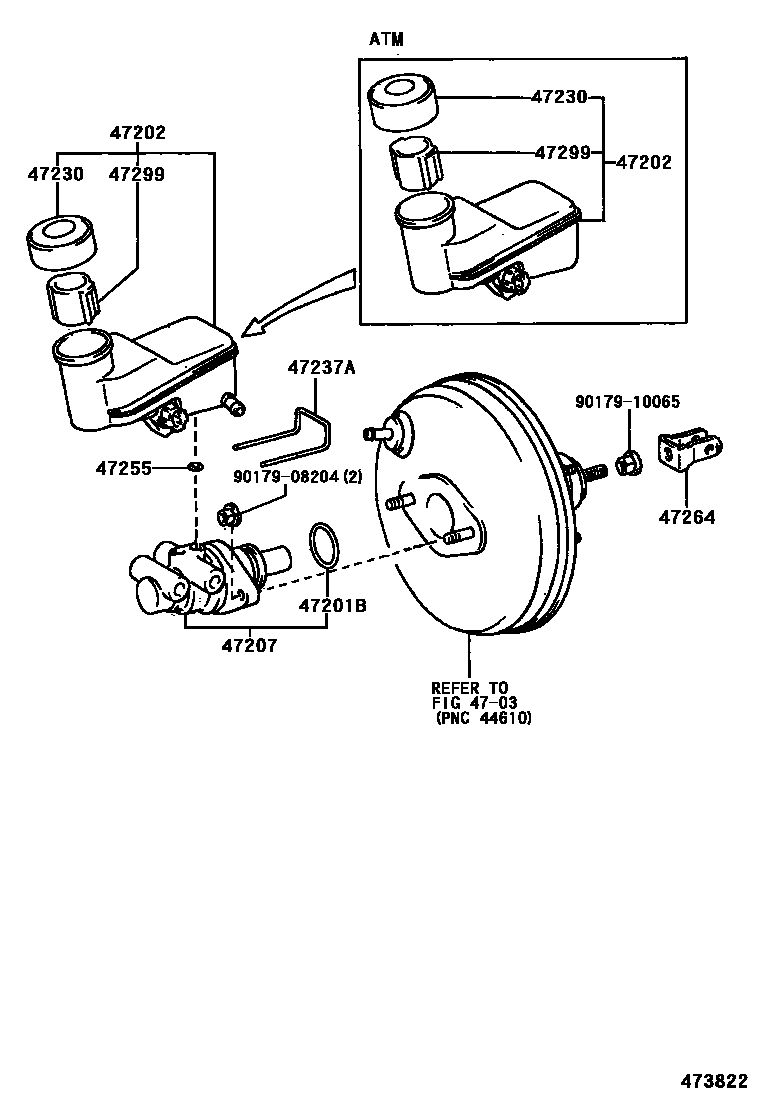

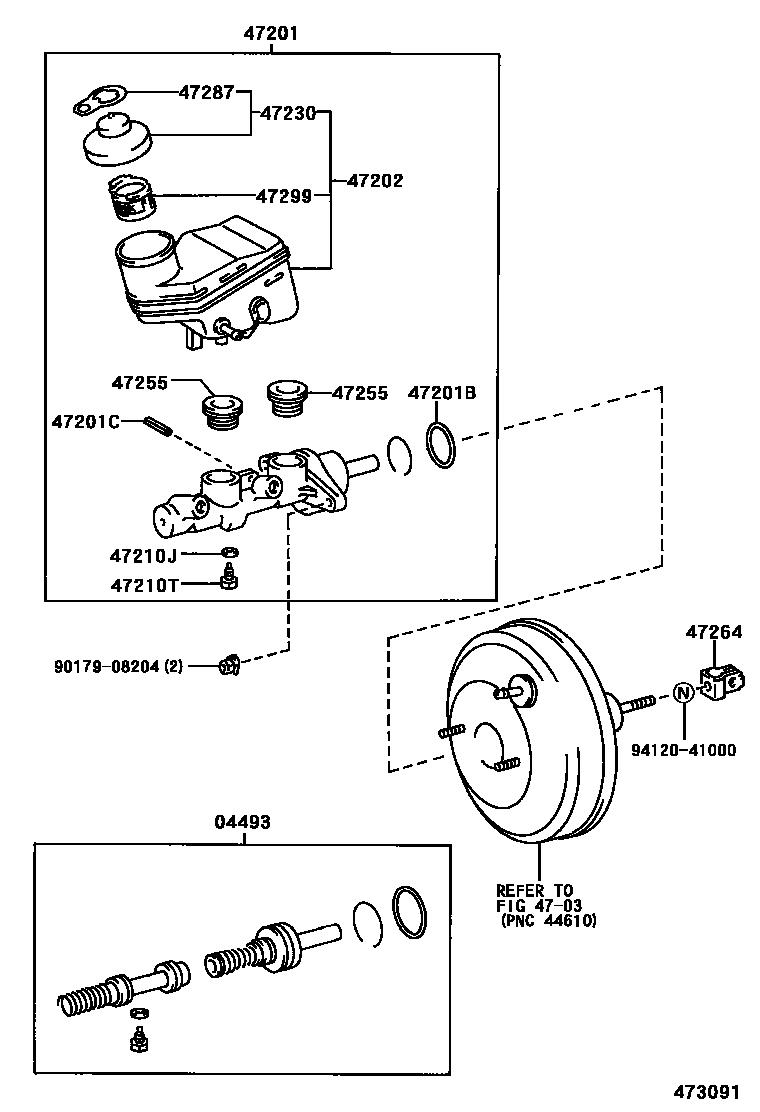

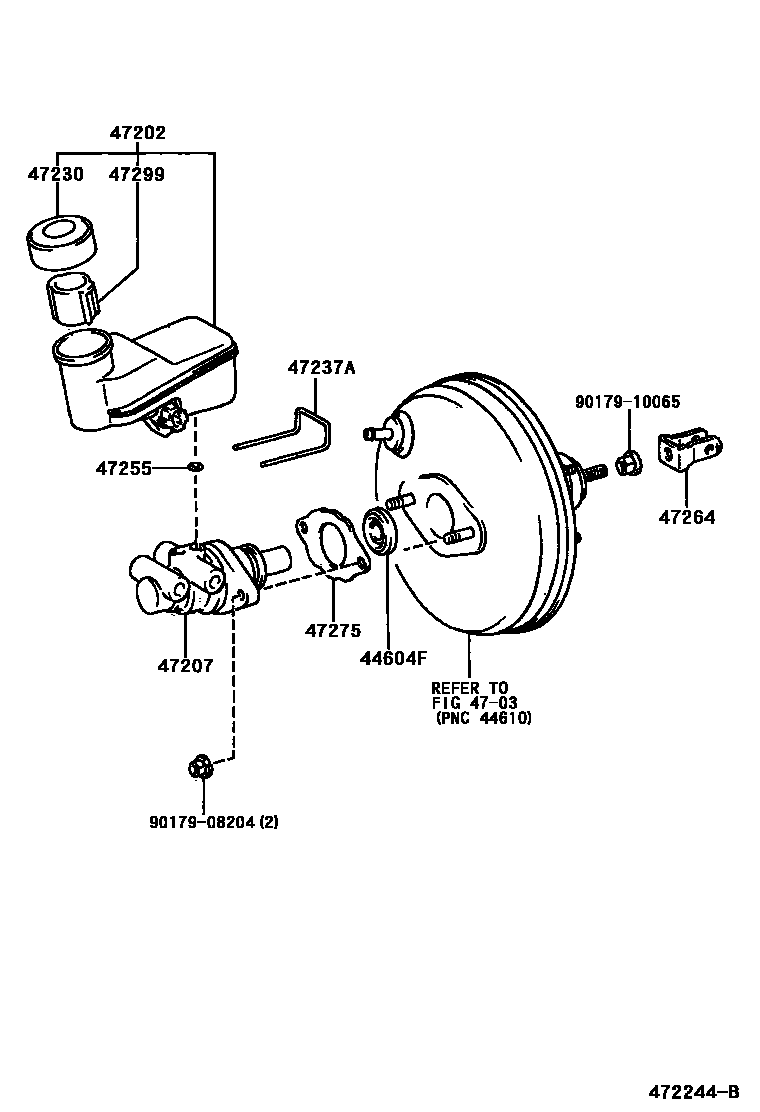

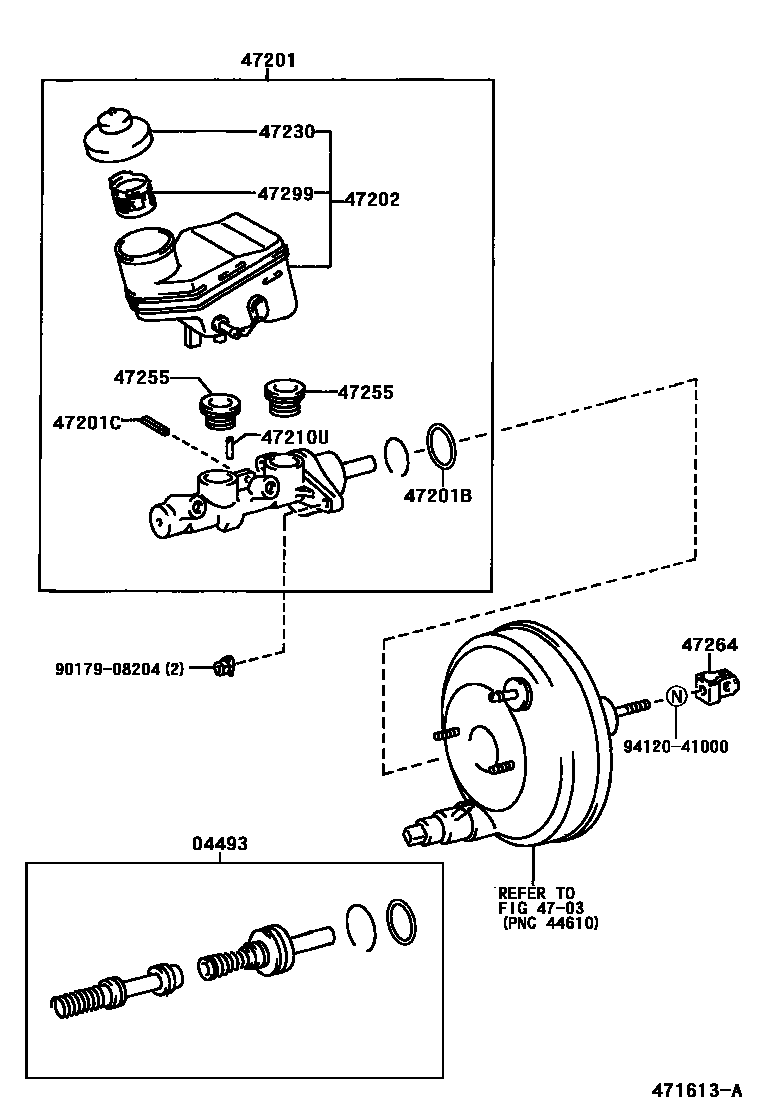

Toyota YARIS EPC diagram 4702, 制动总泵, with 5 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04493 | Brake master cylinder assembly | 04493-52020 · 04493-52030 |
| 44604F | Brake booster body seal | 44604-52070 |
| 47201 | Brake master cylinder sub-assembly | 47201-52031 · 47201-52041 · 47201-52051 · 47201-52061 |
| 47201B | O-ring (for brake master cylinder) | 90015-EH001 · 90029-20059 |
| 47201C | Brake master cylinder ring pin | 90029-15804 |
| 47202 | Brake master cylinder reservoir sub-assembly | 47220-52030 · 47220-52040 · 47220-52050 · 47220-52060 · 47220-52070 · 47220-52080 |
| 47207 | Brake master cylinder sub-assembly without fluid reservoir | 47207-52011 · 47207-52012 · 47207-52021 · 47207-52022 · 47207-52031 |
| 47210J | Gasket (for master cylinder) | 90430-06104 |
| 47210T | Bolt (for brake master cylinder) | 90109-06077 |
| 47210U | Direct sales (for brake master cylinder) | 90029-14204 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-20140 · 47230-52030 |
| 47237A | Brake master cylinder reservoir block | 47237-52010 |
| 47255 | Master pump reservoir seal | 31417-35010 · 47255-52010 |
| 47264 | Master cylinder push rod U-shaped clamp | 47264-52010 · 47264-52020 |
| 47275 | brake master cylinder gasket | 47275-52010 |
| 47287 | brake fluid information label | 47287-20010 |
| 47299 | Brake master cylinder reservoir filter | 47299-20060 · 47299-52010 |
