Toyota YARIS Steering Wheel — Figure 4504

Toyota YARIS EPC diagram 4504, Steering Wheel, with 2 images and 3 PNC and OE references.

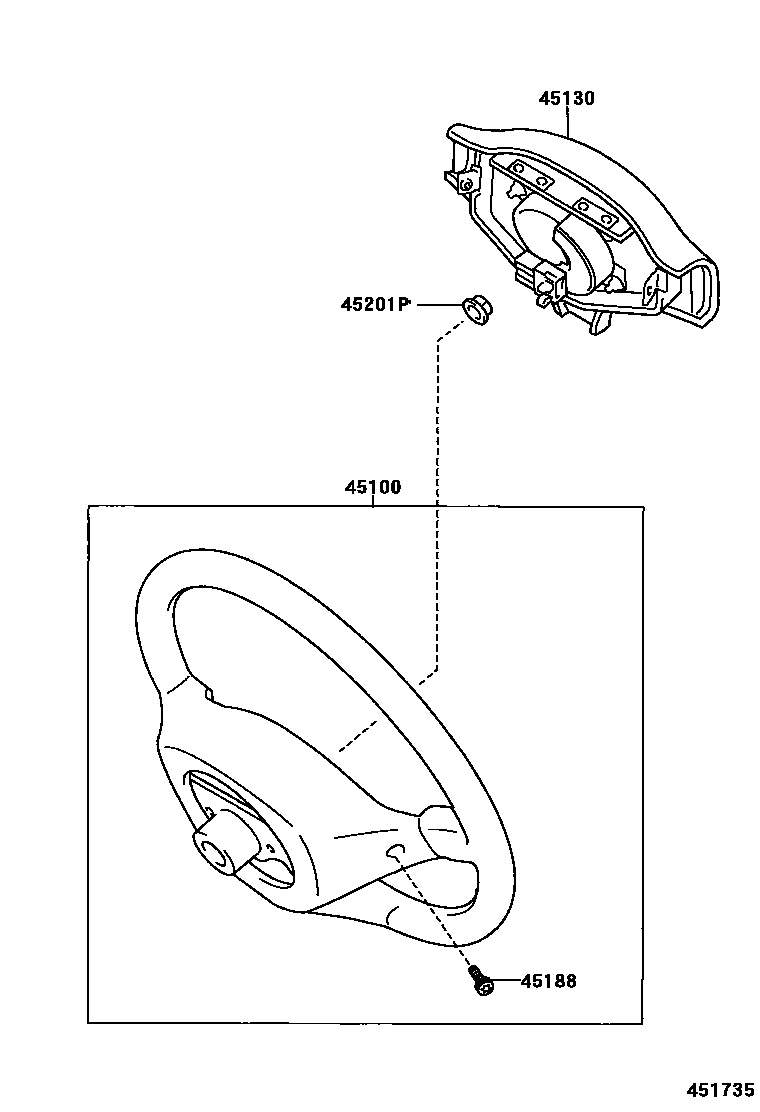

Toyota YARIS Steering Wheel EPC diagram — 451735
Steering Wheel — 451735 (199908 – 999999)

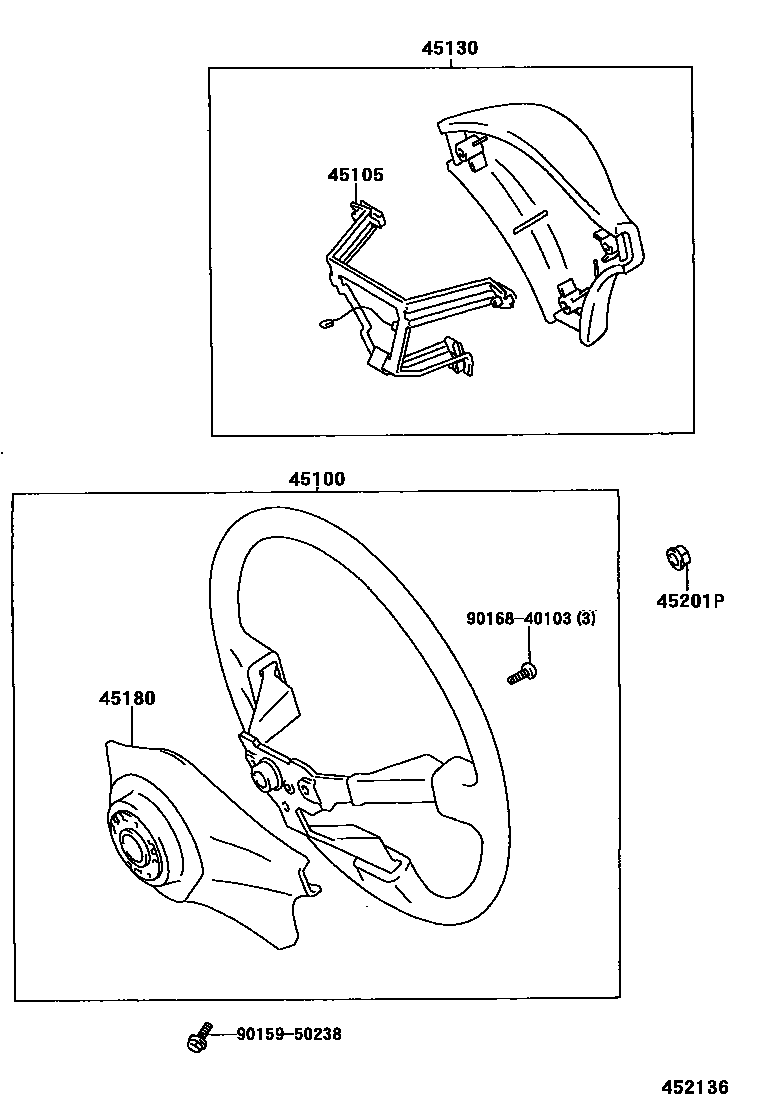

Toyota YARIS Steering Wheel EPC diagram — 452136
Steering Wheel — 452136 (199908 – 999999)

PNC and OE references

PNCPart nameOE numbers
45105No. 1 horn button contact piece sub-assembly45105-16200
45188Steering wheel trim cover fixing screws90148-60026
45201PSteering wheel fixing nut90179-12071
