Toyota YARIS Steering Column & Shaft — Figure 4501

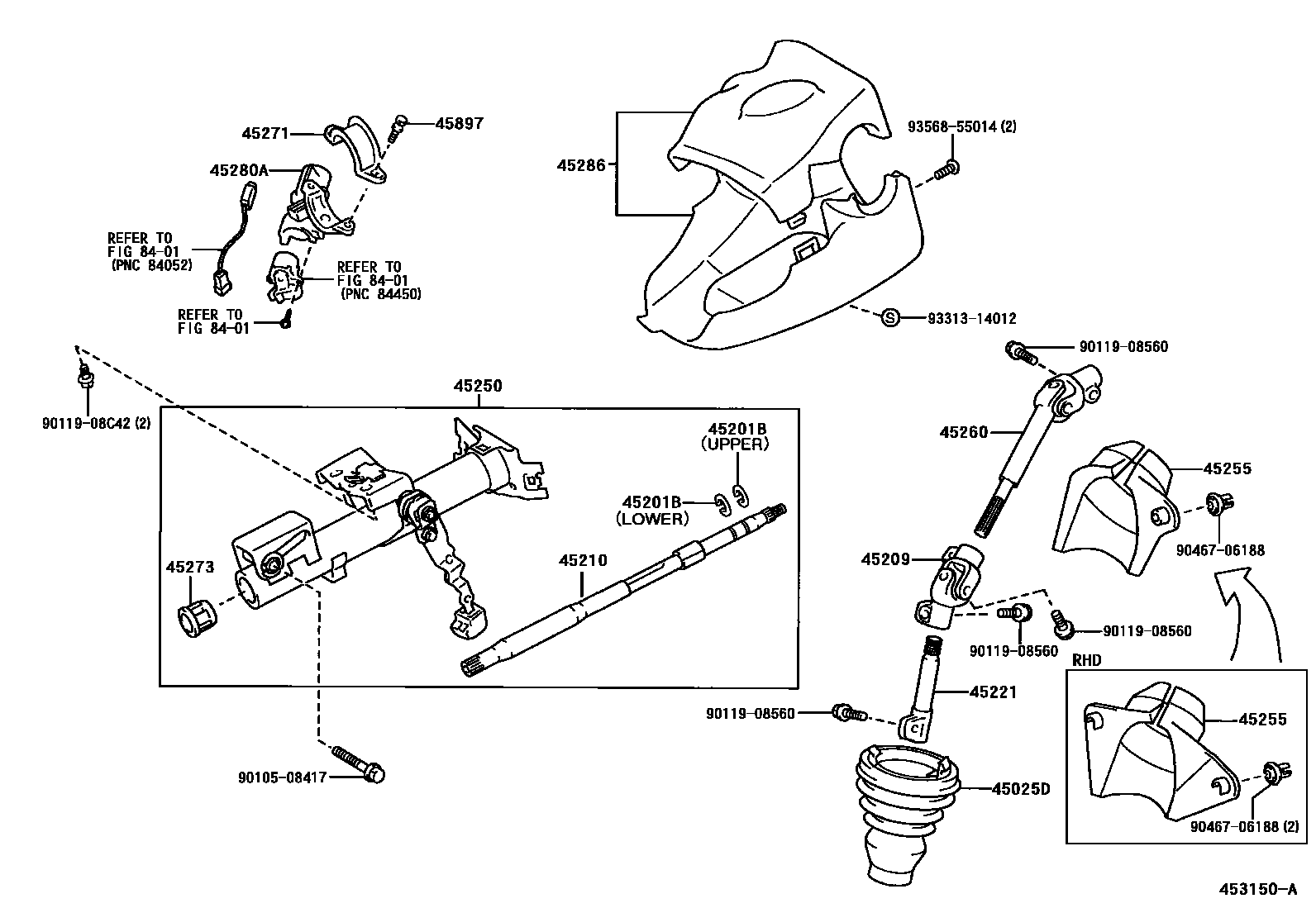

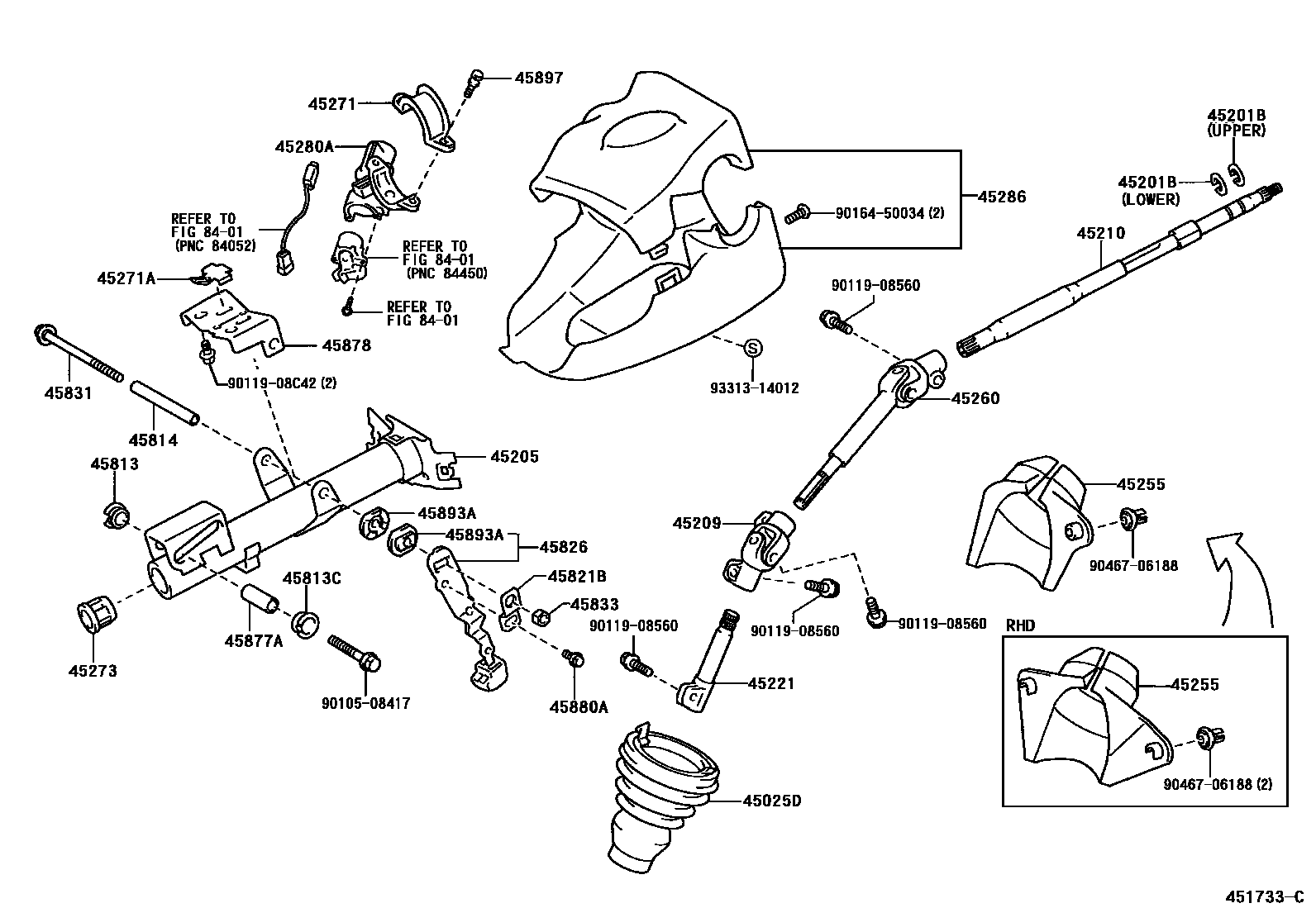

Toyota YARIS EPC diagram 4501, Steering Column & Shaft, with 2 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45025D | No. 1 steering column hole cover sub-assembly | 45025-52010 · 45025-52011 · 45025-52020 · 45025-52030 · 45025-52040 |
| 45201B | Shaft snap ring (for steering spindle) | 90520-17042 · 90520-17269 |
| 45205 | Steering column tube sub-assembly | 45205-52010 |
| 45209 | Steering slip fork sub-assembly | 45209-52020 |
| 45210 | Steering spindle assembly | 45210-52010 |
| 45221 | steering intermediate shaft | 45297-52010 · 45297-52020 |
| 45250 | Steering column assembly | 45250-52010 |
| 45255 | Steering column hole cover | 45255-52010 · 45255-52020 · 45255-52060 |
| 45260 | No. 2 steering intermediate shaft assembly | 45260-52010 · 45260-52070 |
| 45271 | Clamp on steering column | 45271-16020 |
| 45271A | No. 2 steering column upper clamp | 45271-52010 |
| 45273 | Steering spindle bushing | 45273-33030 |
| 45280A | Steering column upper bracket assembly | 45280-52010 · 45280-52020 · 45280-52030 · 45280-52040 |
| 45813 | No. 1 tilt-adjustable steering bracket collar | 45813-52010 |
| 45813C | No. 1 tilt-adjustable steering bracket collar | 45813-52020 |
| 45814 | No. 2 tilt-adjustable steering bracket collar | 45814-52010 |
| 45821B | No. 1 tilt-adjustable steering bracket reinforcement | 45821-52010 |
| 45826 | Steering tilt adjustment lever | 45826-52011 |
| 45831 | No. 1 tilt adjustment lever locking bolt | 45831-52010 |
| 45833 | Tilt-adjustable steering column adjustment nut No. 1 | 45833-52010 |
| 45877A | Steering column bracket support rod | 45877-52010 |
| 45878 | Steering column upper bracket | 45878-52010 |
| 45880A | Bolt (for steering tilt adjustment lever) | 45832-12010 |
| 45893A | Tilt-adjustable steering pawl stop | 45893-52010 |
| 45897 | Steering lock fixing bolt | 45897-12020 |
