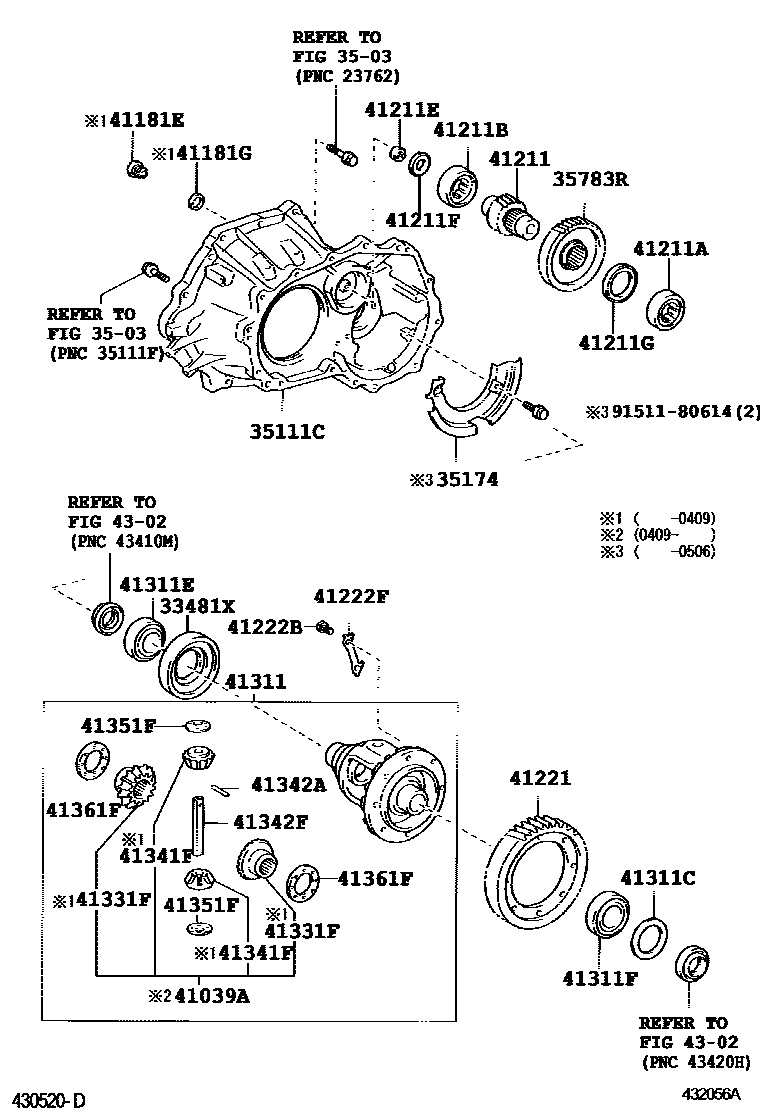

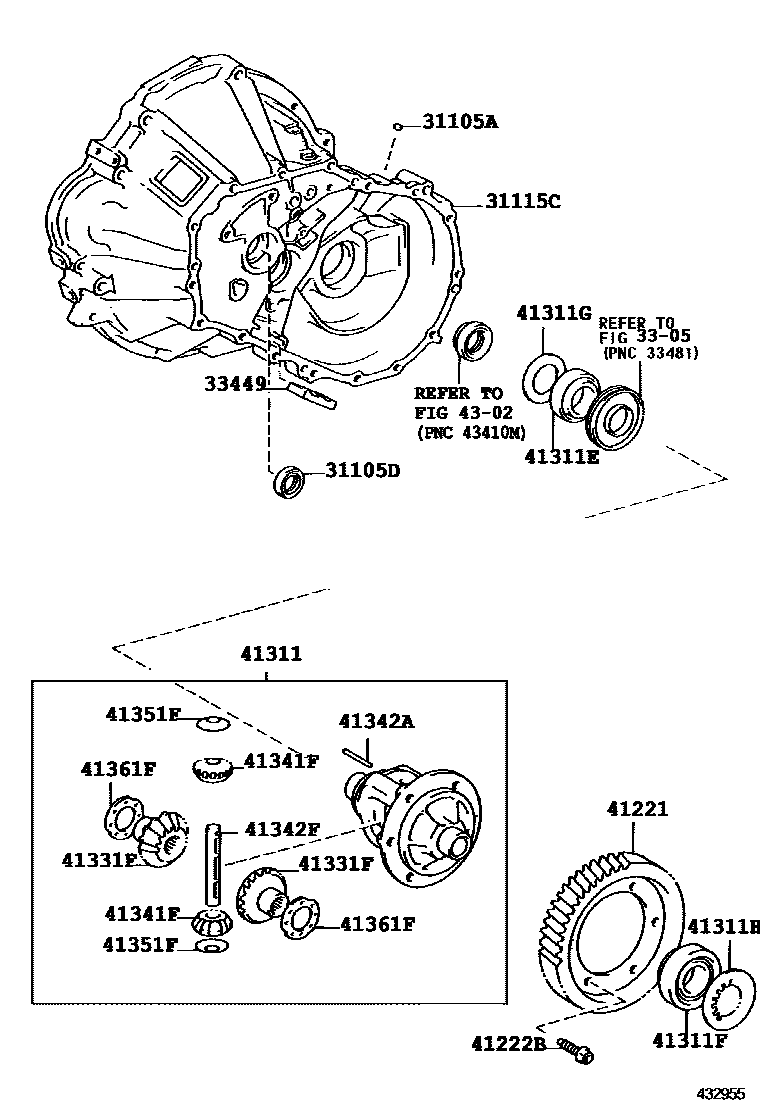

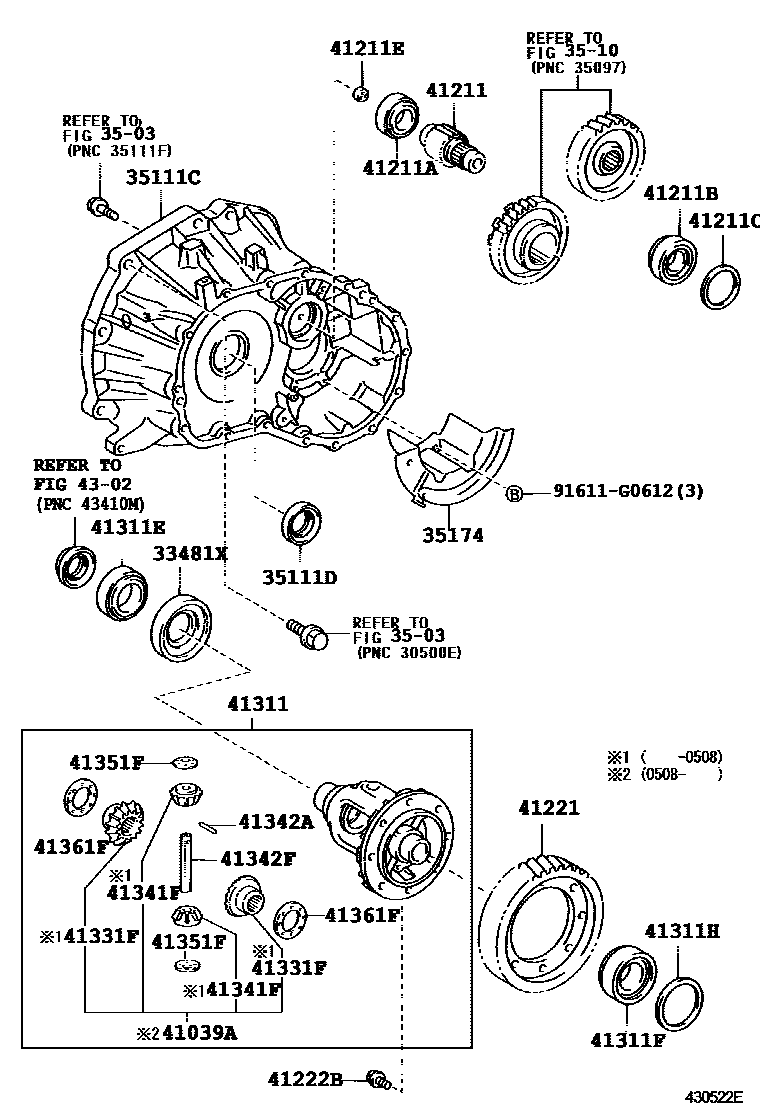

Toyota YARIS 前桥壳和差速器 — Figure 4301
Toyota YARIS EPC diagram 4301, 前桥壳和差速器, with 3 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31105A | Sealing plug (for front transaxle housing) | 90331-08002 |
| 31105D | No. 1 oil seal (for front transmission axle housing) | 90311-25011 · 90311-25016 · 90311-25028 |
| 31115C | Front transmission axle housing (MTM) | 31115-52010 |
| 33449 | derailleur magnet | 33449-12020 |
| 33481X | speedometer drive gear | 33481-12040 · 33481-32010 |
| 35111C | Transmission axle housing | 35105-52070 · 35105-52071 · 35105-52090 |
| 35111D | Oil seal (for transaxle housing) | 90311-38075 |
| 35174 | Transmission axle housing oil separator | 35174-52020 · 35174-52030 |
| 35783R | countershaft driven gear | 35783-52020 |
| 41039A | Differential gear assembly | 41039-12010 · 41039-44020 |
| 41181E | Screw plug (for front differential drain port) | 90341-18021 |
| 41181G | Gasket (for front differential drain plug) | 90430-18008 |
| 41211 | Differential drive pinion | 41211-52010 · 41211-52030 |
| 41211A | Front roller tapered bearing (for front driving pinion) | 90365-35004 · 90366-30079 |
| 41211B | Rear tapered bearing (for front driving pinion) | 90365-35003 · 90366-29004 |
| 41211C | differential ring gear | 90564-51039 · 90564-51040 · 90564-51041 · 90564-51042 · 90564-51043 · 90564-51044 · 90564-51045 · 90564-51046 · 90564-51047 · 90564-51048 · 90564-51049 · 90564-51050 · 90564-51051 · 90564-51052 · 90564-51053 · 90564-51054 · 90564-51055 · 90564-51056 · 90564-51057 · 90564-51058 · 90564-51059 · 90564-51060 · 90564-51061 · 90564-51062 · 90564-51063 |
| 41211E | Plug (for differential drive pinion) | 90331-17017 · 90339-13005 |
| 41211F | Right side thrust needle bearing (for front drive pinion) | 90374-18005 |
| 41211G | Left side thrust needle bearing (for front drive pinion) | 90374-45001 |
| 41221 | Front differential ring gear | 41221-10181 · 41221-10201 · 41221-10211 · 41221-52010 · 41221-52050 |
| 41222B | Bolt (for front differential ring gear assembly) | 90101-11003 · 90105-11040 · 90105-12100 |
| 41222F | Front differential ring gear fixing bolt locking plate | 41222-32010 |
| 41311 | front differential case | 41301-10061 · 41301-52010 · 41301-52040 · 41301-52070 |
| 41311C | Rear gasket (for front differential case) | 90564-49001 · 90564-49002 · 90564-49003 · 90564-49004 · 90564-49005 · 90564-49006 · 90564-49007 · 90564-49008 · 90564-49009 · 90564-49010 · 90564-49011 · 90564-49012 · 90564-49013 · 90564-49014 · 90564-49015 · 90564-49016 · 90564-49017 · 90564-49018 · 90564-49019 |
| 41311E | Roller cone bearing (for front differential housing) | 90080-36101 · 90366-38004 · 90366-38026 · 90366-40016 |
| 41311F | Rear tapered bearing (for front differential housing) | 90366-38023 · 90366-44001 · 90368-38010 |
| 41311G | Front flat washer (for front differential case) | 90560-41002 · 90560-41003 |
| 41311H | Rear flat washer (for front differential case) | 90564-41014 · 90564-41015 · 90564-41016 · 90564-41017 · 90564-41018 · 90564-41019 · 90564-41020 · 90564-41021 · 90564-41022 · 90564-41023 · 90564-41024 · 90564-41025 · 90564-41026 · 90564-41027 · 90564-41028 · 90564-41029 · 90564-41030 · 90564-41031 · 90564-41032 · 90564-57012 · 90564-57013 · 90564-57014 · 90564-57015 · 90564-57016 · 90564-57017 · 90564-57018 · 90564-57019 · 90564-57020 · 90564-57021 · 90564-57022 · 90564-57023 · 90564-57024 · 90564-57025 · 90564-57026 · 90564-57027 · 90564-57028 · 90564-57029 · 90564-57030 · 90564-57031 · 90564-57032 · 90564-57033 · 90564-57034 |
| 41331F | Front differential side gear | 41331-10042 · 41331-12011 |
| 41341F | Front differential planetary gear | 41341-10030 · 41341-12030 |
| 41342A | Direct sales (for front differential planetary gear shaft) | 90250-04053 · 90250-06058 |
| 41342F | No. 1 front differential planetary gear shaft | 41342-10041 · 41342-20060 |
| 41351F | Front differential planetary gear thrust washer | 41351-10030 · 41351-12020 · 41351-52010 |
| 41361F | No. 1 front differential side gear thrust washer | 41361-10070 · 41361-10080 · 41361-10090 · 41361-10100 · 41361-10110 · 41361-10120 · 41361-17010 · 41361-17020 · 41361-17030 · 41361-17040 · 41361-17050 · 41361-17060 · 41361-52010 · 41361-52020 · 41361-52030 · 41361-52040 · 41361-52050 · 41361-52060 |
