Toyota YARIS 离合器壳和变速器壳(MTM) — Figure 3302

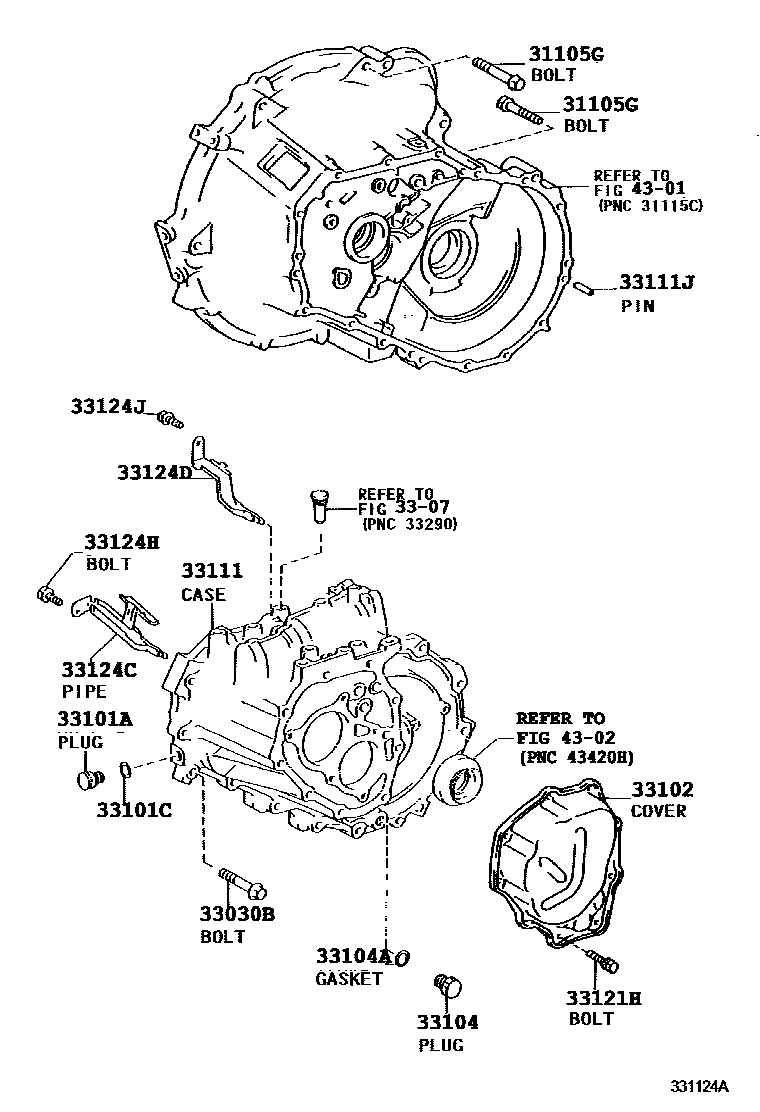

Toyota YARIS EPC diagram 3302, 离合器壳和变速器壳(MTM), with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31105G | Bolts (for securing transaxle housing and engine) | 91612-61050 |
| 33030B | Bolts (for securing transaxle housing and gearbox) | 90105-08086 · 90105-08430 |
| 33101A | Screw plug (for manual transmission oil filler port) | 90341-18006 · 90341-18033 |
| 33101C | Gasket (for manual transmission filler plug) | 90430-18008 |
| 33102 | Manual transmission cover sub-assembly | 33102-10023 |
| 33104 | Drain plug sub-assembly (MTM) | 90341-18006 · 90341-18033 |
| 33104A | Drain plug gasket (MTM) | 90430-18008 |
| 33111 | Manual transmission housing | 33111-16053 |
| 33111J | Direct sales (for manual transmission) | 90250-08054 |
| 33121H | Bolt with washer (for gearbox cover) | 90119-08373 · 90119-08A34 |
| 33124C | No. 1 oil collecting pipe (MTM) | 33124-10012 |
| 33124D | No. 2 oil collecting pipe (MTM) | 33124-10021 |
| 33124H | Bolt (for oil collection pipe) | 91611-60820 · 91611-G0820 |
| 33124J | Bolts with washers | 91611-60820 · 91611-G0820 |
