Toyota YARIS 离合器踏板和挠性软管 — Figure 3102

Toyota YARIS EPC diagram 3102, 离合器踏板和挠性软管, with 3 images and 15 PNC and OE references.

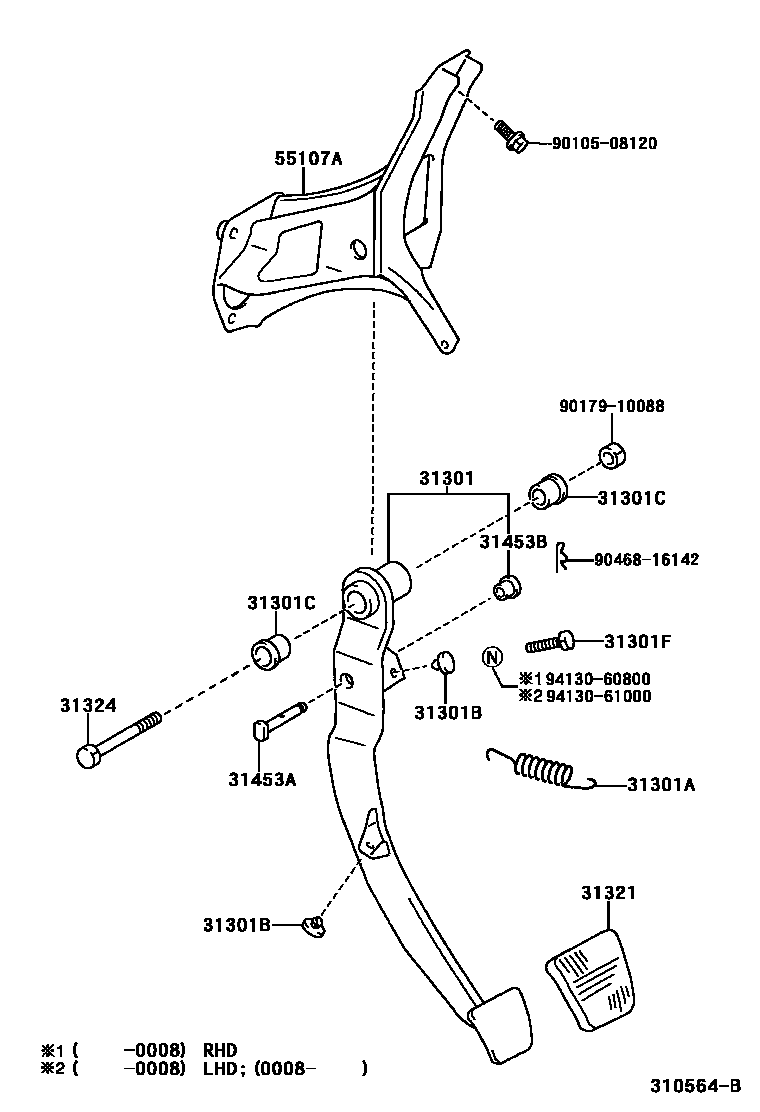

Toyota YARIS 离合器踏板和挠性软管 EPC diagram — 310564B
离合器踏板和挠性软管 — 310564B (199908 – 999999)

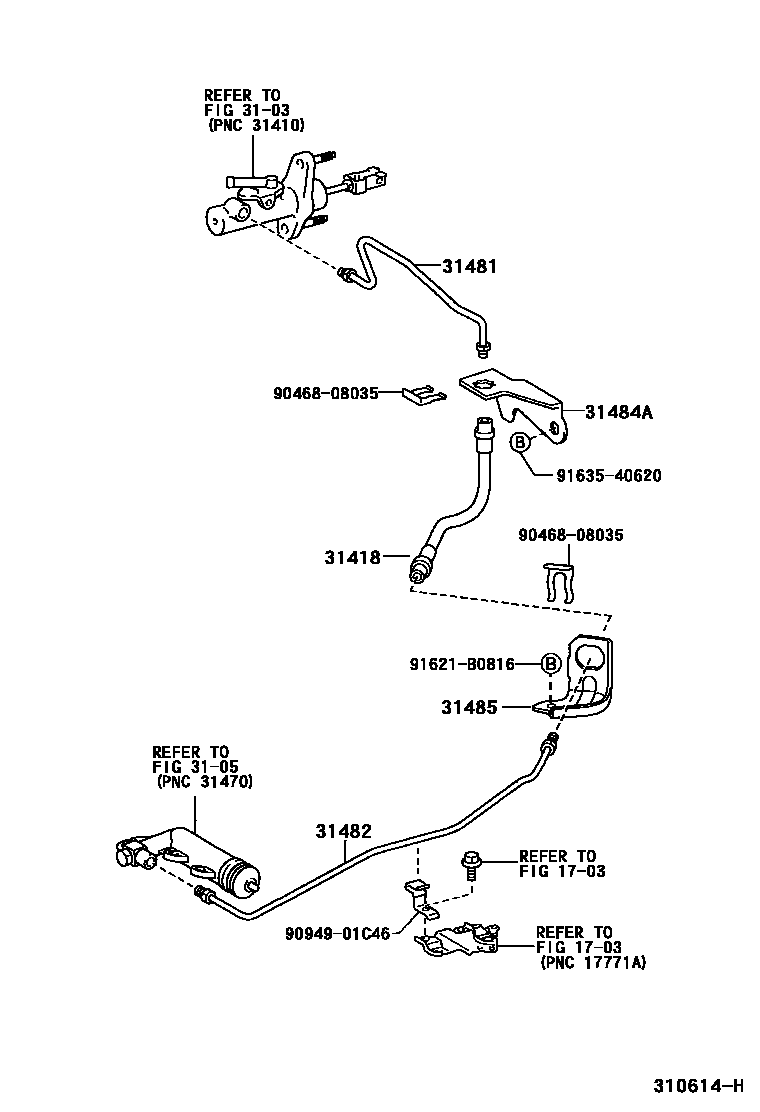

Toyota YARIS 离合器踏板和挠性软管 EPC diagram — 310614H
离合器踏板和挠性软管 — 310614H (199908 – 999999)

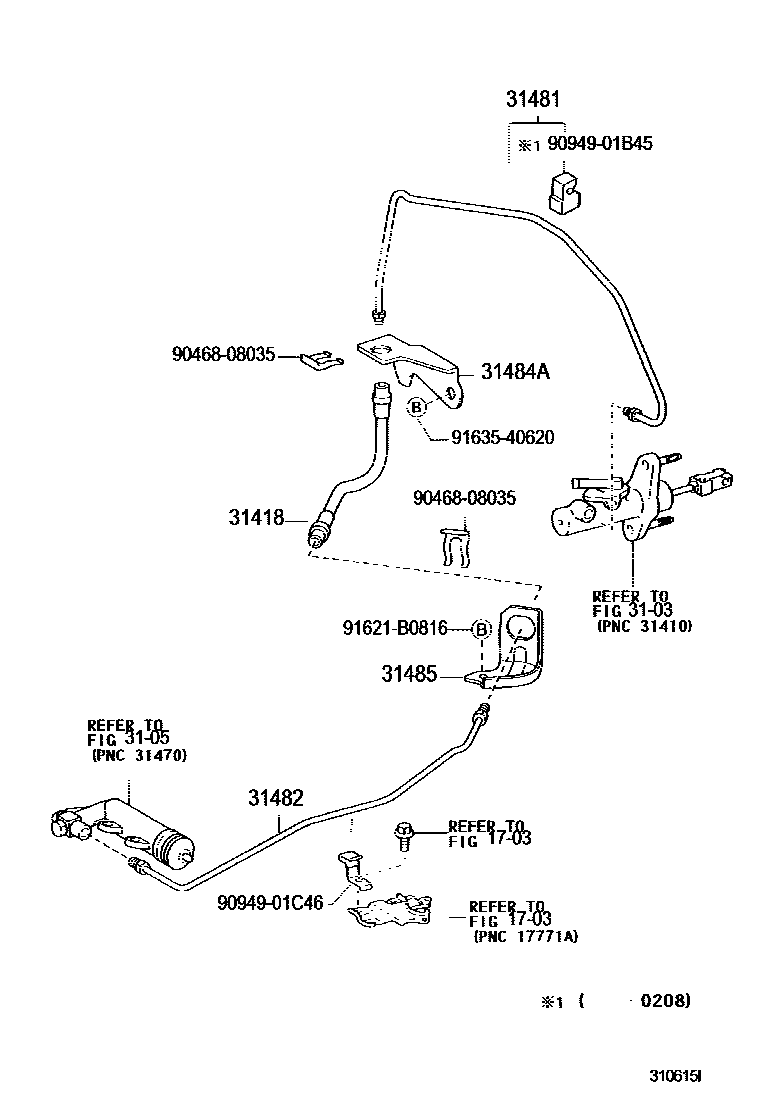

Toyota YARIS 离合器踏板和挠性软管 EPC diagram — 310615I
离合器踏板和挠性软管 — 310615I (199908 – 999999)

PNC and OE references

PNCPart nameOE numbers
31301Clutch pedal sub-assembly31301-52010 · 31301-52020
31301ASpring (for clutch pedal)90507-14047
31301BCushion pad No. 1 (for clutch pedal)90541-06036
31301CBushing (for clutch pedal)90386-13015
31301FBolt (for clutch pedal stop)90101-08052 · 90101-10369
31321clutch pedal pad31321-52010
31324clutch pedal shaft90109-10167
31418clutch hose90931-01137
31453APin with hole (for clutch master cylinder push rod U-shaped clamp)90249-08243 · 90249-08294
31453BBushing (for clutch master cylinder push rod U-shaped clamp)90386-08002
31481Clutch master cylinder to flexible hose pipe31481-52010 · 31481-52020 · 31481-52030
31482Pipe from clutch release cylinder to flexible hose31482-52020
31484ANo. 1 flexible hose bracket (for clutch)31484-52010
31485No. 2 flexible hose bracket (for clutch)31484-52020
55107AClutch pedal bracket sub-assembly55107-52010 · 55107-52011 · 55107-52021 · 55107-52040
