Toyota YARIS Alternator — Figure 1903

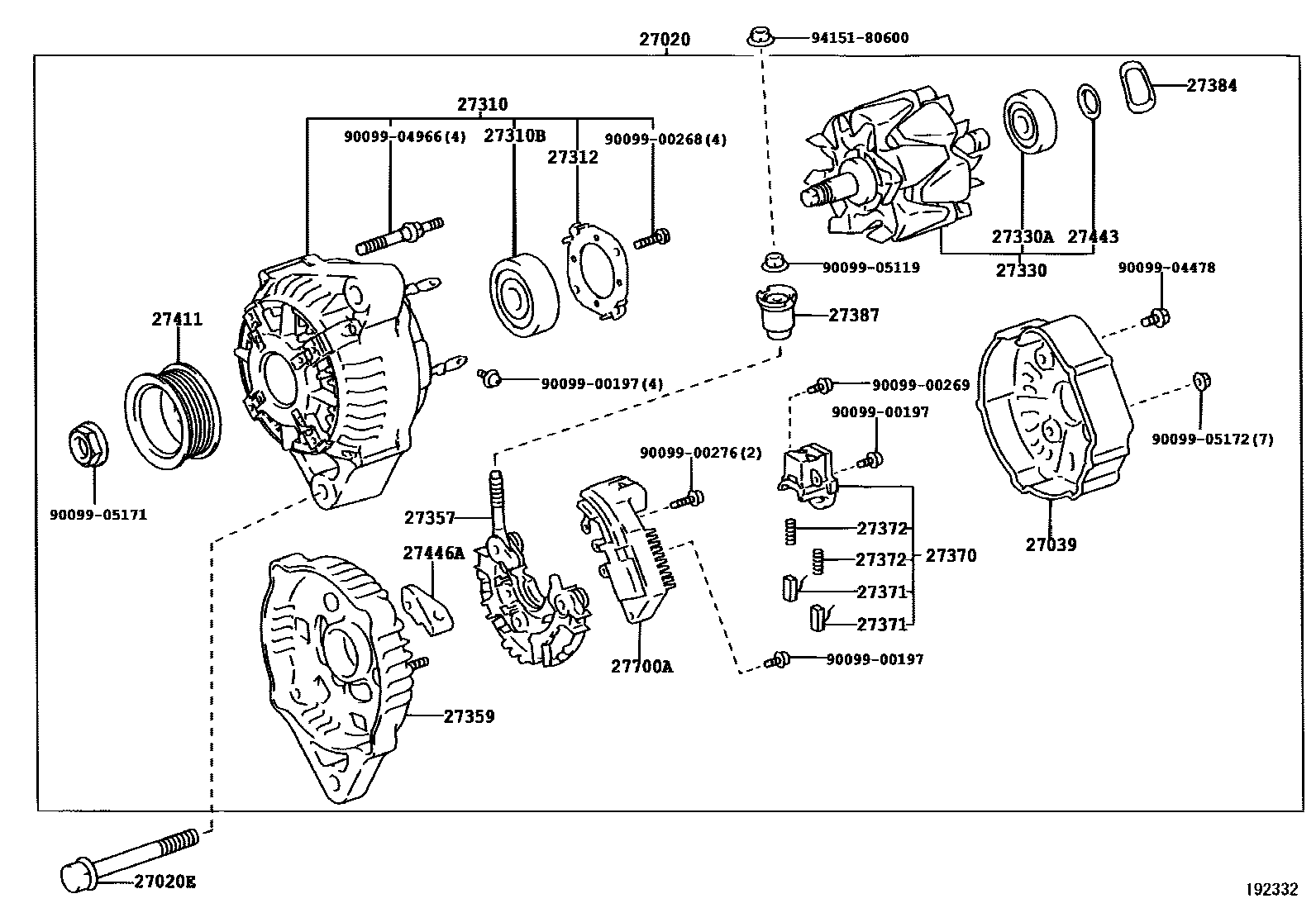

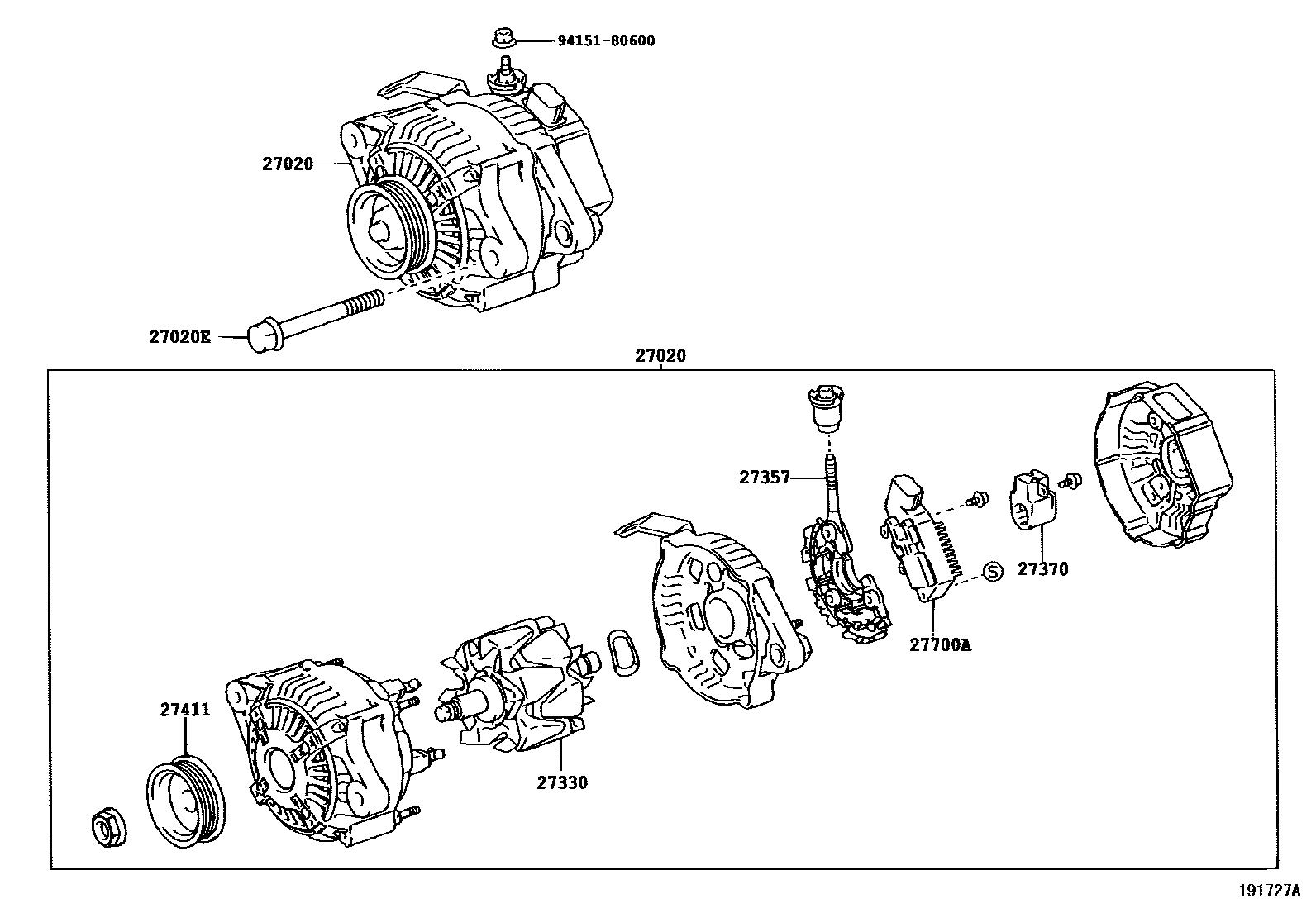

Toyota YARIS EPC diagram 1903, Alternator, with 2 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 27020 | Alternator Assembly | 27060-21030 · 27060-21031 · 27060-21040 · 27060-21041 · 27060-21140 |
| 27020E | Bolts (for generator) | 90105-10075 |
| 27039 | Alternator Rear End Cover | 27039-21020 · 27039-21060 |
| 27310 | Alternator Drive End Frame Assembly | 27310-21020 |
| 27310B | Bearing (for Alternator Drive End Frame) | 90099-10220 |
| 27312 | Retainer Plate | 27312-72100 |
| 27330 | Alternator Rotor Assembly | 27330-16390 · 27330-67100 |
| 27330A | Bearings (for generator rotor) | 90099-10216 |
| 27357 | Generator rectifier frame | 27357-21060 · 27357-22050 · 27357-67100 |
| 27359 | Generator rectifier end frame | 27359-21020 |
| 27370 | Alternator Brush Holder Assembly | 27370-35060 · 27370-75060 |
| 27371 | Generator brushes | 27371-70300 |
| 27372 | Generator brush spring | 27372-63020 · 27372-87501 |
| 27384 | Washer | 27384-16380 |
| 27387 | Terminal Insulator | 27387-70171 |
| 27411 | Alternator Pulley | 27411-11060 · 27411-21030 · 27411-65010 · 27411-70140 |
| 27443 | Generator bearing cap | 27443-63020 |
| 27446A | card holder | 27446-21020 |
| 27700A | Generator voltage regulator assembly | 27700-21010 · 27700-21020 |
