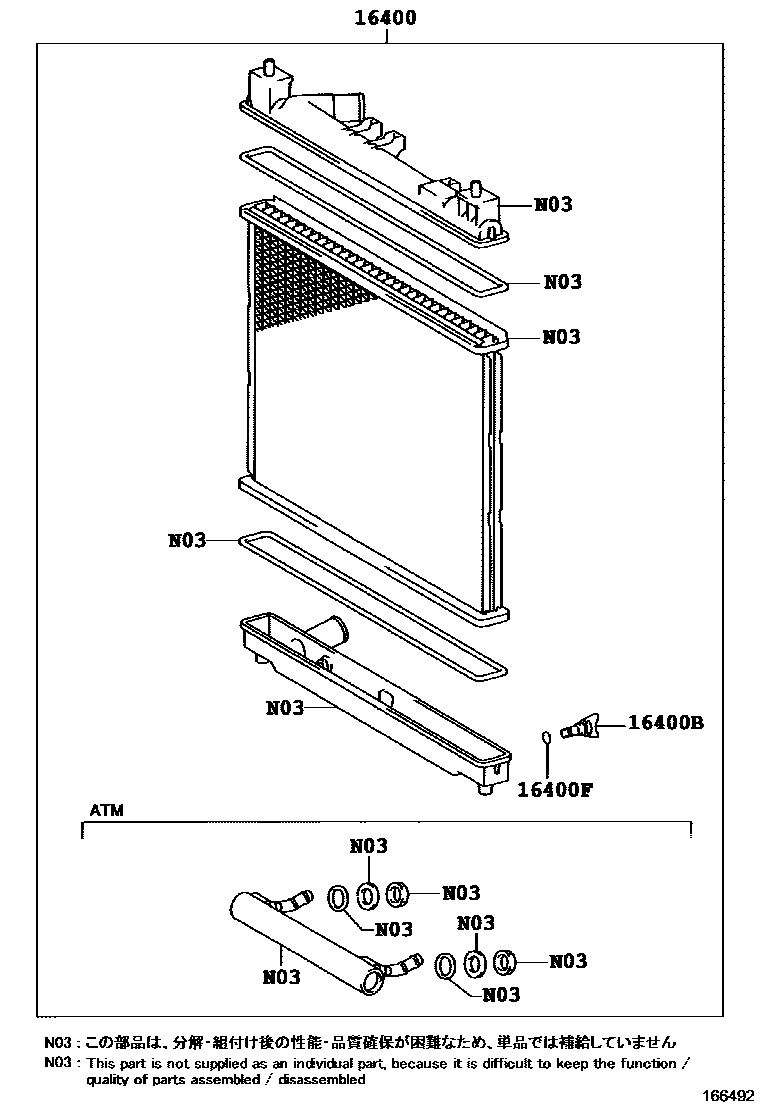

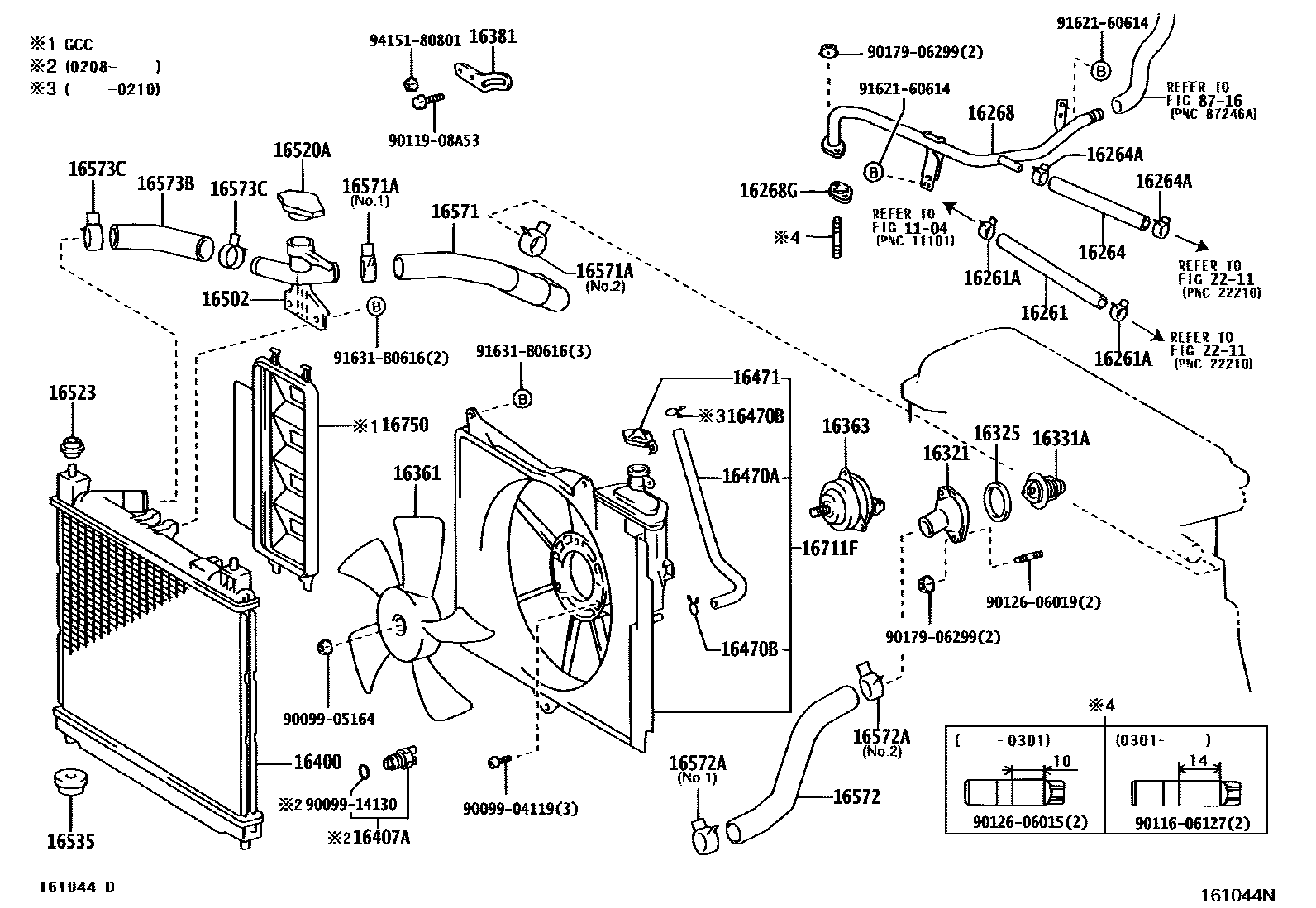

Toyota YARIS RADIATOR & WATER OUTLET — Figure 1603
Toyota YARIS EPC diagram 1603, RADIATOR & WATER OUTLET, with 2 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16261 | HOSE, WATER BY-PASS | 99555-10185 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 90467-13054 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16261-21040 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 90467-13054 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-21020 · 16268-21021 · 16268-21022 |
| 16268G | Gasket (for water bypass pipe) | 16258-21010 · 16258-21020 |
| 16321 | water inlet | 16321-21020 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-62010 |
| 16331A | thermostat | 90916-03093 |
| 16361 | Fan | 16361-21030 · 16361-21050 · 16361-21080 · 16361-23050 |
| 16363 | cooling fan motor | 16363-21050 · 16363-23020 · 16363-23030 · 16363-28150 |
| 16381 | Fan belt adjustment lever | 16381-21020 · 16381-21030 |
| 16400 | Radiator assembly | 16400-21060 · 16400-21070 · 16400-21080 · 16400-21100 · 16400-21110 · 16400-21200 · 16400-21210 |
| 16400B | Radiator drain switch screw plug | 23322-54010 |
| 16400F | Seal (for radiator drain switch) | 16492-21050 |
| 16407A | Radiator drain switch sub-assembly | 16407-7A130 |
| 16470A | Hoses or tubes (for radiator reservoir) | 16377-21020 |
| 16470B | Clip or clip (for radiator reservoir hose) | 90467-11085 |
| 16471 | Liquid storage tank cover sub-assembly | 16471-23010 · 16471-23030 |
| 16502 | Water injection port sub-assembly | 16502-21010 |
| 16520A | Water injection port cover sub-assembly | 16401-62100 |
| 16523 | Secondary radiator bracket buffer pad | 16523-23010 |
| 16535 | Radiator lower support | 90480-40016 |
| 16571 | Radiator water inlet hose | 16571-21020 |
| 16571A | Hose clamp or clip (for radiator water inlet) | 90467-33006 · 90467-34003 |
| 16572 | Radiator outlet hose | 16572-21020 |
| 16572A | Hose clamp or clip (for radiator outlet No. 1) | 90467-33006 · 90467-34003 |
| 16573B | Radiator hose No. 3 | 16573-21010 |
| 16573C | No. 3 radiator hose clamp or clip | 90467-33006 |
| 16711F | Fan cover (with radiator reservoir) | 16711-21030 · 16711-21120 |
| 16750 | Fan cover ventilation duct assembly | 16750-21010 · 16750-21011 |
