Toyota YARIS Engine Oil Pump — Figure 1501

Toyota YARIS EPC diagram 1501, Engine Oil Pump, with 2 images and 14 PNC and OE references.

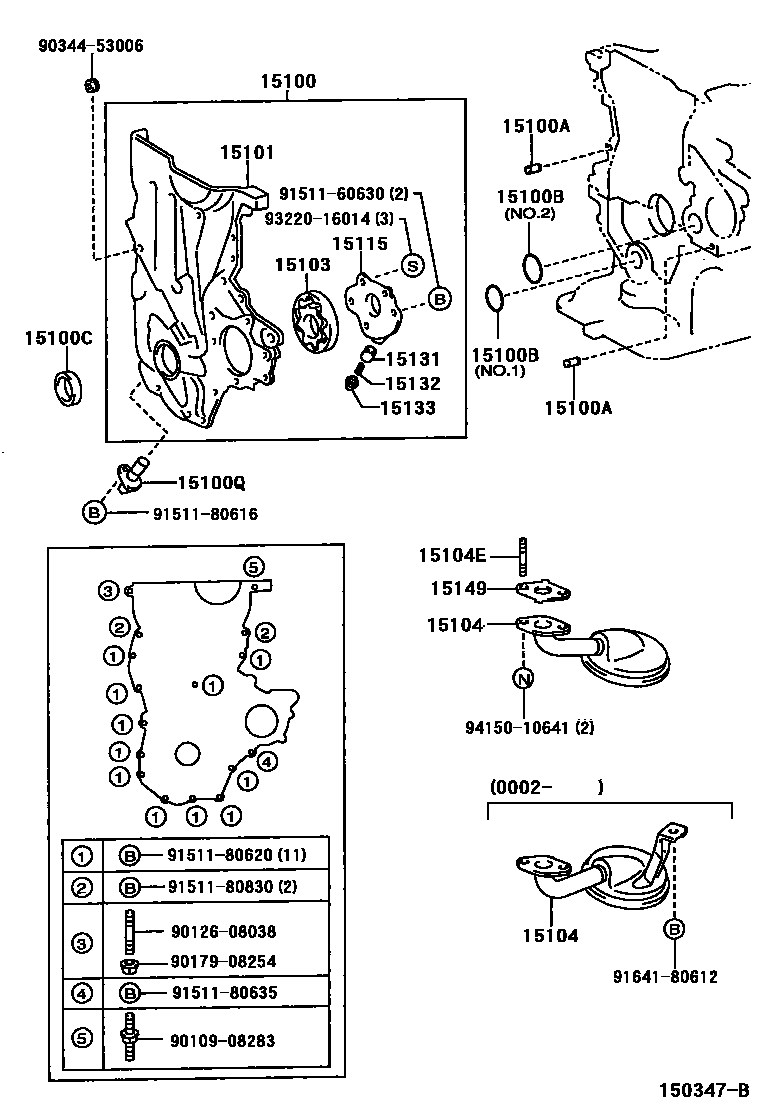

Toyota YARIS Engine Oil Pump EPC diagram — 150347B
Engine Oil Pump — 150347B (199908 – 200208)

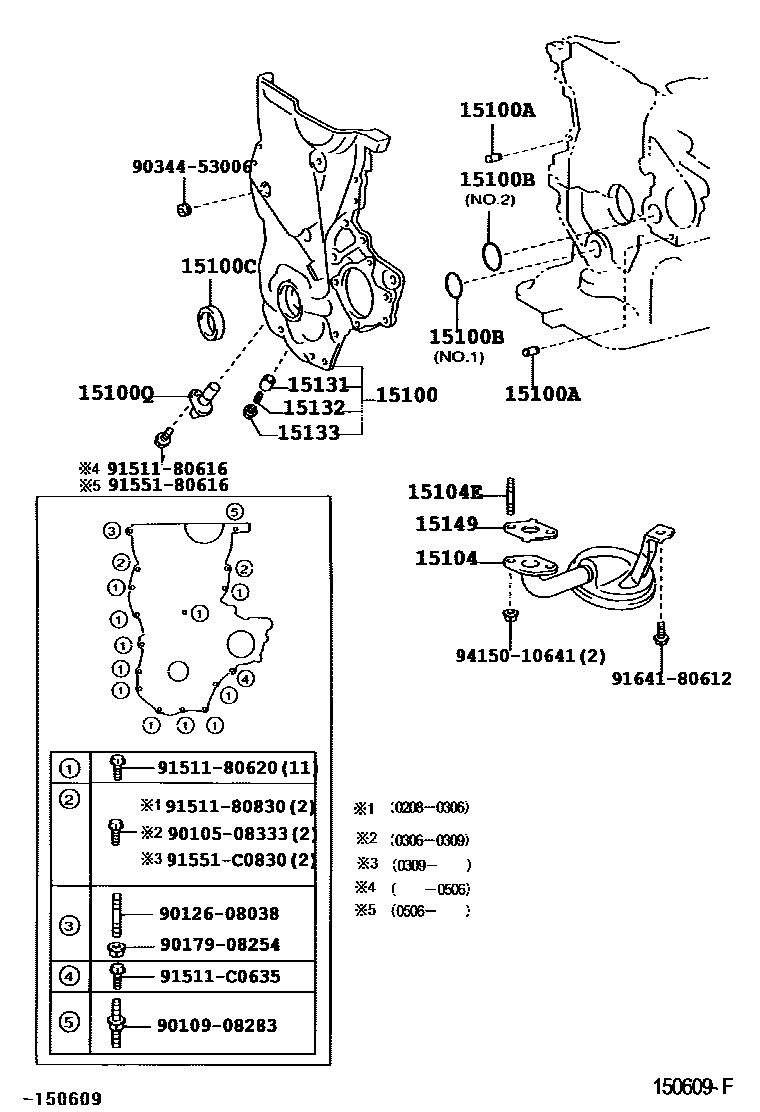

Toyota YARIS Engine Oil Pump EPC diagram — 150609F
Engine Oil Pump — 150609F (200208 – 999999)

PNC and OE references

PNCPart nameOE numbers
15100Oil pump assembly15100-21030 · 15100-21040
15100ARing pin (for oil pump assembly)90253-08003
15100BO-ring (for oil pump)90301-31012 · 90301-42006
15100CSeals (for oil pump)90311-25021
15100Qcrankshaft position sensor90919-05045
15101Oil pump body sub-assembly15111-21030 · 15111-21040
15103Oil pump gear assembly15103-21020
15104Oil filter sub-assembly15104-21020 · 15104-21021
15104EStud bolts (for oil filter)90126-06021
15115oil pump cover15115-21030
15131Oil pump pressure reducing valve15131-21020
15132Oil pump pressure reducing valve spring15132-21020
15133PLUG, OIL PUMP RELIEF VALVE15133-21020 · 15133-21030
15149Oil filter flange gasket16258-21010 · 16258-21030
