Toyota YARIS Engine Mounting — Figure 1107

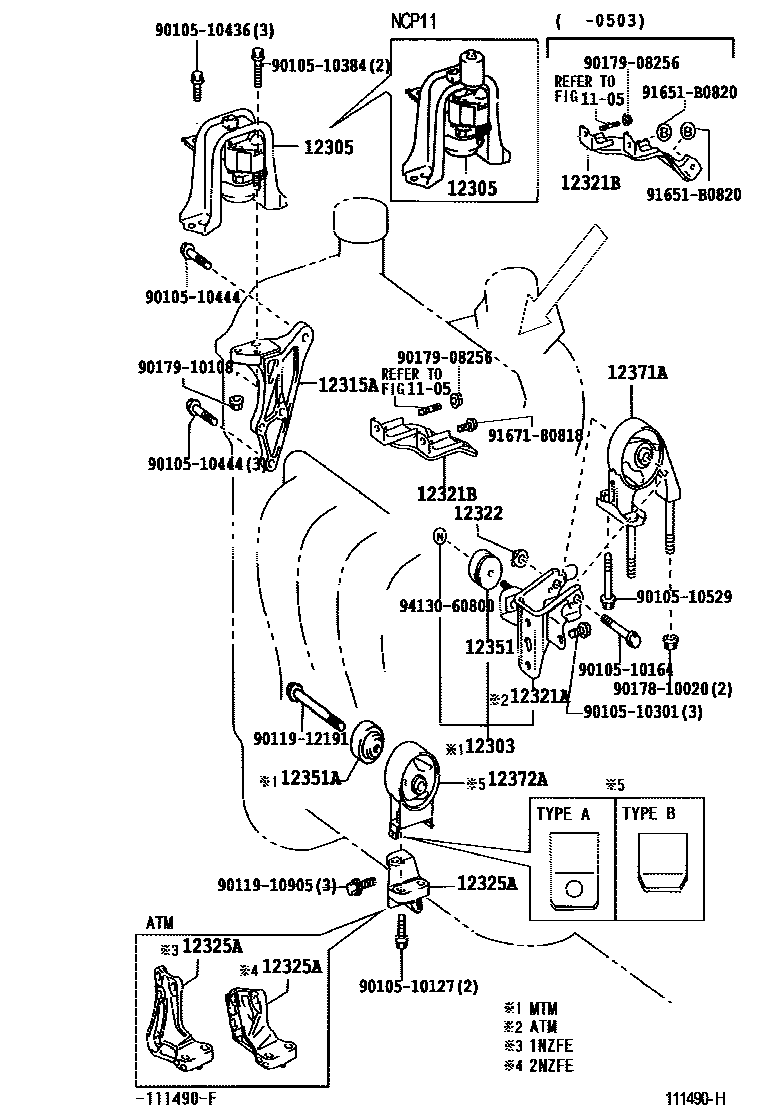

Toyota YARIS EPC diagram 1107, Engine Mounting, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12303 | Engine rear mounting bracket sub-assembly | 12303-21020 · 12303-21070 |
| 12305 | Engine right side mounting vibration isolation pad sub-assembly | 12305-21020 · 12305-21060 |
| 12315A | Engine right side mounting bracket (for transversely mounted engine) | 12315-21030 · 12315-21031 · 12315-21040 · 12315-21041 |
| 12321A | Rear engine mounting bracket (for transverse engine) | 12321-21030 · 12321-21090 · 12321-21140 · 12321-21150 |
| 12321B | Drive shaft heat insulation pad sub-assembly | 43409-52010 · 43409-52020 |
| 12322 | Engine No. 2 rear suspension bracket | 12322-23020 |
| 12325A | Engine left side mounting bracket (for transversely mounted engine) | 12325-21020 · 12325-21030 · 12325-21060 |
| 12351 | engine mount shock absorber | 12351-11130 · 12351-23010 |
| 12351A | Engine mount shock absorber (for vibration isolation pad) | 12351-11030 |
| 12371A | Engine rear mount vibration isolation pad | 12371-21020 · 12371-21021 · 12371-23010 · 12371-23011 |
| 12372A | Engine left-side mounting vibration isolation pad (for transversely mounted engines) | 12372-21060 · 12372-23010 · 12372-23020 · 12372-23050 |
