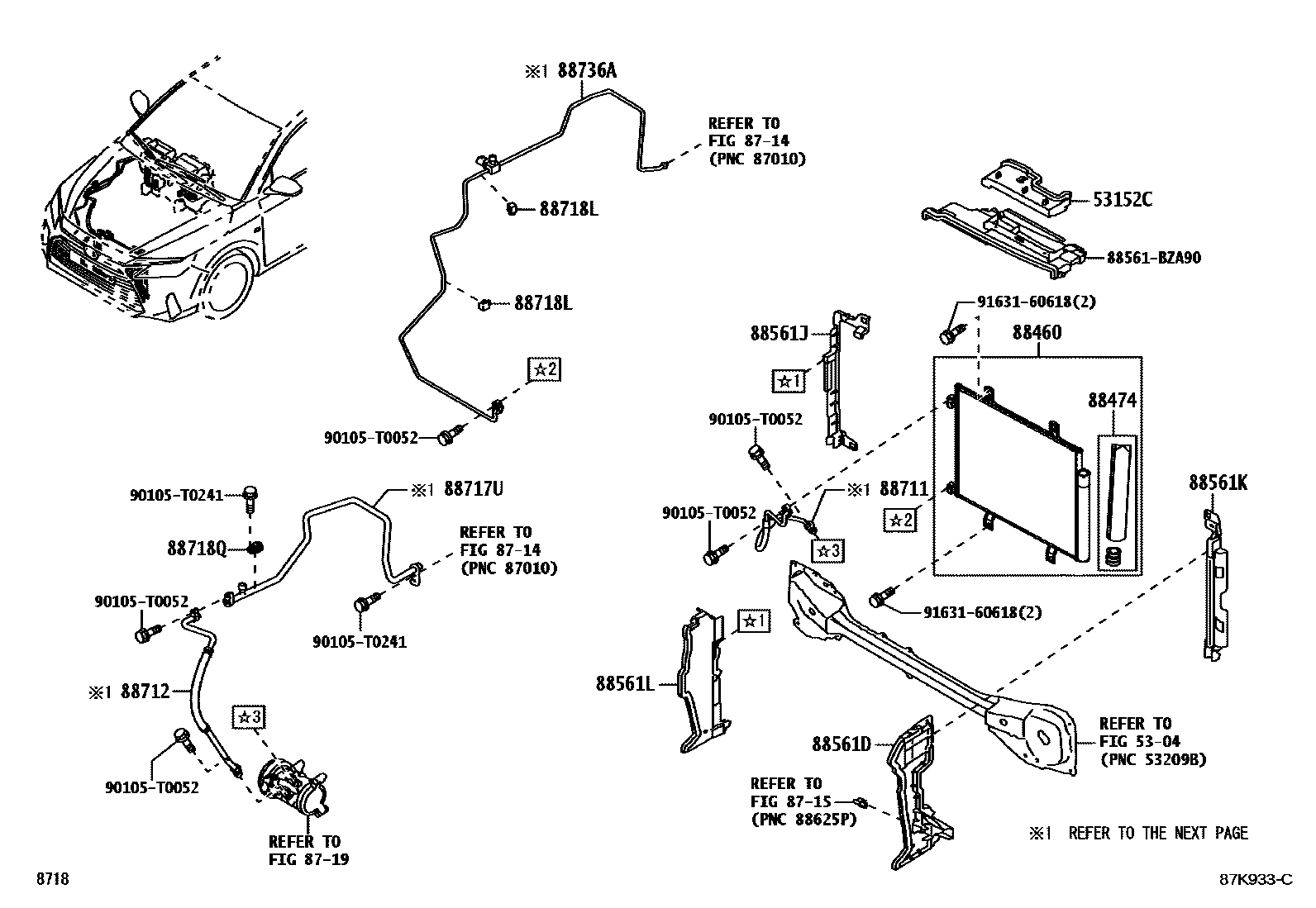

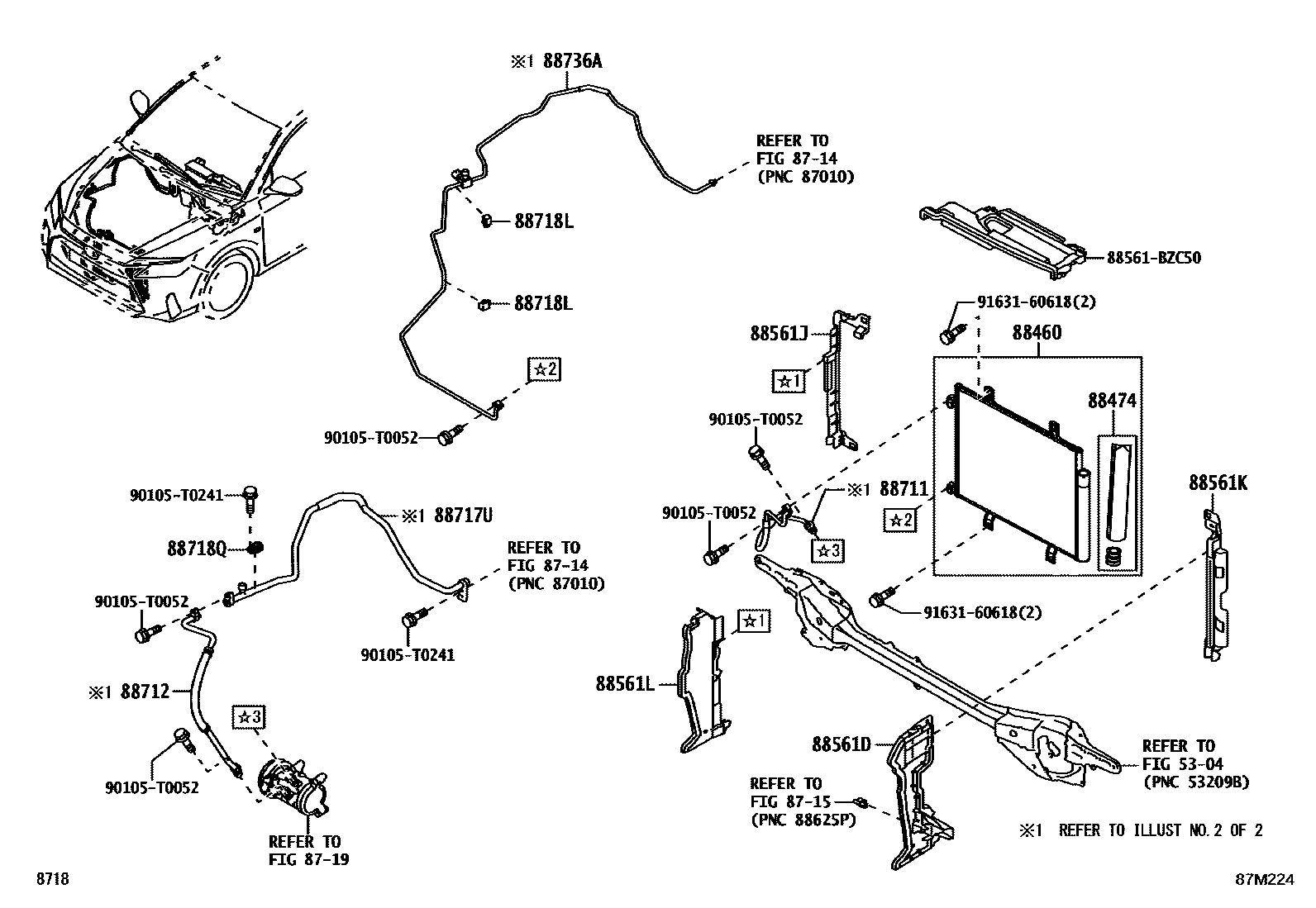

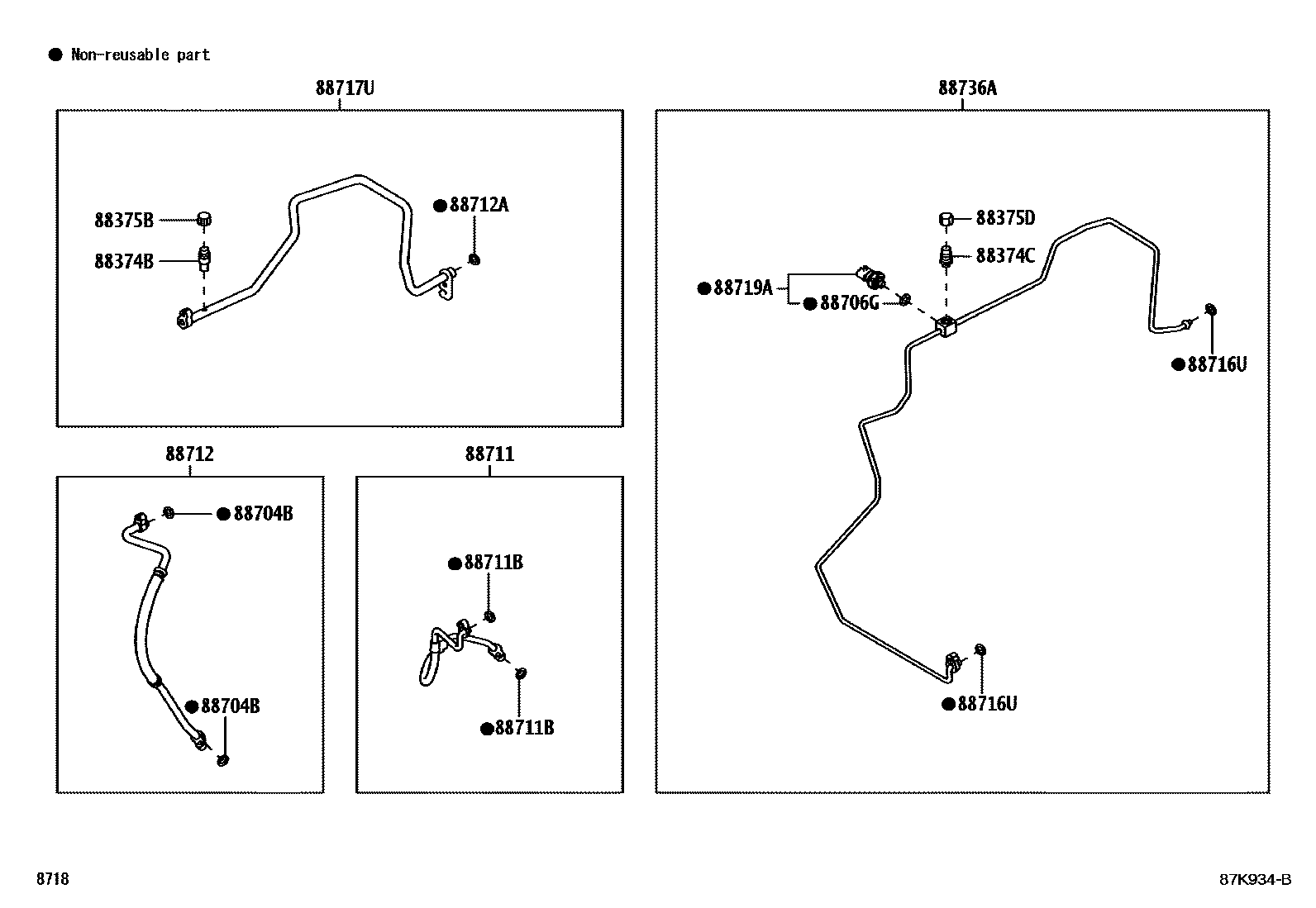

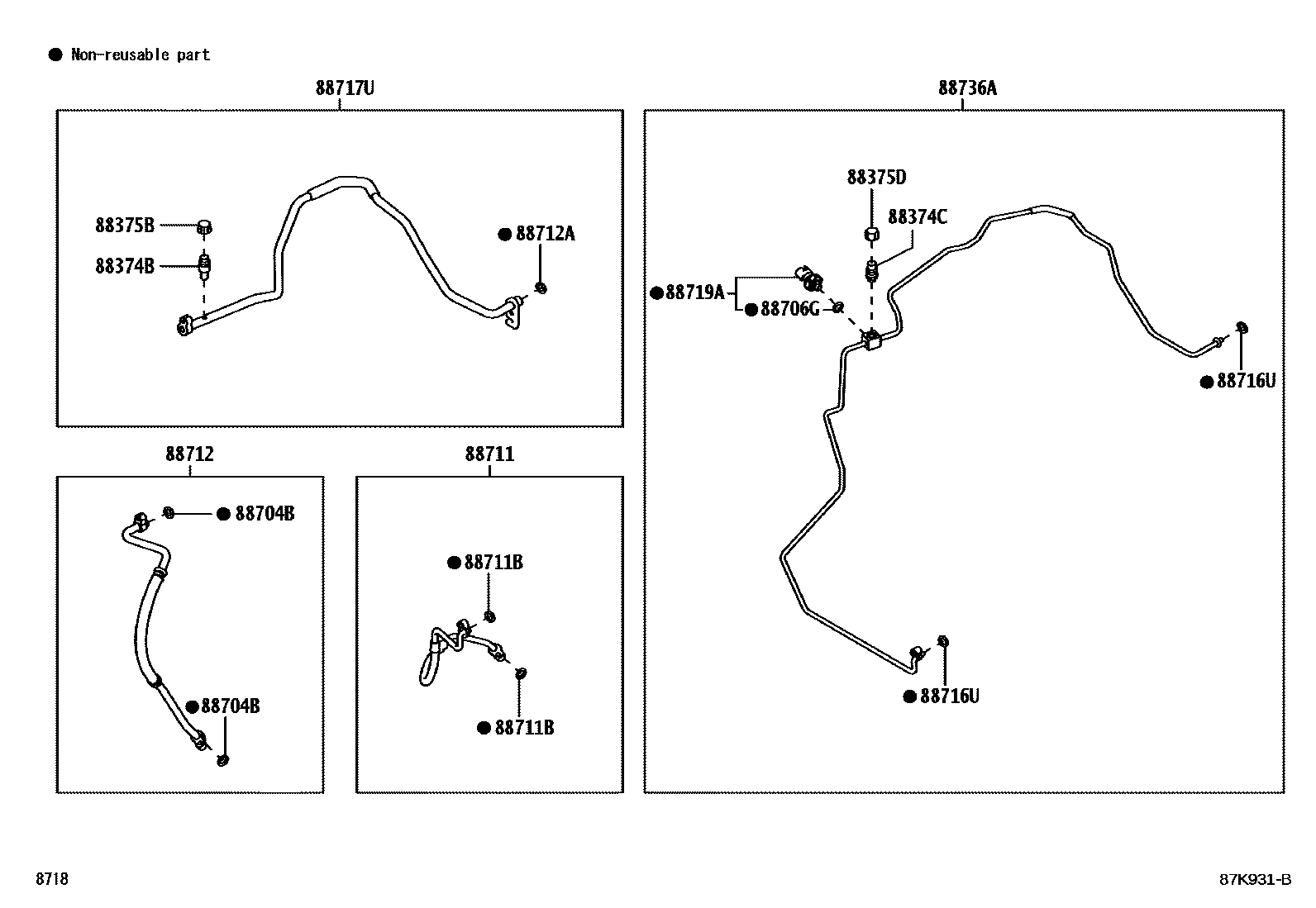

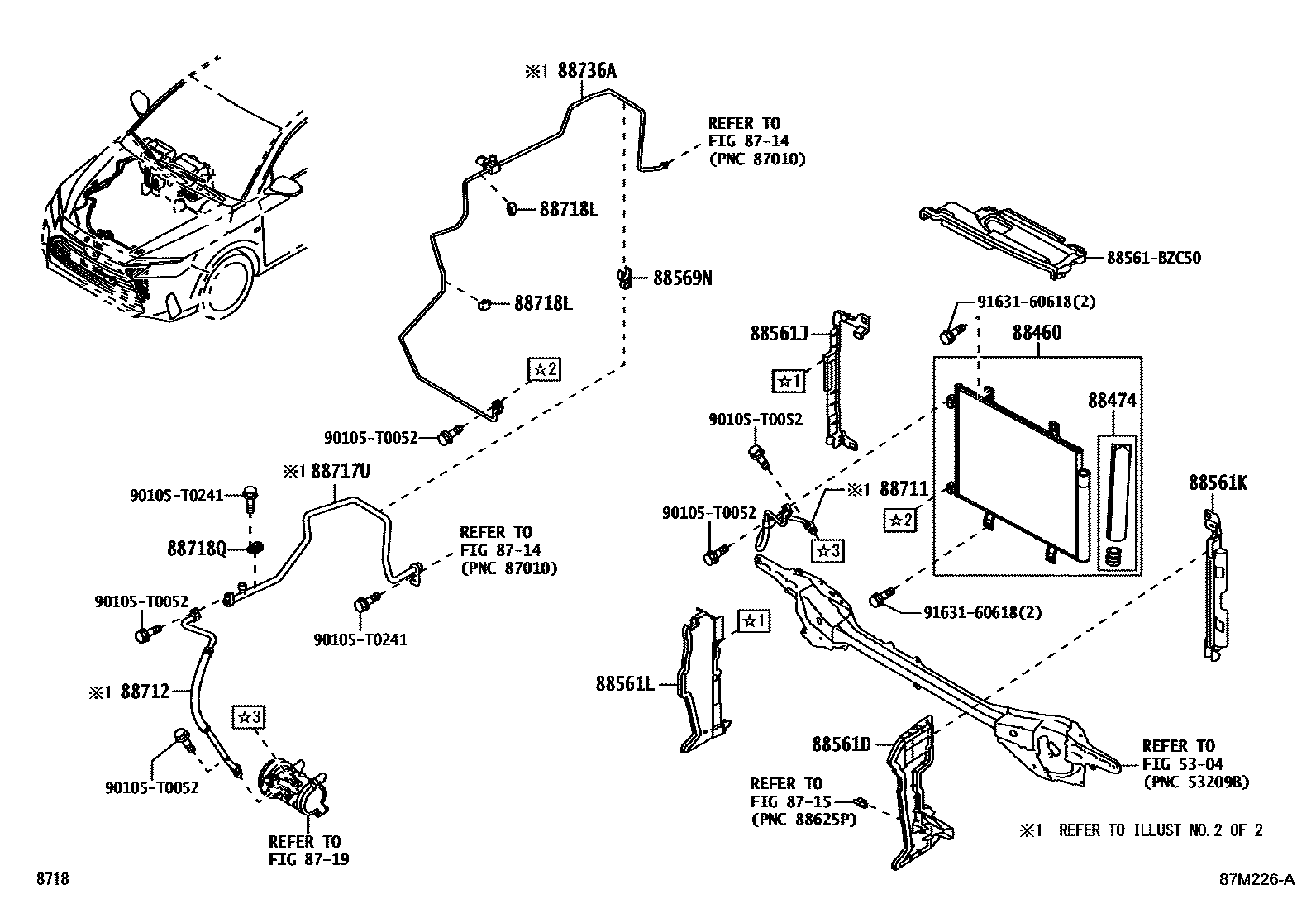

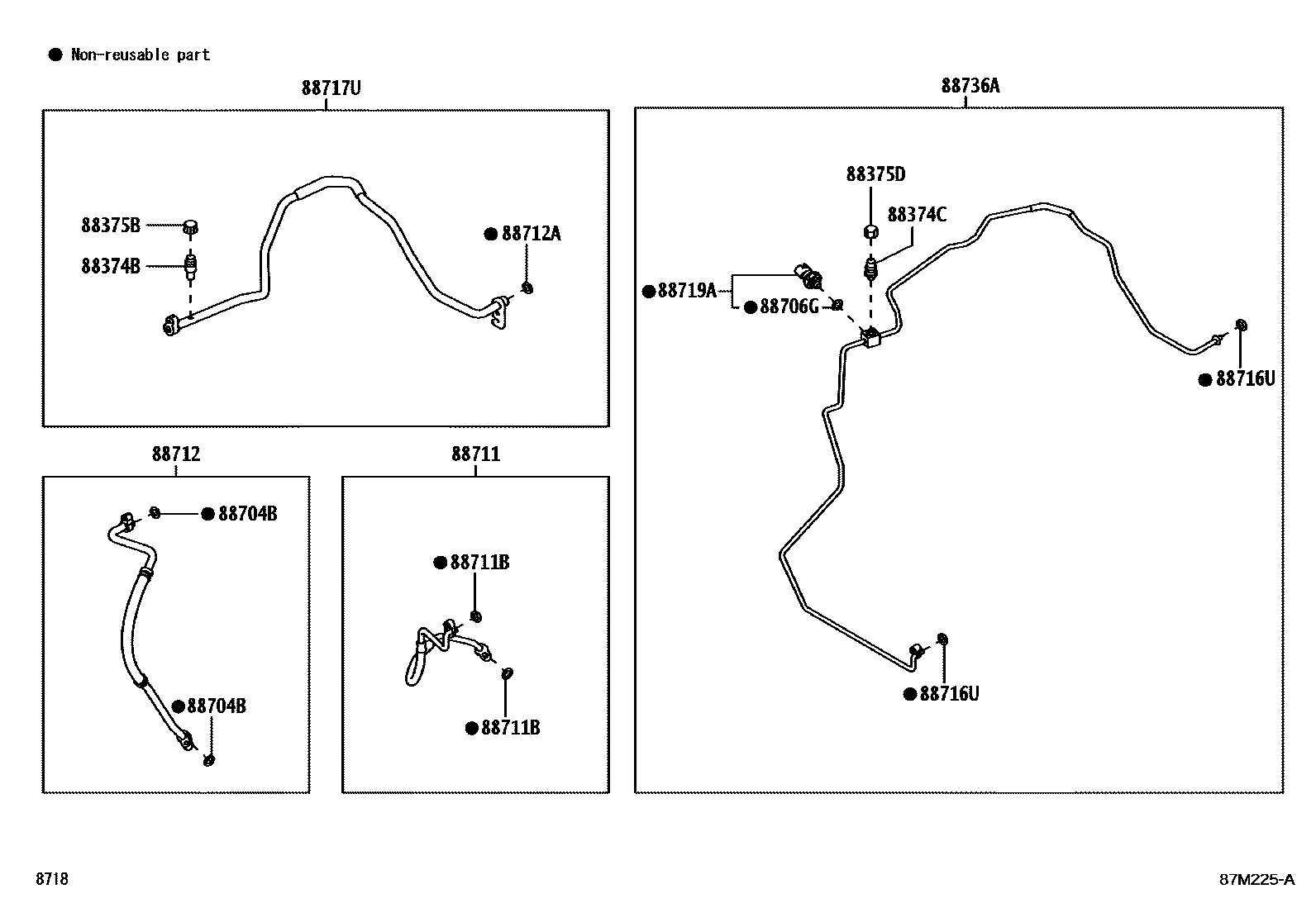

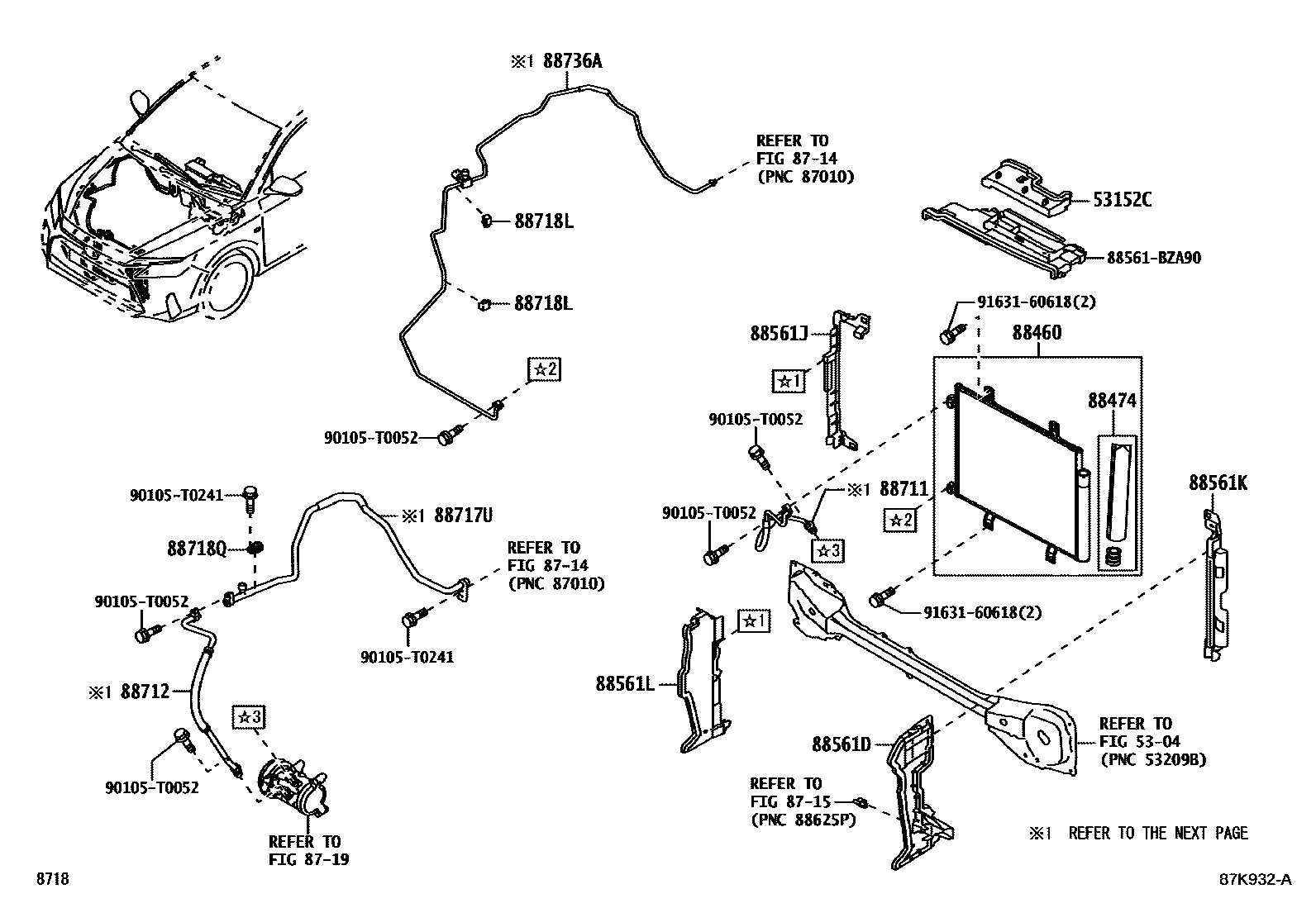

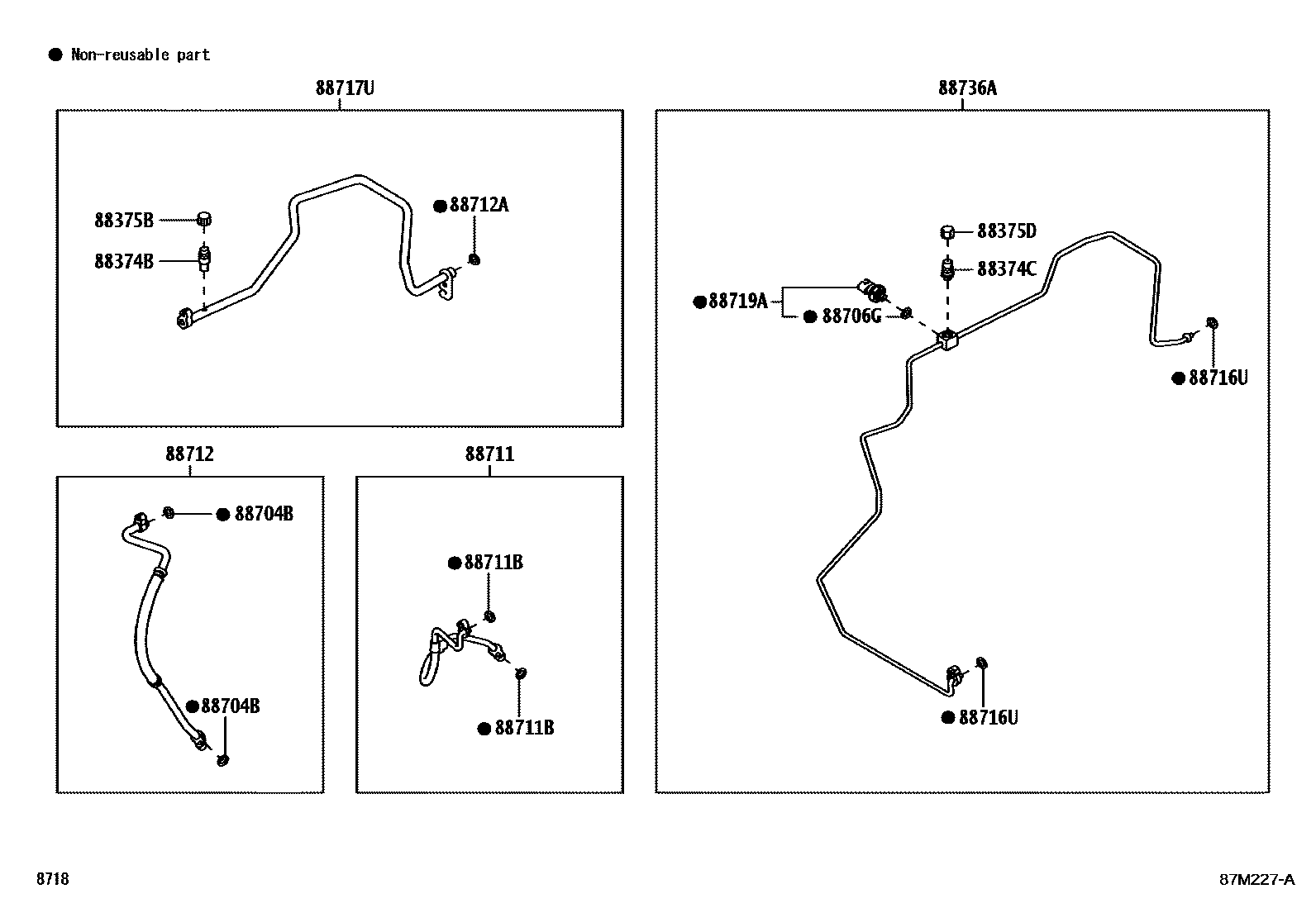

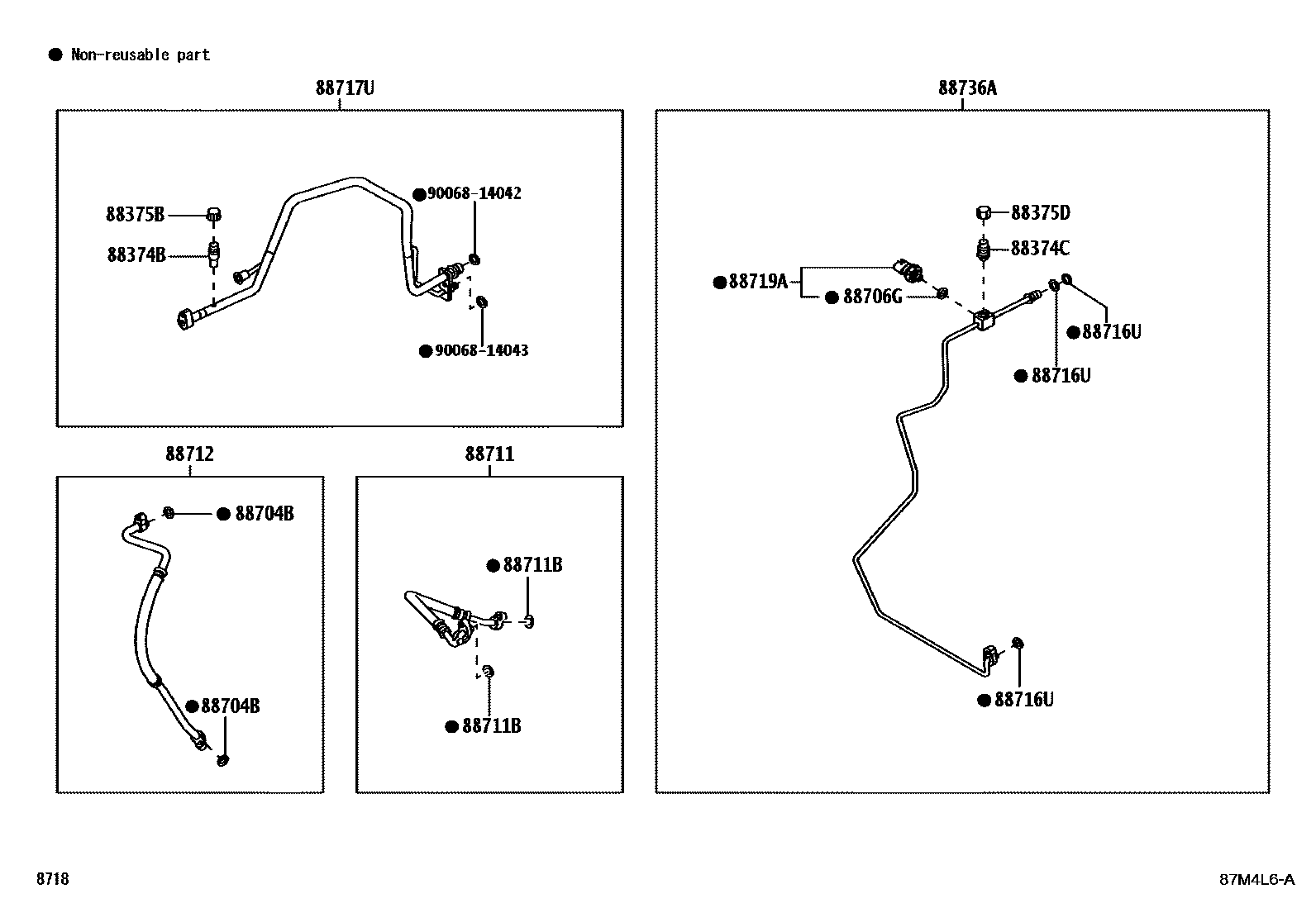

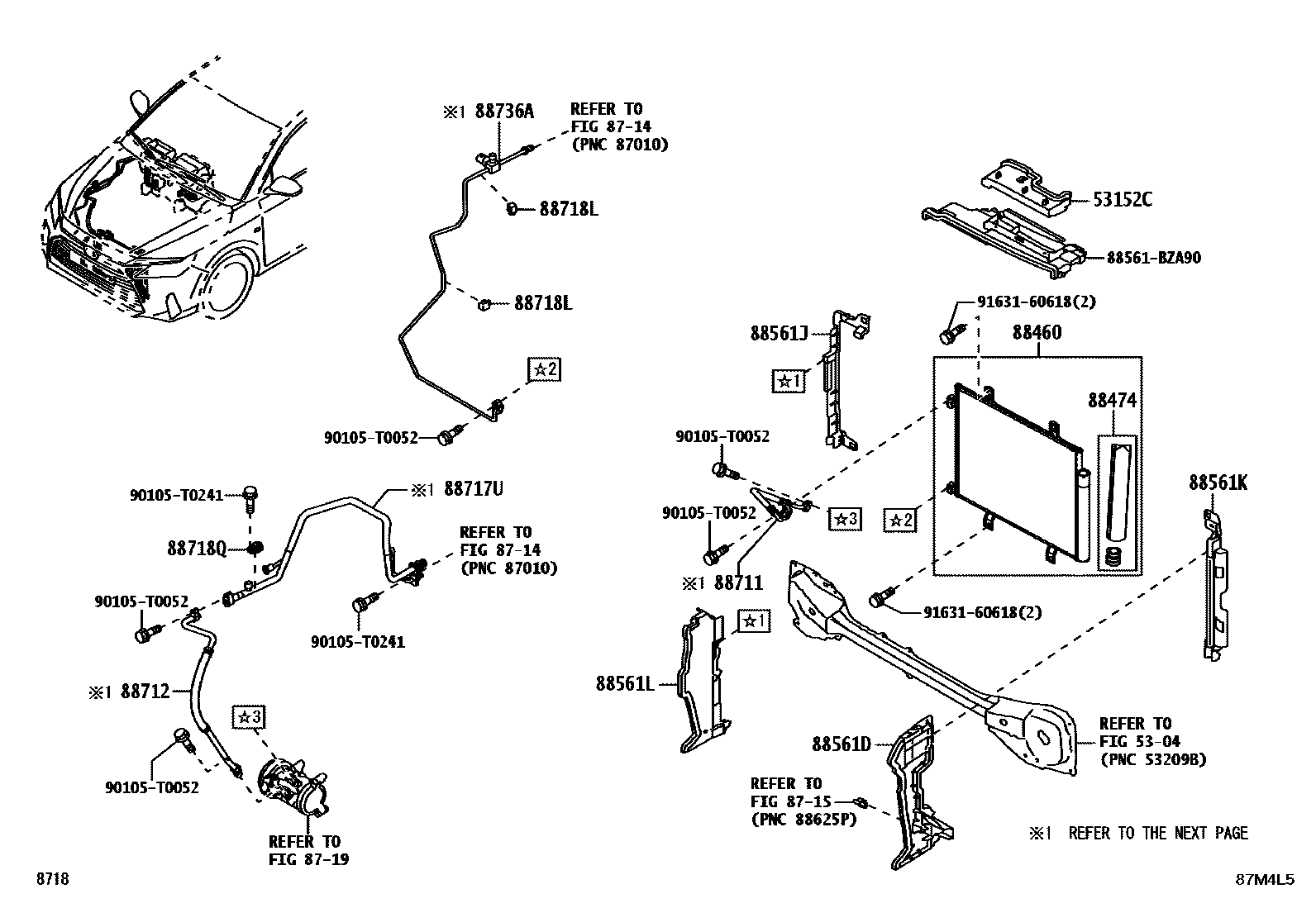

Toyota YARIS Heating & Air Conditioning - Cooler Piping — Figure 8718
Toyota YARIS EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 10 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53152C | Radiator grille deflector | 53152-BZ050 · 53152-BZ060 |
| 88374B | Service valve No. 1 | 88374-30010 · 88374-87601 |
| 88374C | Service valve No. 2 | 88374-30010 · 88374-87601 |
| 88375B | No. 1 maintenance valve cover | 88375-87601 |
| 88375D | No. 2 maintenance valve cover | 88375-30280 · 88375-87603 |
| 88460 | Air conditioning condenser assembly | 88460-BZ340 |
| 88474 | cooler dryer | 88474-B2010 |
| 88561D | No. 3 air inlet grille | 88561-BZB10 |
| 88561J | No. 1 air inlet grille | 88561-BZB20 |
| 88561K | No. 2 air inlet grille | 88561-BZB30 |
| 88561L | No. 4 air inlet grille | 88561-BZB00 |
| 88569N | No. 2 pipe clamp | 88718-B2180 |
| 88704B | O-ring (for suction hose) | 15188-87403 |
| 88706G | O-ring (for liquid pipe) | 15188-B5090 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-BZ830 · 88711-BZ880 · 88711-BZ890 · 88711-BZA80 |
| 88711B | O-ring (for cooler refrigerant drain hose) | 15188-87402 |
| 88712 | Cooler No. 1 refrigerant suction hose | 88712-BZA00 · 88712-BZA60 · 88712-BZB00 · 88712-BZB70 |
| 88712A | O-ring (for cooler refrigerant suction hose) | 15188-87403 |
| 88716U | O-ring (for cooler refrigerant liquid pipe) | 15188-87401 · 90099-14119 |
| 88717U | No. 1 suction pipe | 88707-BZ040 · 88717-BZ570 · 88717-BZ580 · 88717-BZ590 · 88717-BZ600 · 88717-BZ610 · 88717-BZ670 · 88717-BZ730 |
| 88718L | Pipe clamp | 88718-0D210 · 88718-0D290 |
| 88718Q | Pipe clamp | 88718-BZ800 · 88718-BZ810 |
| 88719A | Air conditioning pressure sensor | 88719-B2020 |
| 88736A | Liquid pipe A (for refrigerated box) | 88716-BZJ10 · 88716-BZJ20 · 88716-BZJ30 · 88716-BZJ40 · 88716-BZK50 · 88716-BZL50 · 88716-BZM60 |
