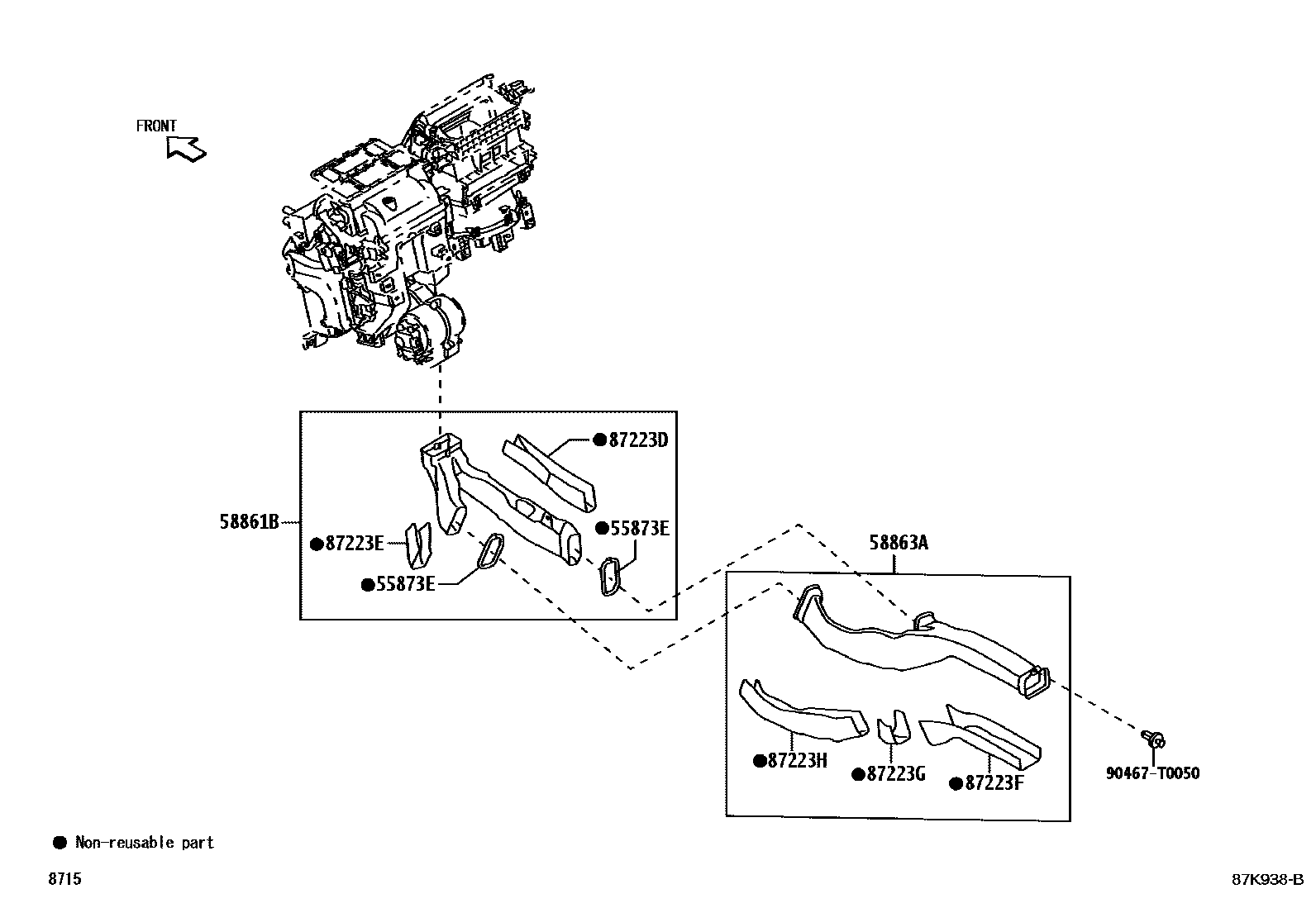

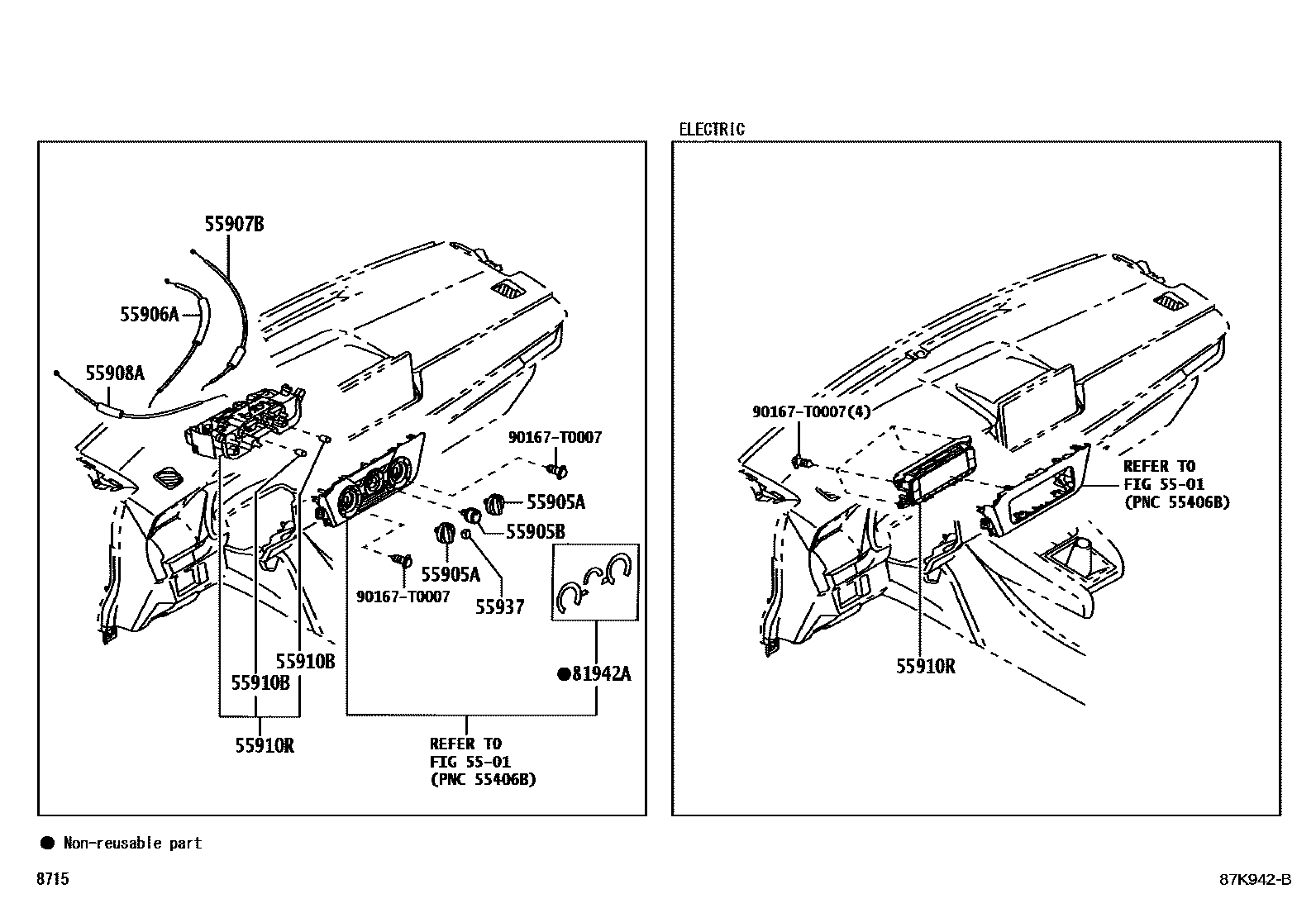

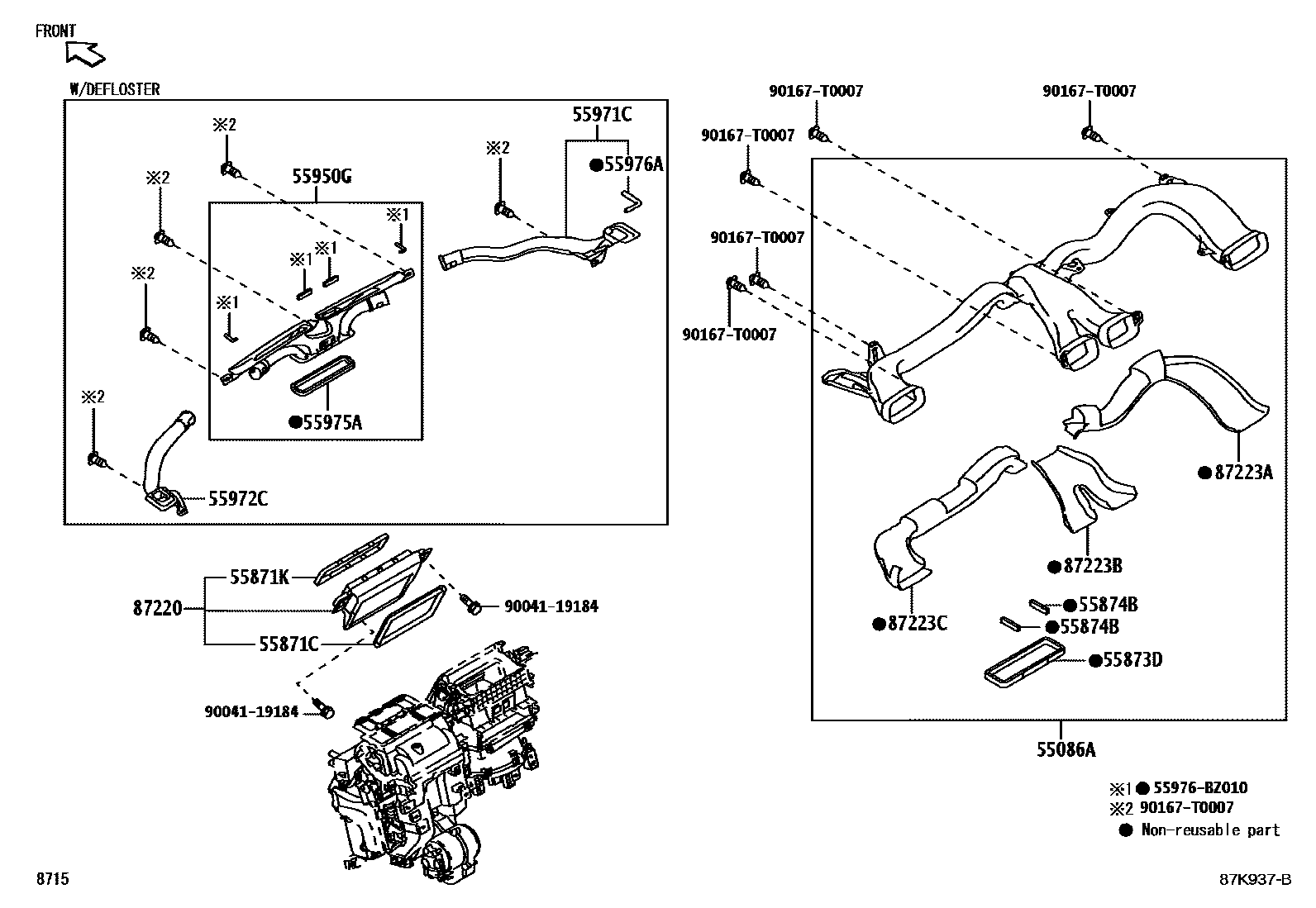

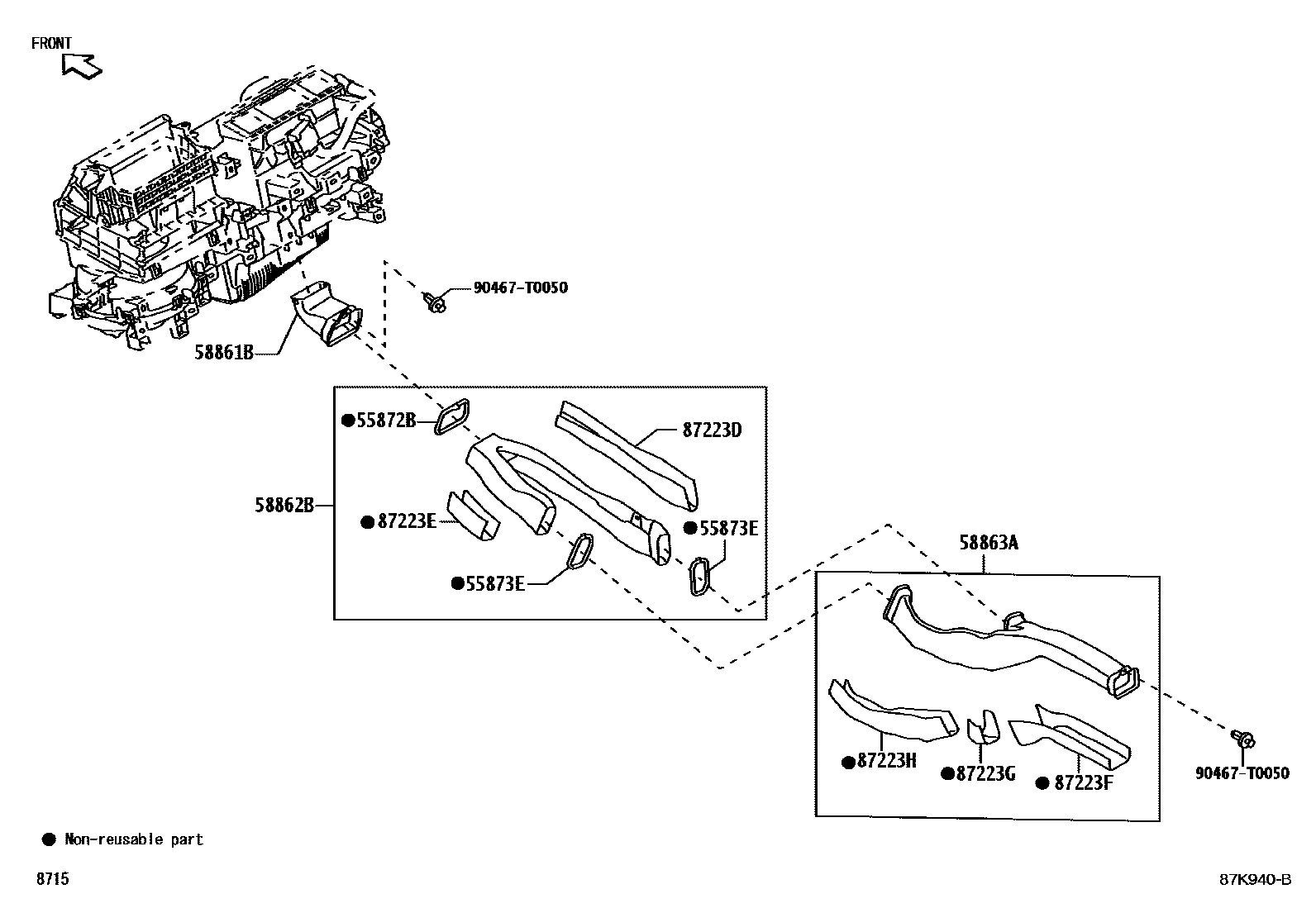

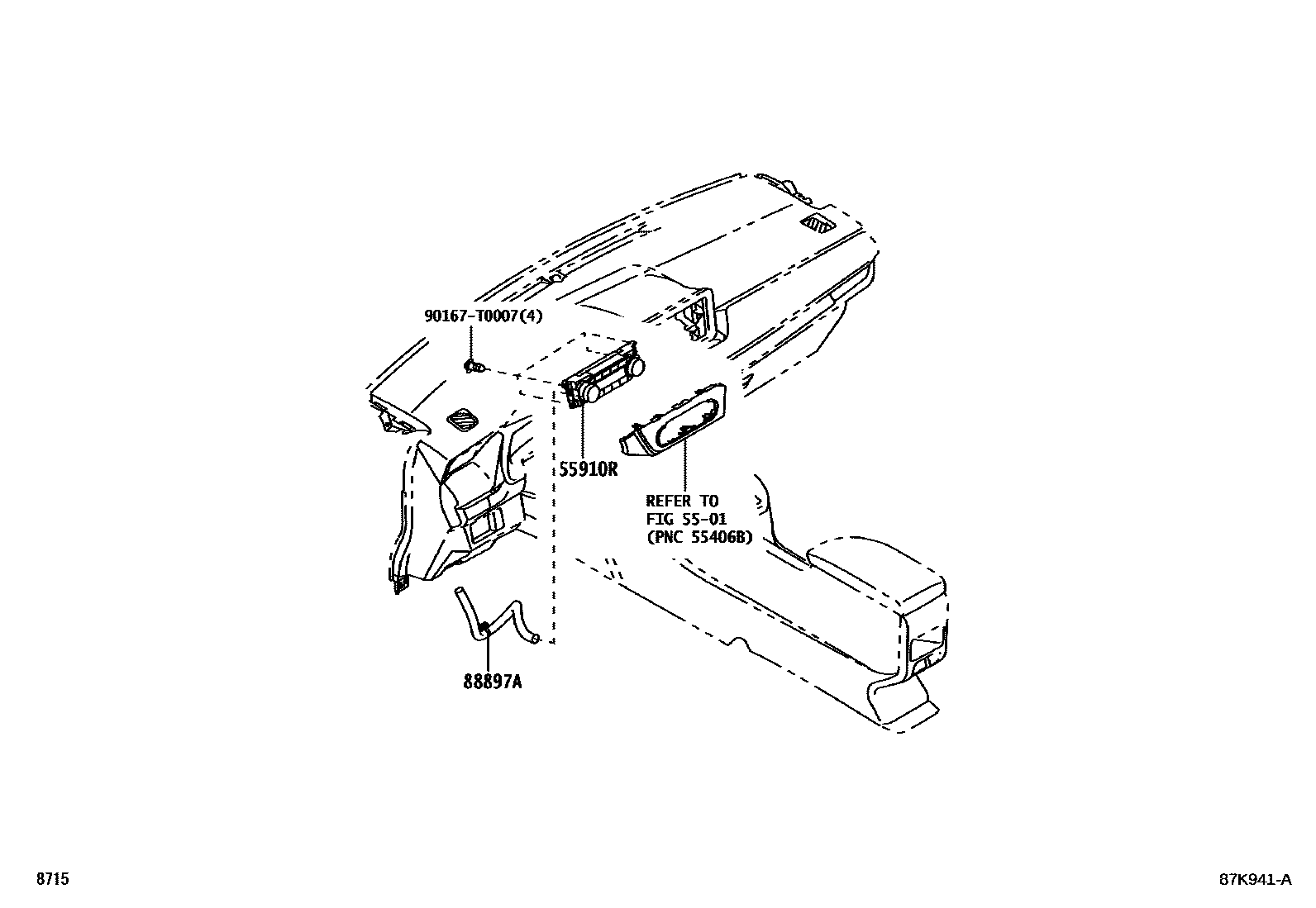

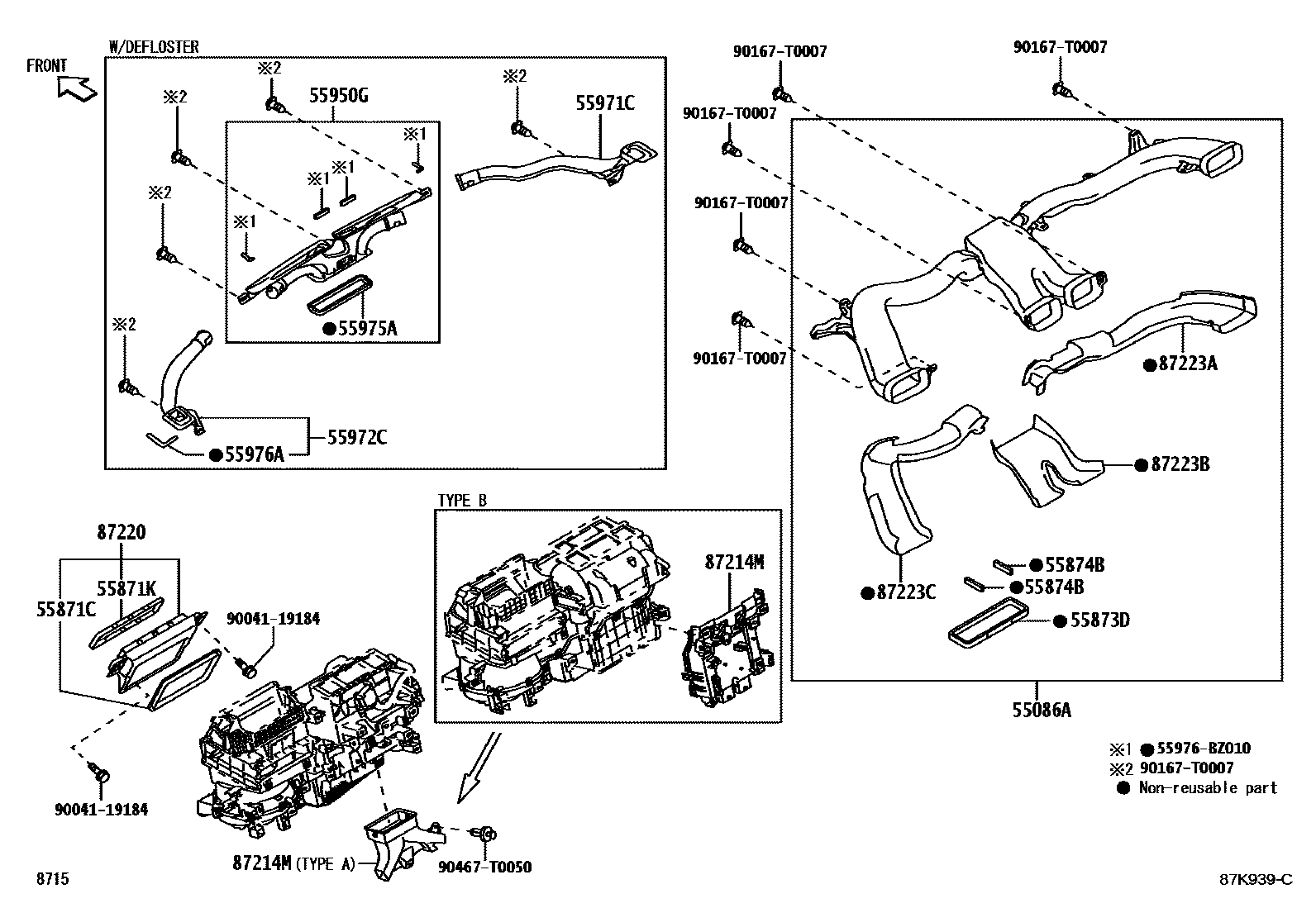

Toyota YARIS 暖风和空调系统 - 控制器和风管 — Figure 8715
Toyota YARIS EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 7 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55086A | Heater to central air register air duct sub-assembly | 55086-BZ380 · 55086-BZ390 |
| 55871C | Air duct seals | 55875-BZ060 |
| 55871K | Air duct seals | 55876-BZ020 |
| 55872B | No. 2 air duct seal | 55873-BZ150 |
| 55873D | central duct seal | 55873-BZ180 |
| 55873E | Air duct seals | 55873-BZ220 |
| 55874B | No. 4 air duct seal | 55874-BZ080 |
| 55905A | Heater control button | 55804-BZ030 |
| 55905B | Heater control button 2 | 55905-BZ430 |
| 55906A | Defroster damper control cable sub-assembly | 55906-BZ200 |
| 55907B | Temperature damper control cable sub-assembly | 55907-BZ110 |
| 55908A | Intake air valve control cable sub-assembly | 55908-BZ240 |
| 55910B | heater control light bulb | 81936-BZ150 · 81936-BZ240 |
| 55910R | Heater control assembly | 55910-BZA00 · 55910-BZA40 · 55910-BZA50 · 55910-BZA60 · 55910-BZA80 · 55910-BZA81 · 55910-BZB10 · 55910-BZB20 · 55910-BZB21 · 55910-BZC50 · 55910-BZC60 · 55910-BZC61 · 55910-BZC80 · 55910-BZC90 · 55910-BZD00 · 55910-BZD10 · 55910-BZD20 |
| 55937 | Heater lever button | 55925-BZ070 |
| 55950G | Defroster nozzle assembly | 55950-BZ270 · 55950-BZ280 |
| 55971C | Side defroster No. 1 nozzle air duct | 55961-BZ070 · 55961-BZ080 |
| 55972C | Side defroster No. 2 nozzle air duct | 55962-BZ070 · 55962-BZ080 |
| 55975A | Defroster No. 1 Nozzle Seal | 55975-BZ100 |
| 55976A | Defroster No. 2 Nozzle Seal | 55977-BZ040 |
| 58861B | Air duct No. 1 for armrest box | 58861-BZ010 · 58861-BZ020 |
| 58862B | Air duct No. 2 for armrest box | 58862-BZ010 |
| 58863A | Armrest box No. 3 air duct | 58863-BZ010 |
| 81942A | Heater No. 1 control nameplate | 81941-BZ040 |
| 87214M | Heater to foot duct No. 3 | 87214-BZ030 · 87214-BZ040 |
| 87220 | Air duct assembly | 87220-BZ490 |
| 87223A | Duct gasket | 87223-BZB40 · 87223-BZC00 |
| 87223B | No. 2 air duct gasket | 87223-BZB50 · 87223-BZB90 |
| 87223C | No. 3 air duct gasket | 87223-BZB30 · 87223-BZB80 |
| 87223D | No. 4 air duct gasket | 87223-BZA60 · 87223-BZA80 |
| 87223E | No. 5 air duct gasket | 87223-BZA70 · 87223-BZA90 |
| 87223F | No. 6 air duct gasket | 87223-BZA60 |
| 87223G | No. 7 air duct gasket | 87223-BZB00 |
| 87223H | No. 8 air duct gasket | 87223-BZ620 |

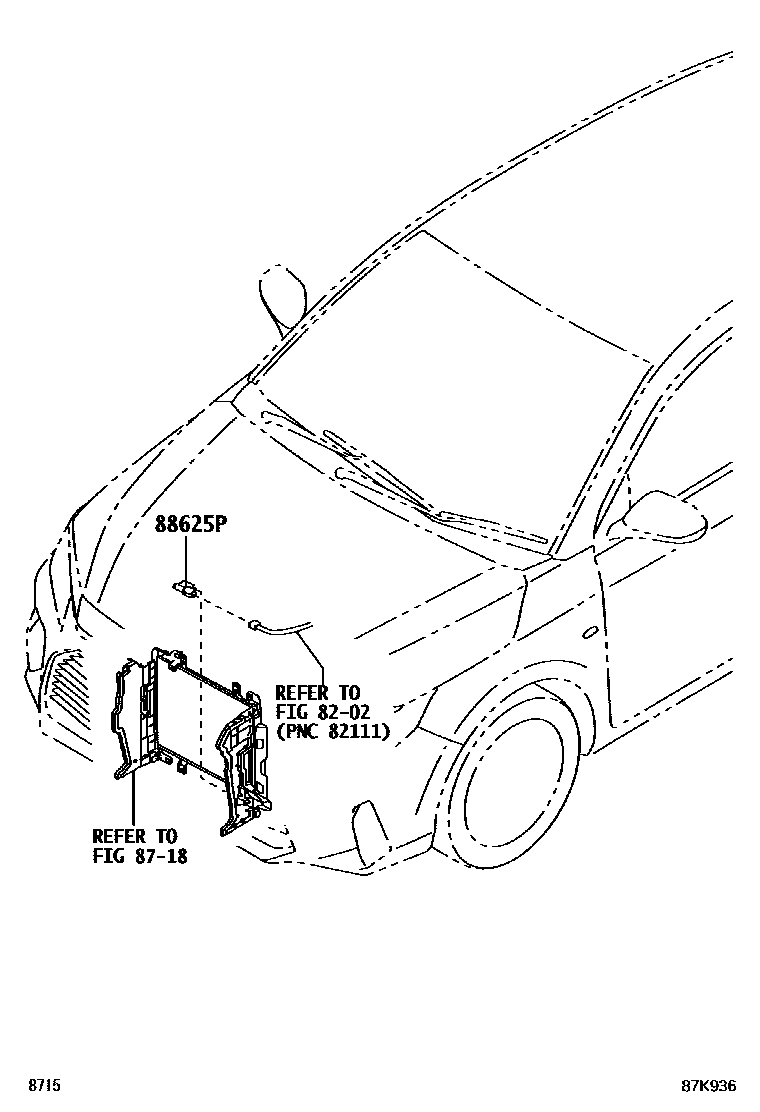

| 88625P | Cooler thermistor (ambient temperature sensor) | 88790-B1080 |
| 88897A | aspirator tube | 88505-BZ050 |
