Toyota YARIS 车载电话和呼救装置 — Figure 8615

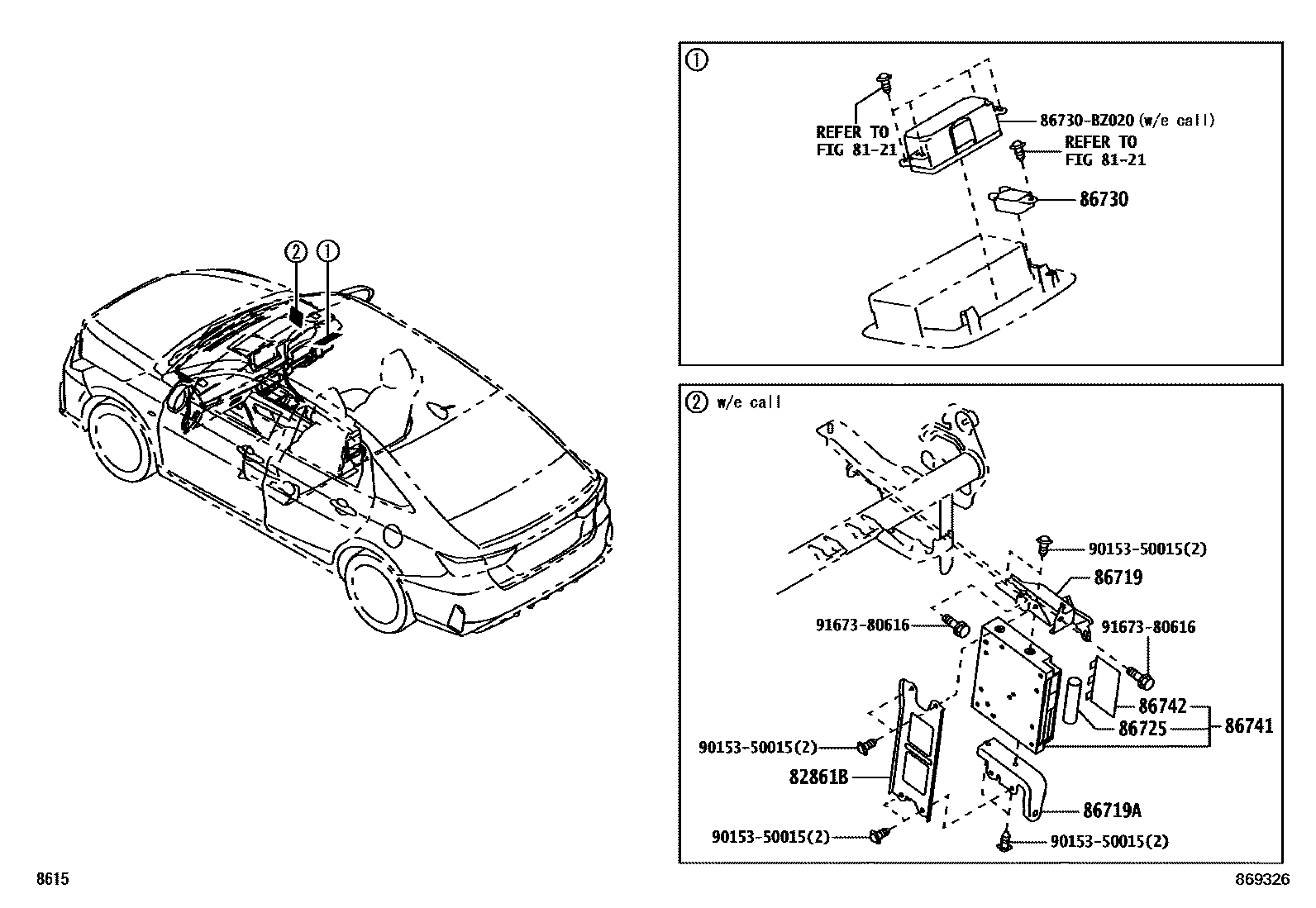

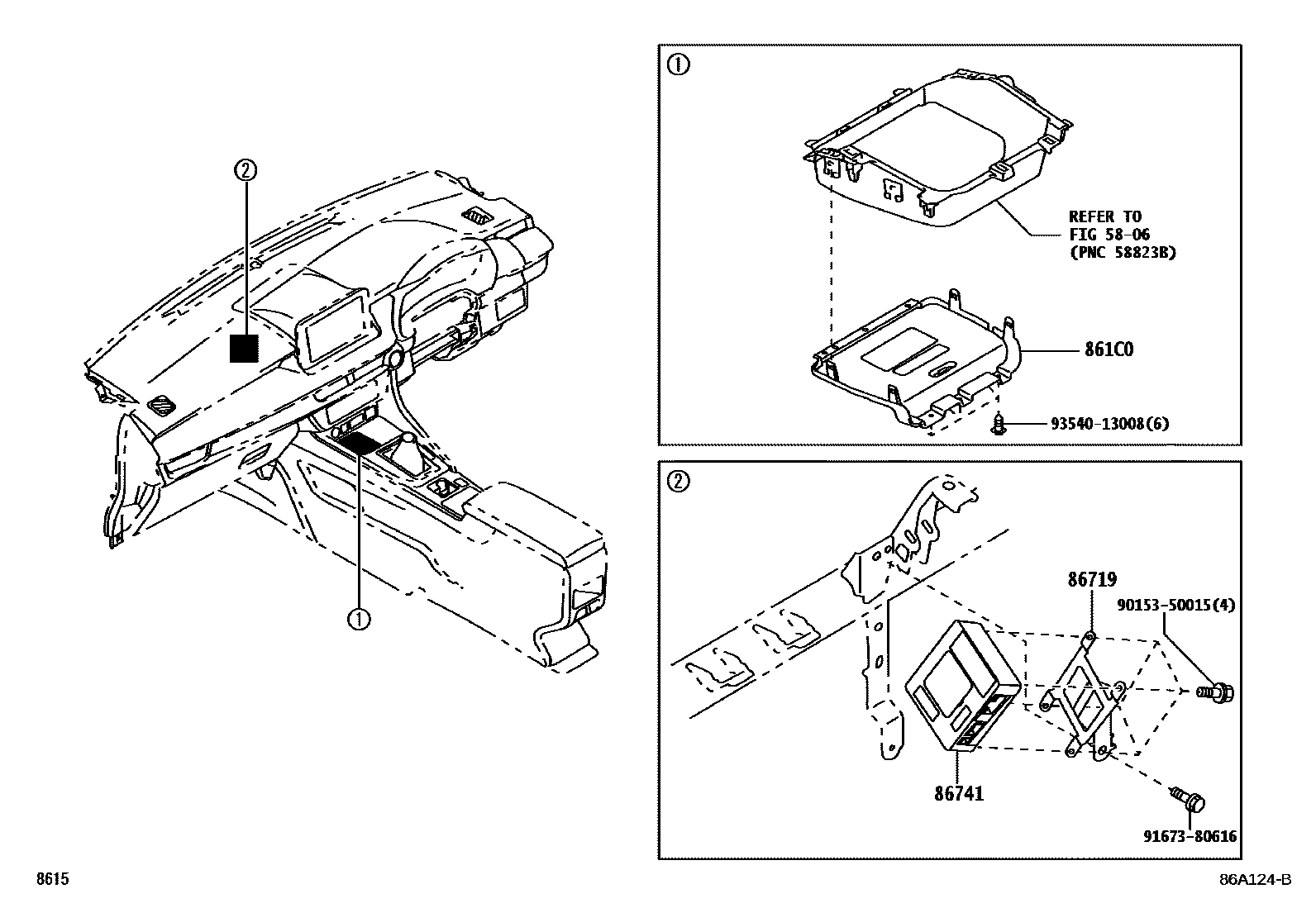

Toyota YARIS EPC diagram 8615, 车载电话和呼救装置, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82861B | ECU integrated bracket | 89237-BZ130 |
| 86719 | phone holder | 86719-BP021 · 89237-BZ080 |
| 86719A | Phone holder No. 1 | 89237-BZ100 |
| 86725 | mobile phone battery | 86725-BZ010 |
| 86730 | Telephone amplifier assembly | 86730-BZ030 |
| 86741 | Telephone transceiver | 86741-BP011 · 86741-BZ010 |
| 86742 | transceiver cover | 86742-BZ010 |
