Toyota YARIS 喇叭 — Figure 8611

Toyota YARIS EPC diagram 8611, 喇叭, with 2 images and 5 PNC and OE references.

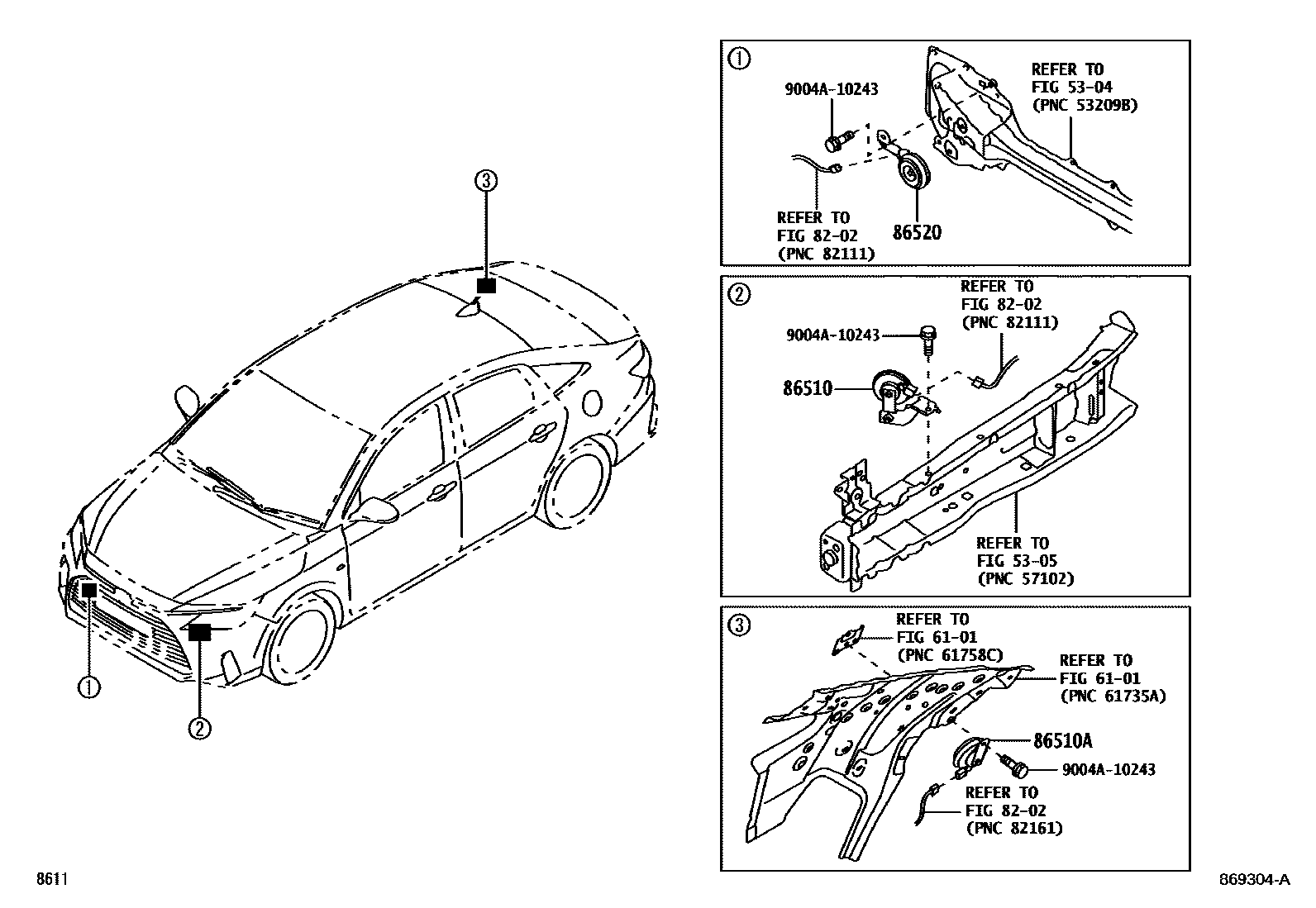

Toyota YARIS 喇叭 EPC diagram — 869304A
喇叭 — 869304A (202208 – 999999)

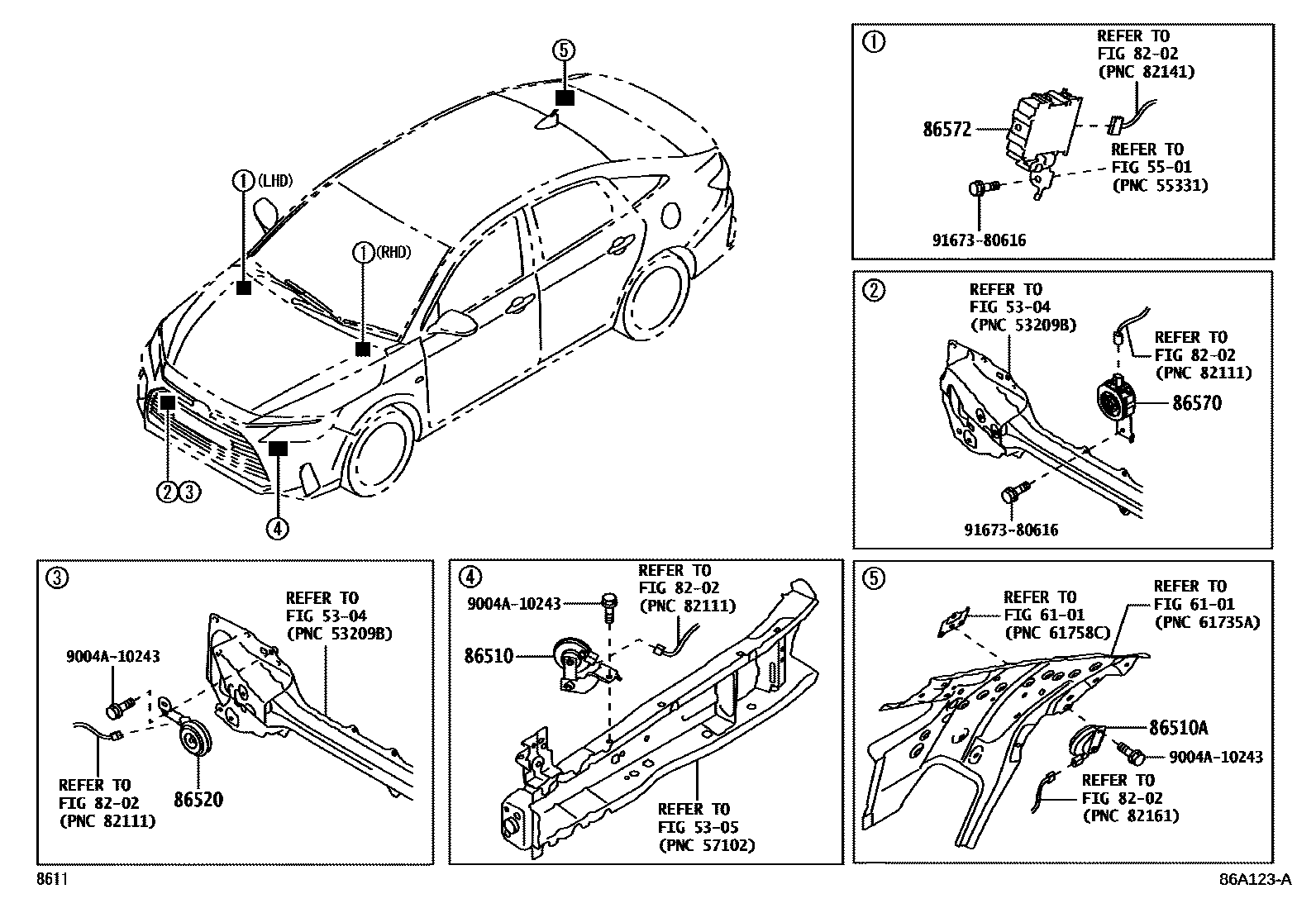

Toyota YARIS 喇叭 EPC diagram — 86A123A
喇叭 — 86A123A (202508 – 999999)

PNC and OE references

PNCPart nameOE numbers
86510tweeter assembly86510-BZ300 · 86510-BZ490
86510AAlarm horn assembly86520-BZ330
86520Subwoofer assembly86520-BZ430
86570Vehicle intrusion speaker assembly86570-B1030
86572vehicle hacking speaker controller86580-B1040 · 86580-B1050
