Toyota YARIS 车道保持辅助系统 — Figure 8609

Toyota YARIS EPC diagram 8609, 车道保持辅助系统, with 1 images and 1 PNC and OE references.

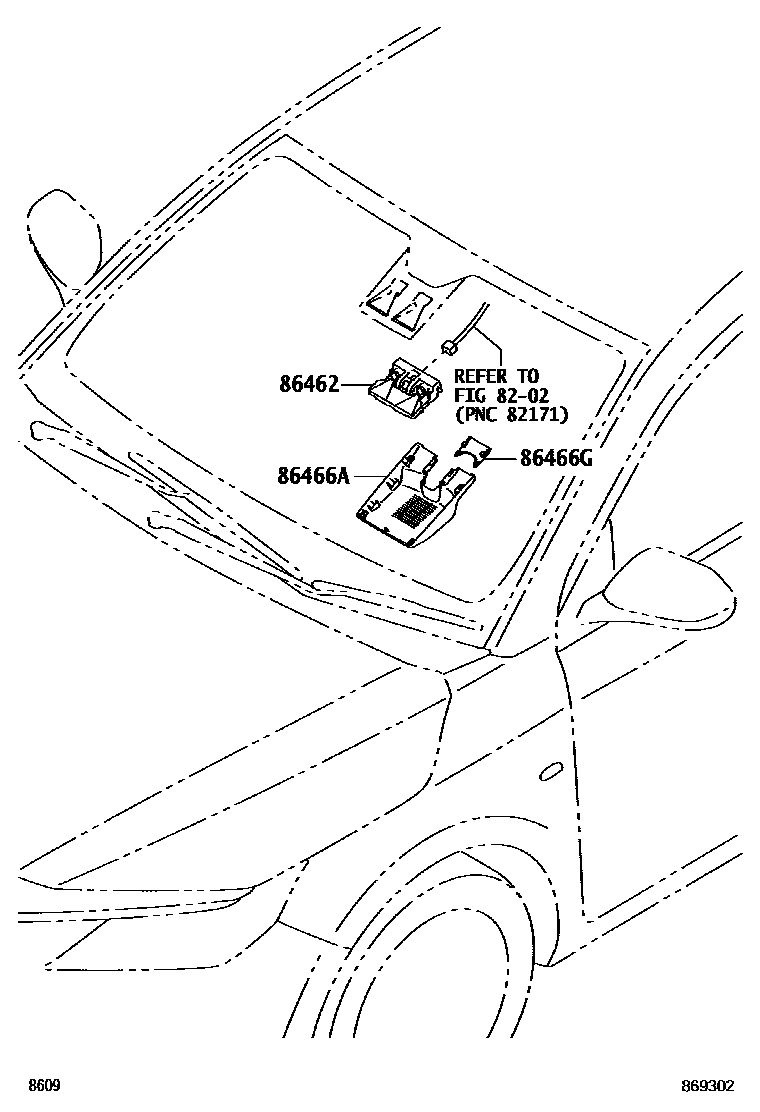

Toyota YARIS 车道保持辅助系统 EPC diagram — 869302
车道保持辅助系统 — 869302 (202208 – 999999)

PNC and OE references

PNCPart nameOE numbers
86462Obstacle recognition camera8646C-B1130 · 8646C-B1140 · 8646C-B1190 · 8646C-B1200 · 8646C-B1330 · 8646C-B1340 · 8646C-B1350 · 8646C-B1370 · 8646C-B1380 · 8646C-B1390 · 8646C-B1400 · 8646C-B1410
