Toyota YARIS 倒车影像和摄像头 — Figure 8606
Toyota YARIS EPC diagram 8606, 倒车影像和摄像头, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

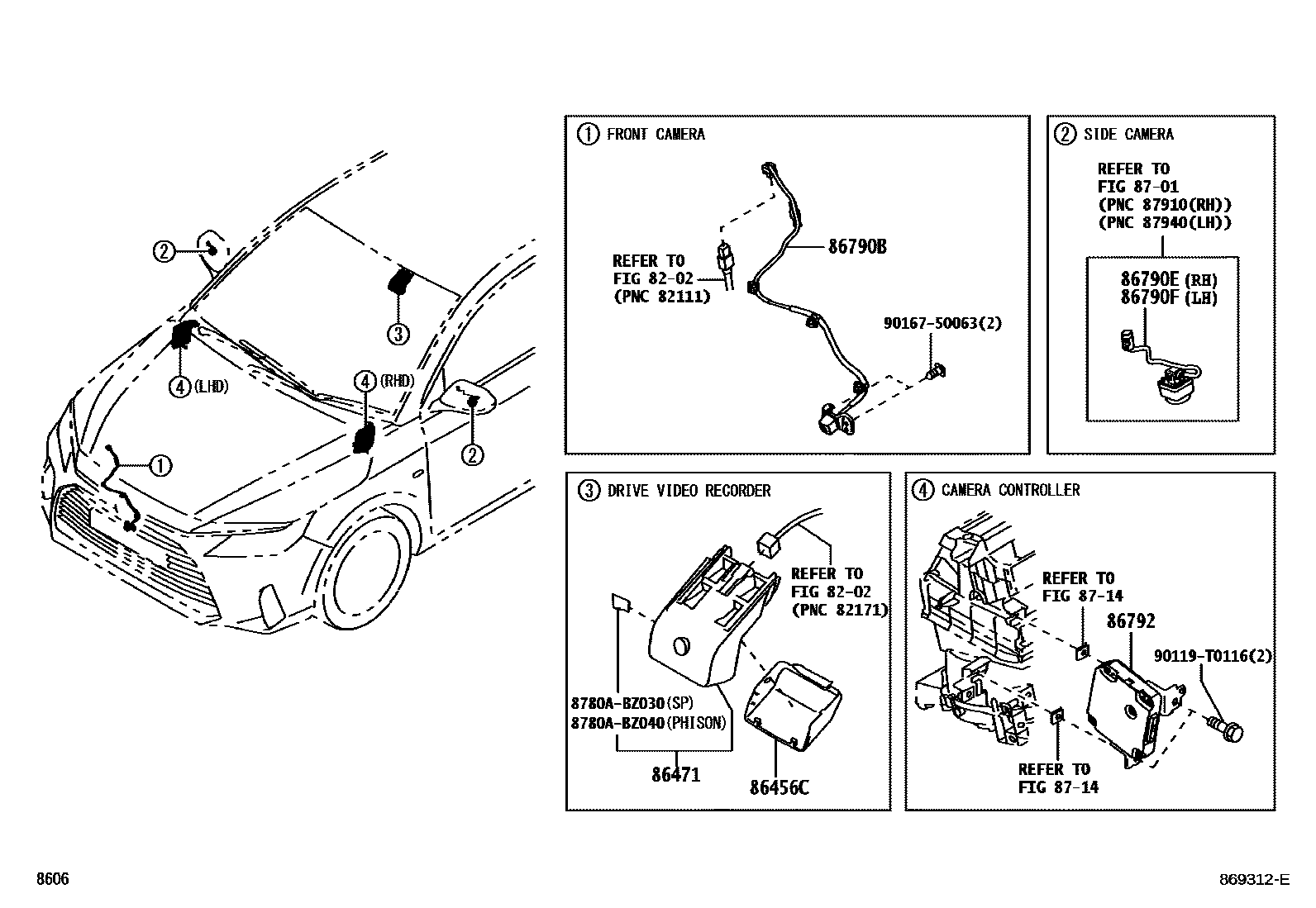

| 86456C | Multimedia module cover | 86456-BZ010 |
| 86471 | driver monitor camera | 86471-BZ010 |
| 86790B | Front image camera assembly | 86790-BZ220 · 86790-BZ350 |

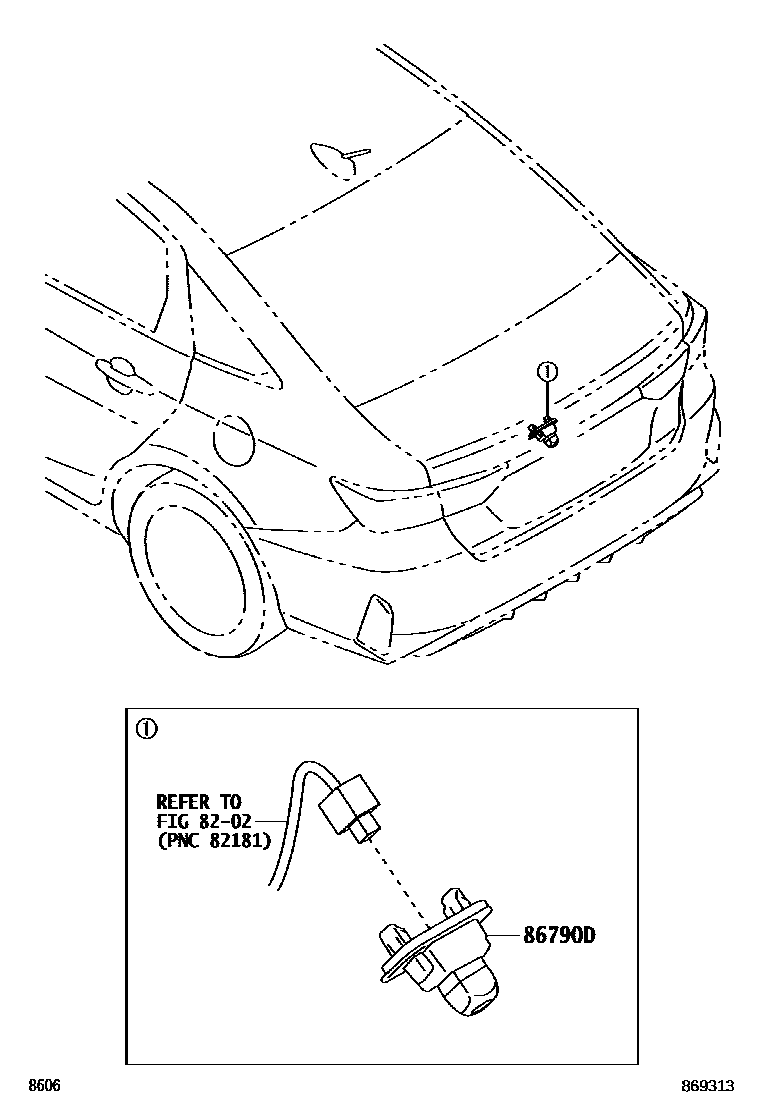

| 86790D | Rear reversing image camera assembly | 86790-BZ210 |
| 86790E | Right image camera assembly | 86790-BZ290 |
| 86790F | Left image camera assembly | 86790-BZ290 |
| 86792 | Reversing camera controller | 86792-B1130 · 86792-B1230 |
