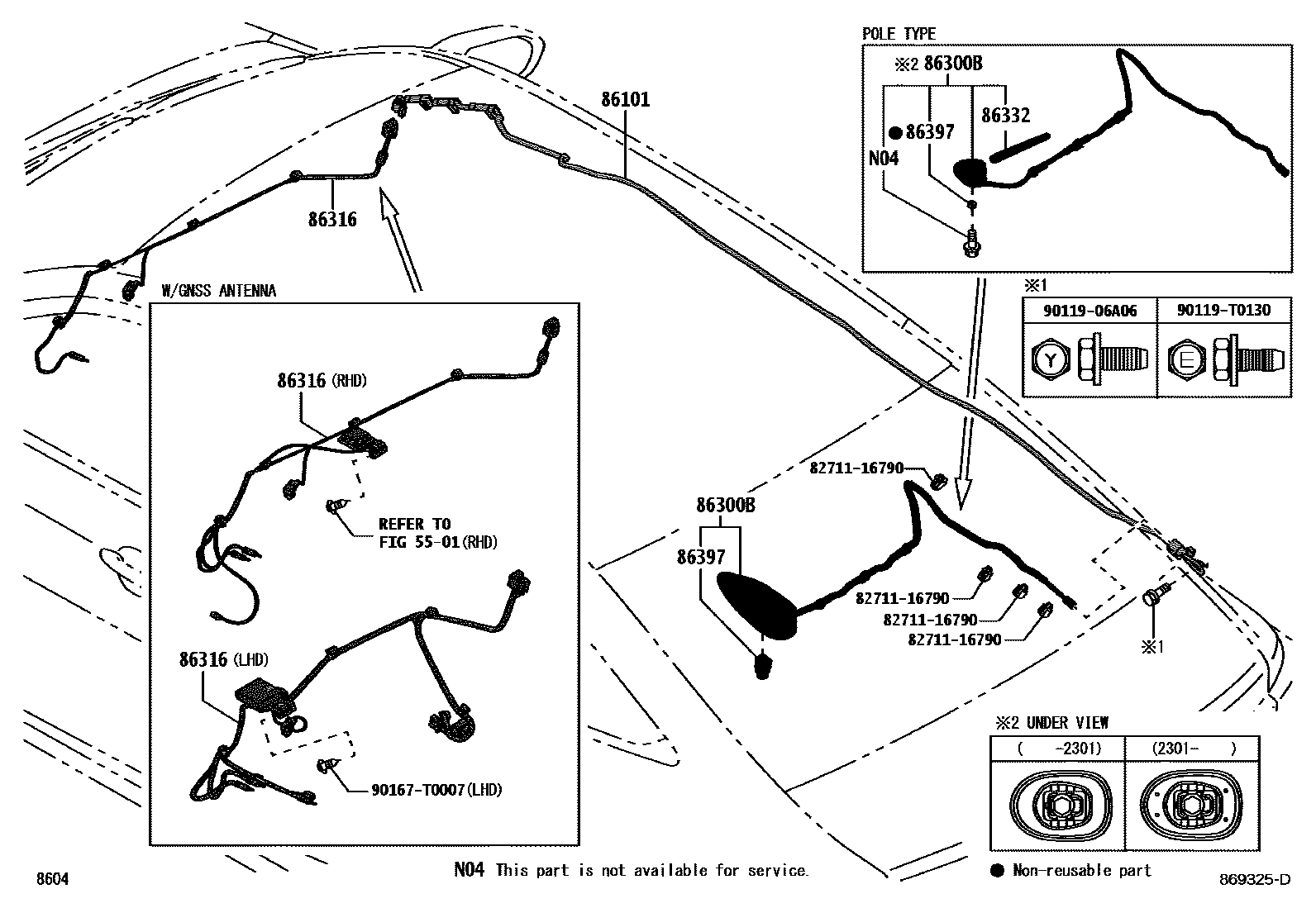

Toyota YARIS antenna — Figure 8604
Toyota YARIS EPC diagram 8604, antenna, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86101 | Antenna wire sub-assembly | 86316-BZ860 · 86316-BZ880 · 86316-BZD00 |
| 86300B | No. 1 amplifier antenna assembly | 86300-BZ540 · 86300-BZ541 |
| 86316 | Antenna cable | 86316-BZ890 · 86316-BZA00 · 86316-BZA20 · 86316-BZA30 · 86316-BZD10 |
| 86332 | antenna mast | 86332-BZ100 |
| 86397 | Antenna ground iron plate | 86397-B1020 · 86397-BZ040 |
