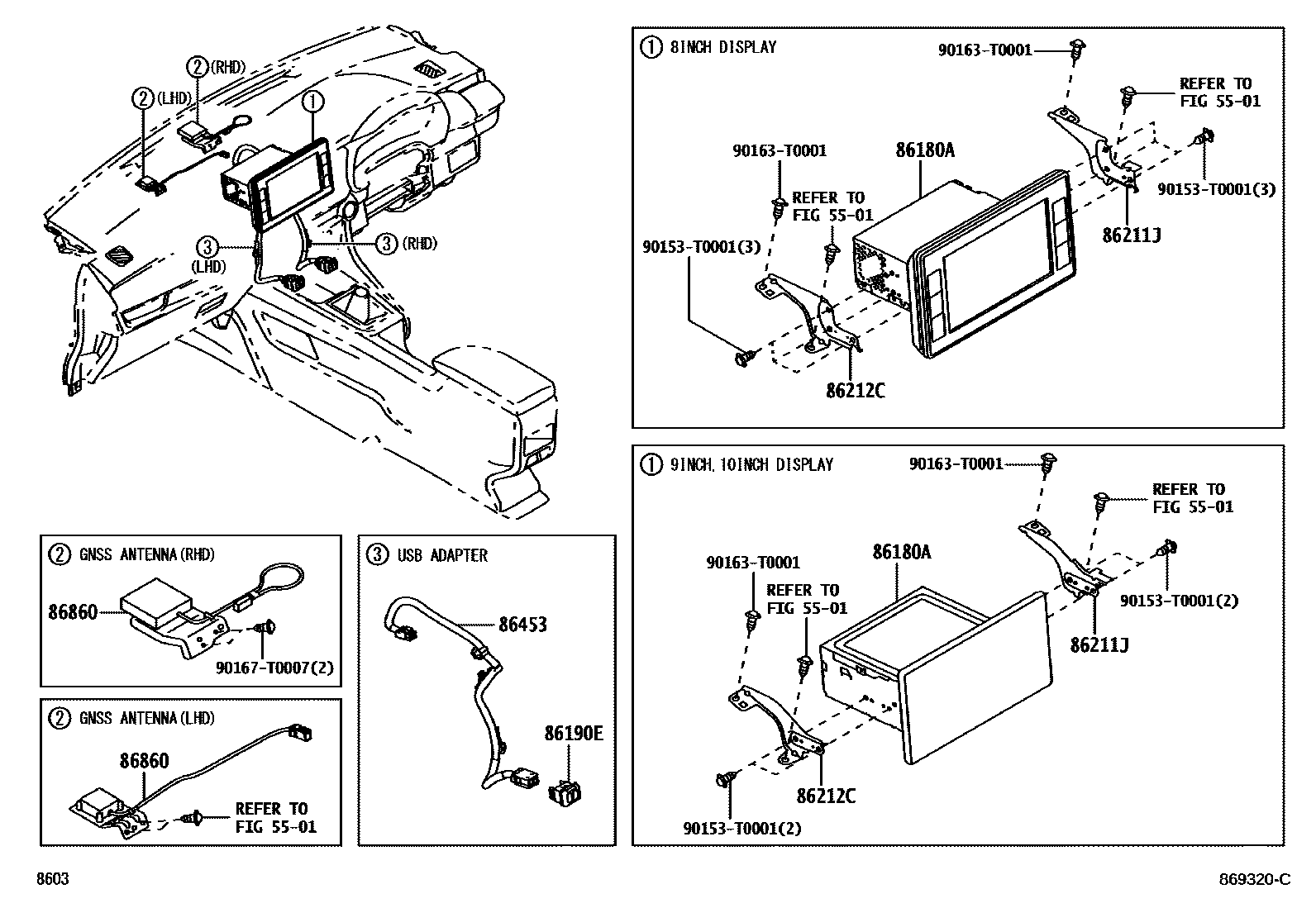

Toyota YARIS 导航和前监视器显示屏 — Figure 8603
Toyota YARIS EPC diagram 8603, 导航和前监视器显示屏, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86190E | Stereo socket adapter assembly | 86190-BZ090 · 86190-BZ160 |
| 86211J | No. 1 radio bracket | 86211-BZ490 · 86211-BZ500 · 86211-BZ580 |
| 86212C | No. 2 radio bracket | 86212-BZ490 · 86212-BZ500 · 86212-BZ580 |
| 86453 | Multimedia module wiring harness | 86203-BZ070 · 86203-BZ120 · 86203-BZ140 · 86203-BZ150 |
| 86860 | Navigation antenna assembly | 86860-BZ080 · 86860-BZ090 |
