Toyota YARIS 扬声器 — Figure 8602

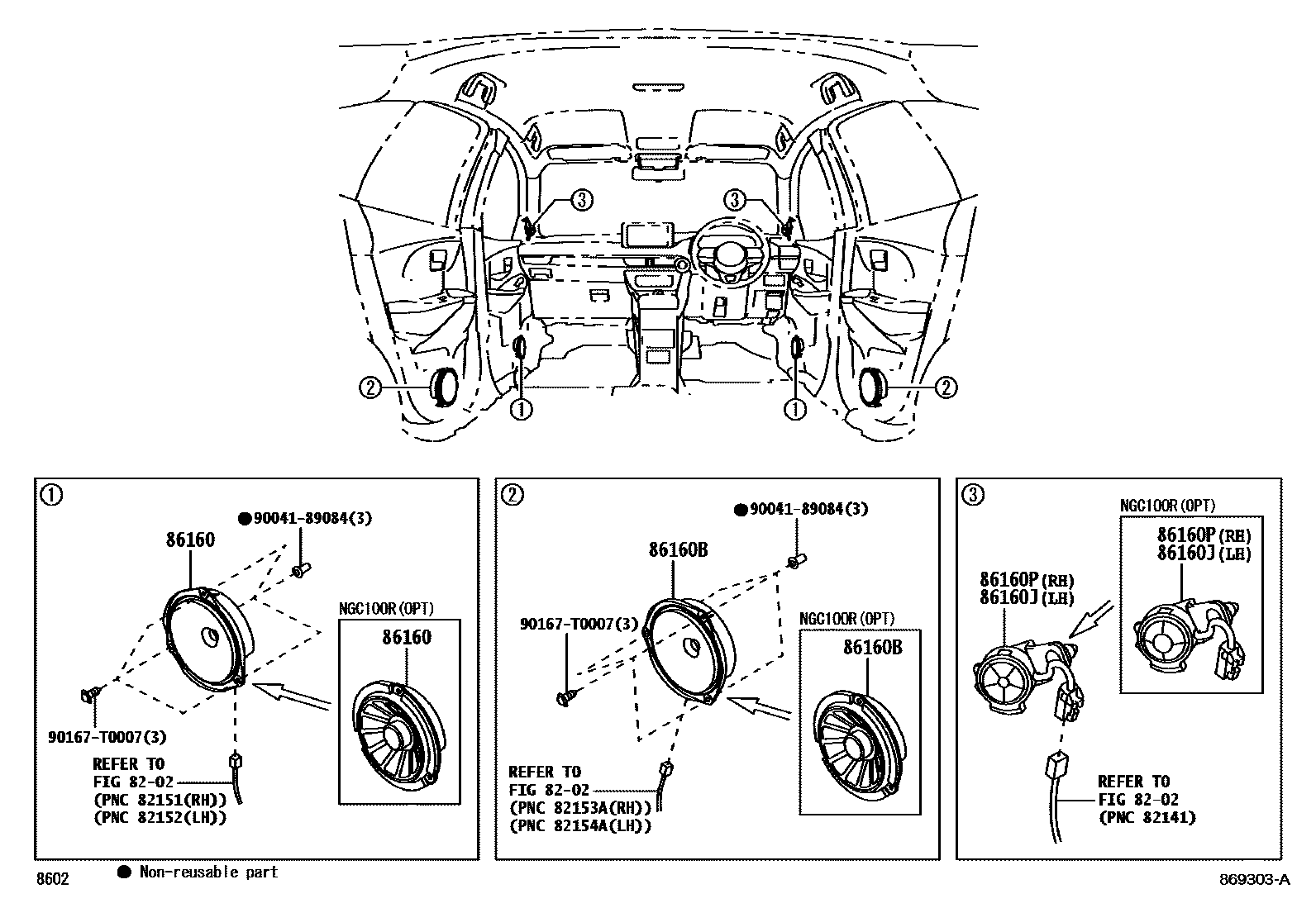

Toyota YARIS EPC diagram 8602, 扬声器, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86160 | No. 1 front speaker assembly | 86160-BZ420 · 86160-BZ430 · 86160-BZ530 |
| 86160B | Rear speaker assembly | 86160-BZ420 · 86160-BZ430 · 86160-BZ530 |
| 86160J | No. 3 front speaker assembly | 86160-BZ410 · 86160-BZ450 · 86160-BZ520 |
| 86160P | No. 2 front speaker assembly | 86160-BZ400 · 86160-BZ440 · 86160-BZ510 |
