Toyota YARIS 挡风玻璃清洗器 — Figure 8503

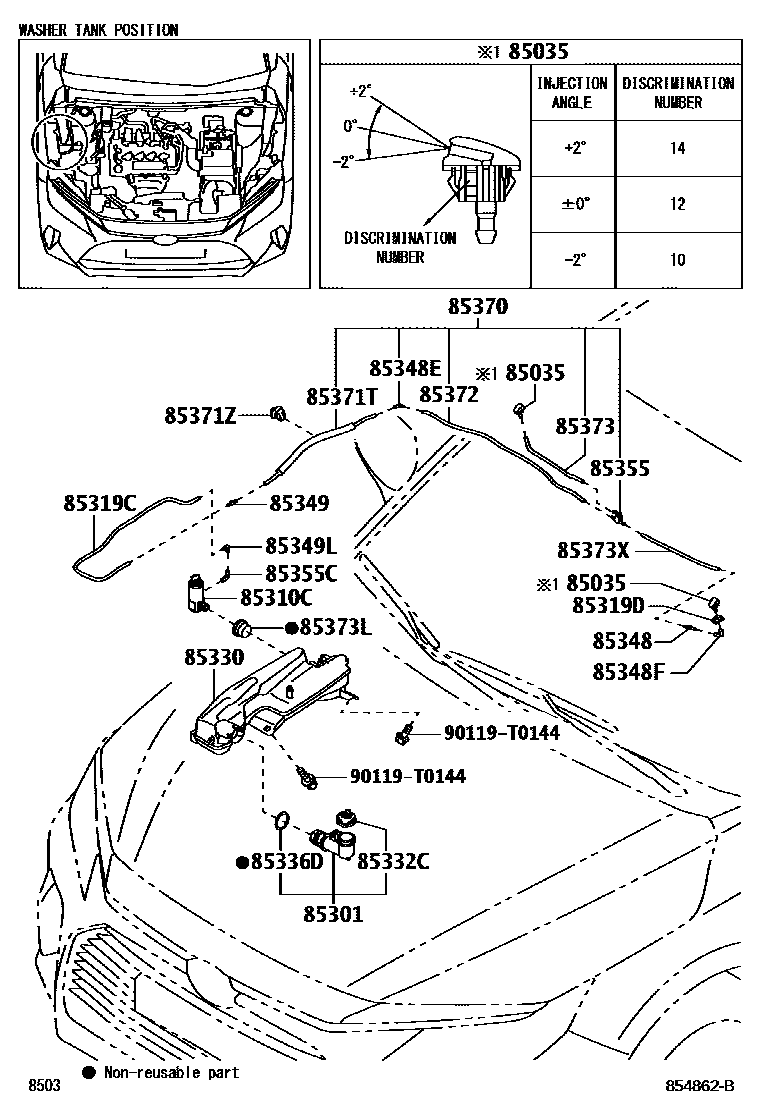

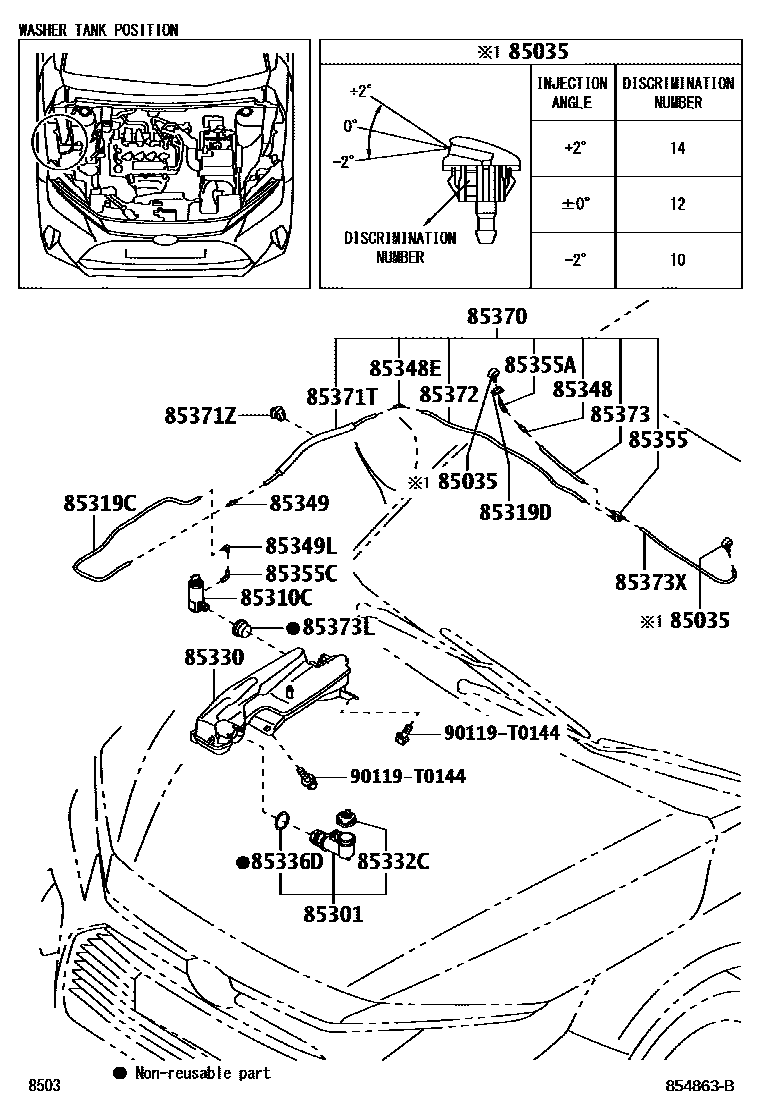

Toyota YARIS EPC diagram 8503, 挡风玻璃清洗器, with 2 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035 | Cleaner nozzle sub-assembly | 85381-B1120 · 85381-B1130 · 85381-BZ130 |
| 85301 | Cleaner water inlet sub-assembly | 85301-BZ040 · 85301-BZ100 |
| 85310C | Cleaner motor and pump assembly | 85330-BZ170 |
| 85319C | washer hose | 85374-BZG80 |
| 85319D | front washer seal | 85336-B2050 |
| 85330 | Windshield washer fluid tank assembly | 85315-BZ210 |
| 85332C | Front washer water tank cover | 85332-B2040 · 85332-BZ040 |
| 85336D | Windshield washer fluid tank seal | 85336-B2060 |
| 85348 | Windshield washer hose connector No. 1 | 85317-BZ080 |
| 85348E | No. 2 windshield washer elbow joint | 85376-BZ020 |
| 85348F | No. 3 windshield washer elbow joint | 85355-87701 |
| 85349 | Windshield washer hose connector No. 1 | 85317-BZ080 |
| 85349L | No. 1 windshield washer elbow joint | 85376-BZ020 |
| 85355 | Windshield washer hose valve | 85376-B1010 |
| 85355A | Windshield washer elbow joint | 85355-87701 |
| 85355C | Cleaning fluid tank C | 85355-87701 |
| 85370 | Windshield washer hose assembly | 85370-BZE70 · 85370-BZE80 |
| 85371T | Windshield washer hose (from connector to connector) | 85374-BZM20 |
| 85371Z | Cleaner hose clamp | 82711-16790 |
| 85372 | Windshield washer hose No. 1 (from connector to connector) | 85374-BZ780 · 85374-BZA70 |
| 85373 | Windshield washer hose (from connector to nozzle) | 85374-BZK20 · 85374-BZM30 |
| 85373L | Cleaner seal | 85373-97202 |
| 85373X | Windshield washer hose No. 2 (from connector to nozzle) | 85374-BZK20 · 85374-BZM10 |
