Toyota YARIS 挡风玻璃刮水器 — Figure 8501

Toyota YARIS EPC diagram 8501, 挡风玻璃刮水器, with 3 images and 11 PNC and OE references.

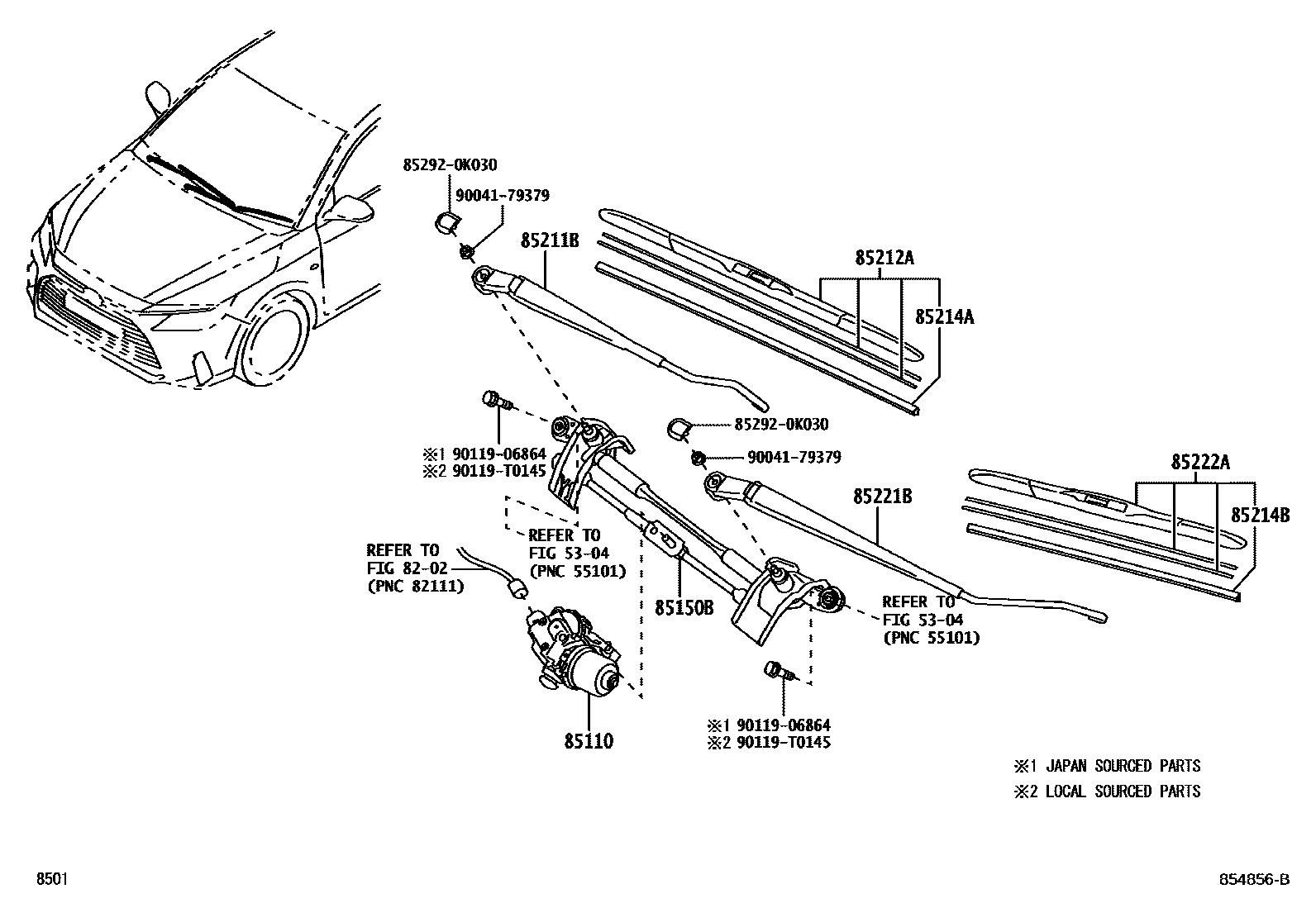

Toyota YARIS 挡风玻璃刮水器 EPC diagram — 854856B
挡风玻璃刮水器 — 854856B (202208 – 999999)

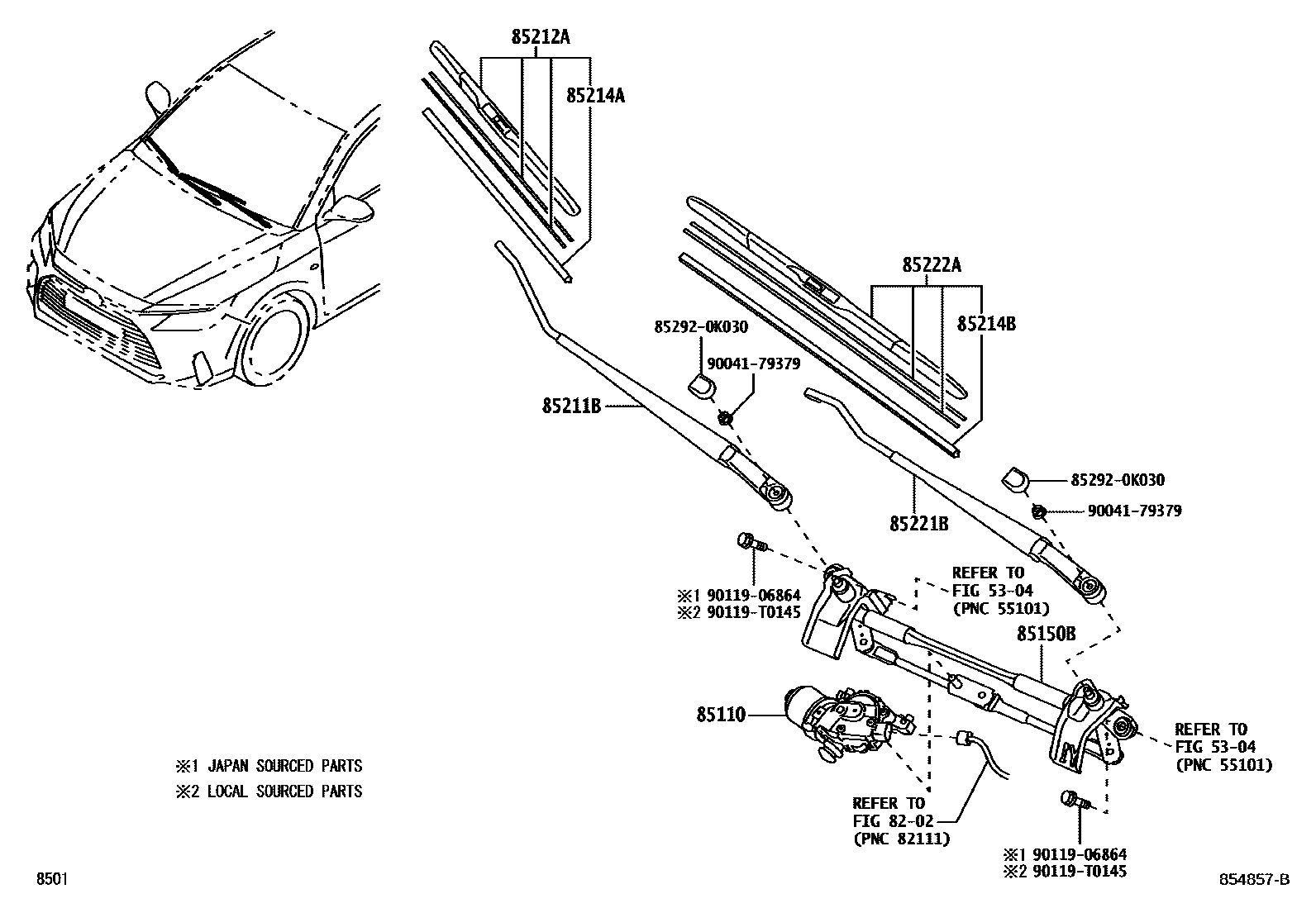

Toyota YARIS 挡风玻璃刮水器 EPC diagram — 854857B
挡风玻璃刮水器 — 854857B (202208 – 999999)

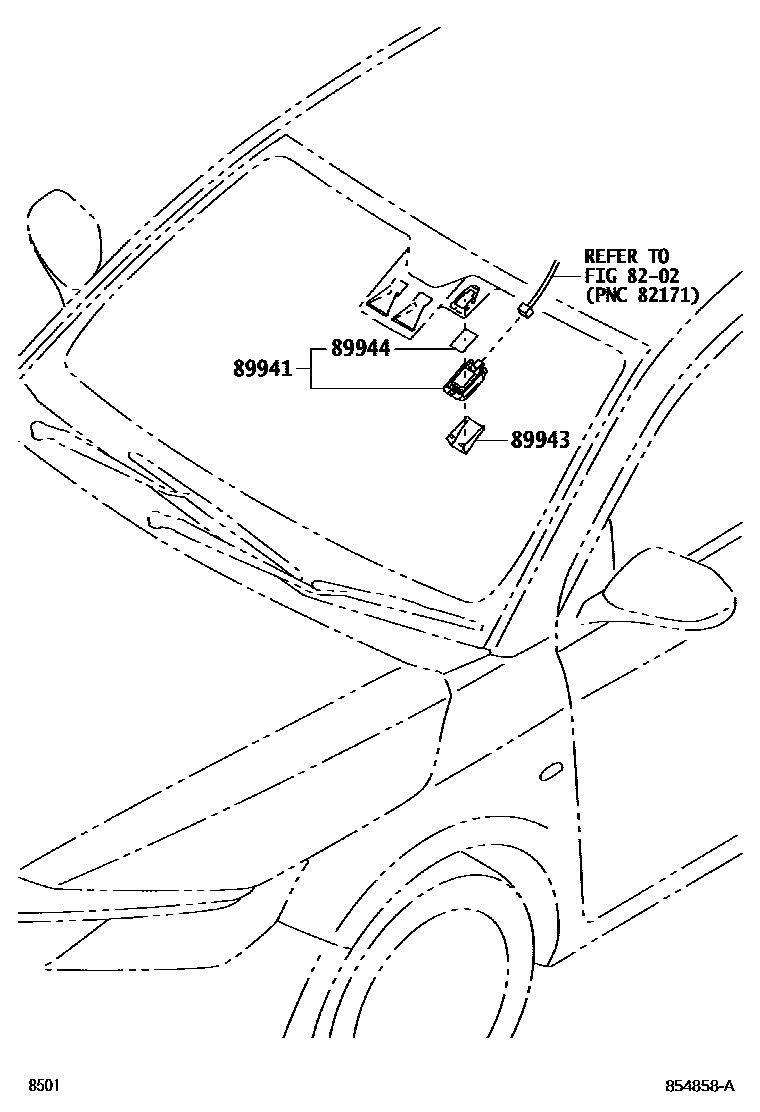

Toyota YARIS 挡风玻璃刮水器 EPC diagram — 854858A
挡风玻璃刮水器 — 854858A (202303 – 999999)

PNC and OE references

PNCPart nameOE numbers
85110Windshield wiper motor assembly85110-BZ350 · 85110-BZ360
85150BWiper connecting rod assembly85150-BZ370 · 85150-BZ380
85211BRight front wiper arm85211-BZ390 · 85221-BZ400
85212ARight front wiper blade85212-B1090 · 85222-B1120
85214ARight wiper rubber strip85214-B1070 · 85214-B2290
85214BLeft wiper rubber strip85214-B1070 · 85214-B2290
85221BLeft front wiper arm85211-BZ400 · 85221-BZ390
85222ALeft front wiper blade85212-B1100 · 85222-B1110
89941rain sensor89941-78020
89943Rain sensor cover89943-76020
89944Rain sensor tape89944-42020
