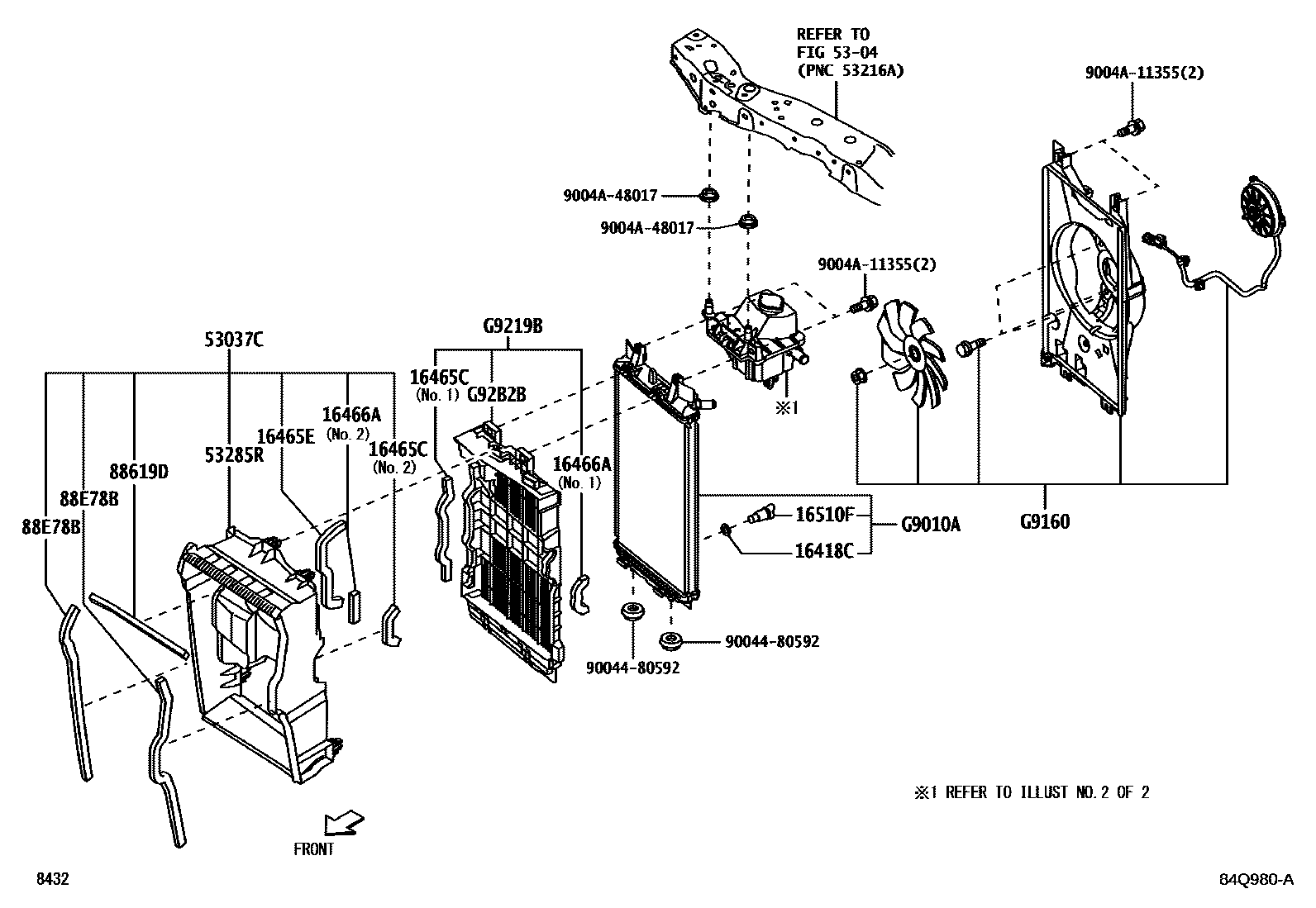

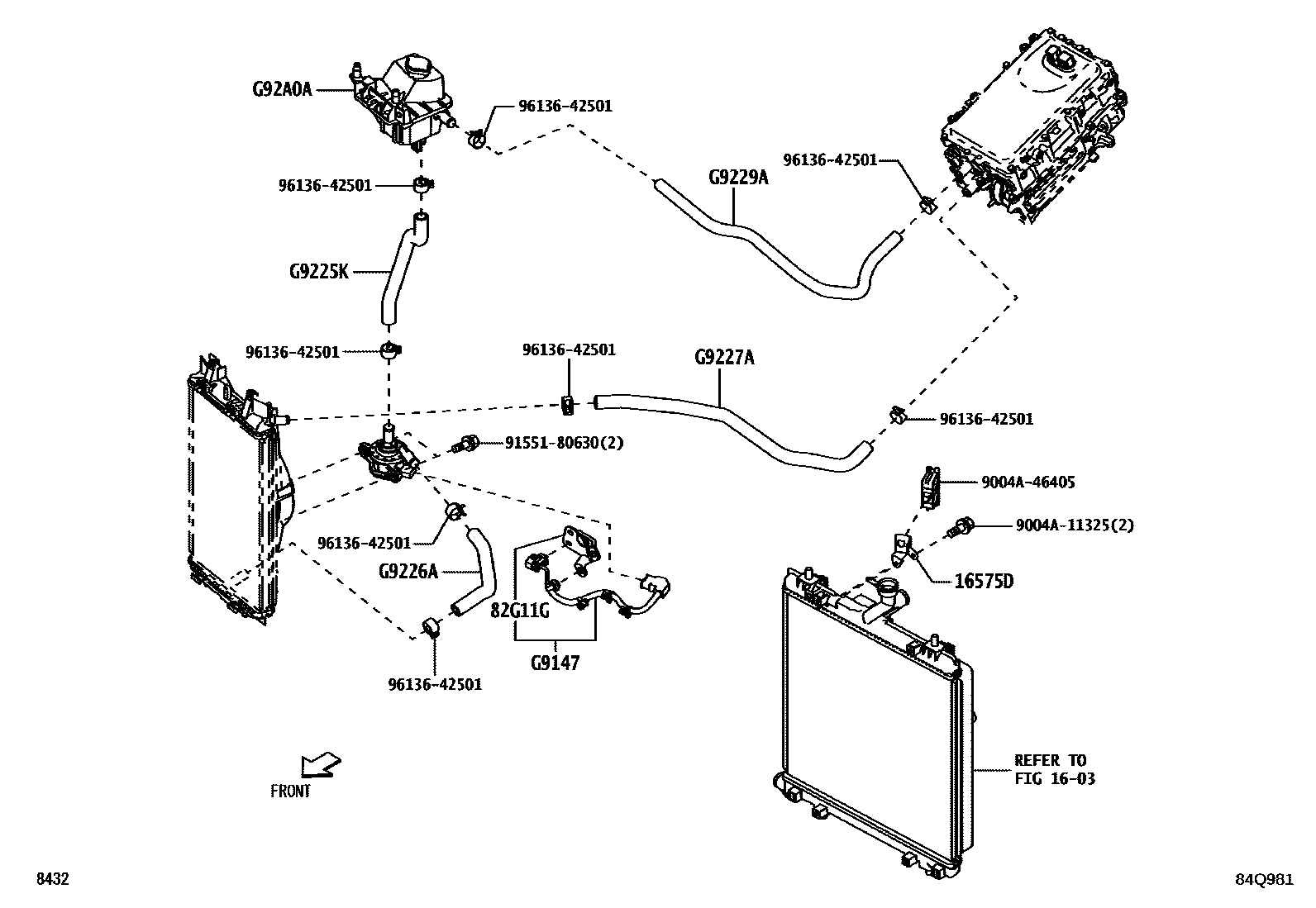

Toyota YARIS 逆变器冷却系统 — Figure 8432
Toyota YARIS EPC diagram 8432, 逆变器冷却系统, with 3 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16418C | Radiator drain seal | 16418-87503 |
| 16465C | Radiator seal No. 1 | 16465-BZ010 · 16465-BZ020 |
| 16465E | Radiator seal No. 3 | 16467-BZ010 |
| 16466A | Radiator seal No. 2 | 16466-BZ010 · 16466-BZ020 |
| 16510F | Water release switch assembly | 16417-30170 |
| 16575D | No. 1 water hose clamp bracket | 16575-BZ060 |
| 53037C | Radiator seal sub-assembly | 53037-BZ120 |
| 53285R | Radiator side 1 air seal | 53285-BZ150 |
| 82G11G | Wire harness clip | 82711-BZ390 |
| 88619D | No. 2 cooler seal | 88619-BZ310 |
| 88E78B | Cooler seal No. 1 | 88578-BZG20 |
| G9010A | Radiator assembly | G9010-B1010 |

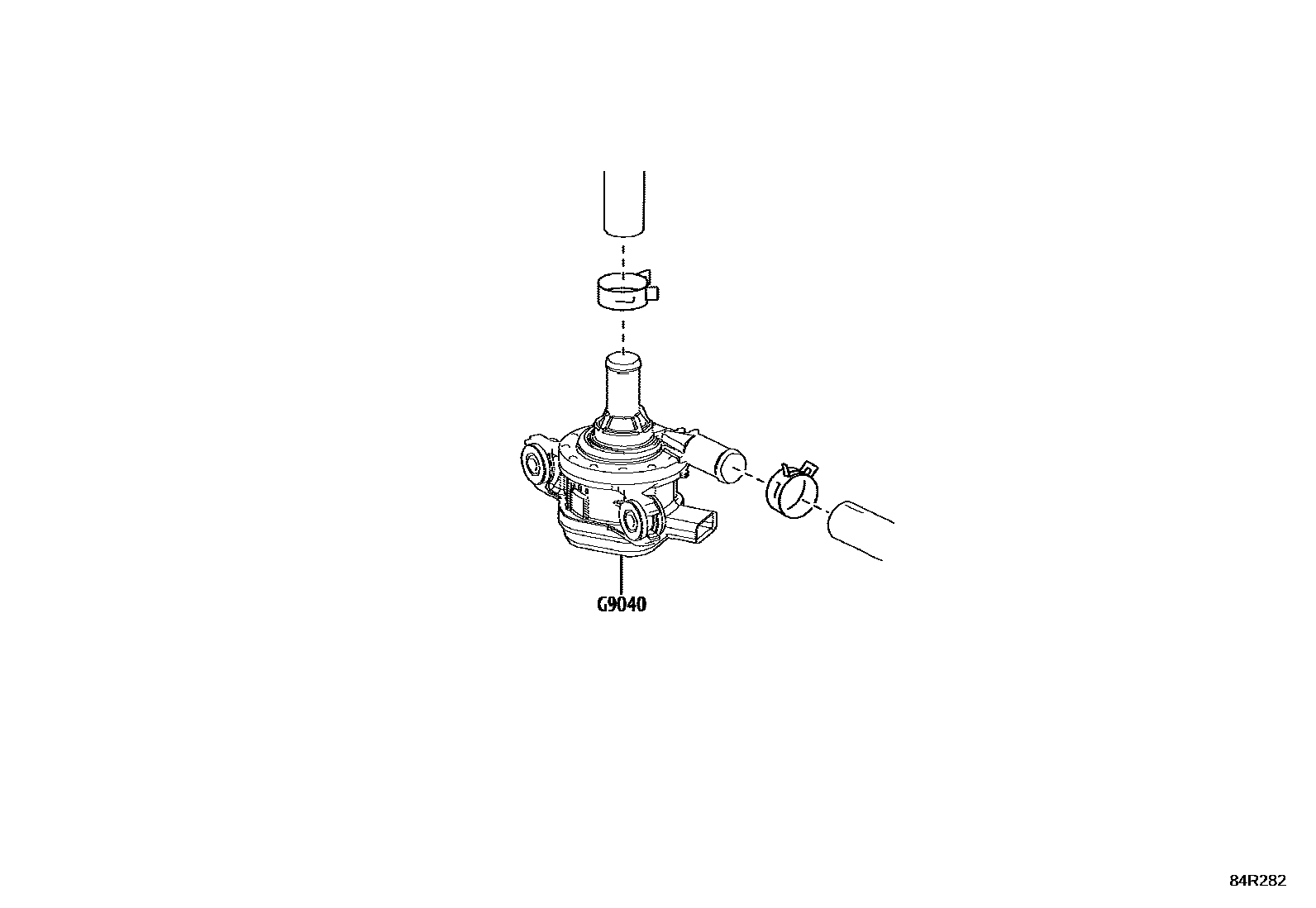

| G9040 | Inverter water pump assembly (with motor) | G9040-0J020 |
| G9147 | HV water pump wiring harness | G9147-BZ010 |
| G9160 | Inverter cooling fan assembly with motor and bracket | G9160-BZ020 |
| G9219B | Inverter radiator protection device | G9219-BZ020 |
| G9225K | No. 1 inverter cooling hose | G9225-BZ020 |
| G9226A | No. 2 inverter cooling hose | G9226-BZ010 |
| G9227A | No. 3 inverter cooling hose | G9227-BZ020 |
| G9229A | No. 5 inverter cooling hose | G9229-BZ020 |
| G92A0A | Inverter liquid tank assembly | G91H0-BZ010 |
| G92B2B | HV inverter cooling unit cover | G92B2-BZ020 |
