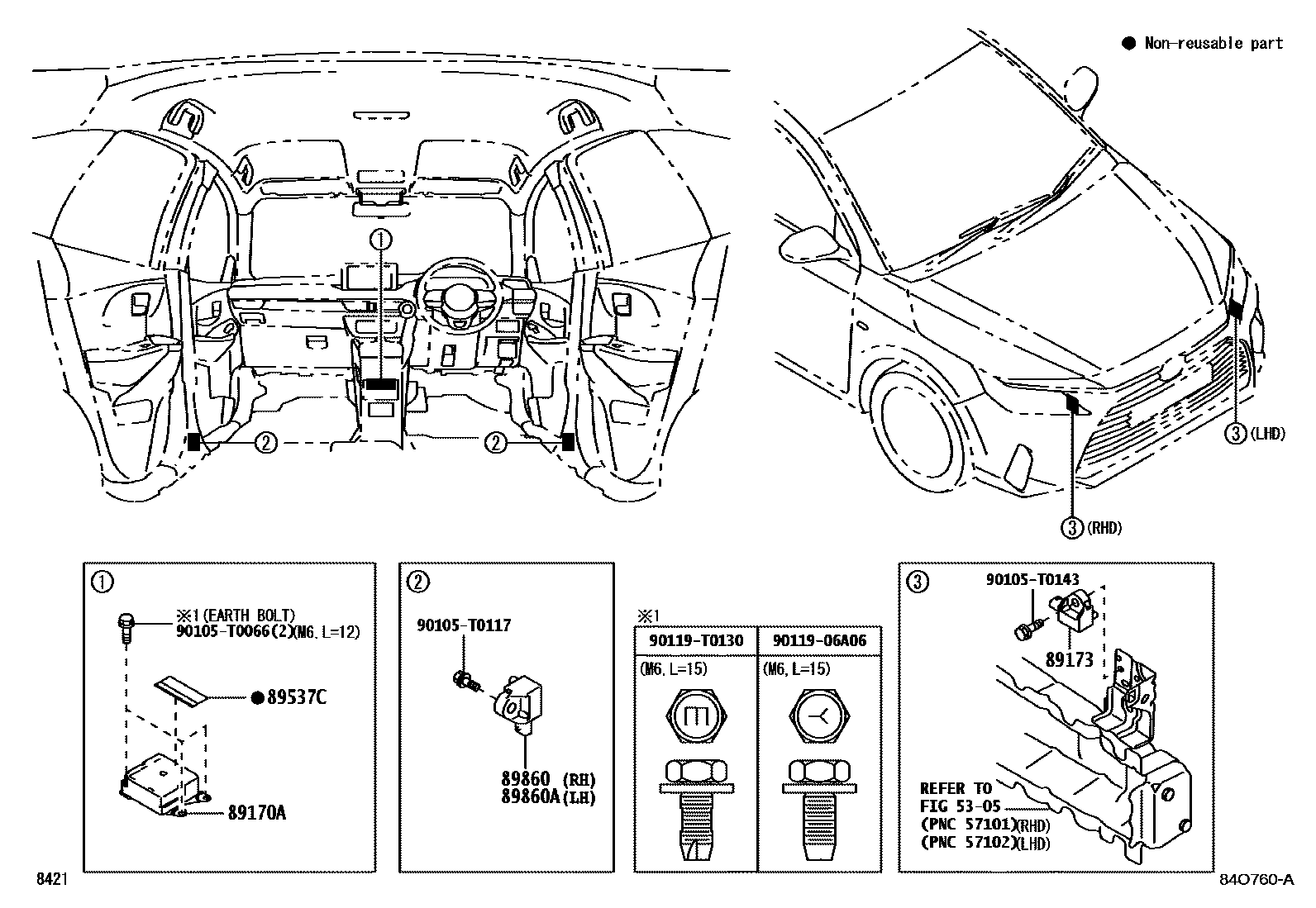

Toyota YARIS 空气囊 — Figure 8421
Toyota YARIS EPC diagram 8421, 空气囊, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89170A | Air bag ECU assembly | 89170-BZ830 · 89170-BZ840 · 89170-BZ850 · 89170-BZA60 · 89170-BZA70 · 89170-BZA80 |
| 89173 | front airbag sensor | 89173-B2240 |
| 89537C | ECU cover | 19114-B2060 · 19114-BZ040 |
| 89860 | Right side airbag sensor assembly | 89860-B1140 |
| 89860A | Left side air bag sensor assembly | 89860-B1140 |
