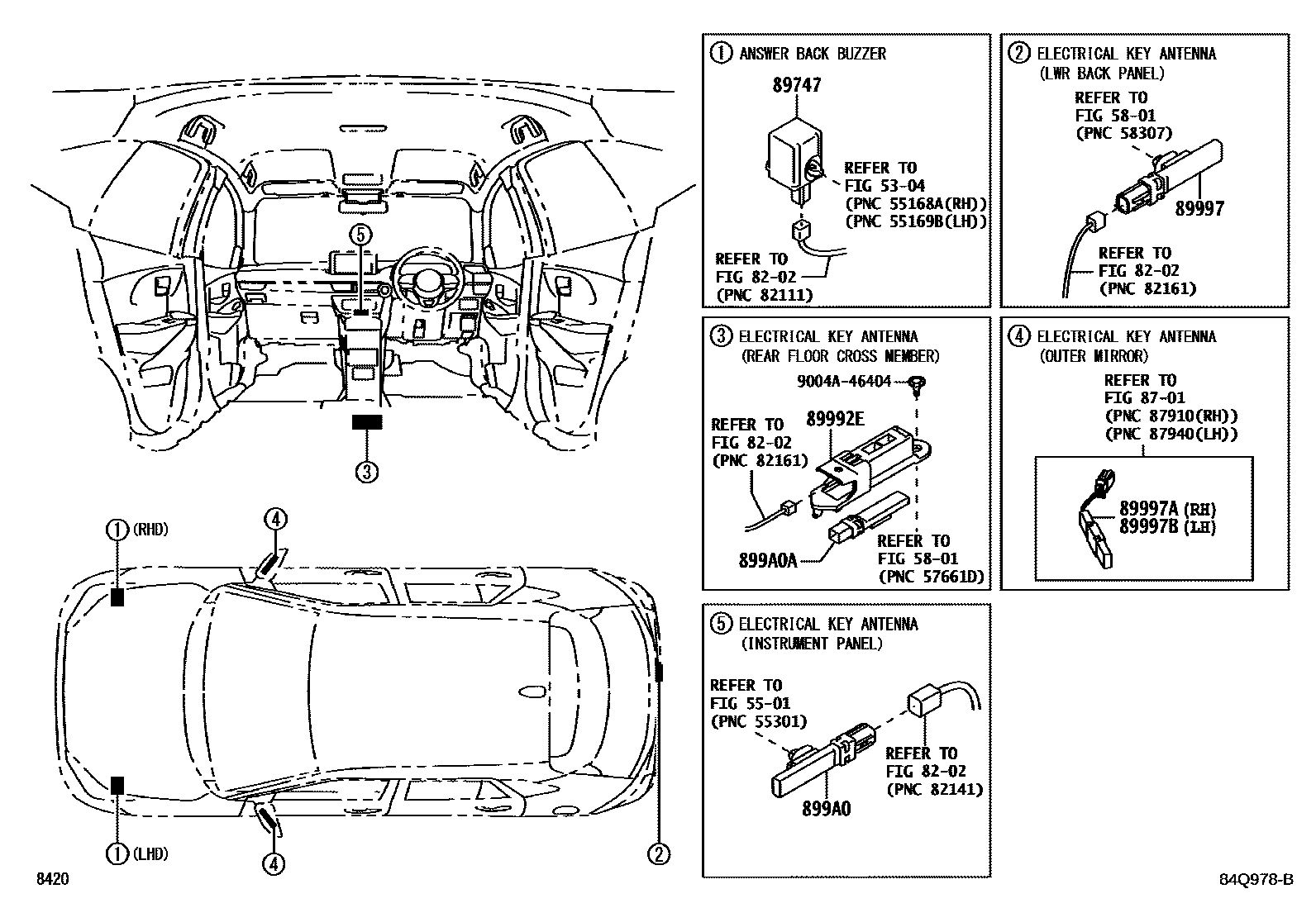

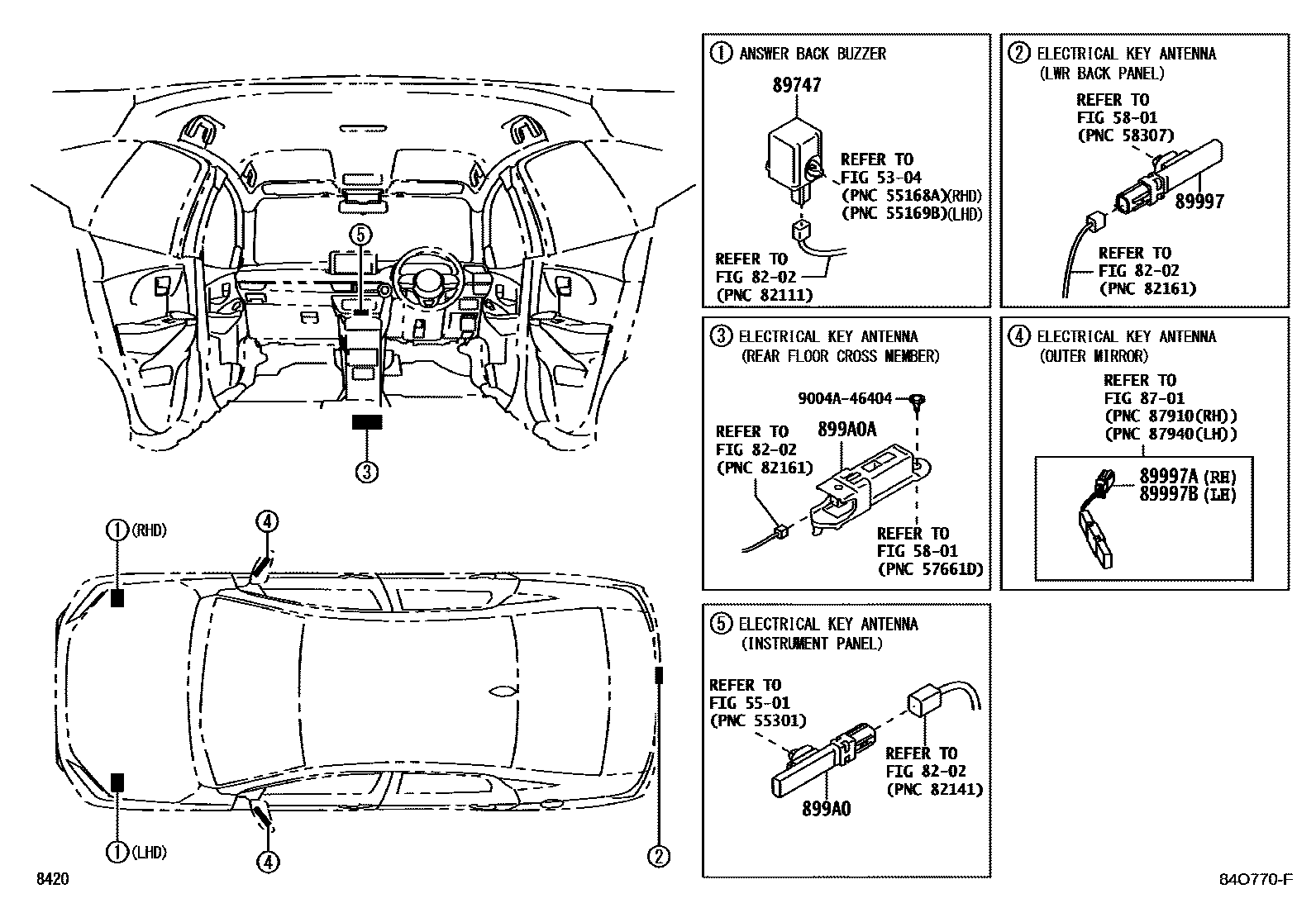

Toyota YARIS 遥控门锁 — Figure 8420
Toyota YARIS EPC diagram 8420, 遥控门锁, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89747 | Remote door lock buzzer | 89747-30040 |
| 89992E | Electronic key case without oscillator | 89992-BZ060 |
| 89997 | electronic key antenna | 89997-BZ060 |
| 89997A | Electronic key antenna No. 2 | 89997-BZ020 · 89997-BZ140 |
| 89997B | ANTENNE, CLE ELECTRIQUE, NO.3 | 89997-BZ020 · 89997-BZ140 |
| 899A0 | No. 1 electronic key antenna assembly in car | 89997-BZ010 |
| 899A0A | Electronic key antenna assembly in car No. 2 | 89997-BZ030 · 89997-BZ150 |
