Toyota YARIS 测距雷达和倒车雷达 — Figure 8417

Toyota YARIS EPC diagram 8417, 测距雷达和倒车雷达, with 2 images and 3 PNC and OE references.

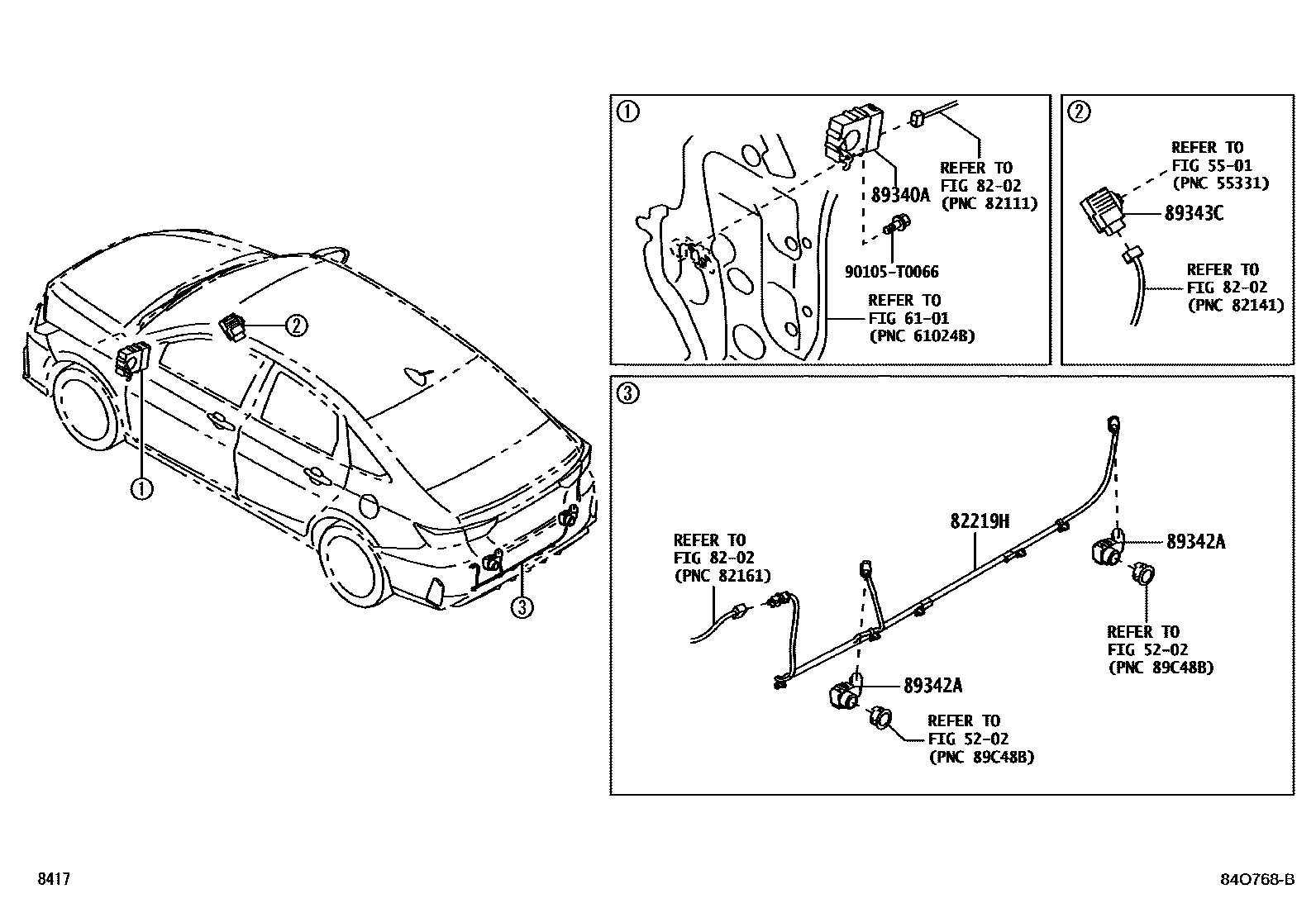

Toyota YARIS 测距雷达和倒车雷达 EPC diagram — 84O768B
测距雷达和倒车雷达 — 84O768B (202208 – 999999)

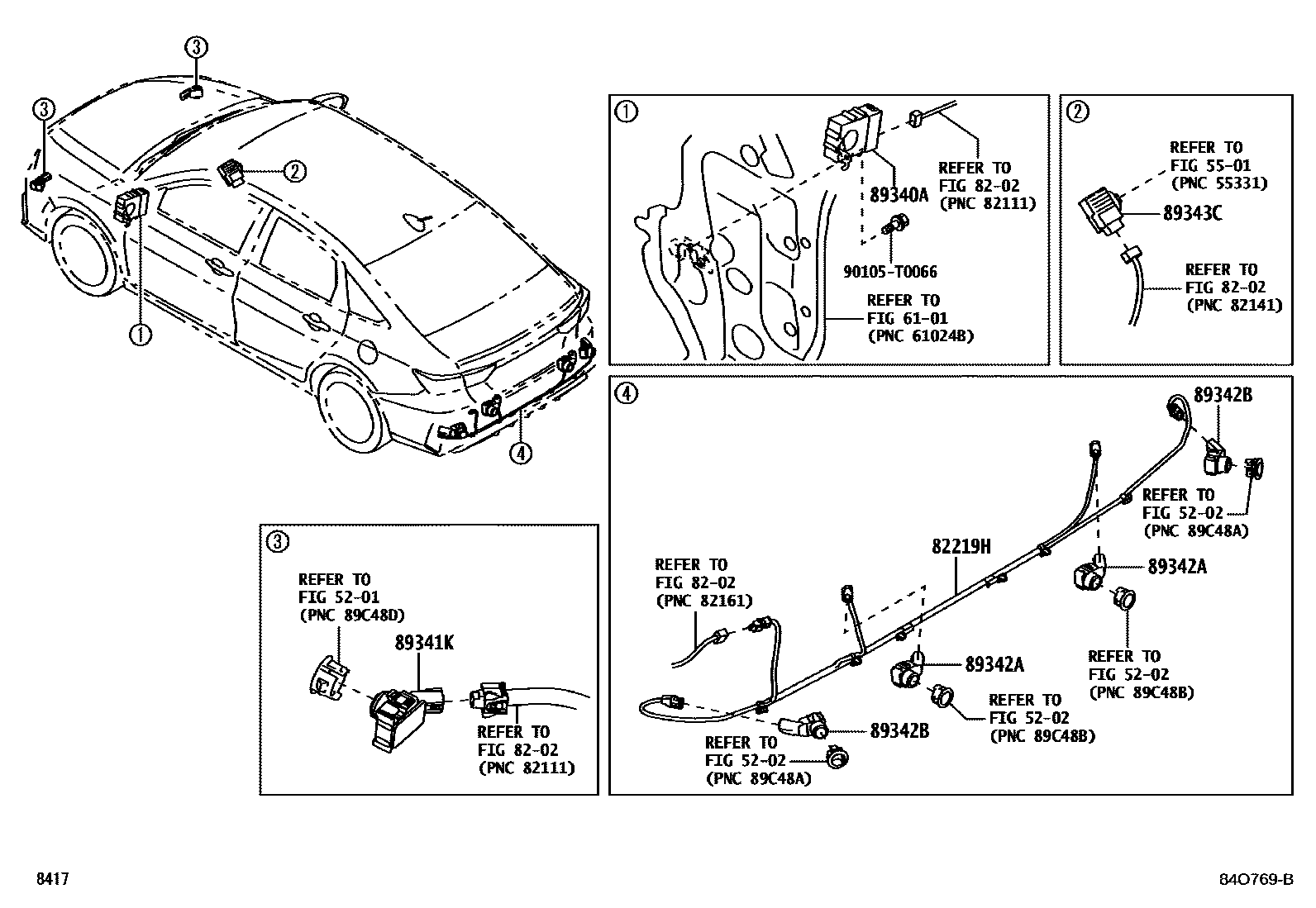

Toyota YARIS 测距雷达和倒车雷达 EPC diagram — 84O769B
测距雷达和倒车雷达 — 84O769B (202208 – 999999)

PNC and OE references

PNCPart nameOE numbers
82219Hsensor harness82219-BZ370 · 82219-BZ390
89340ADistance warning ECU assembly89340-BZ340 · 89340-BZ460 · 89340-BZ480 · 89340-BZ560
89343CNo. 1 distance warning buzzer89343-48010
