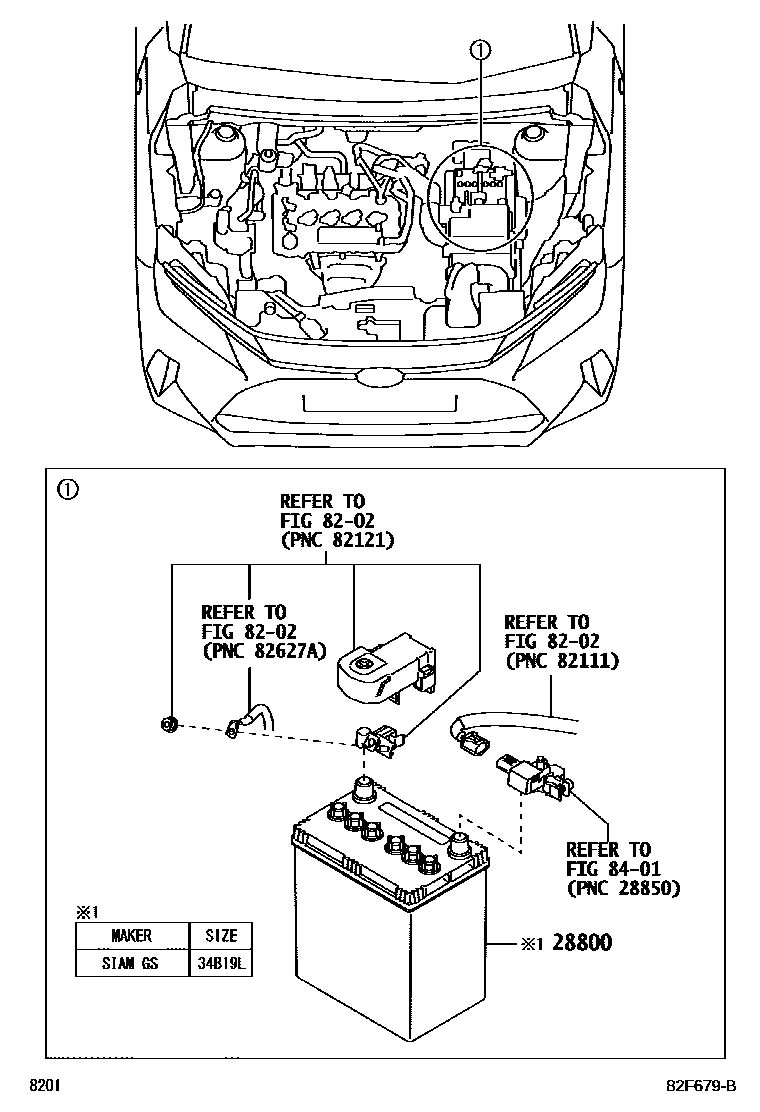

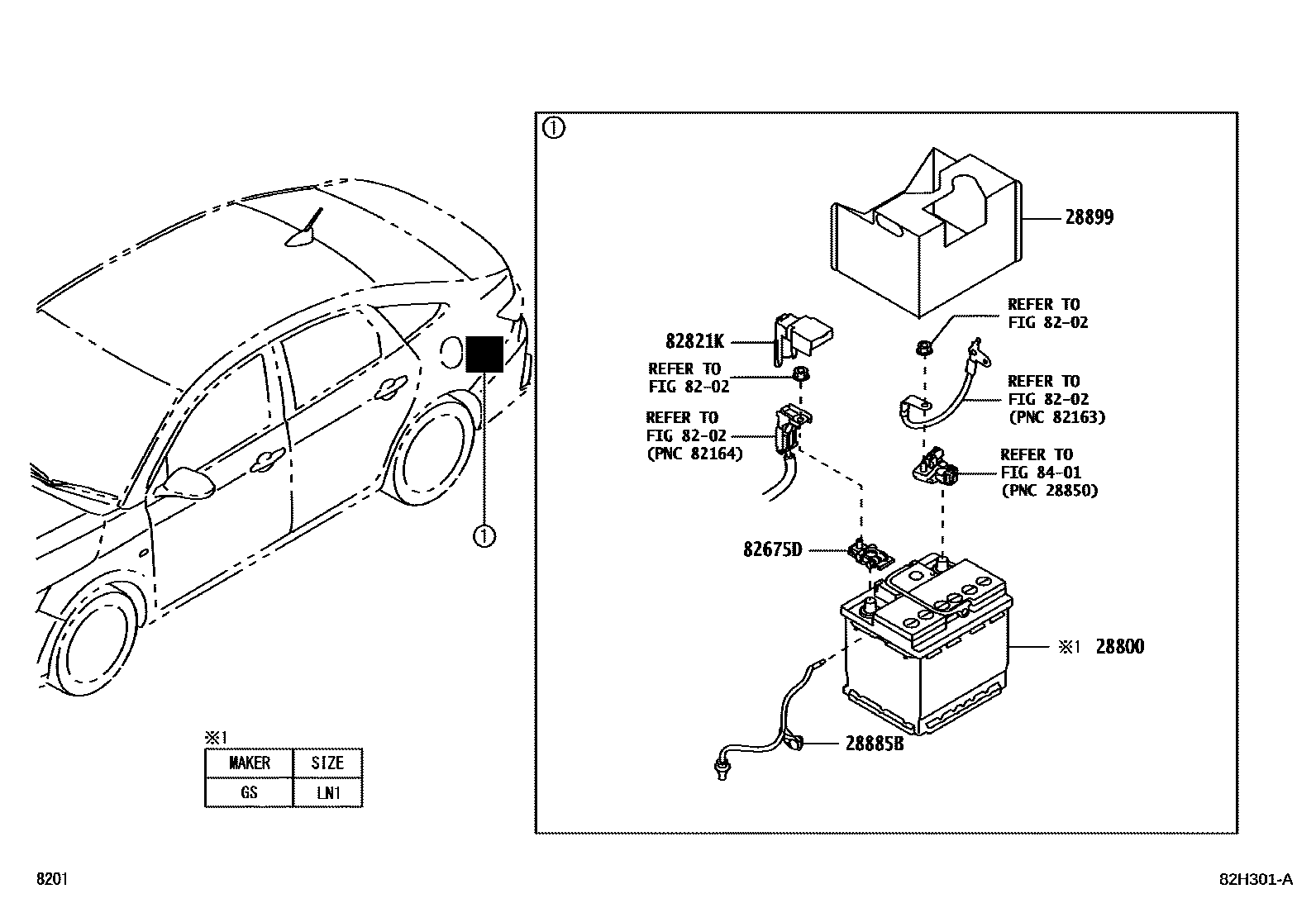

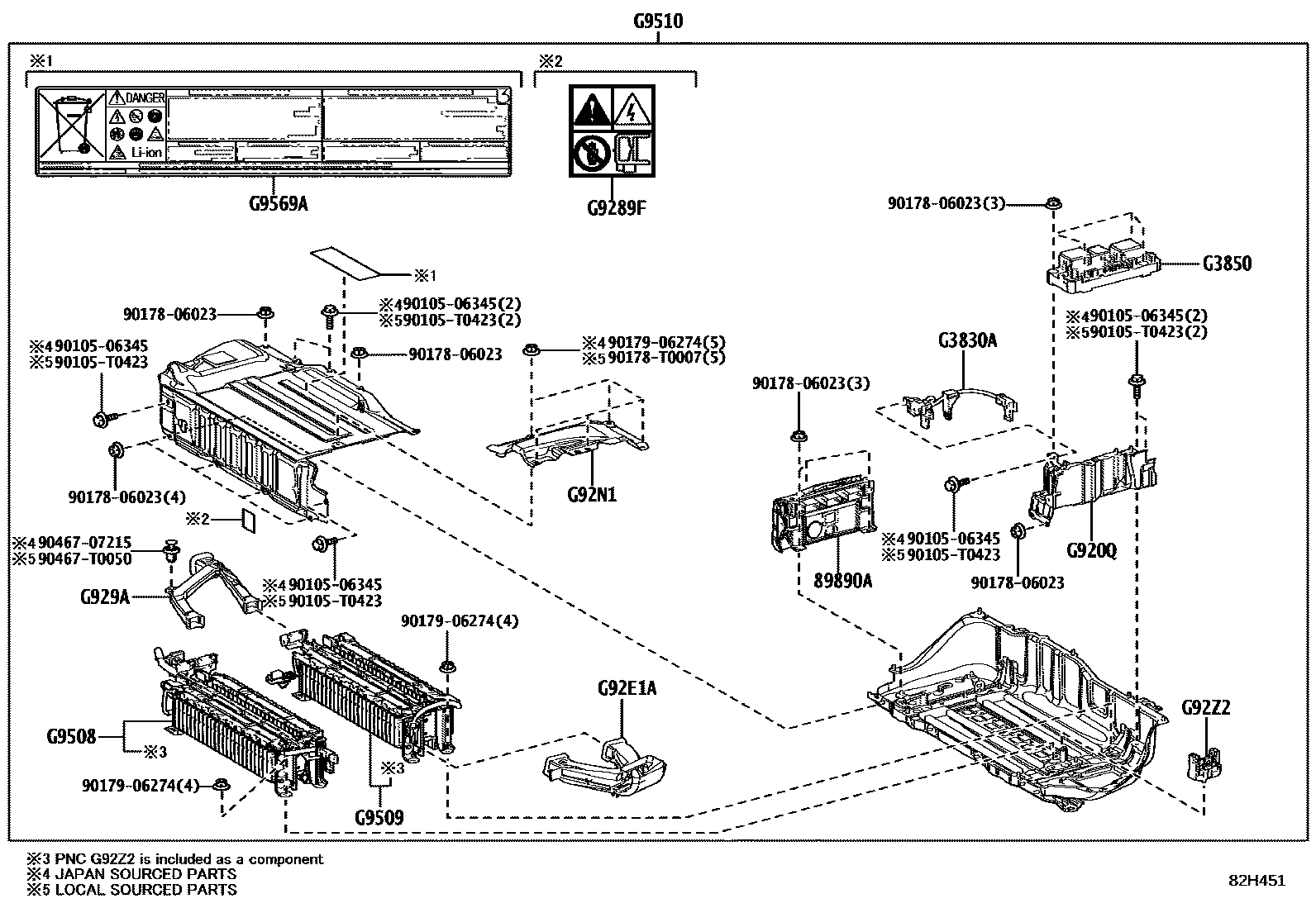

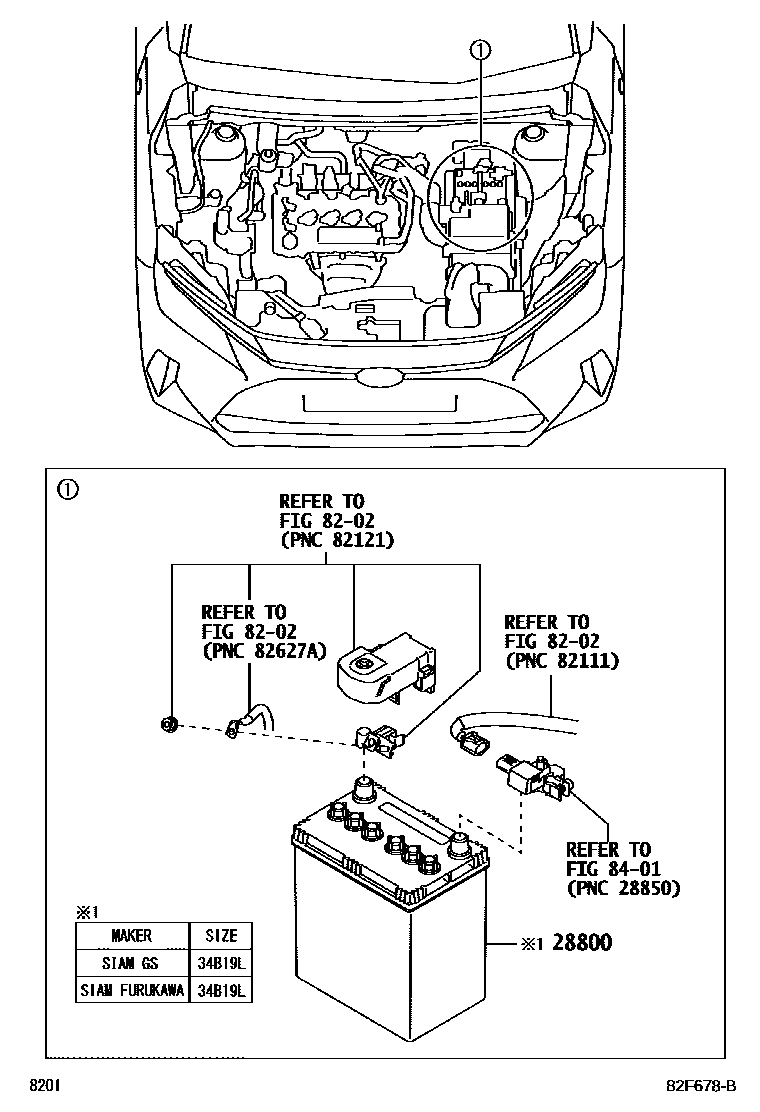

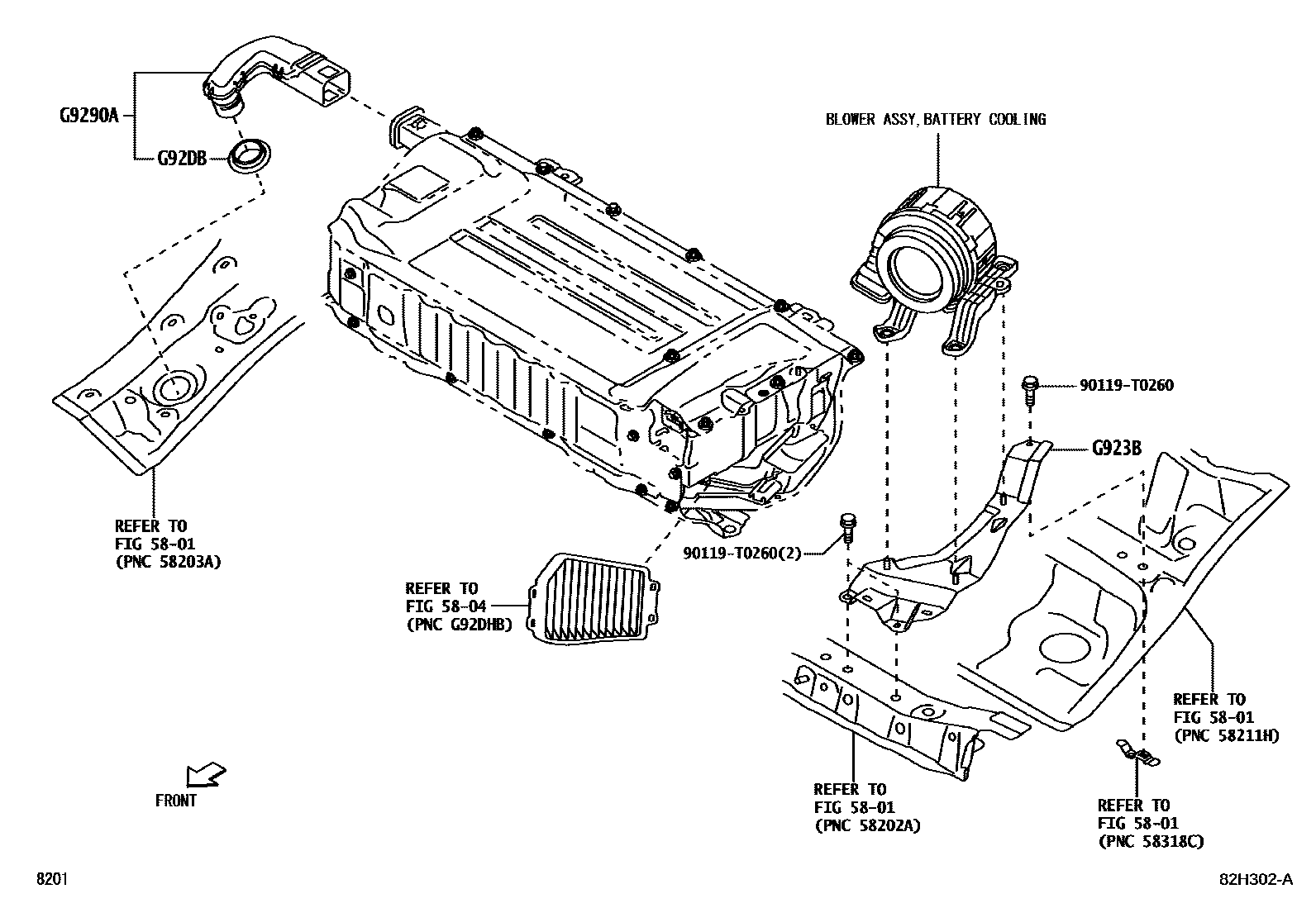

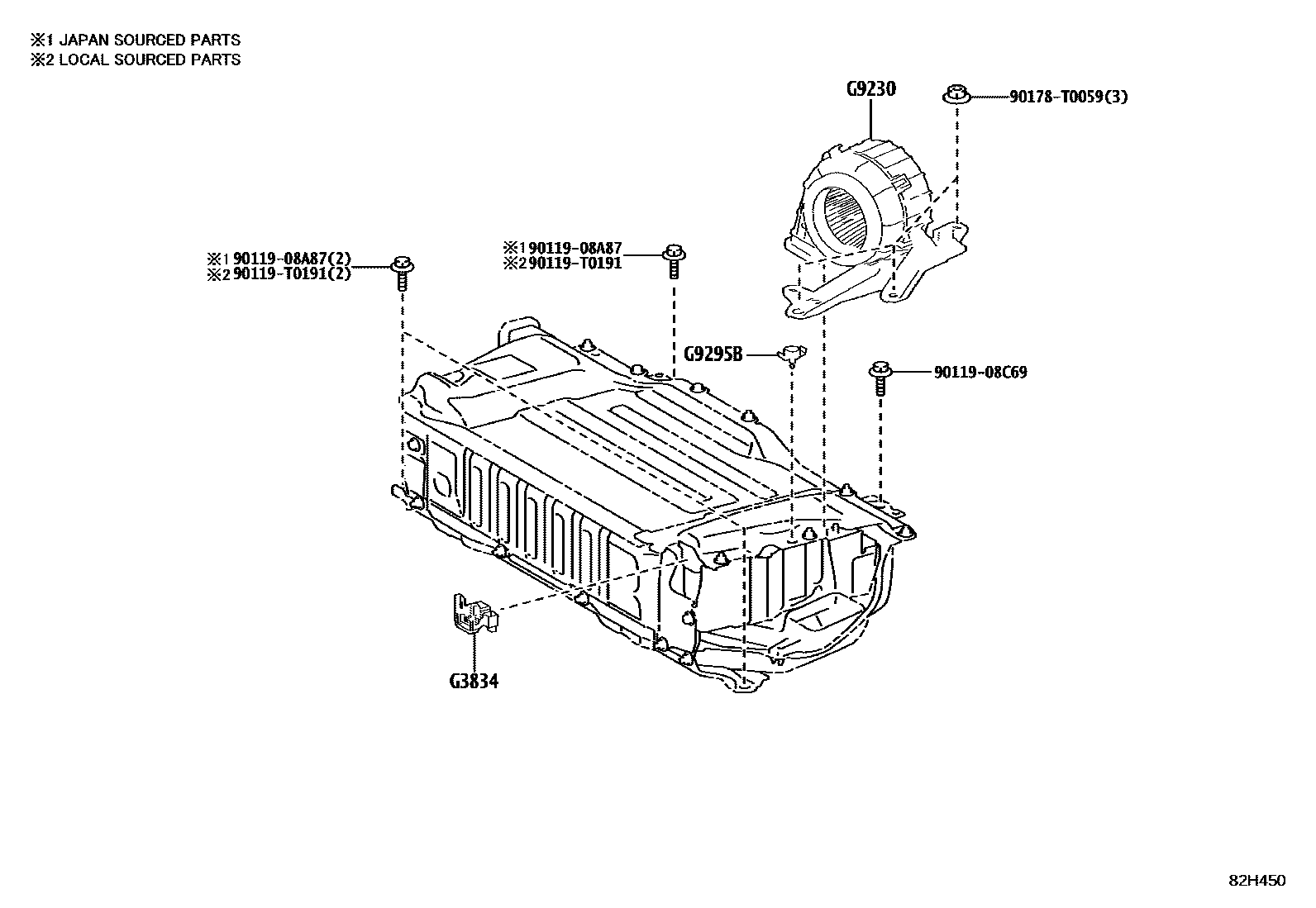

Toyota YARIS 蓄电池和蓄电池电缆 — Figure 8201
Toyota YARIS EPC diagram 8201, 蓄电池和蓄电池电缆, with 7 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28800 | battery | 28800-BZ390 · 28800-BZ400 · 28800-BZ410 · 28800-BZ500 · 28800-BZ510 · 28800-BZ520 · 28800-BZ550 · 28800-BZ600 |
| 28885B | battery hose | 28885-BZ010 |
| 28899 | Battery insulation cover | 28877-BZ010 |
| 82675D | Terminal block | 82675-78030 |
| 82821K | Connector cover | 82821-78140 |
| 89890A | Battery ECU assembly | 89890-66030 |
| G3830A | Electric vehicle battery plug assembly | G3830-K0010 |
| G3834 | Service plug handle | G3834-47050 |
| G3850 | Power battery No. 1 device box assembly | G3850-52020 |
| G920Q | No. 1 HV battery shielding sub-assembly | G920Q-0J020 |
| G9230 | Battery cooling blower assembly | G9230-0J010 |
| G923B | Battery cooling blower bracket | G923B-BZ010 |
| G9289F | AA battery warning label | 82685-47110 |
| G9290A | HV battery hose assembly | G9290-BZ010 |
| G9295B | Battery cover lock | G9295-30020 |
| G929A | HV battery hose No. 1 | G929A-0J020 |
| G92DB | No. 1 HV battery seal | G92DB-47030 |
| G92E1A | No. 1 HV battery left air inlet | G92E1-0J020 |
| G92N1 | HV battery upper cover | G92NE-0J020 |
| G92Z2 | HV battery terminal box | G92Z2-47070 |
| G9508 | No. 1 HV power supply battery assembly | G9509-52010 |
| G9509 | No. 2 HV power supply battery assembly | G9508-52010 |
| G9510 | HV power supply battery assembly | G9510-0J040 |
| G9569A | Lithium Ion Battery Warning Labels | G9569-48020 |
