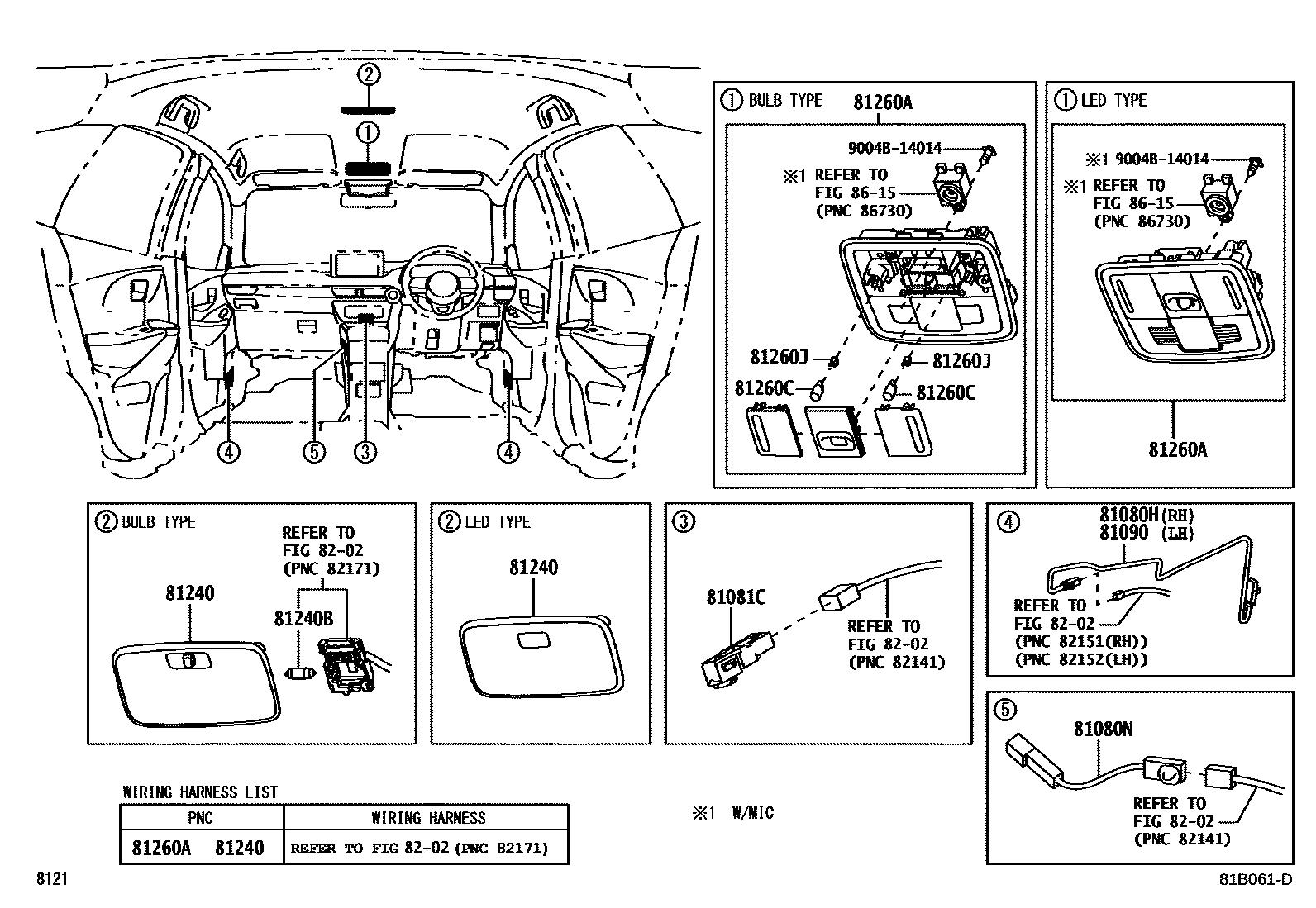

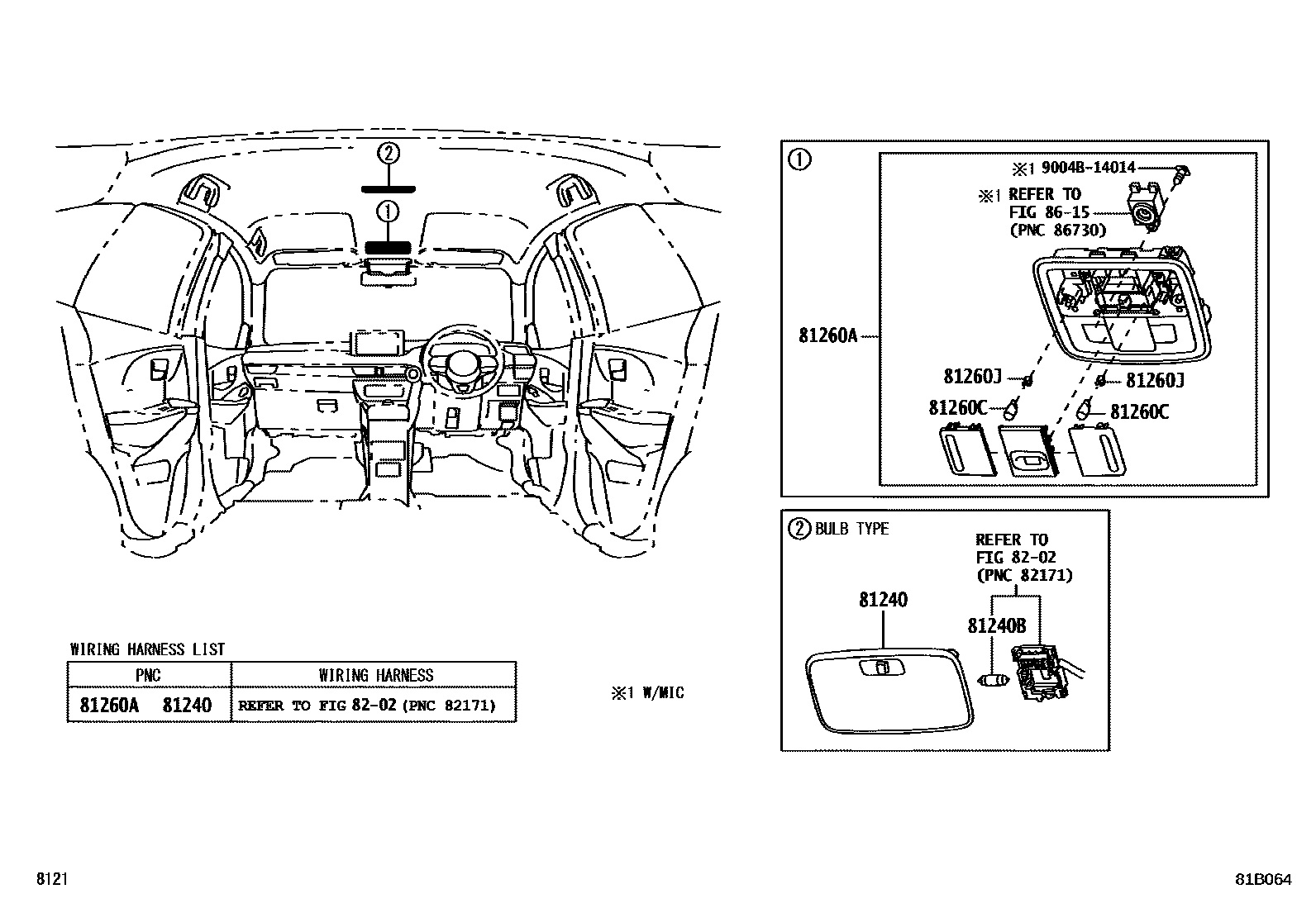

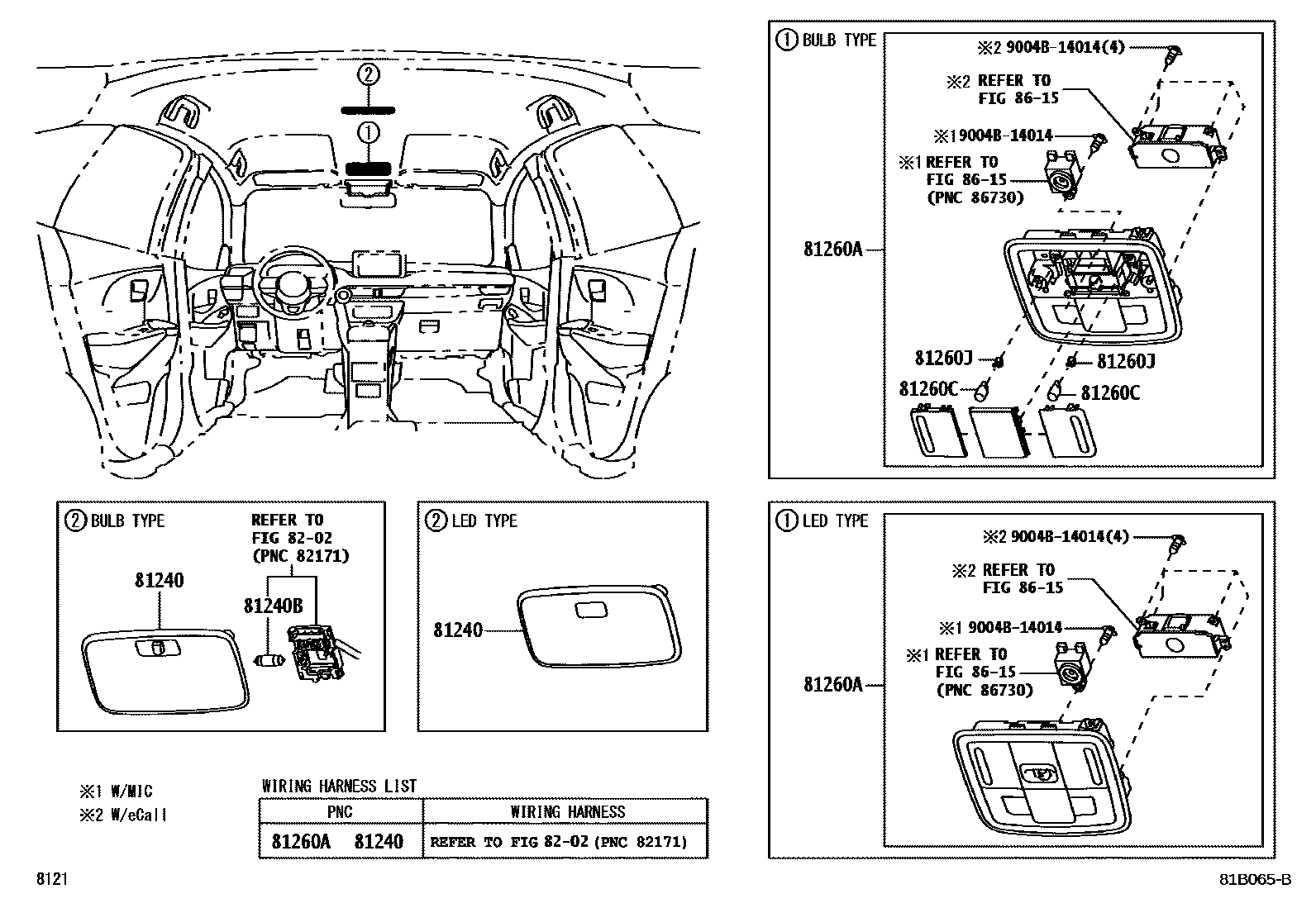

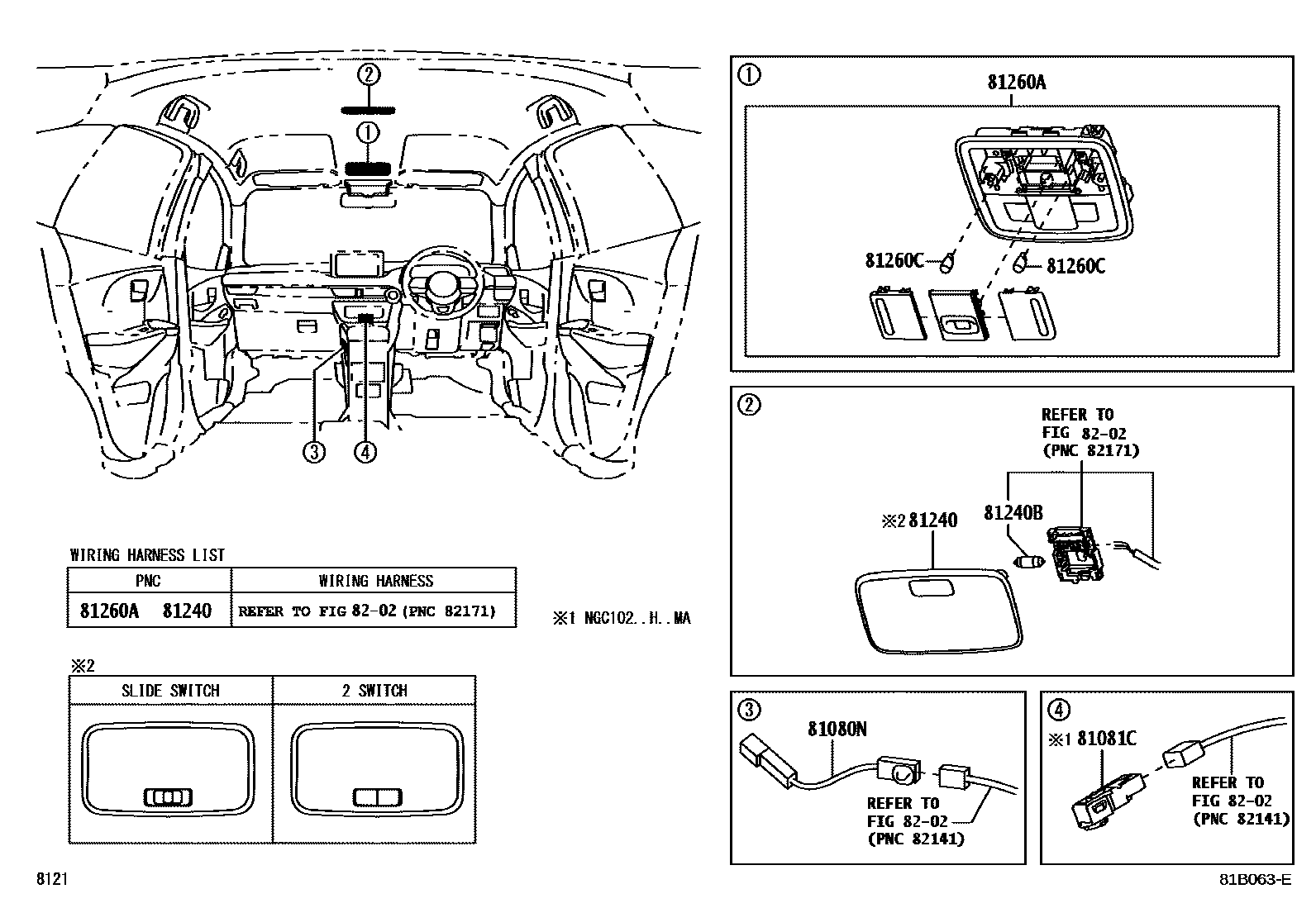

Toyota YARIS 车内灯 — Figure 8121
Toyota YARIS EPC diagram 8121, 车内灯, with 5 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81080H | Right No. 1 interior lighting assembly | 81080-BZ080 · 81080-BZ081 |
| 81080N | No. 1 interior lighting assembly | 81080-BZ130 · 81080-BZ131 |
| 81081C | No. 4 interior lighting sub-assembly | 81081-BZ020 · 81081-BZ021 |
| 81090 | No. 2 interior lighting assembly | 81090-BZ060 · 81090-BZ061 |
| 81240B | Interior light bulb No. 1 | 84999-B1030 · 90981-14011 |

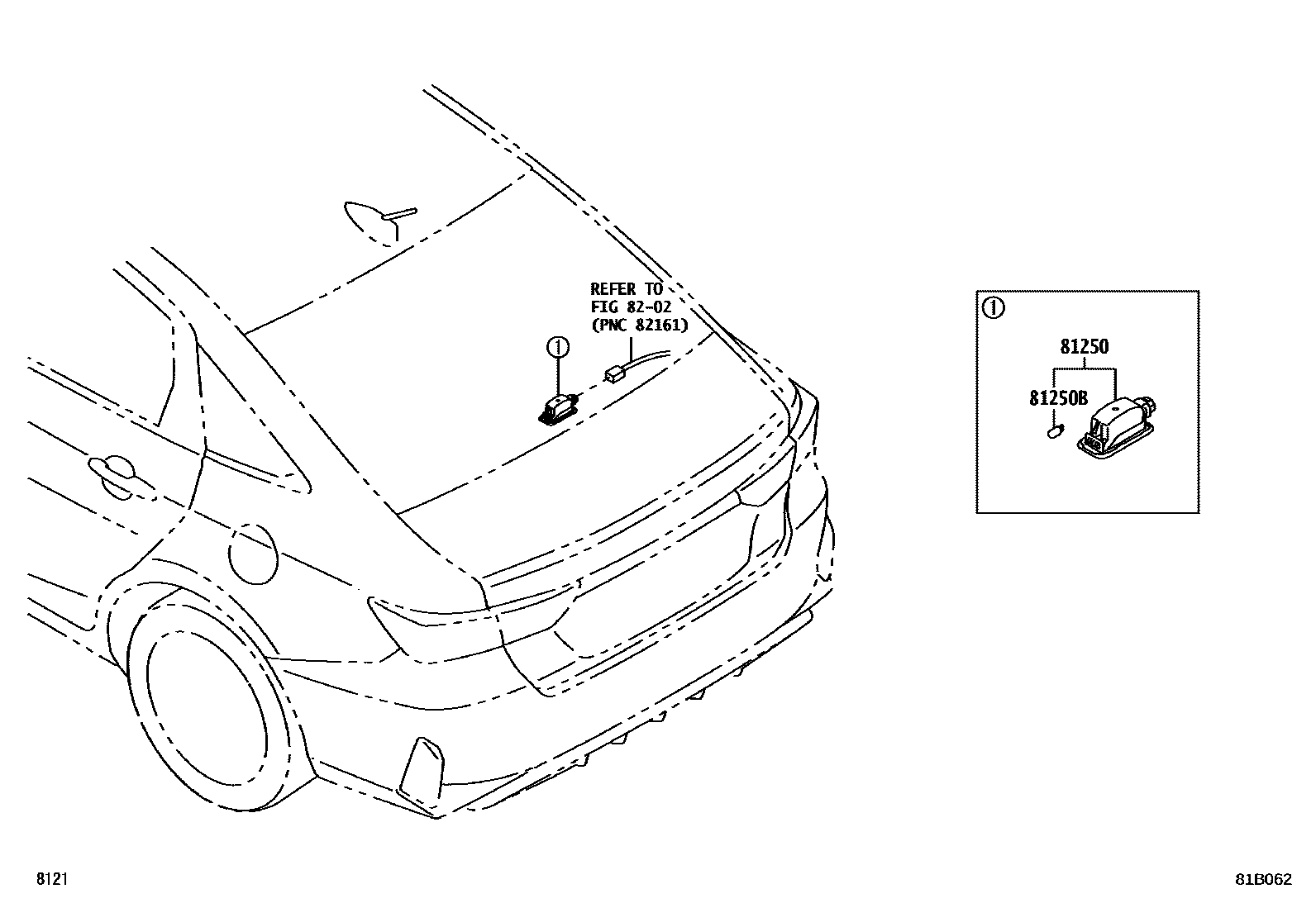

| 81250 | No. 2 interior light assembly | 81250-30210 |
| 81250B | Interior light bulb No. 2 | 90981-11013 |
| 81260C | Light bulb (for reading lamp) | 84999-BZ160 · 90981-11013 · 90981-11067 |
| 81260J | Lamp holder (for reading lamp) | 83101-87705 |
