Toyota YARIS 后组合灯 — Figure 8111

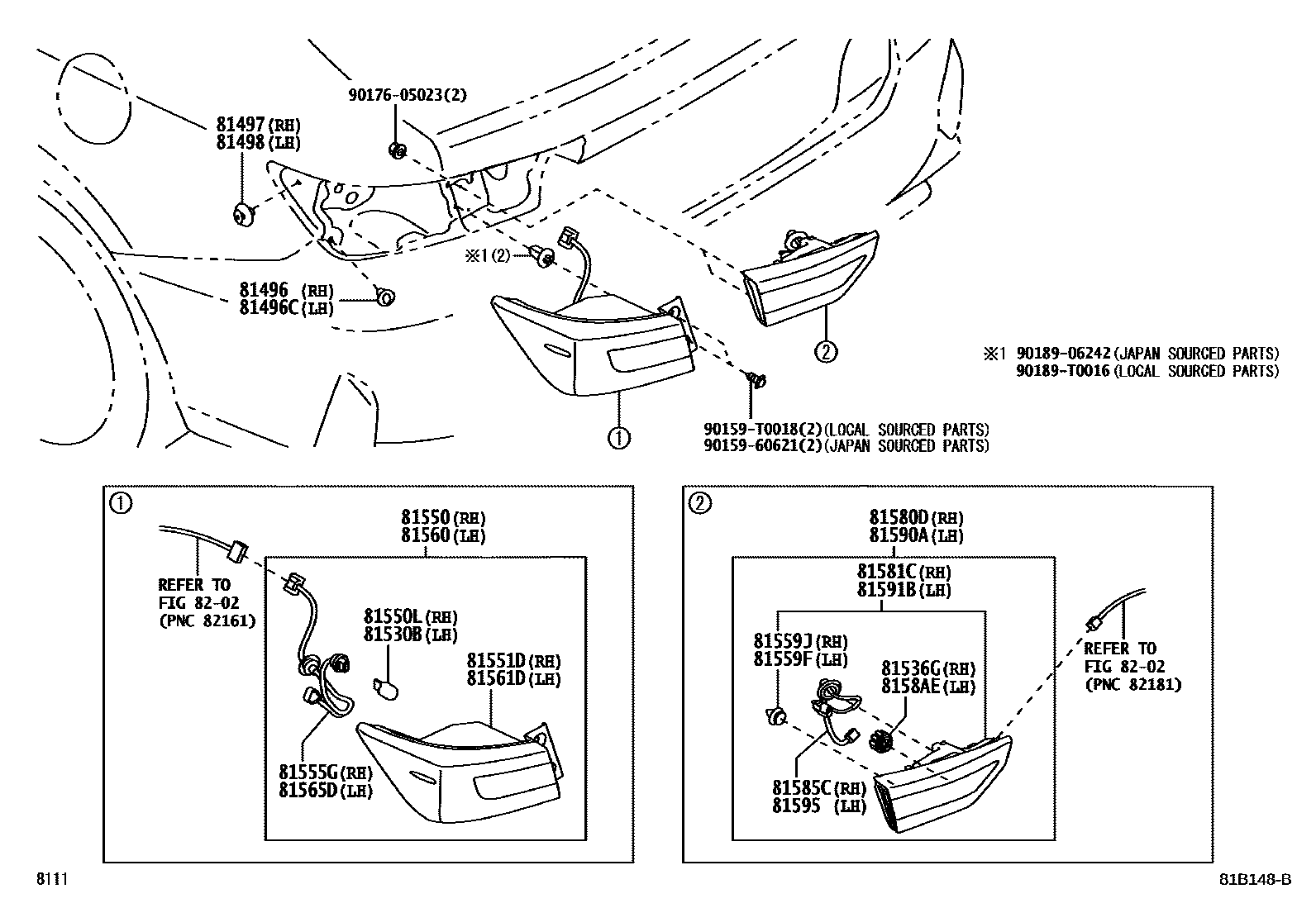

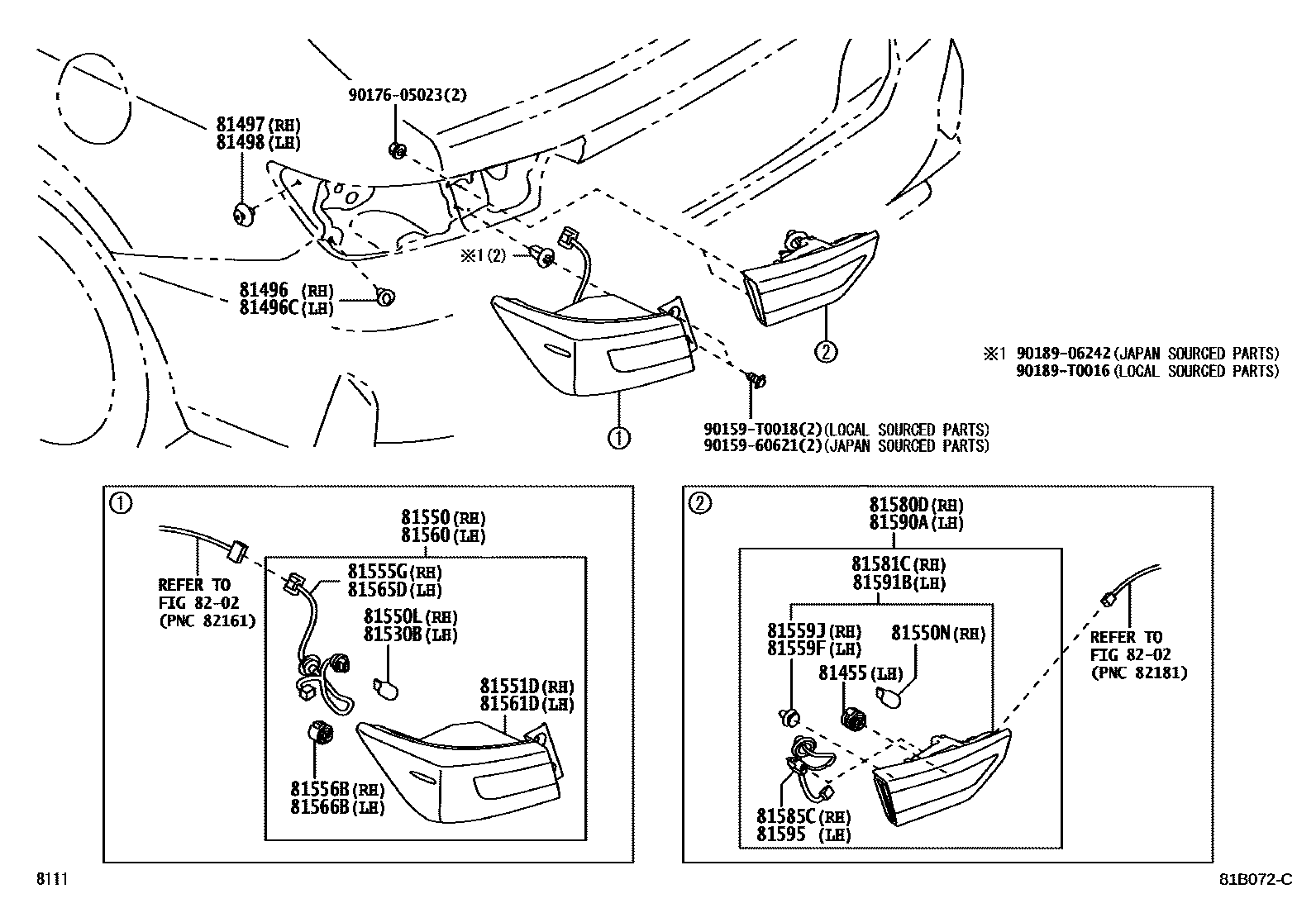

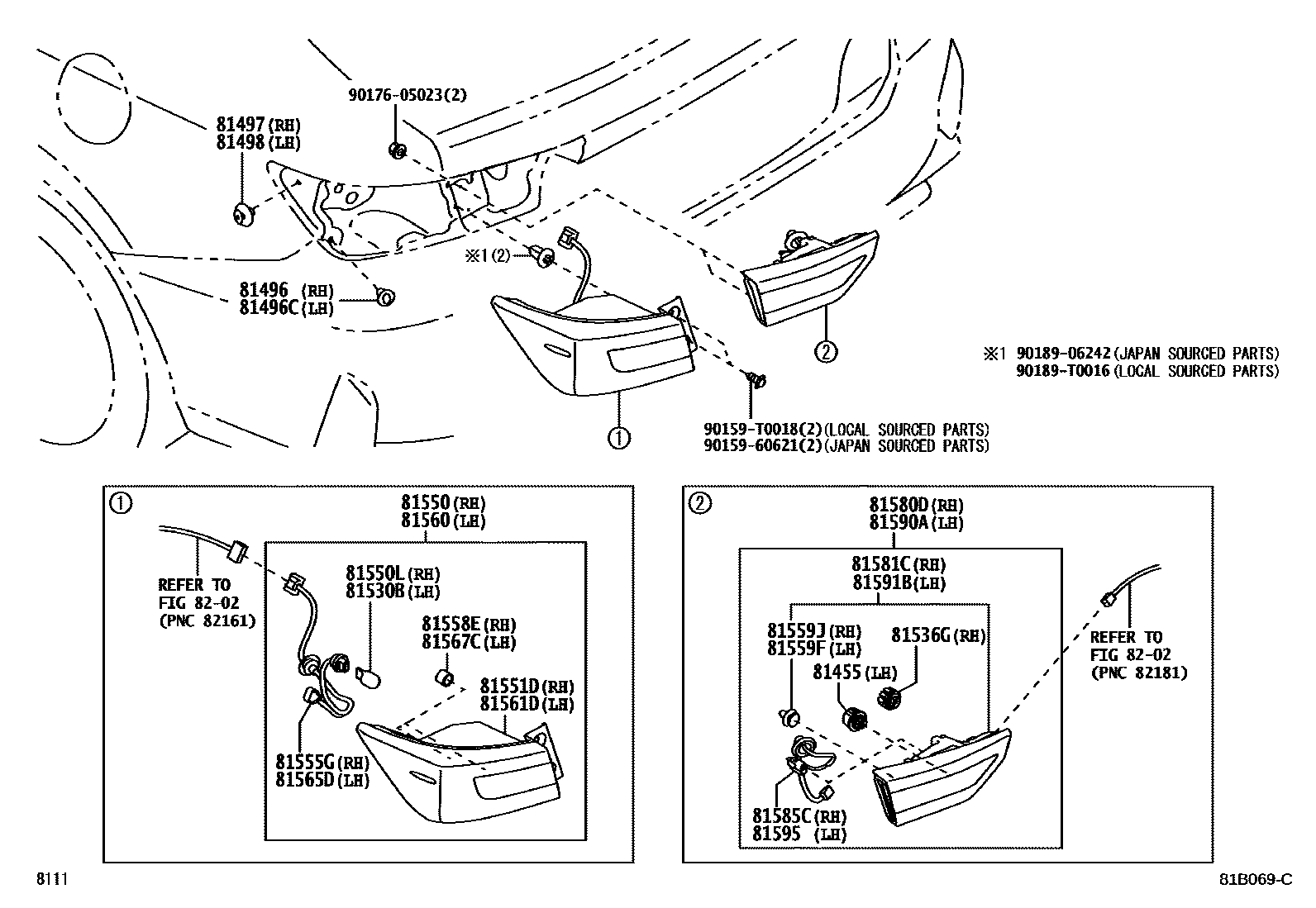

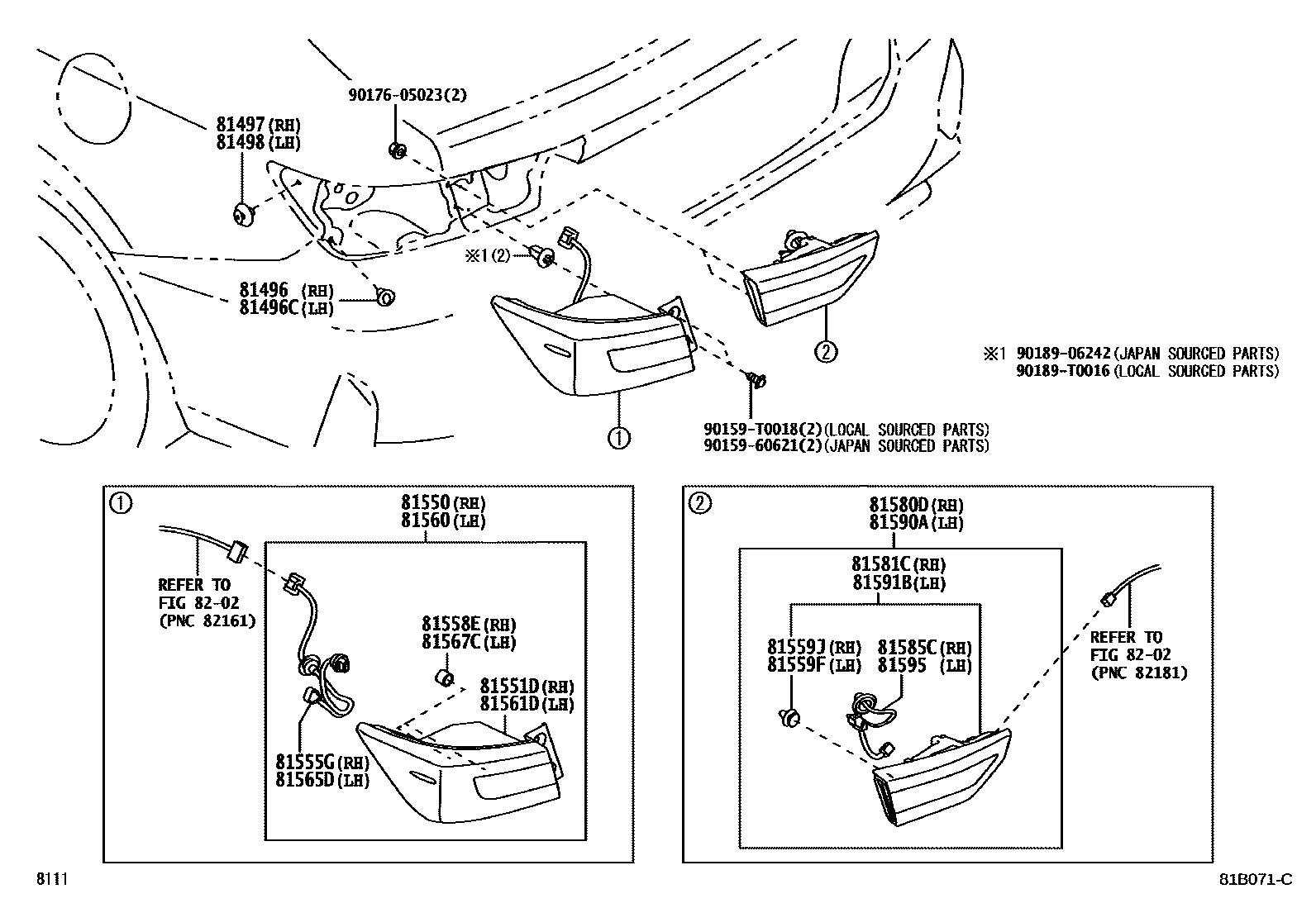

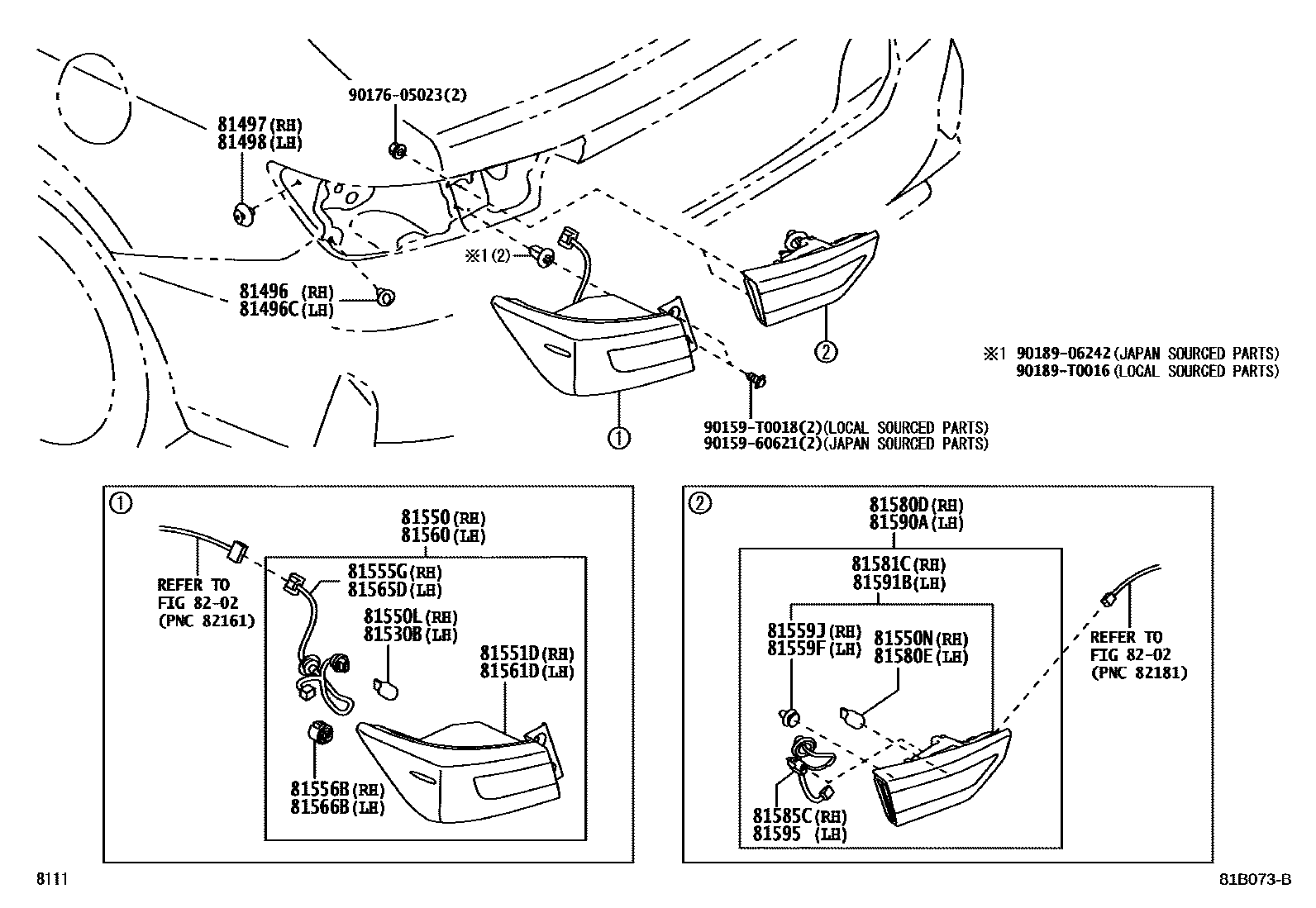

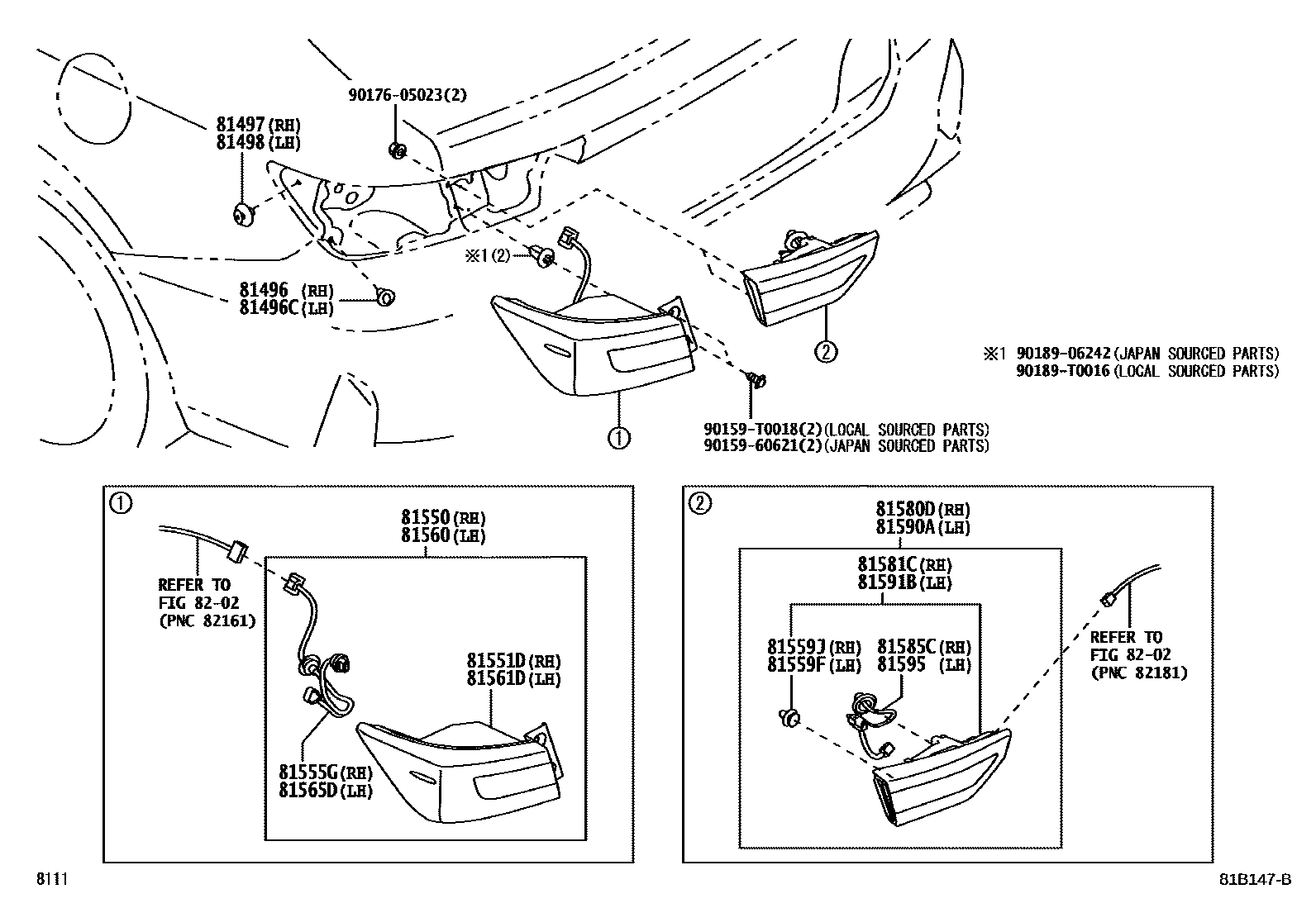

Toyota YARIS EPC diagram 8111, 后组合灯, with 7 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81455 | Rear LED fog lights | 8158A-0D610 |
| 81496 | Rear combination light guide block | 81496-0D040 |
| 81496C | No. 2 rear combination light guide block | 81496-0D040 |
| 81497 | Right rear combination lamp cover | 81496-60010 · 81497-0D070 |
| 81498 | Left rear combination lamp cover | 81496-60010 · 81497-0D070 |
| 81530B | Rear turn signal light bulb | 90049-51179 |
| 81536G | LED reversing light | 8158A-12260 |
| 81550 | Right rear combination light assembly | 81550-BZ620 · 81550-BZ640 · 81550-BZ660 · 81550-BZ670 · 81550-BZ680 |
| 81550L | Rear turn signal light bulb | 90049-51179 |
| 81550N | reversing light bulb | 90981-11059 |
| 81551D | Right rear combination lamp shade and lamp body | 81551-BZ490 · 81551-BZ500 · 81551-BZ510 · 81551-BZ540 · 81551-BZ550 |
| 81555G | Right rear combination lamp wire | 81555-BZ250 · 81555-BZ260 · 81555-BZ270 |
| 81556B | Right rear combination light LED | 81536-15120 · 81965-70010 |
| 81558E | Right rear combination lamp cover | 90075-15512 |
| 81559F | Left rear combination light clip | 90044-67500 |
| 81559J | Right rear combination light clip | 90044-67500 |
| 81560 | Left rear combination light assembly | 81560-BZ620 · 81560-BZ640 · 81560-BZ660 · 81560-BZ670 · 81560-BZ680 |
| 81561D | Left rear combination lamp lampshade and lamp body | 81561-BZ490 · 81561-BZ500 · 81561-BZ510 · 81561-BZ540 · 81561-BZ550 |
| 81565D | Left rear combination lamp wire | 81555-BZ250 · 81555-BZ260 · 81555-BZ270 |
| 81566B | Left rear combination light LED | 81536-15120 · 81965-70010 |
| 81567C | Left rear combination lamp cover | 90075-15512 |
| 81580D | Right rear light assembly | 81580-BZ220 · 81580-BZ240 · 81580-BZ260 · 81580-BZ270 · 81580-BZ280 |
| 81580E | light bulb | 90981-11059 |
| 81581C | Right rear light lampshade and lamp body | 81581-BZ090 · 81581-BZ100 · 81581-BZ110 · 81581-BZ130 · 81581-BZ140 |
| 81585C | Right rear light lamp holder and wiring harness | 81585-BZ050 · 81585-BZ060 · 81585-BZ070 |
| 8158AE | LED reversing light | 8158A-12260 |
| 81590A | Left rear light assembly | 81590-BZ220 · 81590-BZ230 · 81590-BZ240 · 81590-BZ250 · 81590-BZ260 · 81590-BZ270 · 81590-BZ280 |
| 81591B | Left rear light shade and body | 81591-BZ090 · 81591-BZ100 · 81591-BZ110 · 81591-BZ120 · 81591-BZ130 · 81591-BZ150 · 81591-BZ160 |
| 81595 | Left rear light lamp holder and wiring harness | 81585-BZ050 · 81585-BZ060 · 81585-BZ070 · 81595-BZ020 · 81595-BZ030 |
