Toyota YARIS Headlamp — Figure 8101

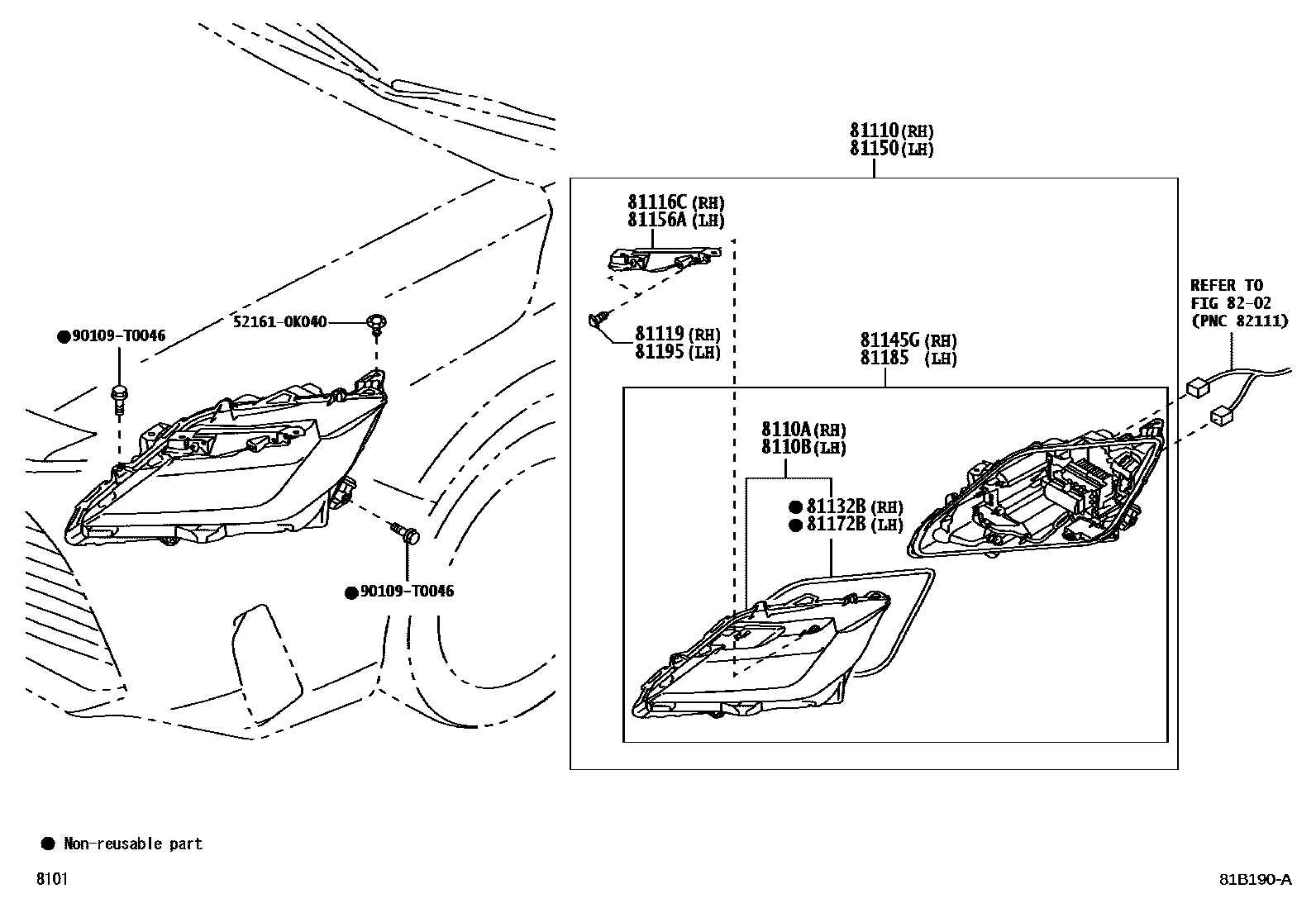

Toyota YARIS EPC diagram 8101, Headlamp, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 8110A | Right headlight cover sub-assembly | 8110A-BZB30 · 8110A-BZB40 · 8110A-BZC10 |
| 8110B | Left headlight cover sub-assembly | 8110B-BZB30 · 8110B-BZB40 · 8110B-BZC10 |
| 81110 | Right headlight assembly | 81110-BZB30 · 81110-BZB40 · 81110-BZB50 · 81110-BZB60 · 81110-BZB70 · 81110-BZB80 · 81110-BZC10 · 81110-BZC90 · 81110-BZD00 |
| 81116C | Right headlight bracket | 81116-BZB30 · 81116-BZC10 |
| 81119 | headlight screw | 81195-BZ030 |
| 81132B | Headlight cover gasket | 81132-BZB30 |
| 81145G | Padded right side headlight assembly? | 81145-BZB30 · 81145-BZB40 · 81145-BZB50 · 81145-BZB60 · 81145-BZB70 · 81145-BZB80 · 81145-BZC10 · 81145-BZC90 · 81145-BZD00 |
| 81150 | Left headlight assembly | 81150-BZB30 · 81150-BZB40 · 81150-BZB50 · 81150-BZB60 · 81150-BZB70 · 81150-BZB80 · 81150-BZC10 · 81150-BZC90 · 81150-BZD00 |
| 81156A | Left headlight bracket | 81156-BZB30 · 81156-BZC10 |
| 81172B | Headlight cover gasket | 81132-BZB30 |
| 81185 | Padded left headlight assembly | 81185-BZB30 · 81185-BZB40 · 81185-BZB50 · 81185-BZB60 · 81185-BZB70 · 81185-BZB80 · 81185-BZC10 · 81185-BZC90 · 81185-BZD00 |
| 81195 | headlight screw | 81195-BZ030 |
