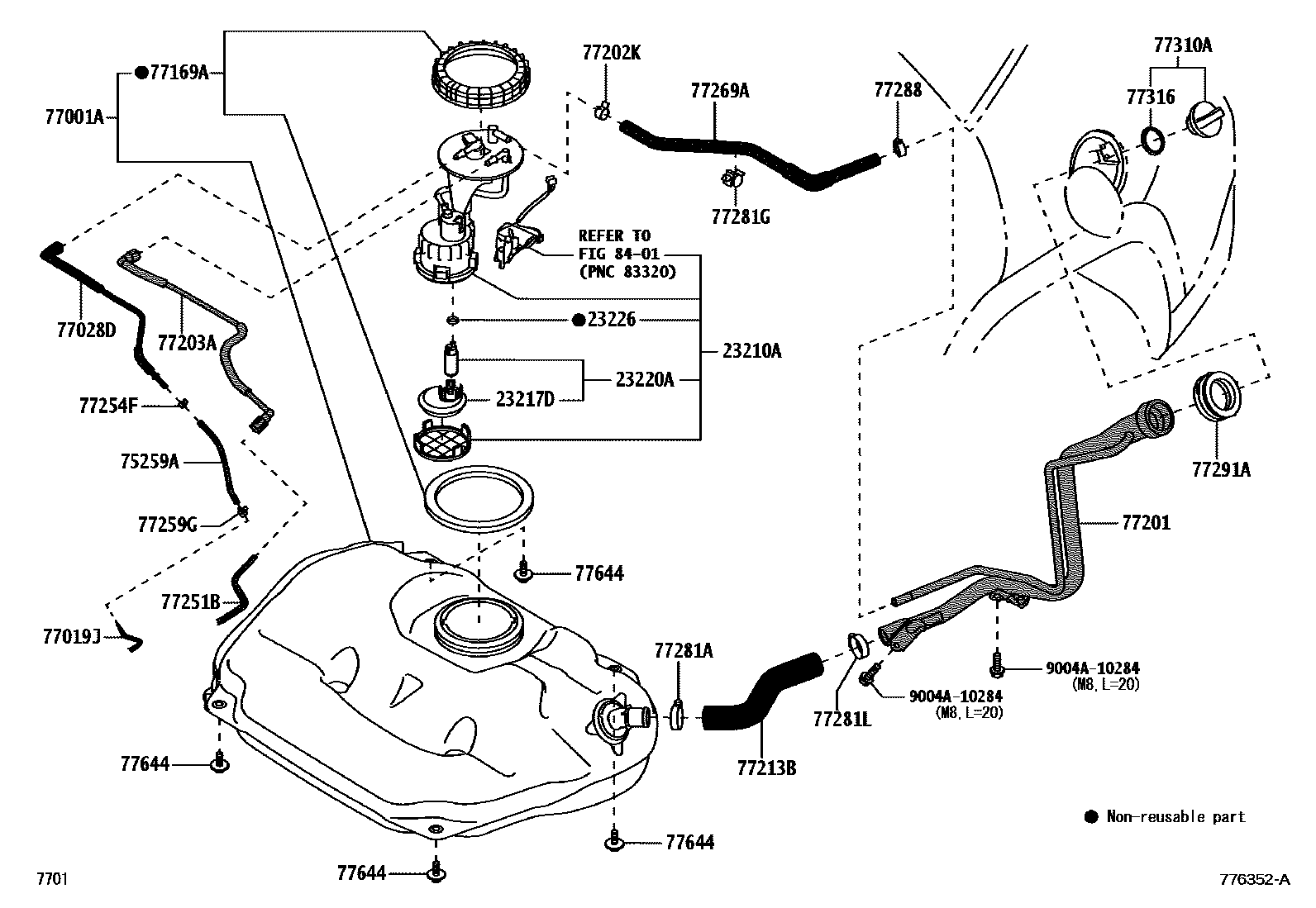

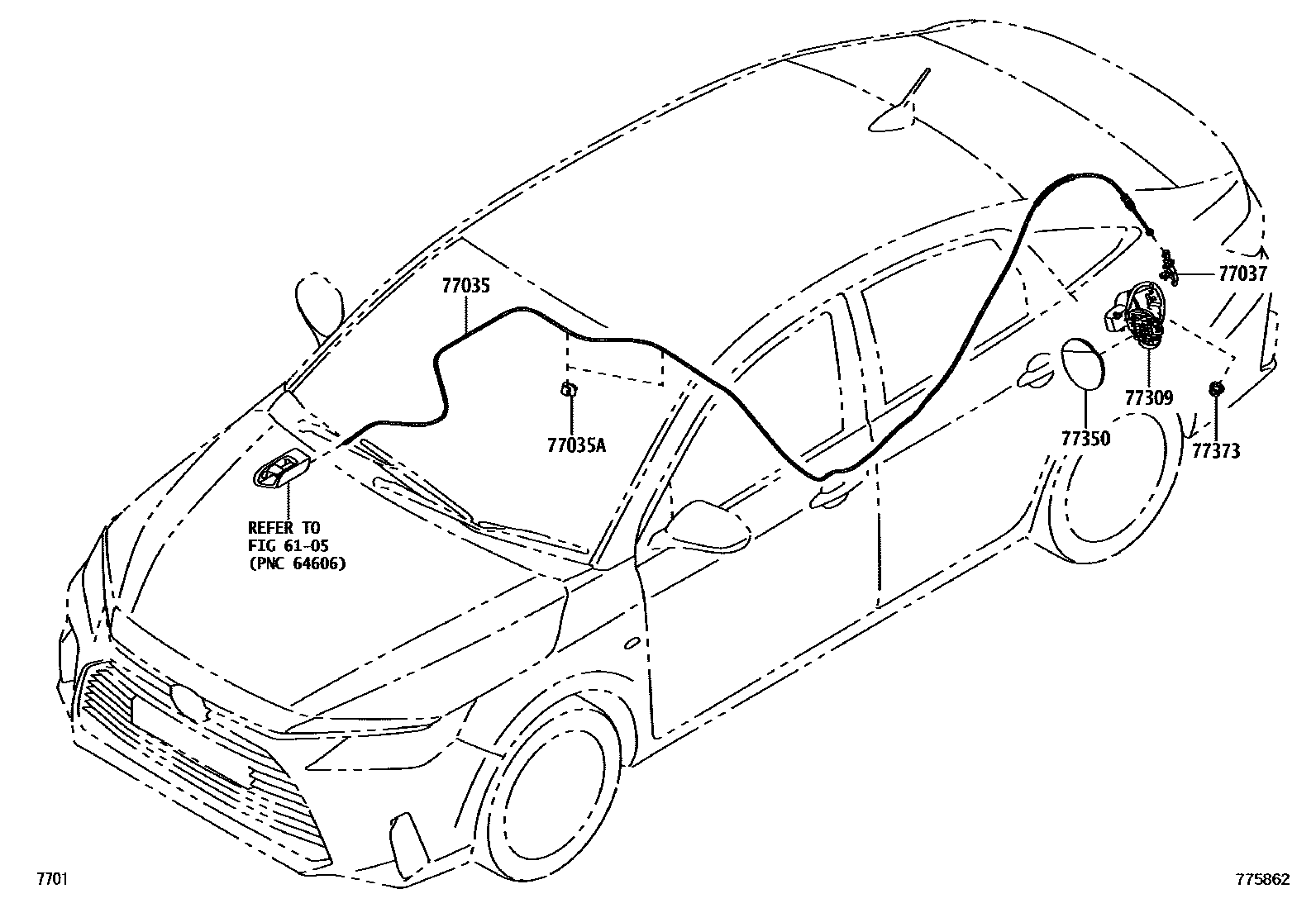

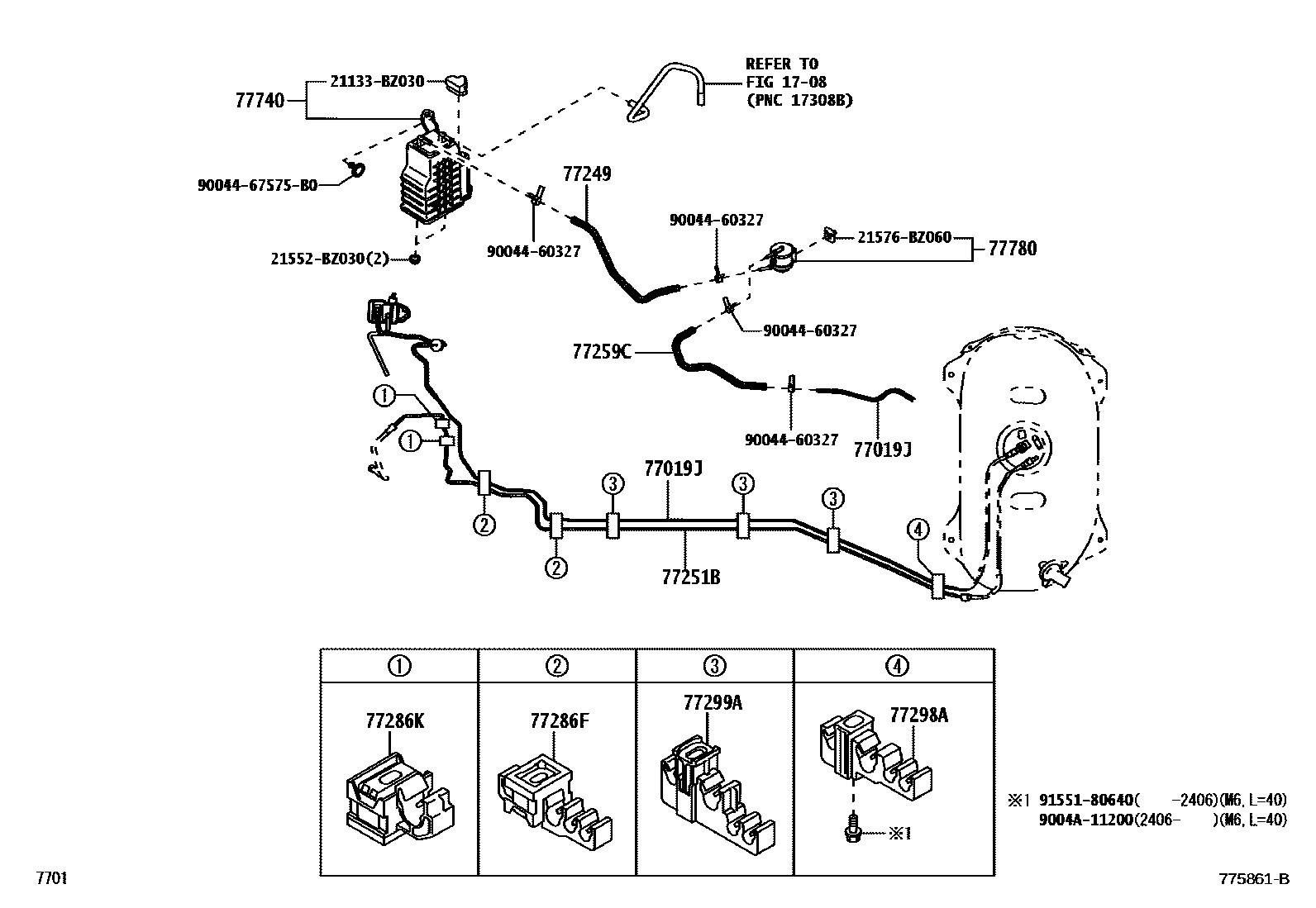

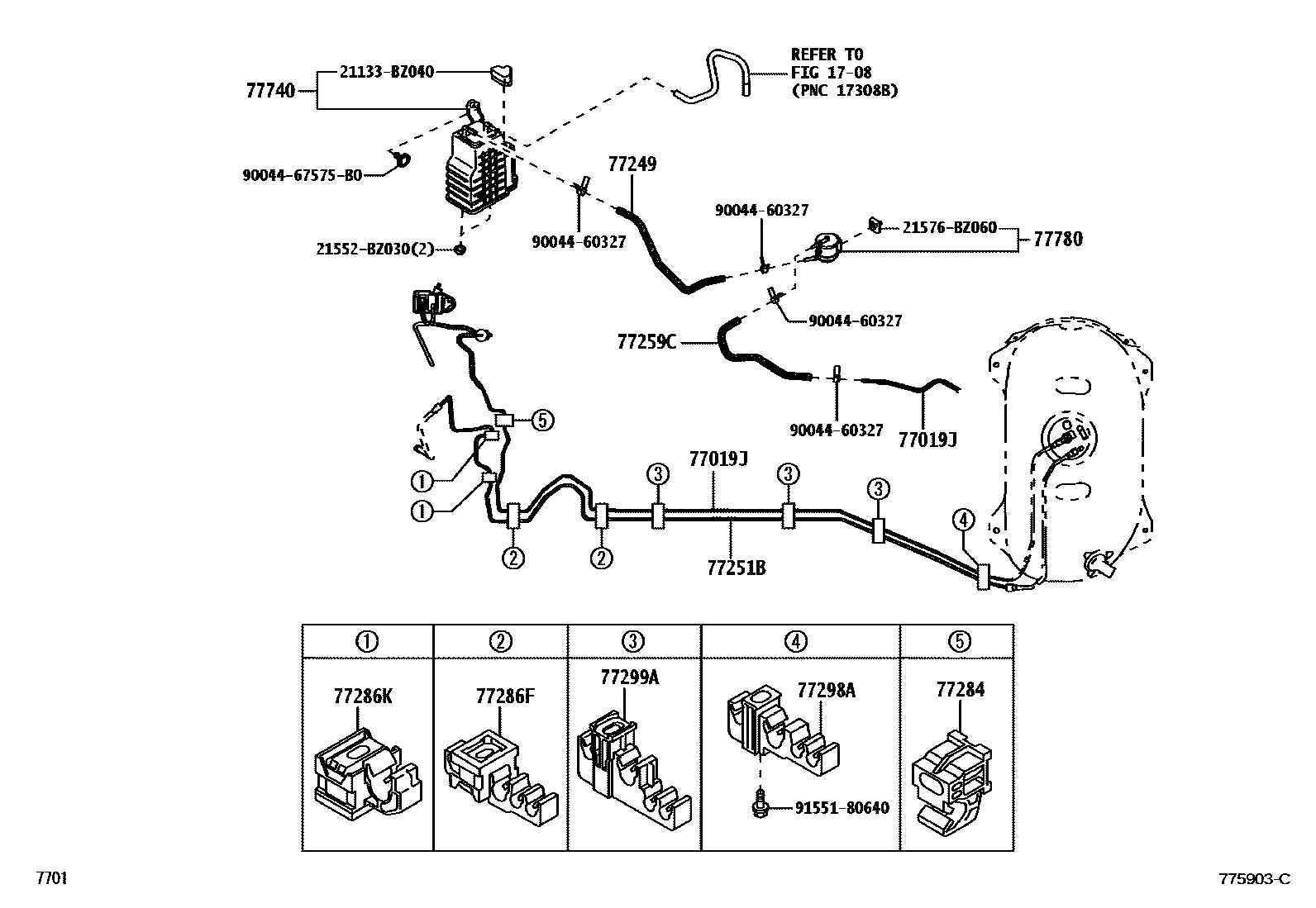

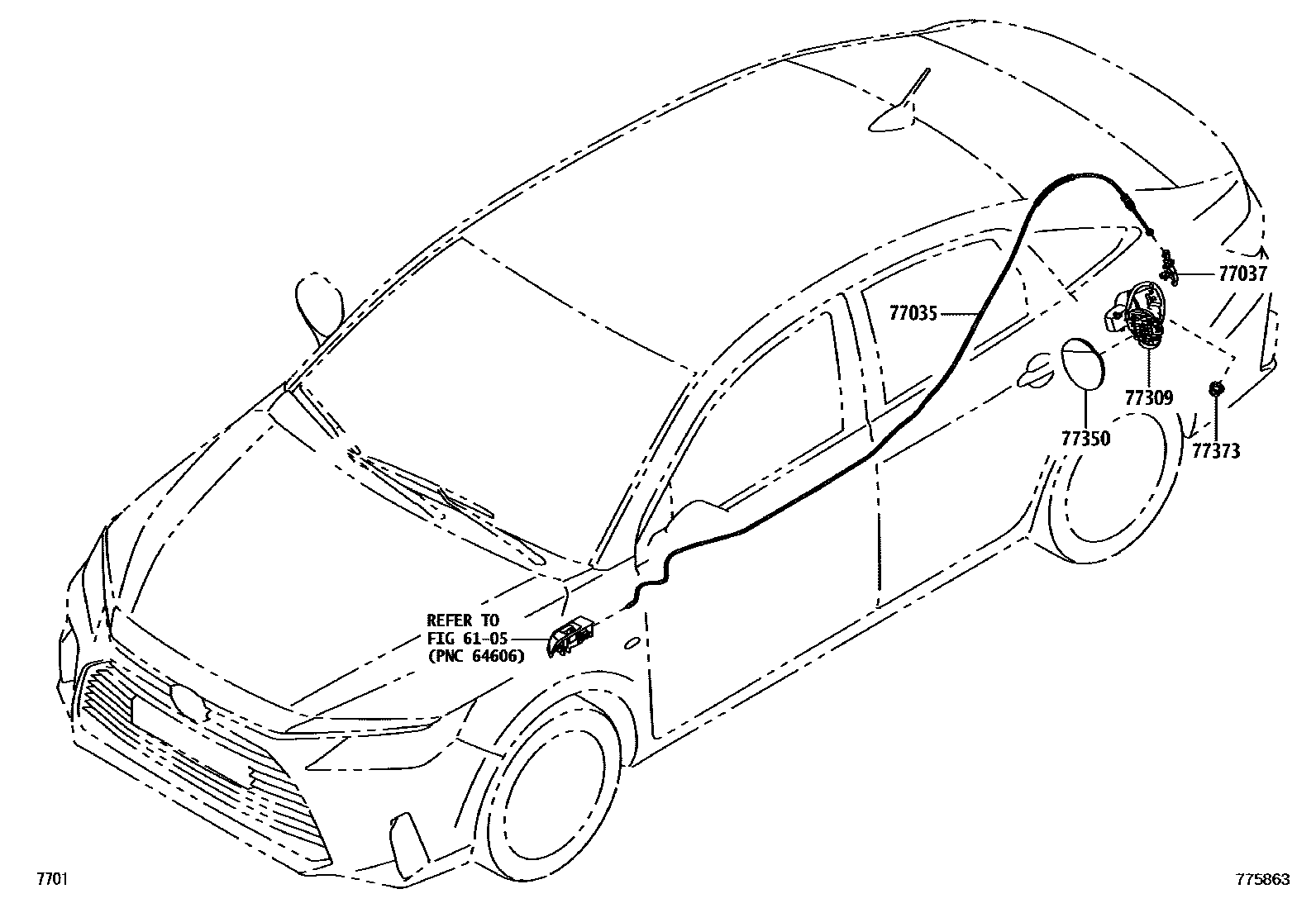

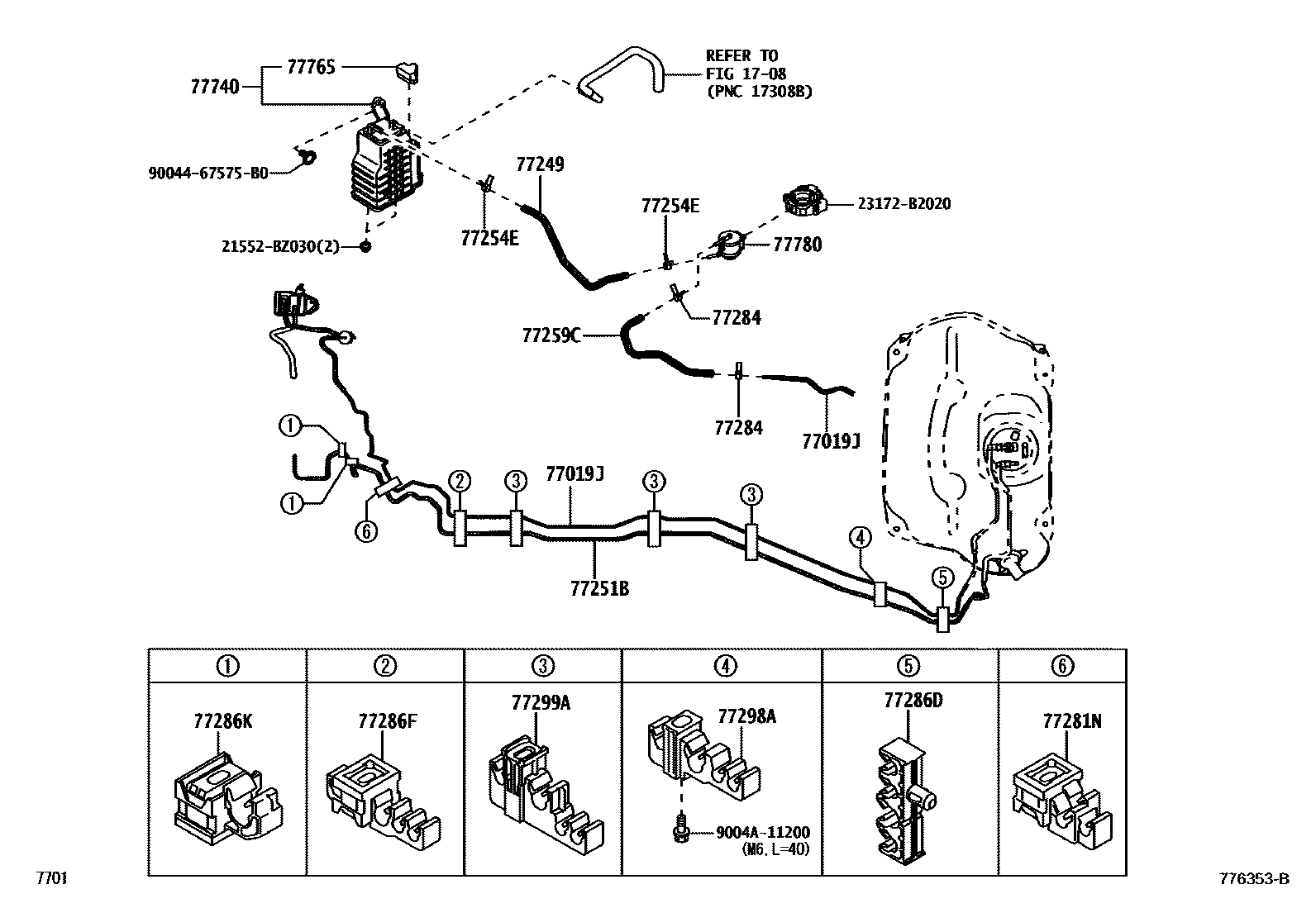

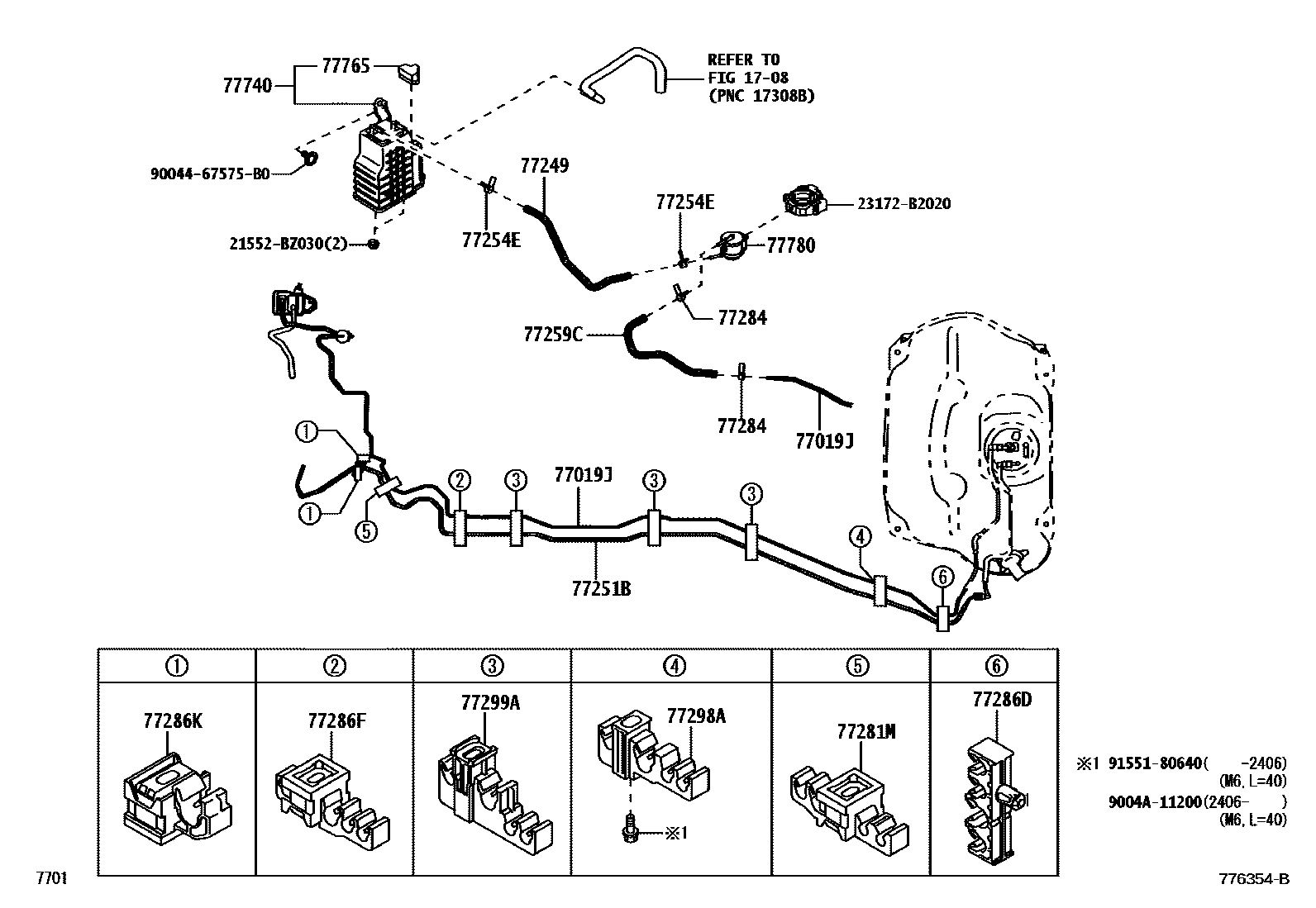

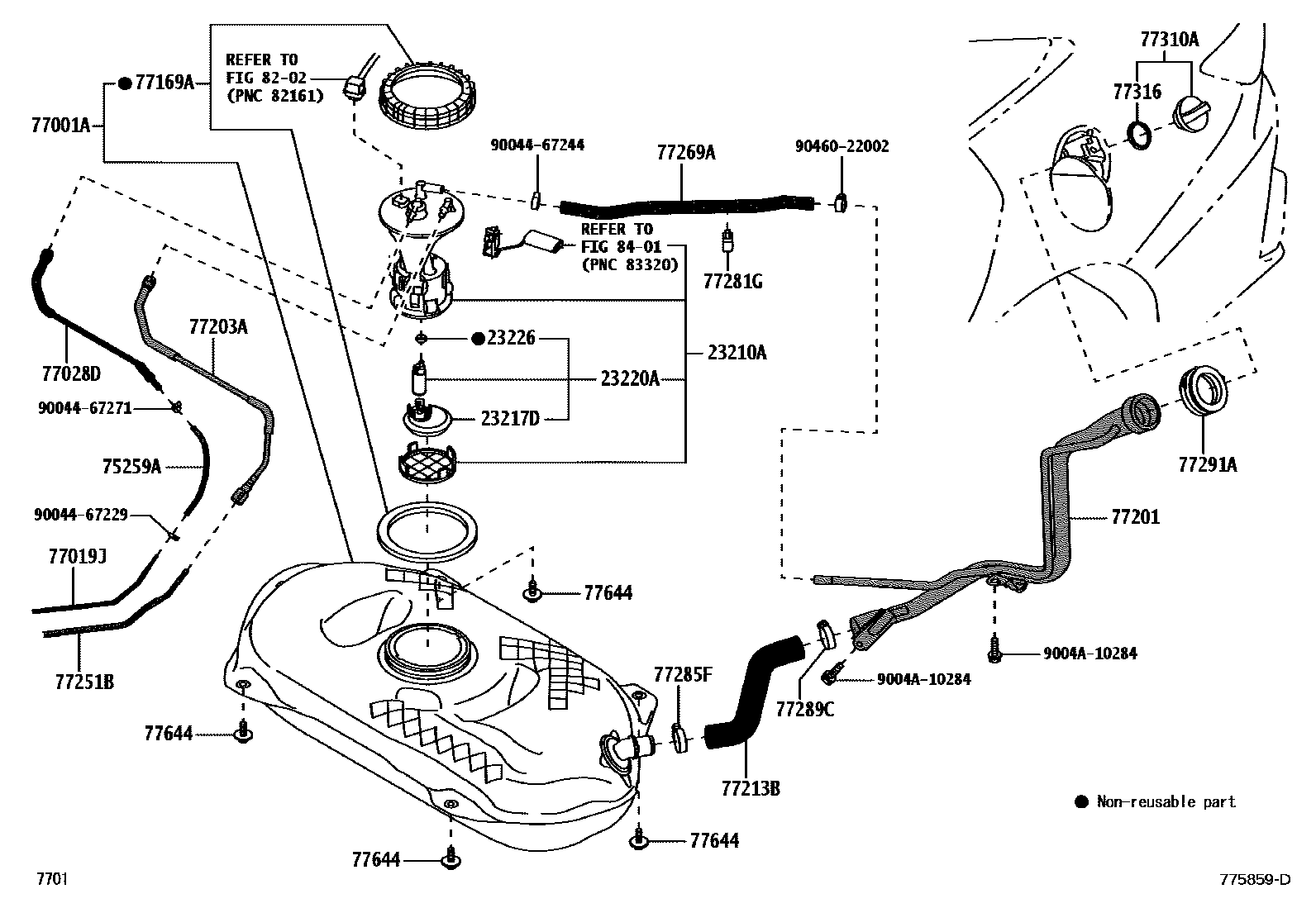

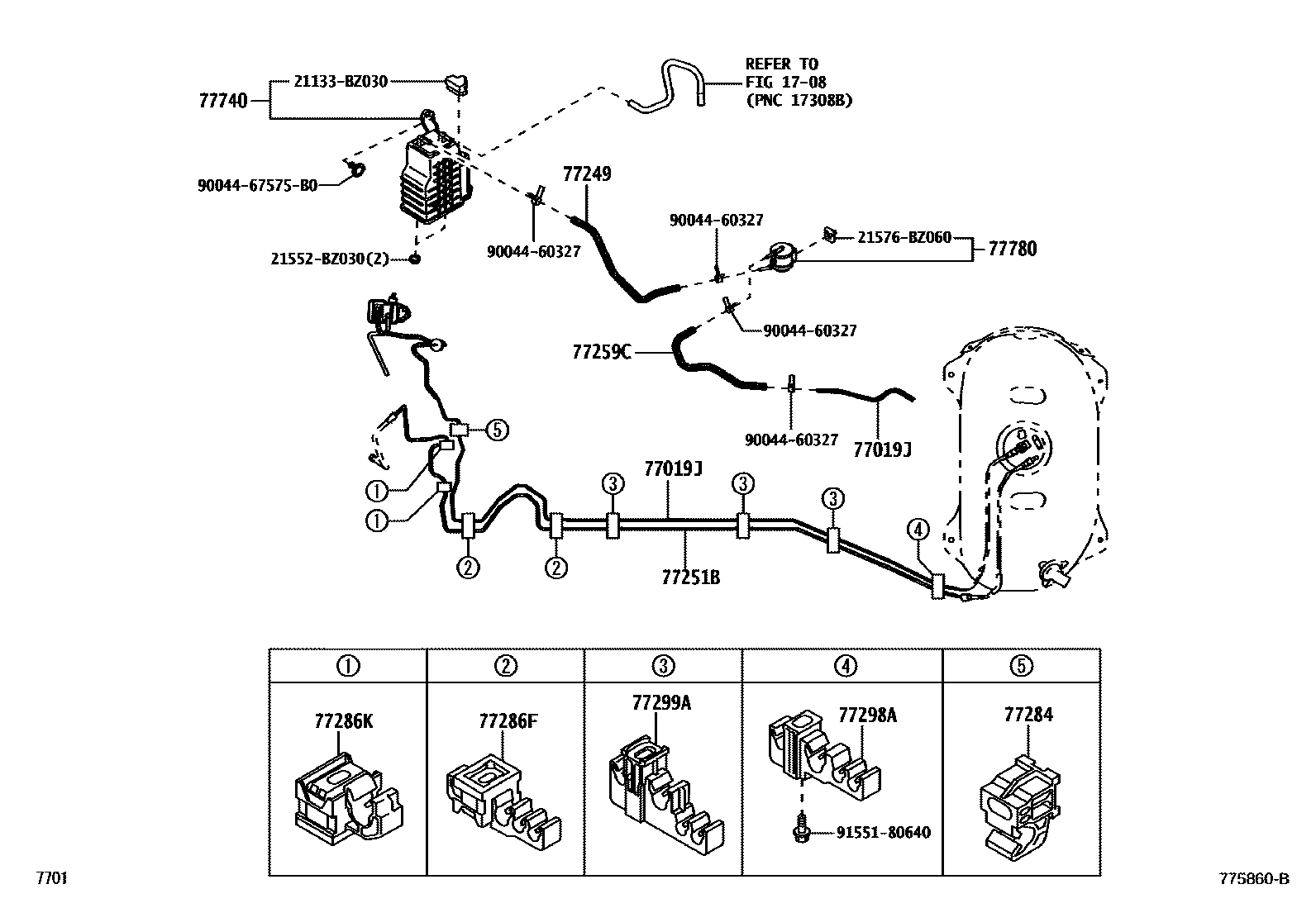

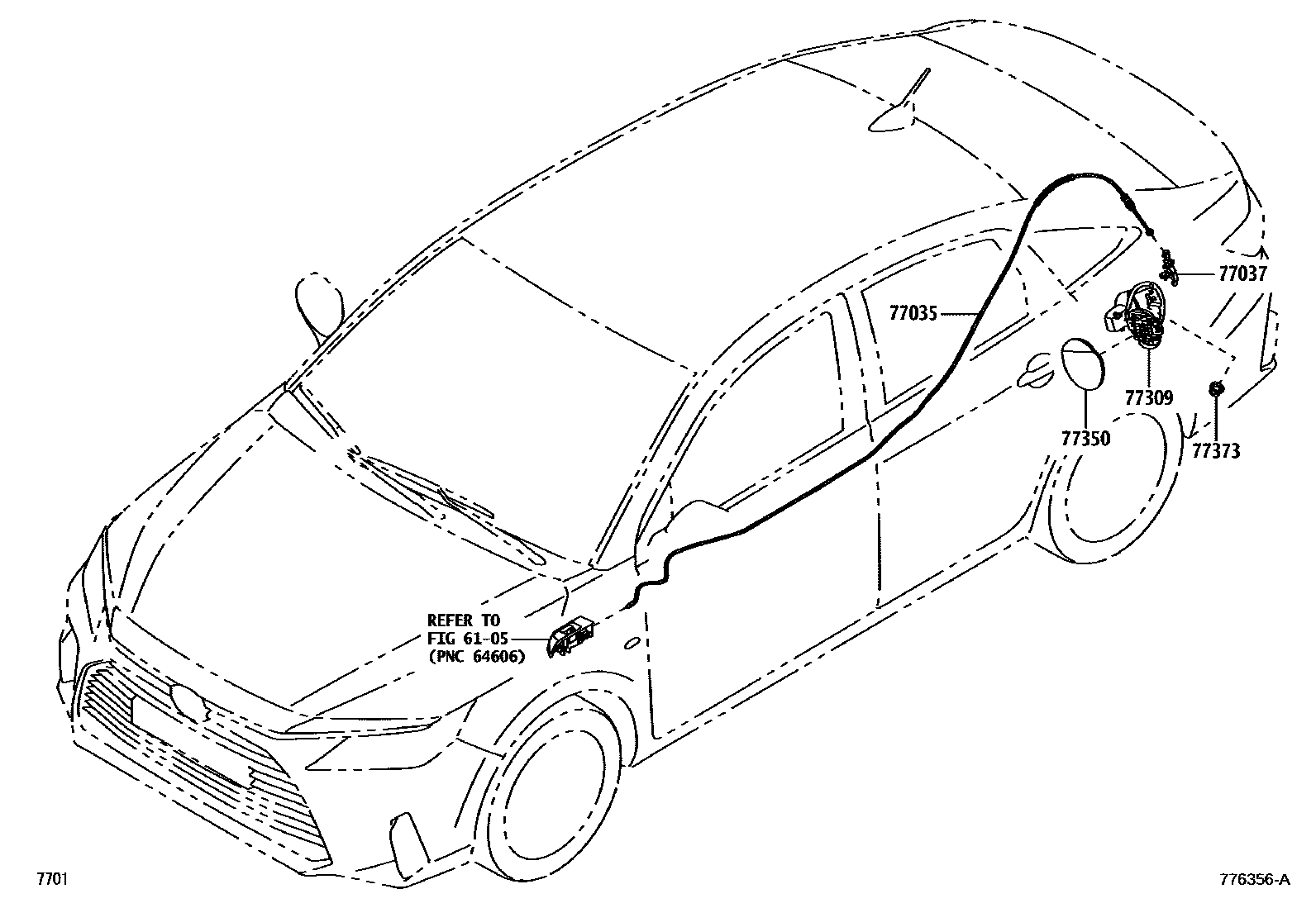

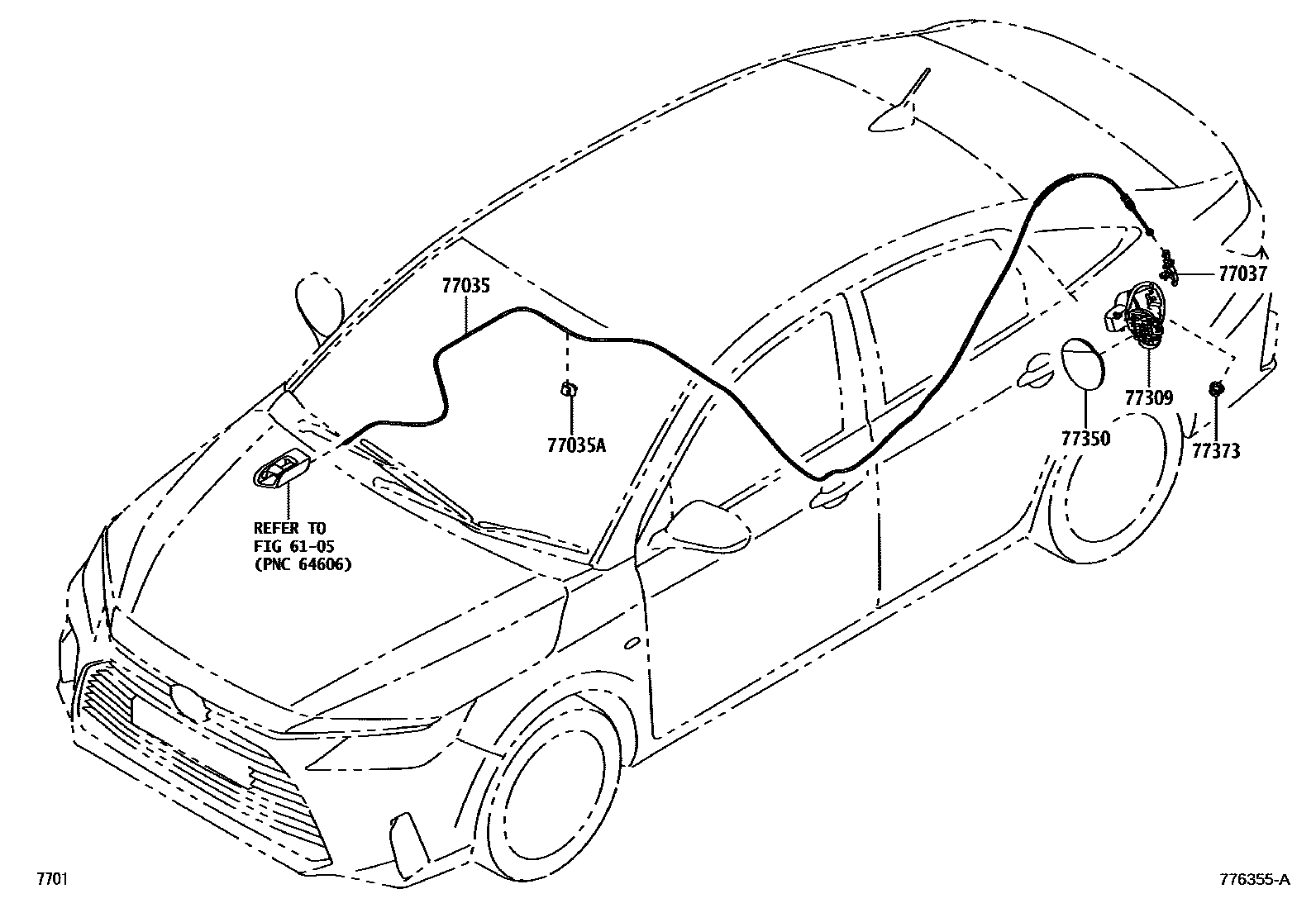

Toyota YARIS 燃油箱和燃油管 — Figure 7701
Toyota YARIS EPC diagram 7701, 燃油箱和燃油管, with 11 images and 47 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23210A | Water pump assembly with motor and bracket | 23210-BZ430 · 23210-BZ450 |
| 23217D | fuel pump filter | 23105-BZ020 · 23105-BZ030 |
| 23220A | Fuel pump assembly with filter | 23220-BZ050 · 23220-BZ070 |
| 23226 | O-ring (for fuel pump) | 9004B-30027 |
| 75259A | fuel hose | 77259-BZ120 |
| 77001A | Fuel tank sub-assembly | 77001-BZ640 · 77001-BZ870 · 77001-BZA00 |
| 77019J | Fuel tank to carbon canister hose sub-assembly | 77263-BZ280 · 77263-BZ350 · 77263-BZ430 · 77263-BZ440 |
| 77028D | Rear fuel evaporation exhaust pipe sub-assembly | 77028-BZ050 · 77028-BZ160 · 77028-BZ231 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-BZ360 · 77035-BZ370 · 77035-BZ500 · 77035-BZ510 |
| 77035A | Clip (for fuel filler cap lock control cable) | 90469-06005 · 90469-T0003 |
| 77037 | Fuel filler cap lock sub-assembly | 77037-BZ150 |
| 77169A | Fuel suction pipe fixed gasket | 77169-52040 · 77169-B2030 |
| 77201 | Fuel tank inlet pipe sub-assembly | 77201-BZ270 · 77201-BZ400 · 77201-BZ410 · 77201-BZ440 · 77201-BZ450 |
| 77202K | Clamp (for breather hose) | 90044-67244 |
| 77203A | Fuel suction pipe sub-assembly | 77203-BZ370 · 77203-BZ440 · 77203-BZ480 |
| 77213B | Fuel tank to filler pipe hose | 77213-BZ320 · 77213-BZ420 |
| 77249 | fuel drain hose | 77249-BZ050 · 77249-BZ060 |
| 77251B | main fuel pipe | 77251-BZ420 · 77251-BZ430 · 77251-BZ500 · 77251-BZ540 · 77251-BZ550 |
| 77254E | Clamp (for fuel drain hose) | 90044-60327 |
| 77254F | Clamp (for No. 1 fuel drain hose) | 90044-67271 |
| 77259C | fuel hose | 77259-BZ150 |
| 77259G | fuel hose clip | 90044-67229 |
| 77269A | fuel tank breather hose | 77269-BZ260 · 77269-BZ280 · 77269-BZ360 |
| 77281A | Fuel filler pipe clamp | 90044-60129 |
| 77281G | fuel hose clamp | 77281-BZ120 |
| 77281L | fuel hose clamp | 90044-60129 |
| 77281M | fuel hose clamp | 77286-BZ160 |
| 77281N | fuel hose clamp | 47371-BZ190 |
| 77284 | Fuel pipe clamp | 47372-BZ020 · 90044-60327 |
| 77285F | No. 1 fuel pipe clamp | 90044-60129 |
| 77286D | No. 2 fuel pipe clamp | 77286-BZ130 |
| 77286F | No. 2 fuel pipe clamp | 77286-BZ070 |
| 77286K | No. 2 fuel pipe clamp | 77286-BZ010 |
| 77288 | Ventilation hose clamp | 90460-22002 |
| 77289C | No. 4 fuel pipe clamp | 90044-60129 |
| 77291A | Fuel tank filler pipe cover | 77291-BZ050 |
| 77298A | No. 4 fuel pipe clamp | 77298-BZ010 |
| 77299A | No. 5 fuel pipe clamp | 77299-BZ010 |
| 77309 | Fuel inlet cover hinge sub-assembly | 77308-BZ080 · 77308-BZ160 · 77308-BZ220 |
| 77310A | Fuel tank cap assembly | 77300-52030 |
| 77316 | fuel tank cap gasket | 77316-52040 |
| 77350 | Fuel filler cap assembly | 77350-BZ200 |
| 77373 | fuel cap lock nut | 90041-70299 |
| 77644 | fuel tank bolt | 90041-20292 |
| 77740 | Carbon canister assembly | 77740-BZ140 · 77740-BZ150 · 77740-BZ160 |
| 77765 | Carbon canister protective cover | 21133-BZ030 |
| 77780 | Purge control valve assembly | 17660-BZ070 · 23122-BZ090 |
