Toyota YARIS 挡泥板和扰流板 — Figure 7601

Toyota YARIS EPC diagram 7601, 挡泥板和扰流板, with 3 images and 10 PNC and OE references.

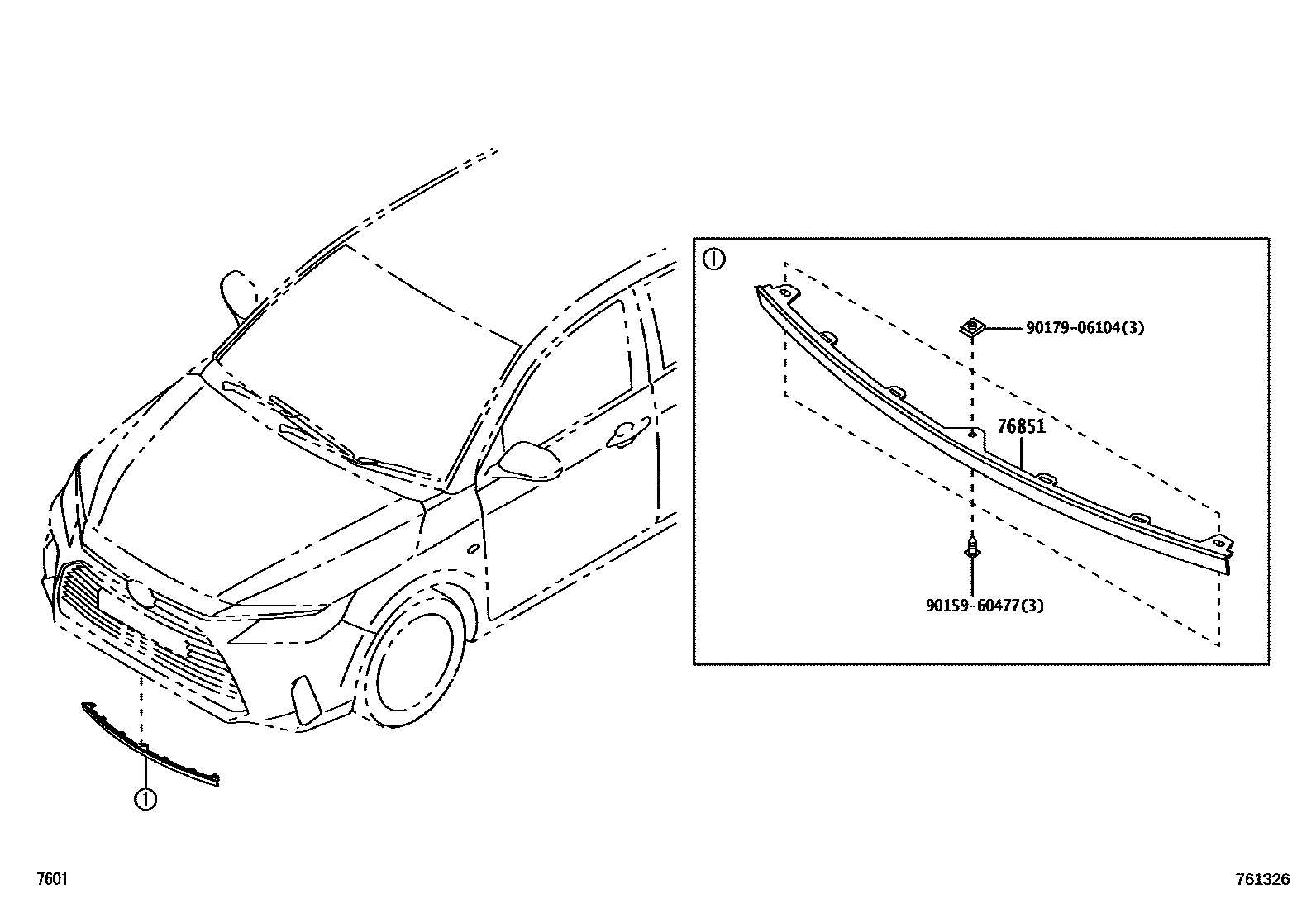

Toyota YARIS 挡泥板和扰流板 EPC diagram — 761326
挡泥板和扰流板 — 761326 (202208 – 999999)

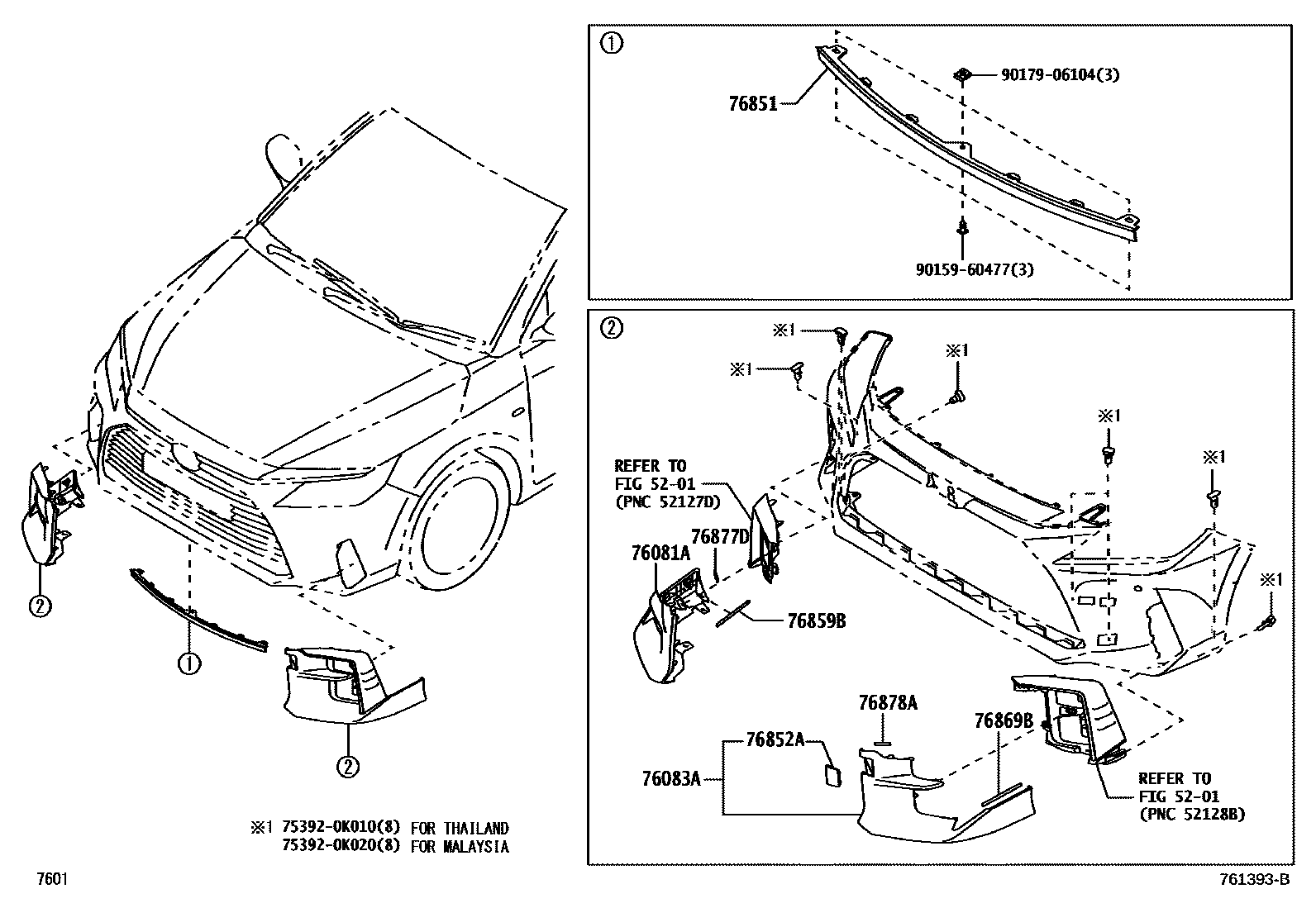

Toyota YARIS 挡泥板和扰流板 EPC diagram — 761393B
挡泥板和扰流板 — 761393B (202508 – 999999)
Toyota YARIS 挡泥板和扰流板 EPC diagram — 761394A
挡泥板和扰流板 — 761394A (202508 – 999999)

PNC and OE references

PNCPart nameOE numbers
76081ARight front spoiler sub-assembly76081-BZ901
76083ALeft front spoiler sub-assembly76083-BZ901
76851front spoiler cover76851-BZ250
76852ALeft front spoiler cover52128-BZ902
76859BNo. 2 right front side spoiler protective strip76877-BZ100
76869BNo. 2 left front spoiler protective strip76877-BZ100
76875No. 4 rear spoiler protective strip76875-BZ050
76877DRight front spoiler protection strip76877-BZ090
76878ALeft front spoiler protection strip76877-BZ090
76879No. 1 rear spoiler clip90467-09206
