Toyota YARIS 后防护条 — Figure 7504

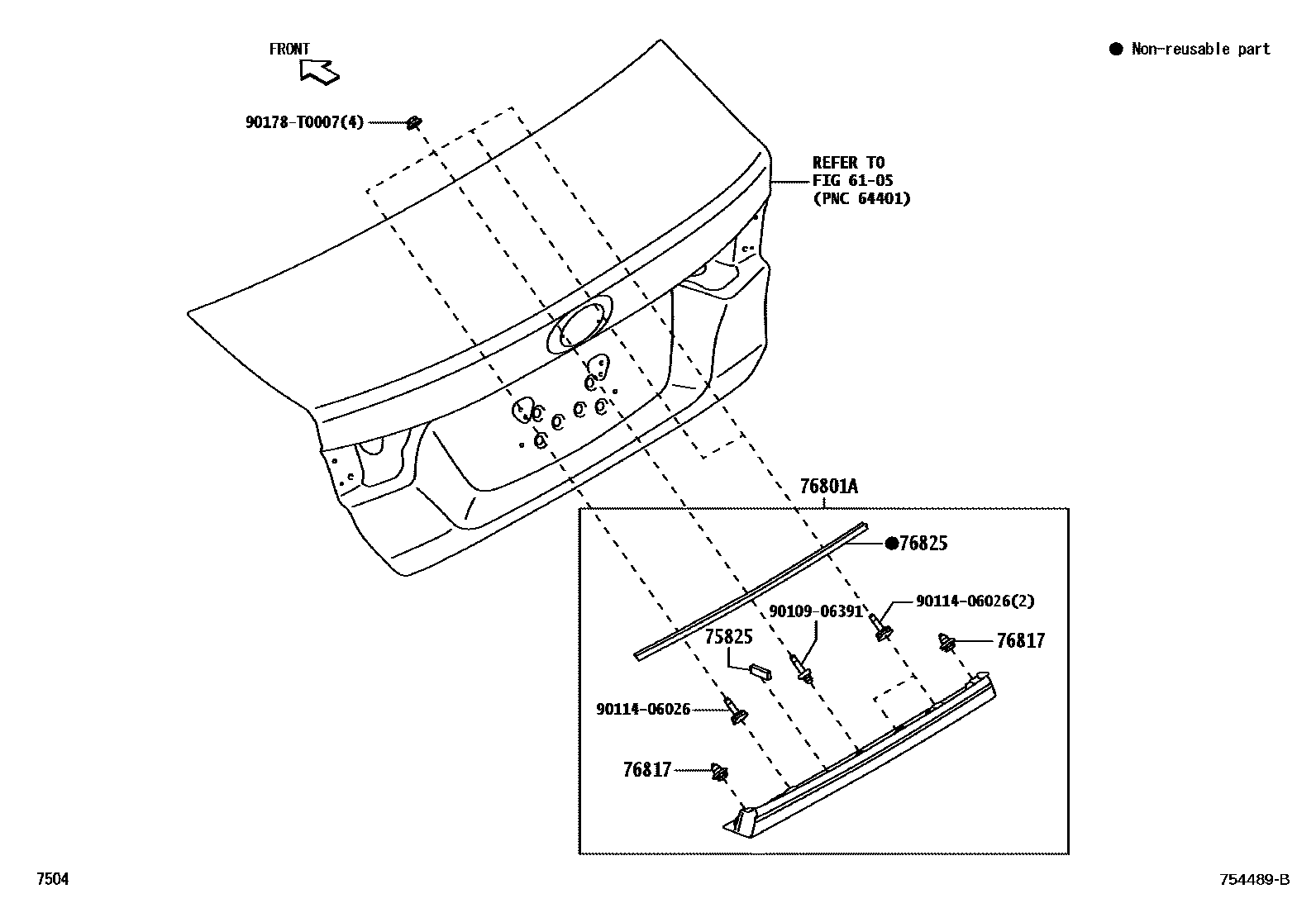

Toyota YARIS EPC diagram 7504, 后防护条, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75825 | Trunk door protective strip lining | 75825-BZ010 · 75825-BZ060 |
| 76801A | Trunk door outer decorative strip sub-assembly | 76801-BZ140 · 76801-BZ150 · 76801-BZ370 · 76801-BZ430 |
| 76817 | Rear door exterior decorative strip clip | 90467-09206 · 90467-T0019 |
| 76825 | Rear door exterior decorative strip protective cover | 76825-BZ360 · 76825-BZ370 |
