Toyota YARIS 侧防护条 — Figure 7503

Toyota YARIS EPC diagram 7503, 侧防护条, with 2 images and 16 PNC and OE references.

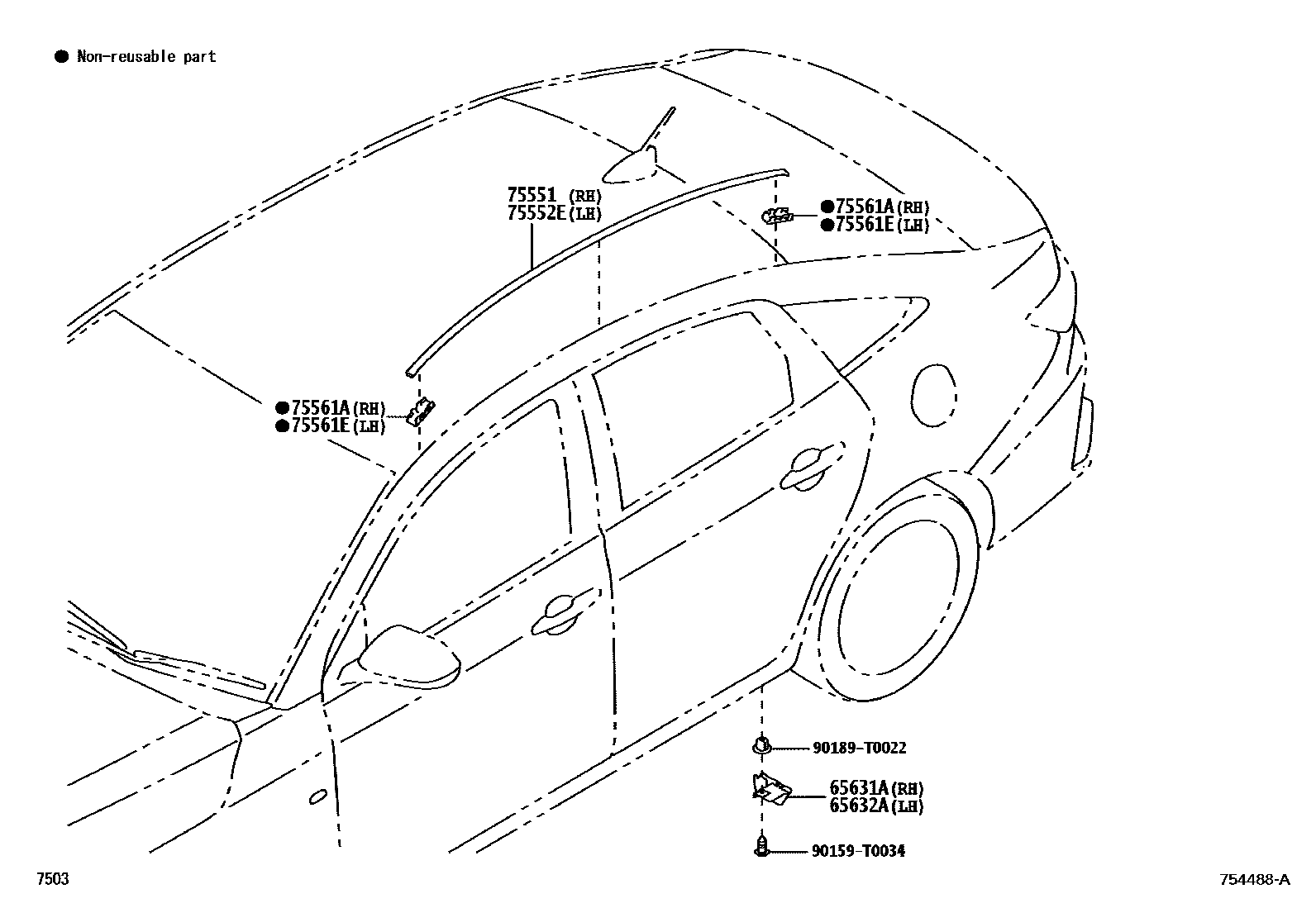

Toyota YARIS 侧防护条 EPC diagram — 754488A
侧防护条 — 754488A (202208 – 999999)

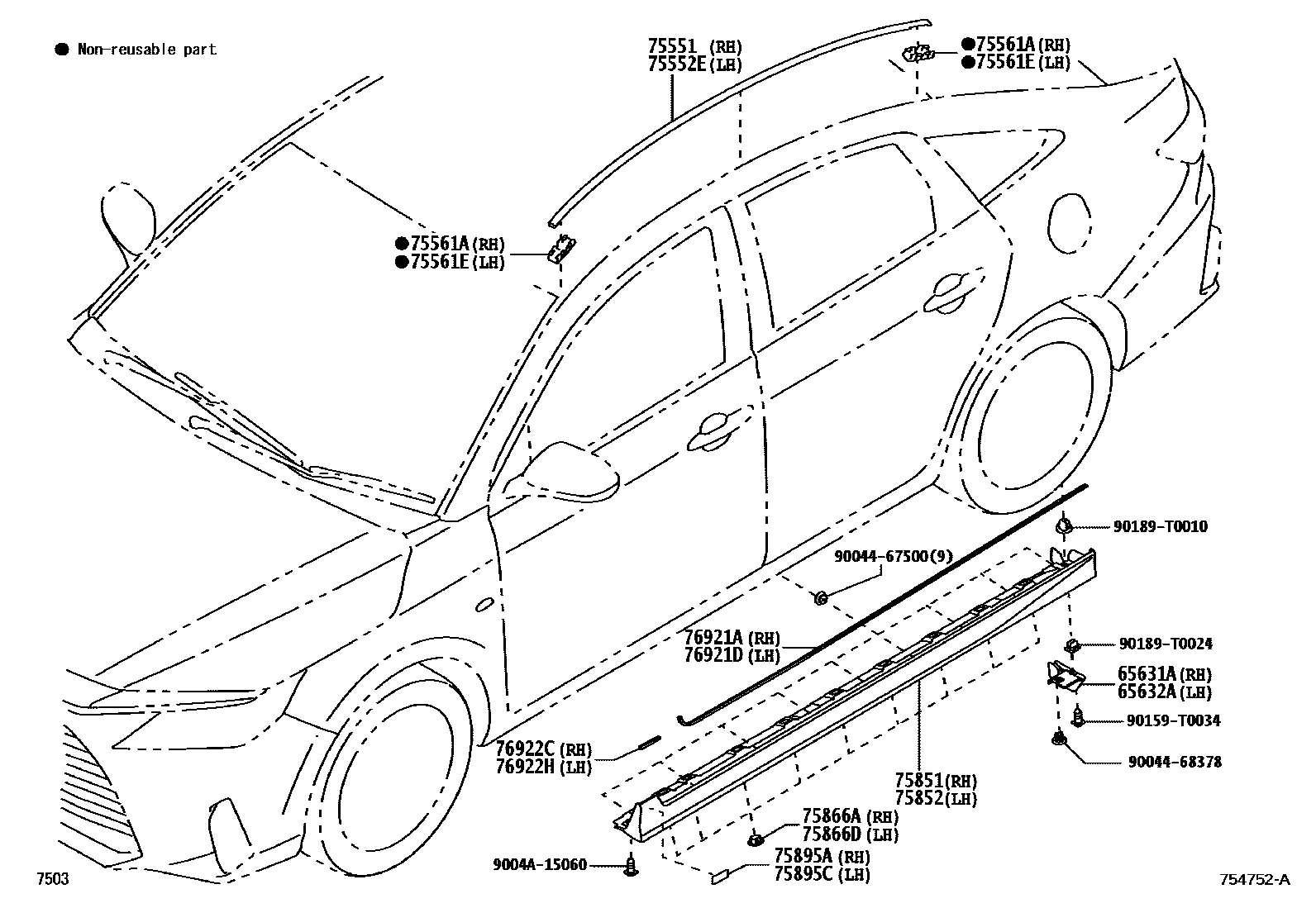

Toyota YARIS 侧防护条 EPC diagram — 754752A
侧防护条 — 754752A (202508 – 999999)

PNC and OE references

PNCPart nameOE numbers
65631ARight rear wheel house front panel65631-BZ060 · 65631-BZ110
65632ALeft rear wheel house front panel65632-BZ060 · 65632-BZ110
75551Drainage groove side decorative strip on the right side of the roof75551-BZ220
75552EDrainage groove side decorative strip on the left side of the roof75552-BZ210
75561ARoof drain channel side decorative strip clip75561-06010
75561EDrainage groove side decorative strip clip on the left side of the roof75561-06010
75851Right side door sill panel protective strip75851-BZ904
75852Left side door sill panel protective strip75852-BZ903
75866ADoor sill panel protective strip fixings76924-BZ010
75866DDoor sill panel protective strip fixings76924-BZ010
75895ANo. 1 protective strip tape75895-BZ180
75895CNo. 3 protective tape75895-BZ180
76921ANo. 1 side fender protection strip76921-BZ140
76921DNo. 1 side fender protection strip76921-BZ140
76922CSide fender No. 2 protective strip76921-BZ530
76922HSide fender No. 2 protective strip76921-BZ530
