Toyota YARIS battery holder — Figure 7402

Toyota YARIS EPC diagram 7402, battery holder, with 2 images and 6 PNC and OE references.

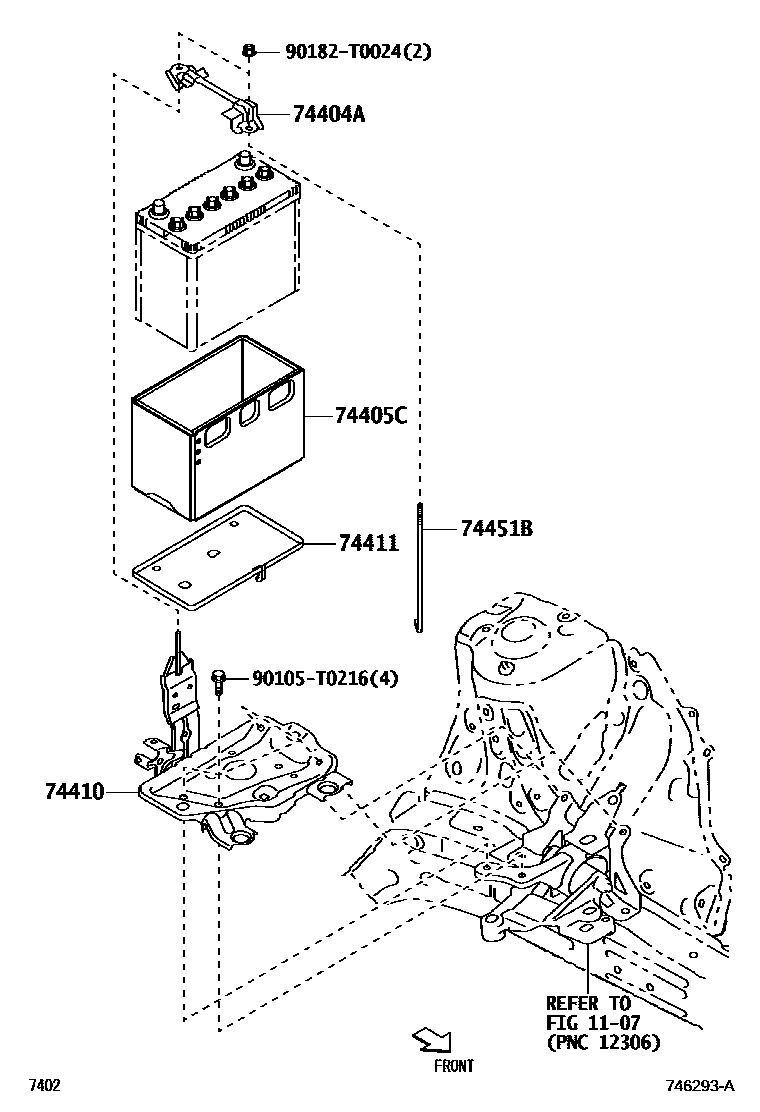

Toyota YARIS battery holder EPC diagram — 746293A
battery holder — 746293A (202208 – 999999)

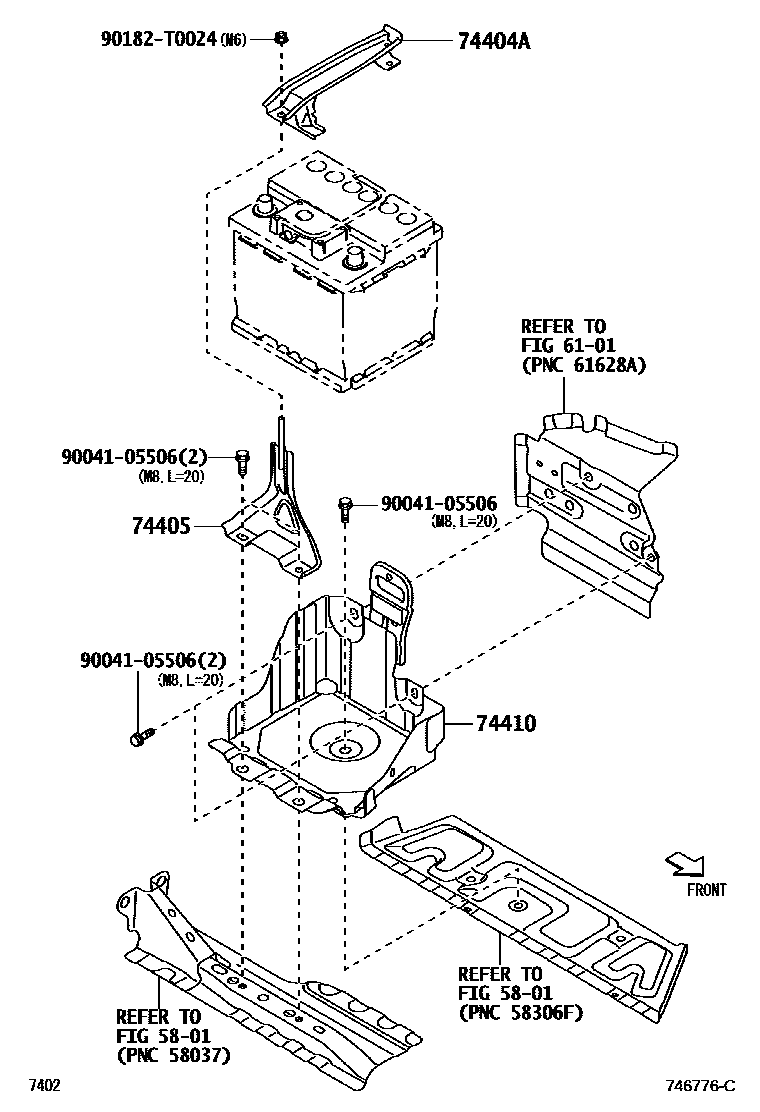

Toyota YARIS battery holder EPC diagram — 746776C
battery holder — 746776C (202508 – 999999)

PNC and OE references

PNCPart nameOE numbers
74404ABattery clip sub-assembly74404-BZ190 · 74404-BZ220
74405No. 2 battery clip sub-assembly74405-BZ140
74405CBattery cover sub-assembly74405-BZ110 · 74405-BZ130
74410Battery bracket assembly74410-BZ080 · 74410-BZ100
74411battery holder74411-BZ160 · 74411-BZ210
74451BBattery clamp bolt74451-BZ150
