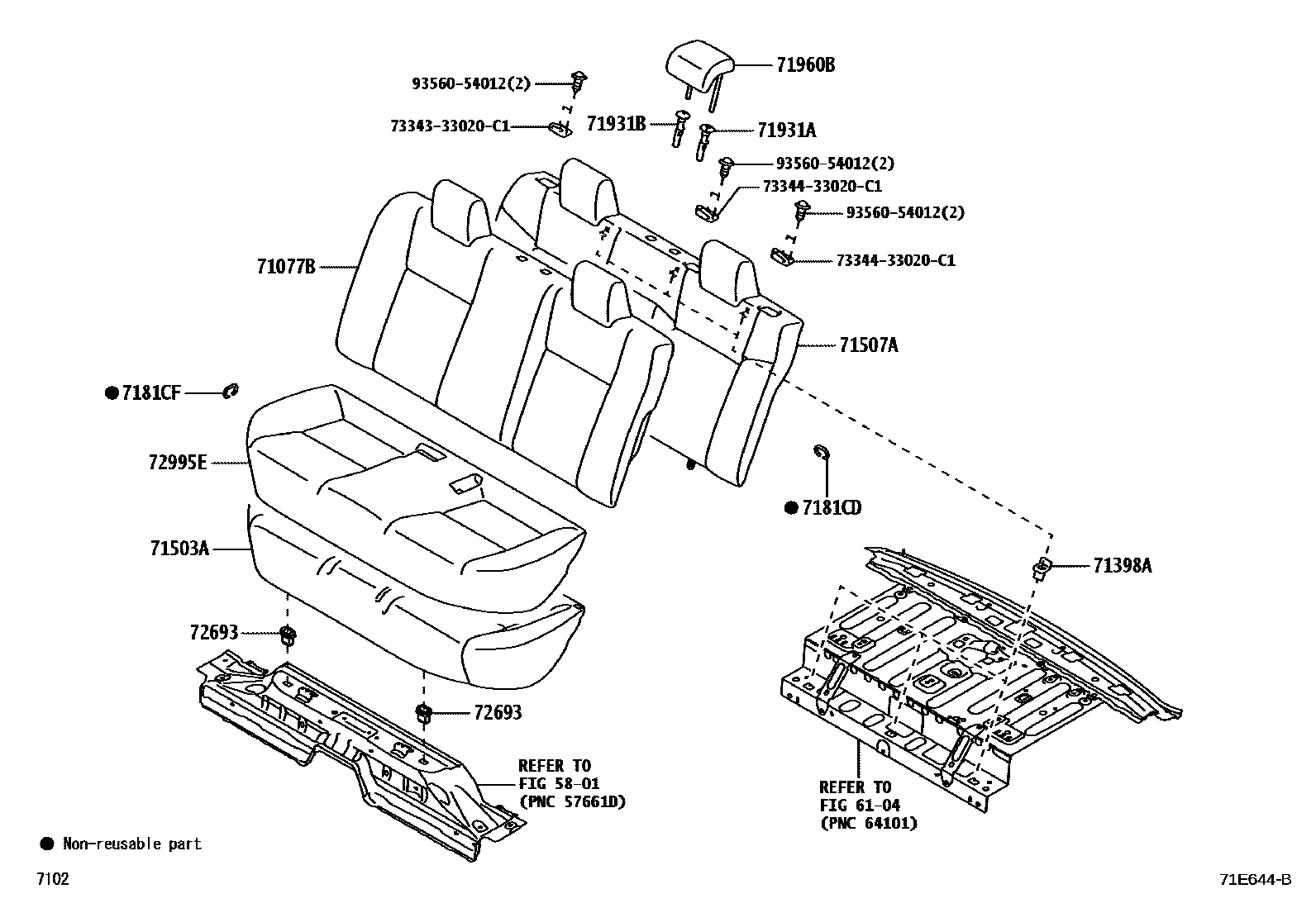

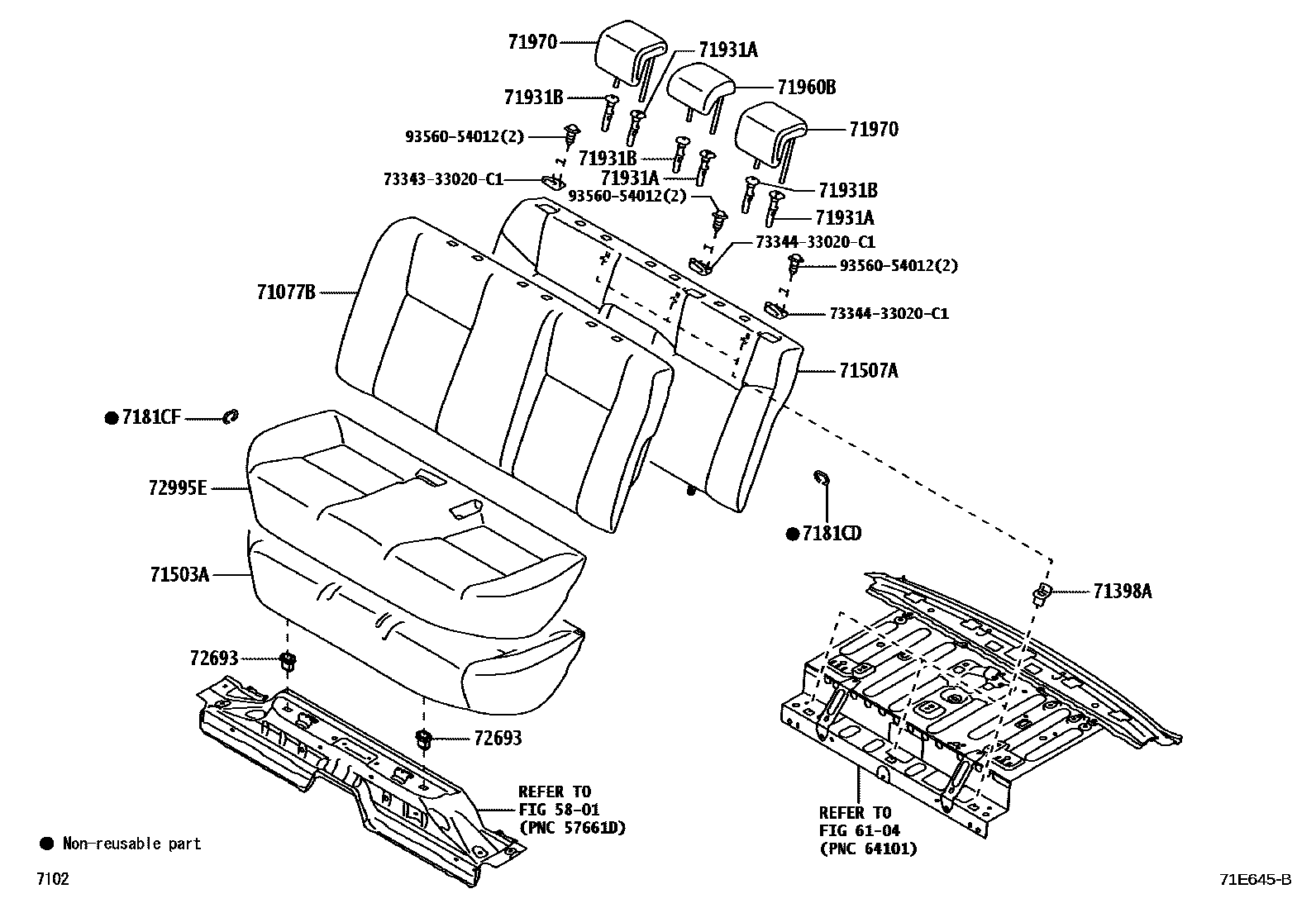

Toyota YARIS 后排座椅和座椅滑轨 — Figure 7102
Toyota YARIS EPC diagram 7102, 后排座椅和座椅滑轨, with 4 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

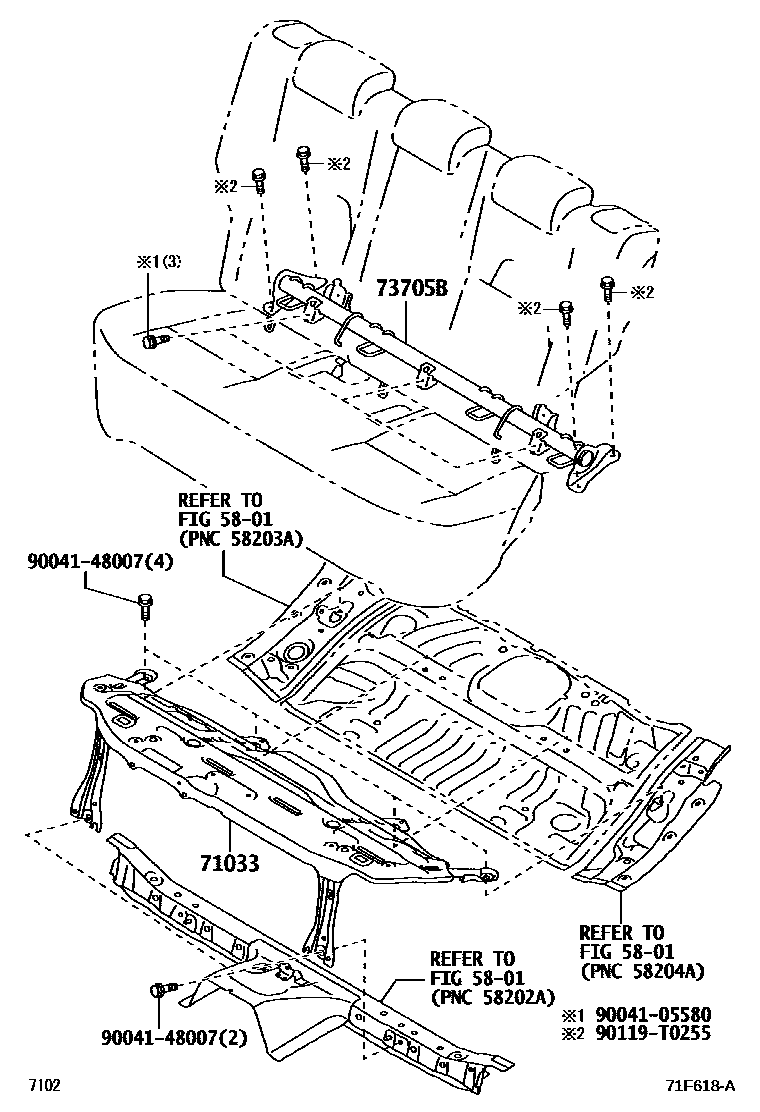

| 71033 | Rear seat cushion and leg sub-assembly | 71033-BZ100 |
| 71398A | Rear seat back retainer | 71398-02040 |
| 71503A | Rear seat cushion sub-assembly | 71503-BZ650 · 71503-BZ660 · 71503-BZ760 |
| 71507A | Rear seat back cushion sub-assembly | 71507-BZ580 · 71507-BZ581 · 71507-BZ590 · 71507-BZ591 |
| 7181CD | Small clamp ring (for rear seat backrest) | 90468-18008 |
| 7181CF | Small clamp ring (for rear seat cushion) | 90468-18008 |
| 71960B | Rear center seat headrest assembly | 71960-BZ161 |
| 71970 | Rear seat headrest assembly | 71940-BZG91 |
| 72693 | Rear seat cushion hook | 72693-12080 |

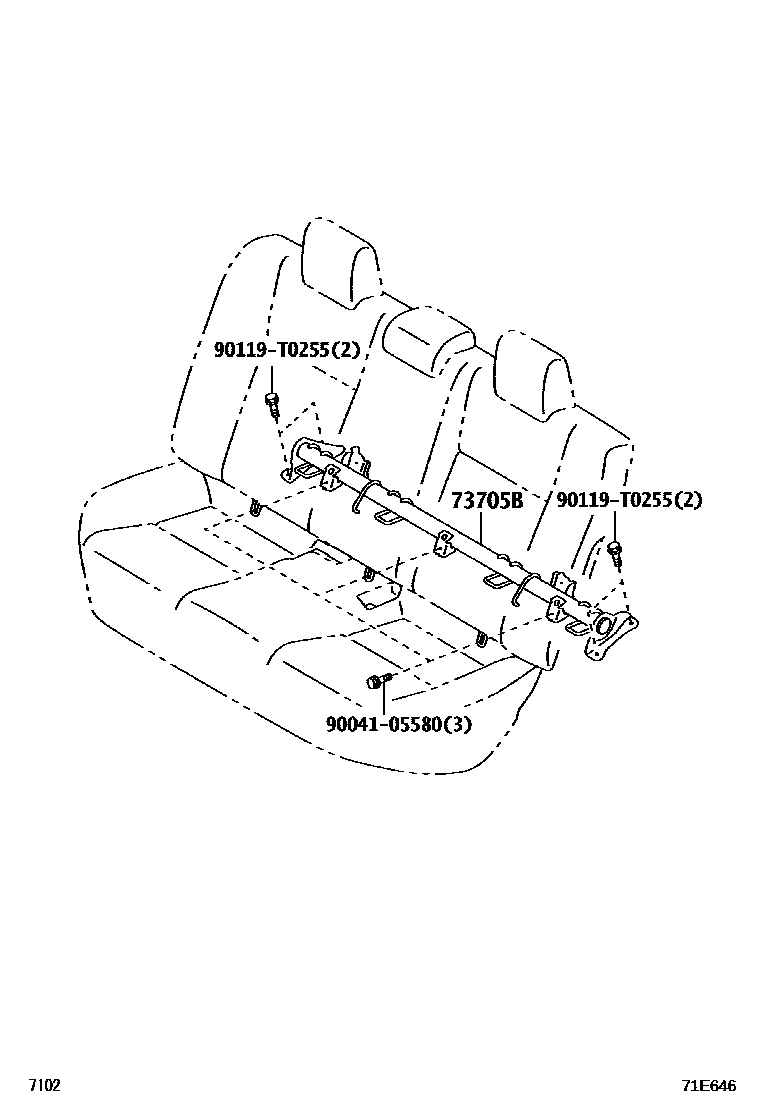

| 73705B | Cross anchor bracket sub-assembly | 73705-BZ100 · 73705-BZ110 |
