Toyota YARIS 前排座椅和座椅滑轨 — Figure 7101

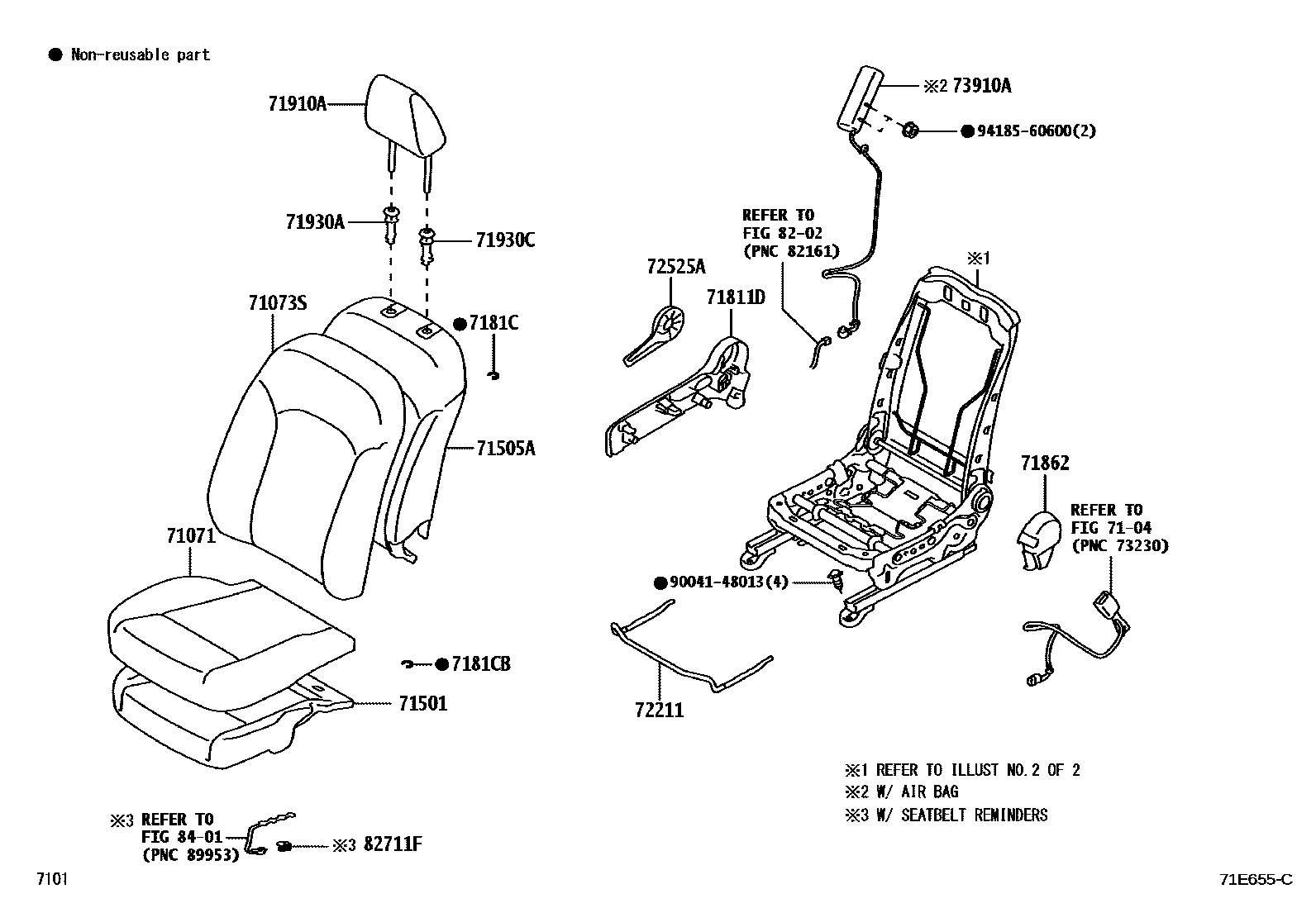

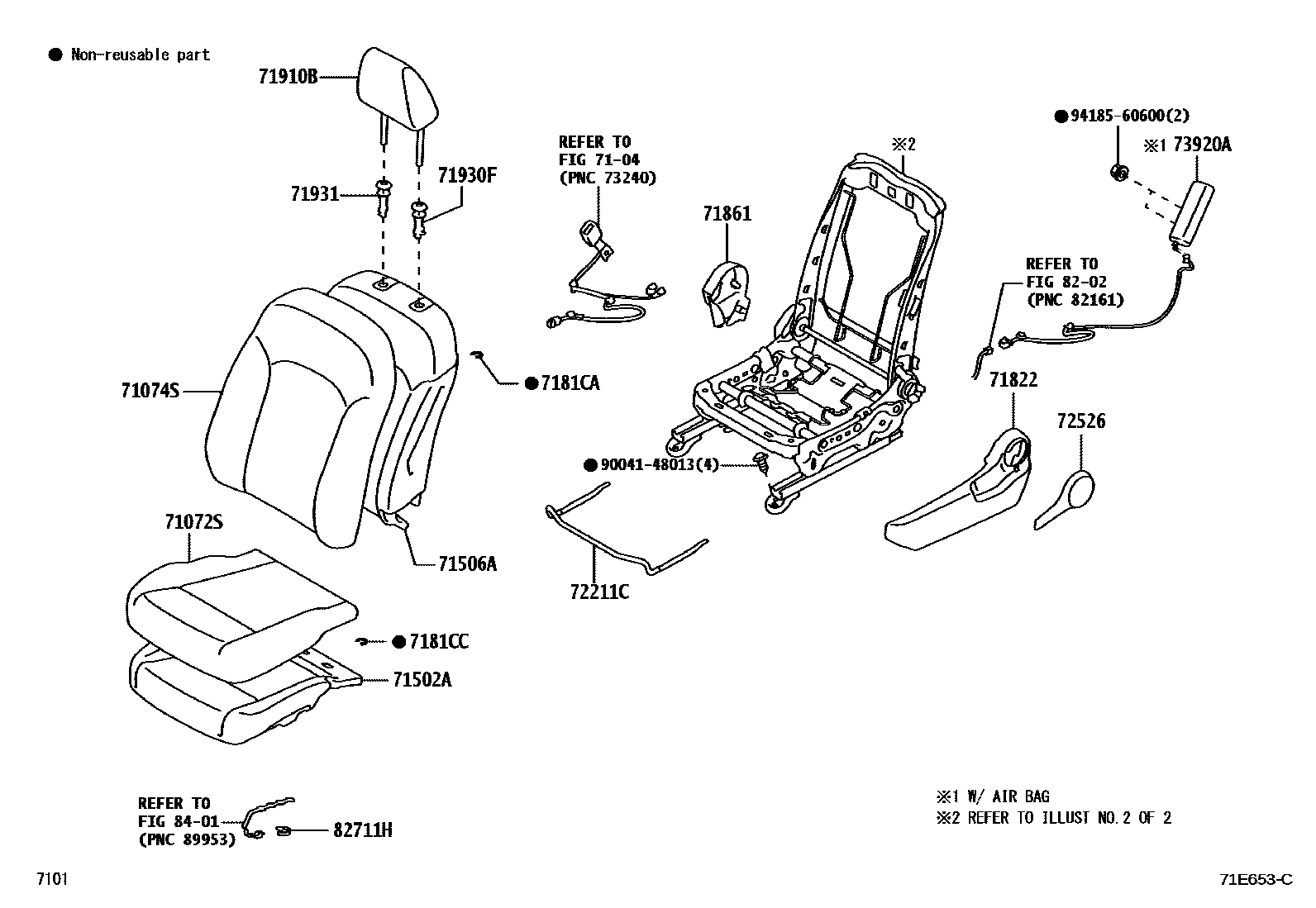

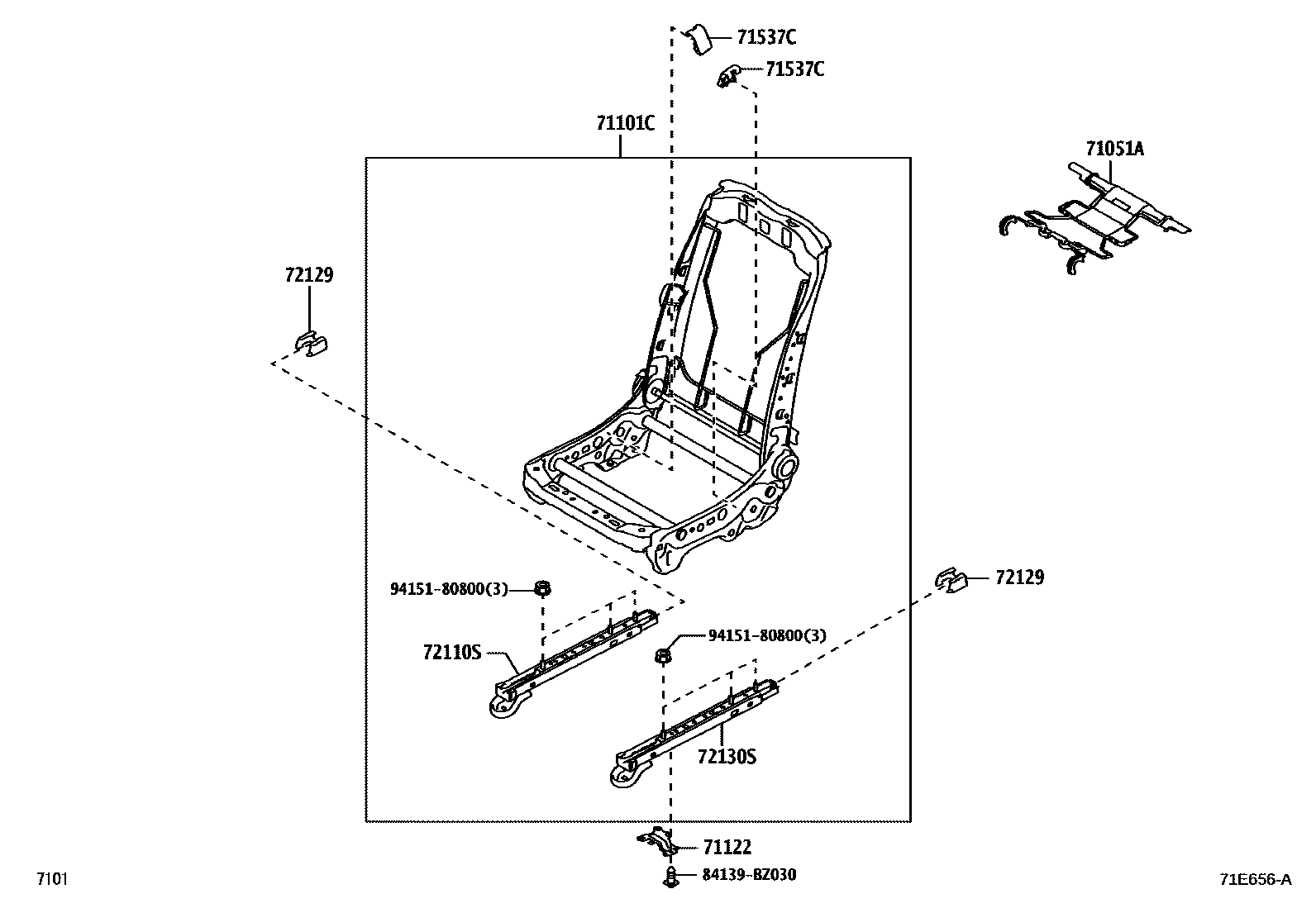

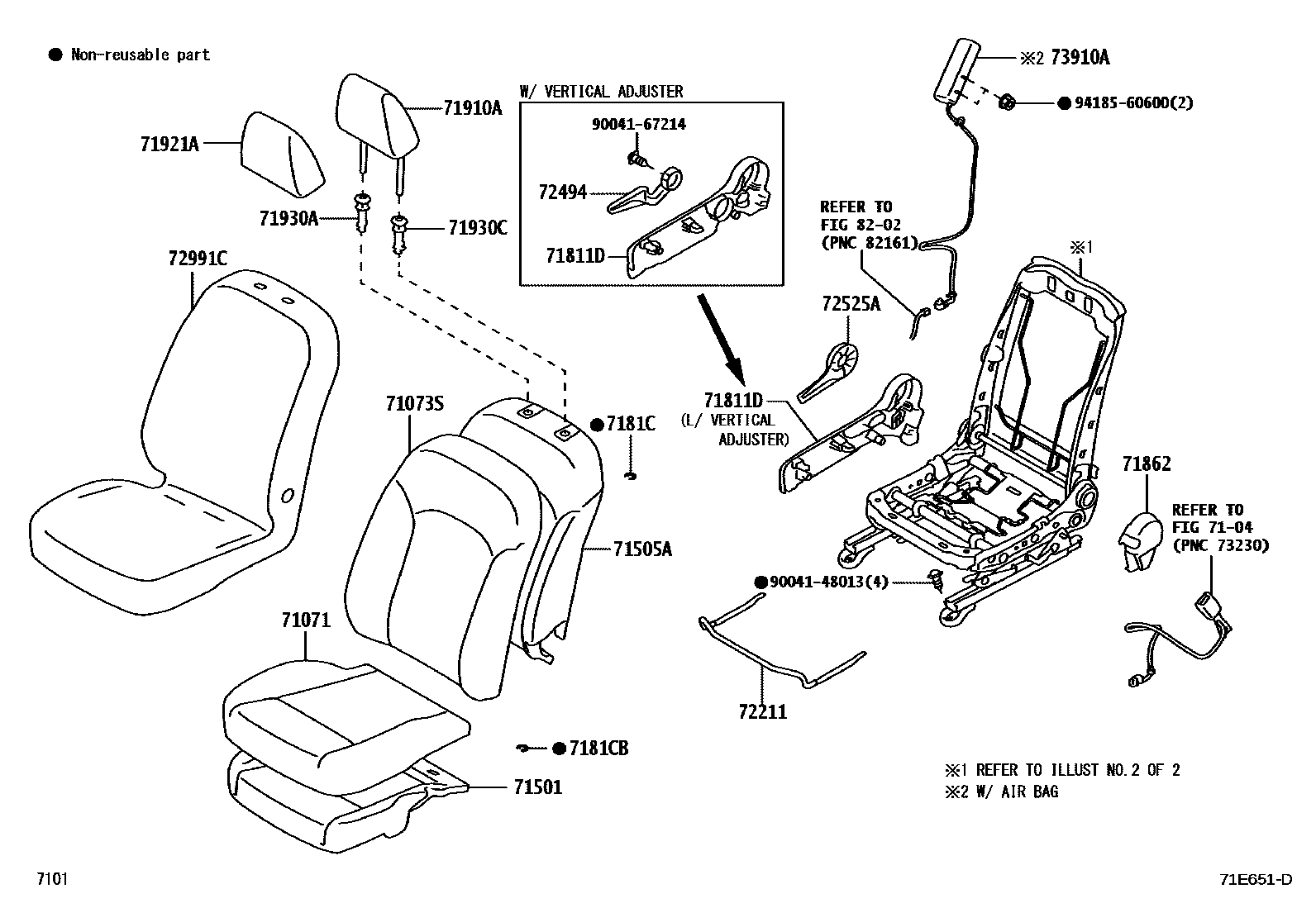

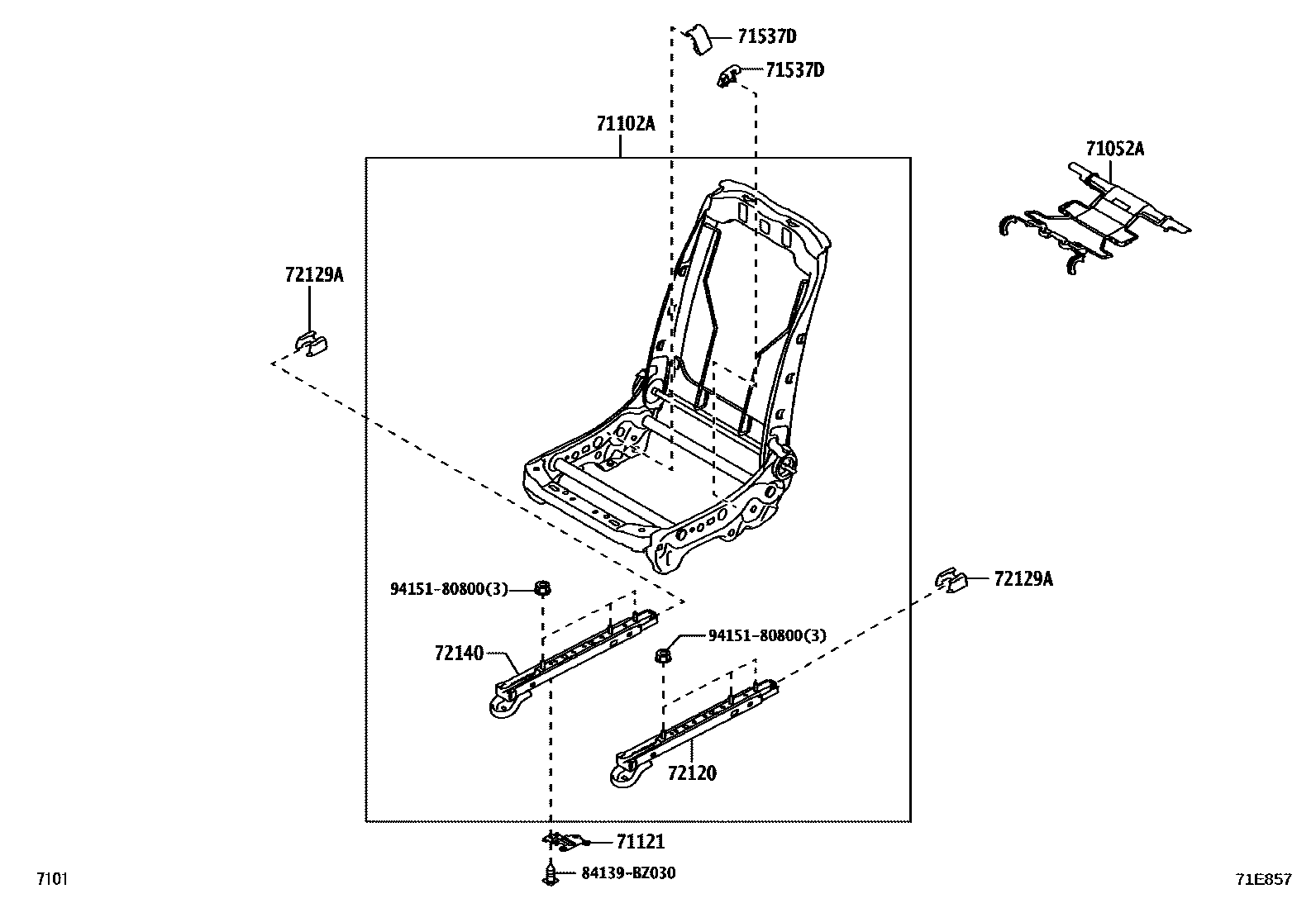

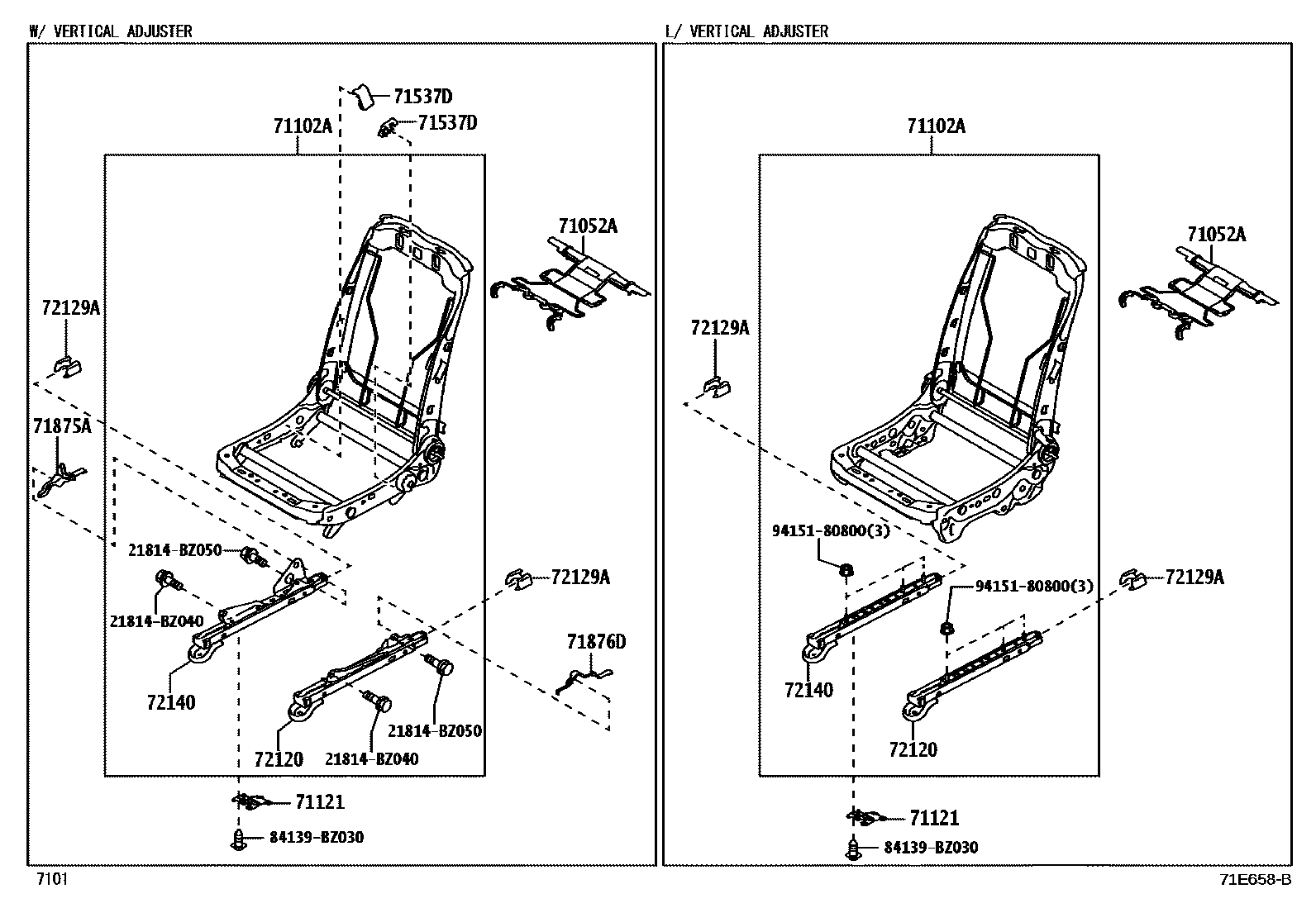

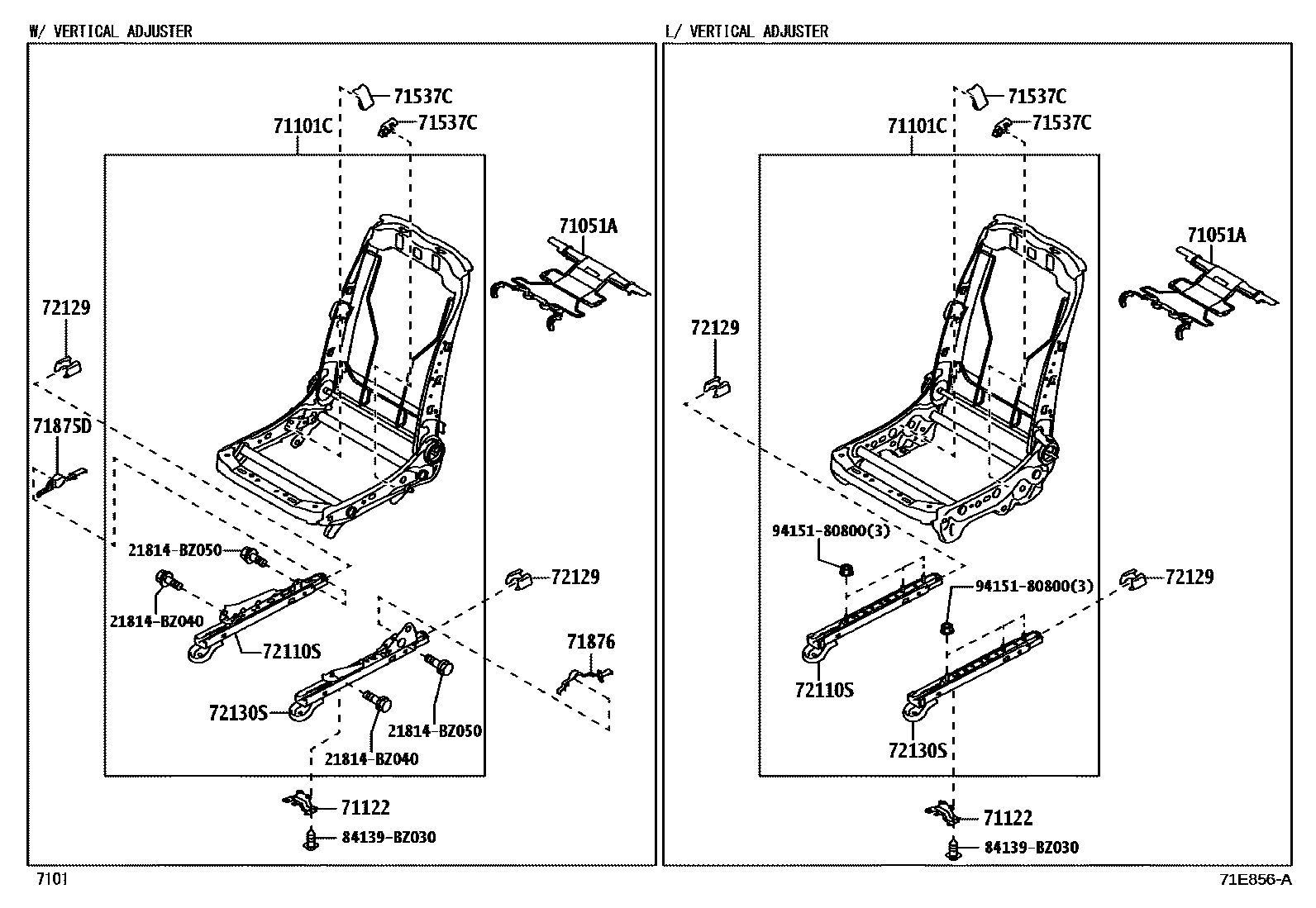

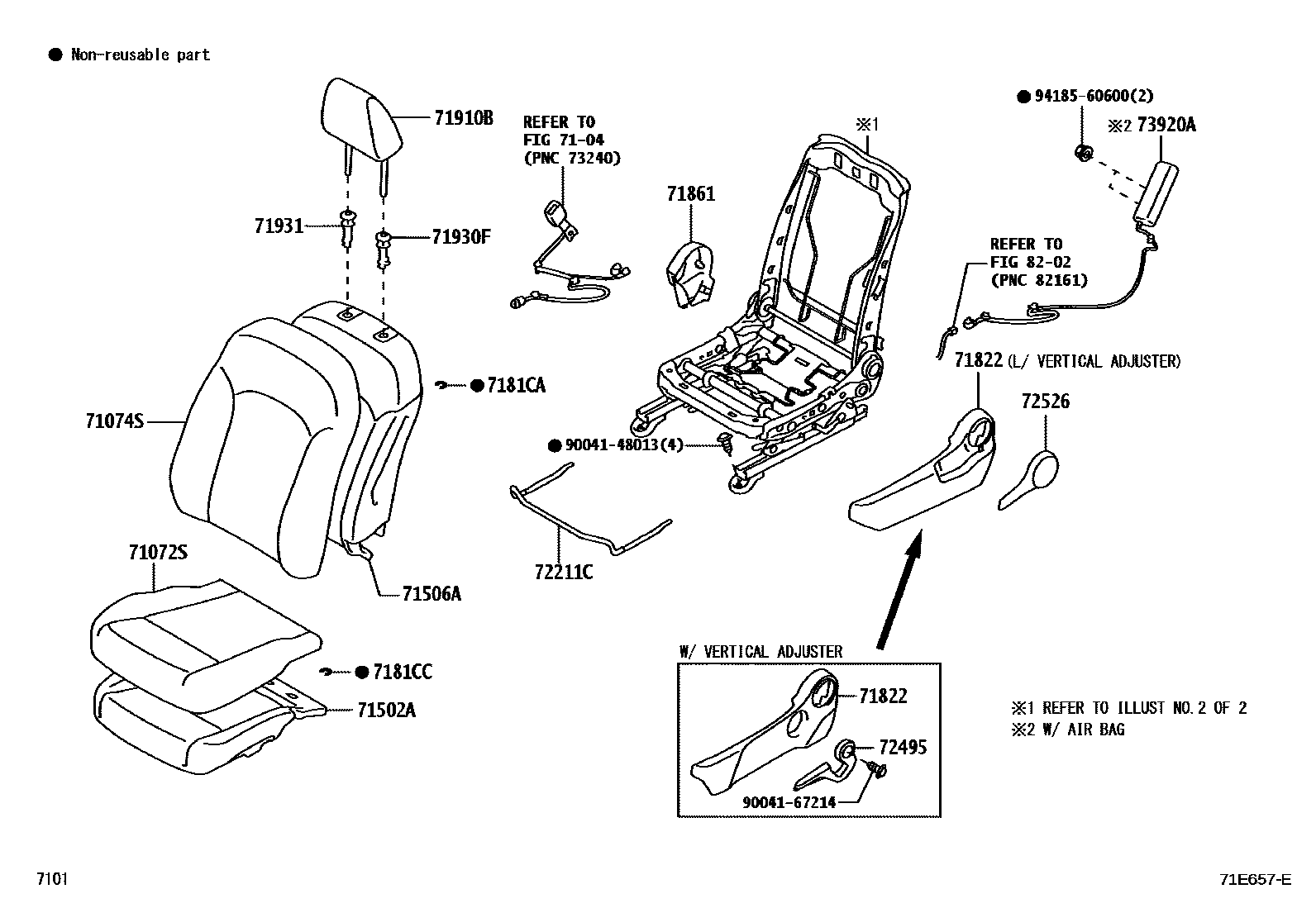

Toyota YARIS EPC diagram 7101, 前排座椅和座椅滑轨, with 8 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71051A | Front right seat cushion spring sub-assembly | 71051-0D160 |
| 71052A | Front left seat cushion spring sub-assembly | 71051-0D160 |
| 71101C | Right front seat sub-assembly | 71101-BZ030 · 71101-BZ040 · 71101-BZ070 |
| 71102A | Left front seat sub-assembly | 71102-BZ010 · 71102-BZ020 · 71102-BZ050 |
| 71121 | Front right seat cushion bracket | 71122-BZ080 |
| 71122 | Front left seat cushion bracket | 71121-BZ090 |
| 71501 | Front right seat cushion sub-assembly | 71501-BZ580 · 71501-BZ590 |
| 71502A | Front left seat cushion sub-assembly | 71502-BZ430 · 71502-BZ510 |
| 71505A | Front right seat back cushion sub-assembly | 71505-BZ610 · 71505-BZ620 · 71505-BZ630 |
| 71506A | Front left seat back cushion sub-assembly | 71506-BZ480 · 71506-BZ490 · 71506-BZ500 |
| 71537C | Front right seat cushion edge protective cover | 71537-0D400 |
| 71537D | Front left seat cushion edge protective cover | 71537-0D400 |
| 7181C | Small clamp ring (for front seat back) | 90468-18008 |
| 7181CA | Small clamp ring (for front seat back) | 90468-18008 |
| 7181CB | Small clamp ring (for front seat cushion) | 90468-18008 |
| 7181CC | Small clamp ring (for front seat cushion) | 90468-18008 |
| 71921A | Front seat headrest protector | 72981-06060 |
| 72110S | Right seat outer slide rail assembly (for separate seats) | 72110-BZ340 · 72110-BZ350 |
| 72120 | Front left seat outer slide rail assembly | 72110-BZ350 · 72120-BZ310 |
| 72129 | No. 1 seat slide rail lower rail protective cover | 72129-BZ070 |
| 72129A | No. 2 seat slide rail lower rail ring protective cover | 72129-BZ070 |
| 72130S | Right seat inner slide rail assembly (for separate seats) | 72130-BZ360 · 72130-BZ370 |
| 72140 | Left seat inner slide rail assembly | 72130-BZ370 · 72140-BZ360 |
| 72211 | Seat slide adjustment handle | 72211-BZ180 |
| 72211C | Seat slide adjustment handle | 72211-BZ180 |
| 72991C | Front seat cover | 72991-06080 |
| 73910A | Front right seat airbag assembly | 73910-BZ070 · 73910-BZ110 |
| 73920A | Front left seat airbag assembly | 73920-BZ070 · 73920-BZ120 |
| 82711F | Wire harness clip | 82711-1E360 |
| 82711H | Wire harness clip | 82711-1E360 |
