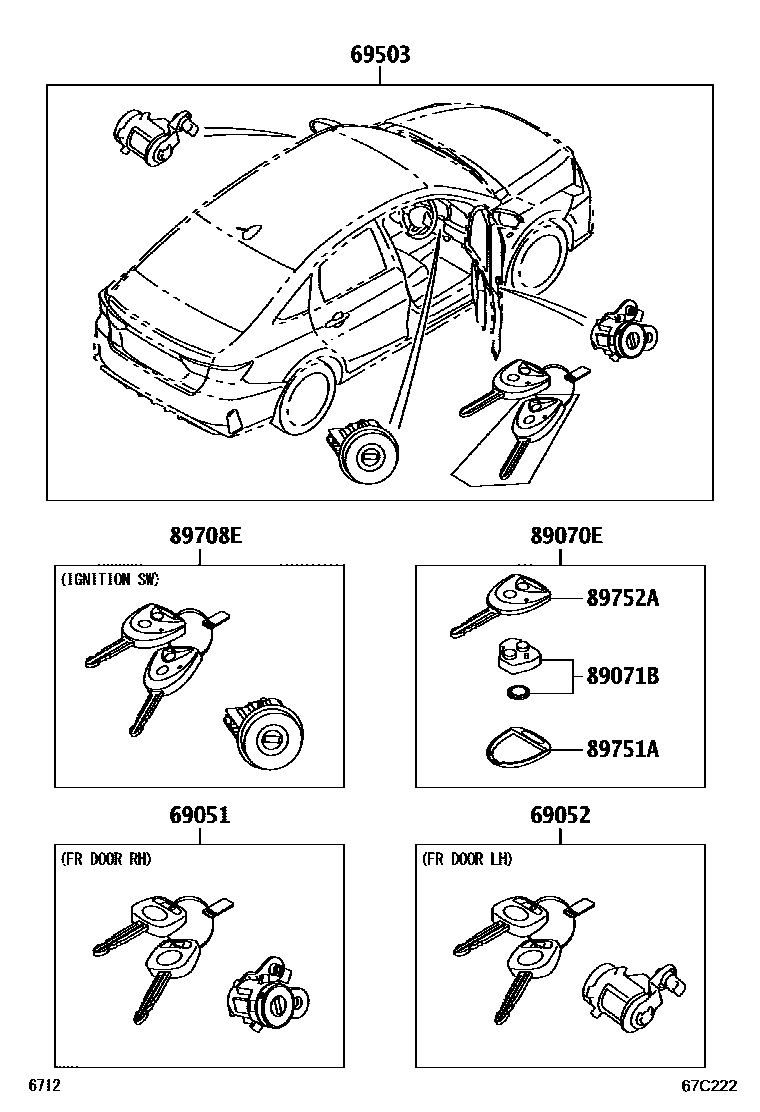

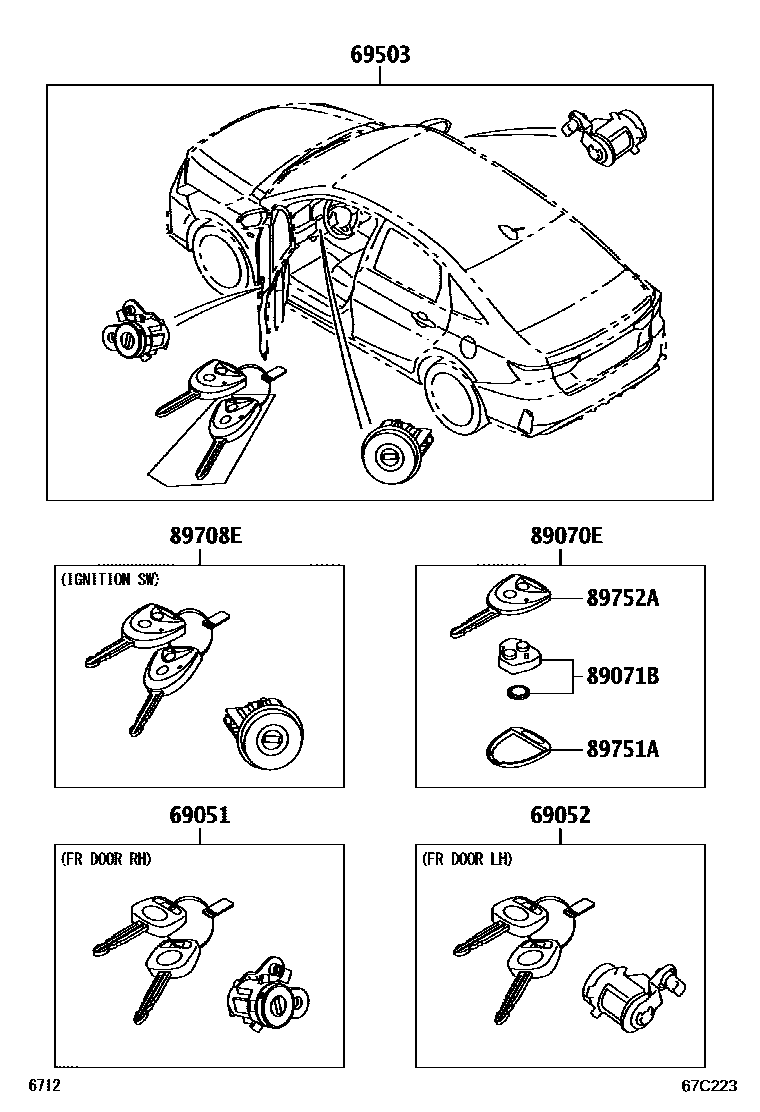

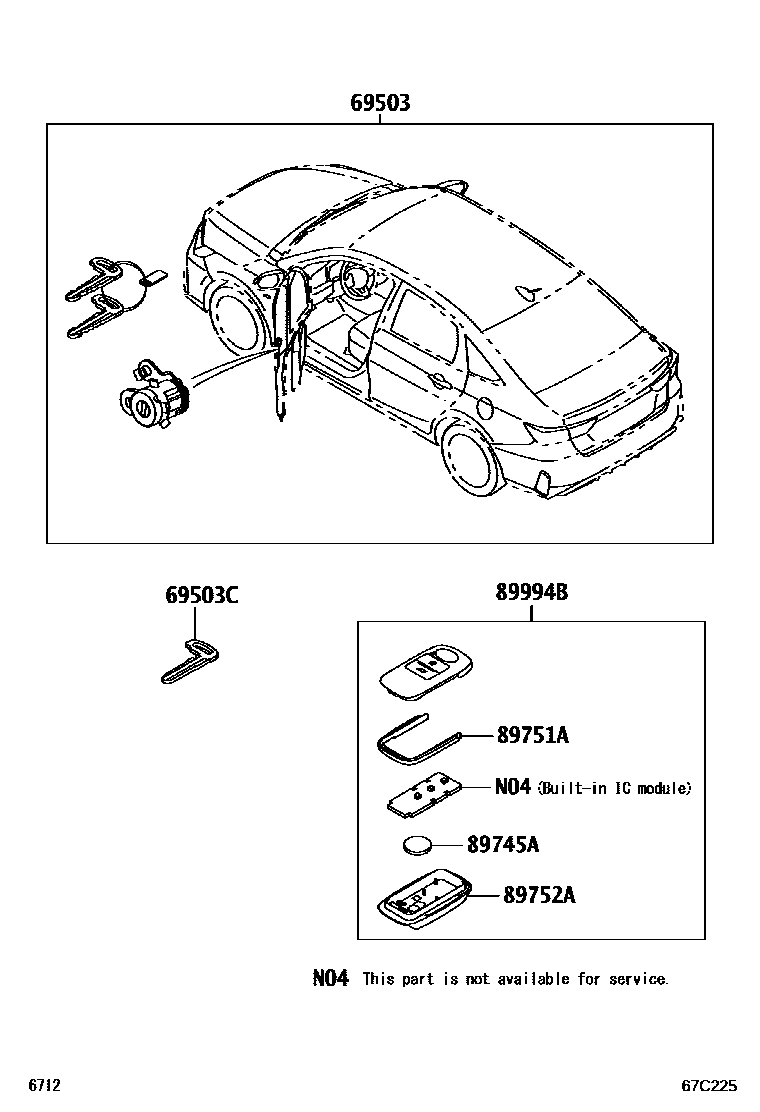

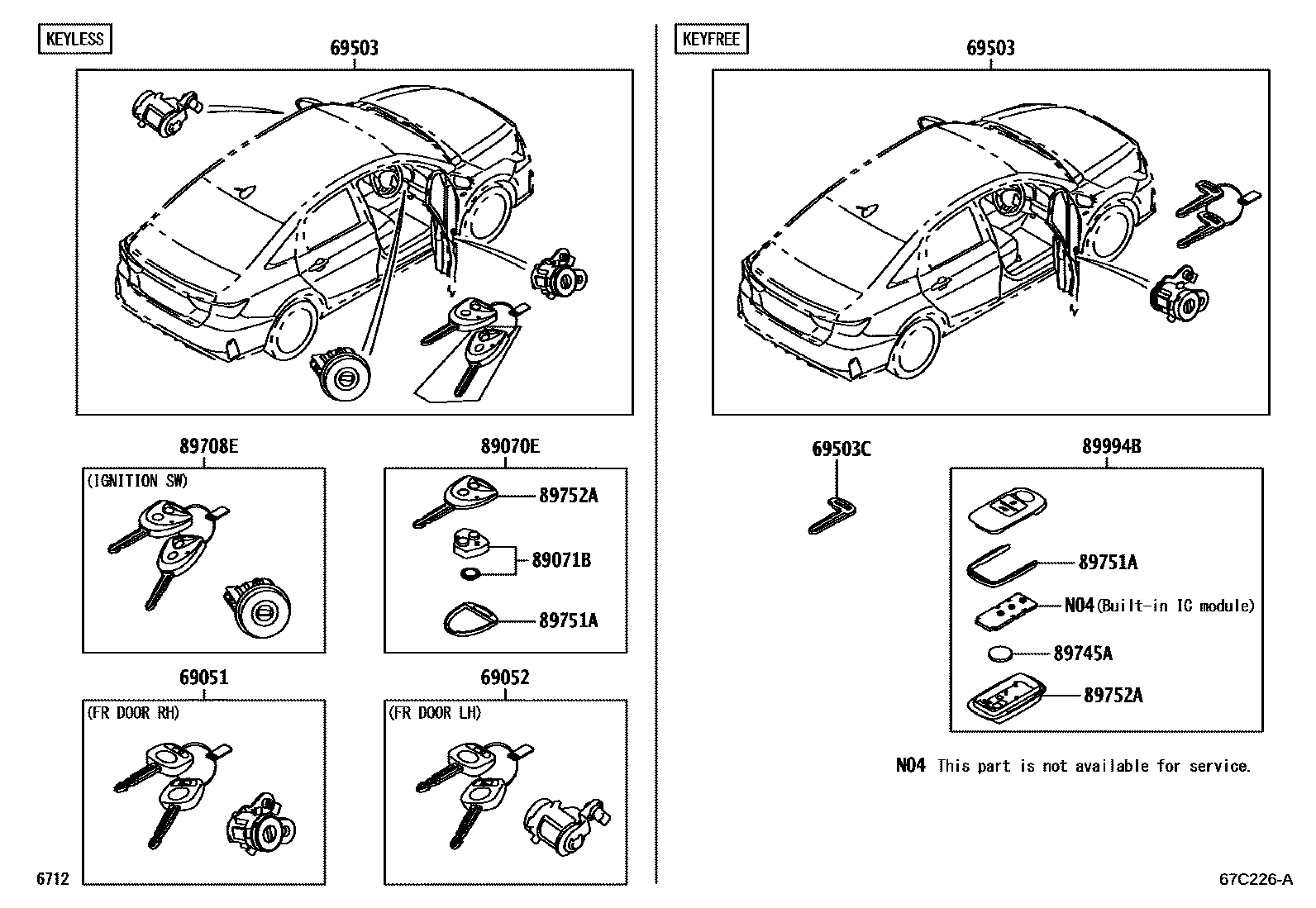

Toyota YARIS 锁芯组件 — Figure 6712
Toyota YARIS EPC diagram 6712, 锁芯组件, with 5 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-BZ330 |
| 69052 | Left door lock cylinder and key assembly | 69052-BZ220 |
| 69503 | Door lock cylinder components | 69005-BZF80 · 69005-BZF81 · 69005-BZK50 · 69005-BZK60 · 69005-BZK70 |
| 69503C | Deputy key | 69516-BZ110 · 69516-BZ140 |
| 89070E | Remote key assembly | 89070-BZ550 · 89070-BZ551 |
| 89071B | Remote key sub-assembly module assembly | 89071-BZ150 · 89071-BZ151 |
| 89708E | Key lock cylinder assembly with transmitter | 89708-BZ320 · 89708-BZ321 |
| 89745A | Transmitter battery | 89745-BZ090 |
| 89751A | Transmitter housing cover | 89751-BZ160 · 89751-BZ210 |
| 89752A | transmitter housing | 89752-BZ260 · 89752-BZ340 |
| 89994B | electronic key transmitter | 89994-BZ170 · 89994-BZ321 |
