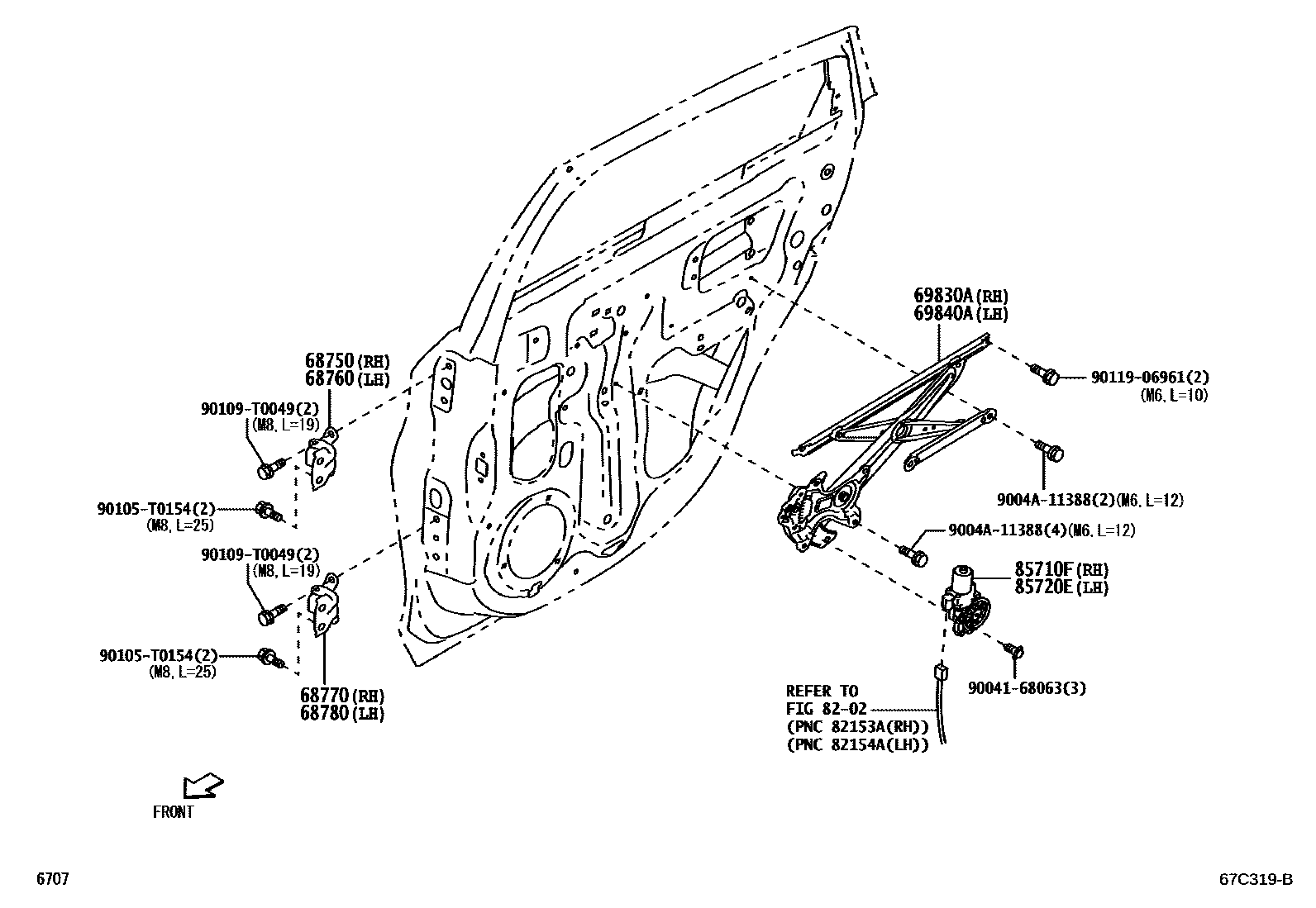

Toyota YARIS 后门车窗升降器和合页 — Figure 6707
Toyota YARIS EPC diagram 6707, 后门车窗升降器和合页, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68750 | Right rear door upper hinge assembly | 68750-BZ130 · 68750-BZ150 |
| 68760 | Left rear door upper hinge assembly | 68760-BZ130 · 68760-BZ150 |
| 68770 | Right rear door lower hinge assembly | 68760-BZ130 · 68760-BZ150 |
| 68780 | Left rear door lower hinge assembly | 68750-BZ130 · 68750-BZ150 |
| 69830A | Right rear door window lift assembly | 69801-BZ210 · 69801-BZ220 |
| 69840A | Left rear door window lift assembly | 69802-BZ200 · 69802-BZ210 |
| 85710F | Right power window lift motor assembly | 85710-BZ270 |
| 85720E | Left electric window lift motor assembly | 85720-BZ240 |
