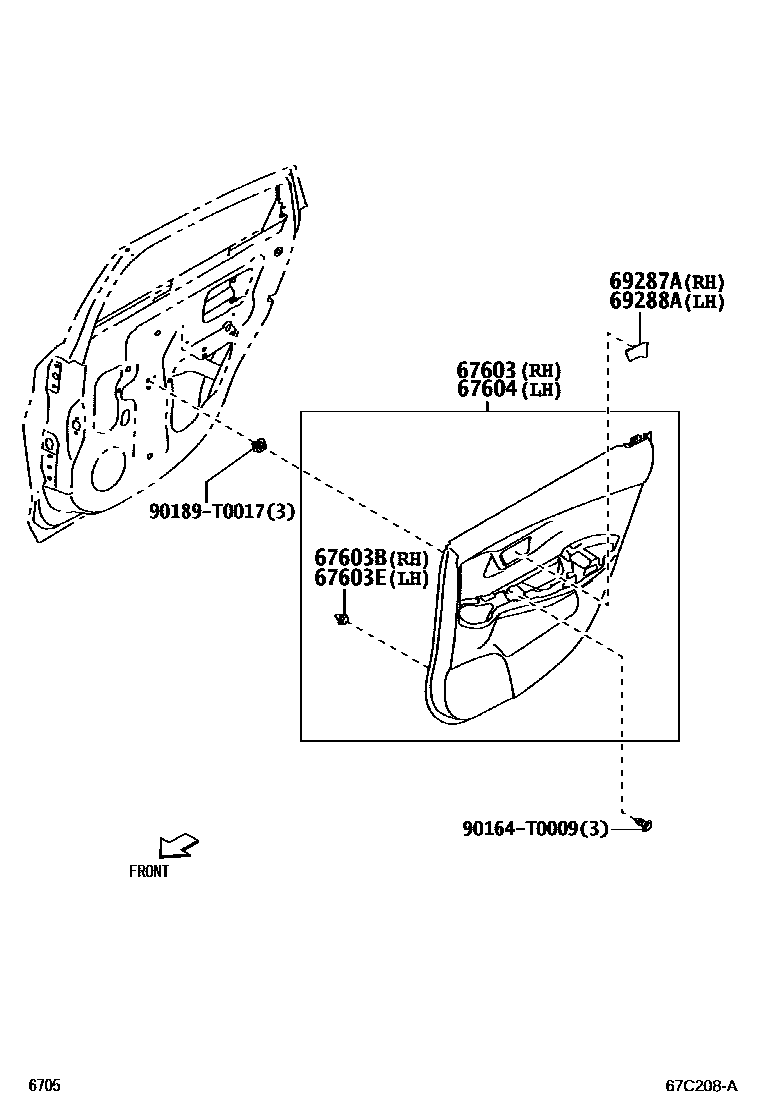

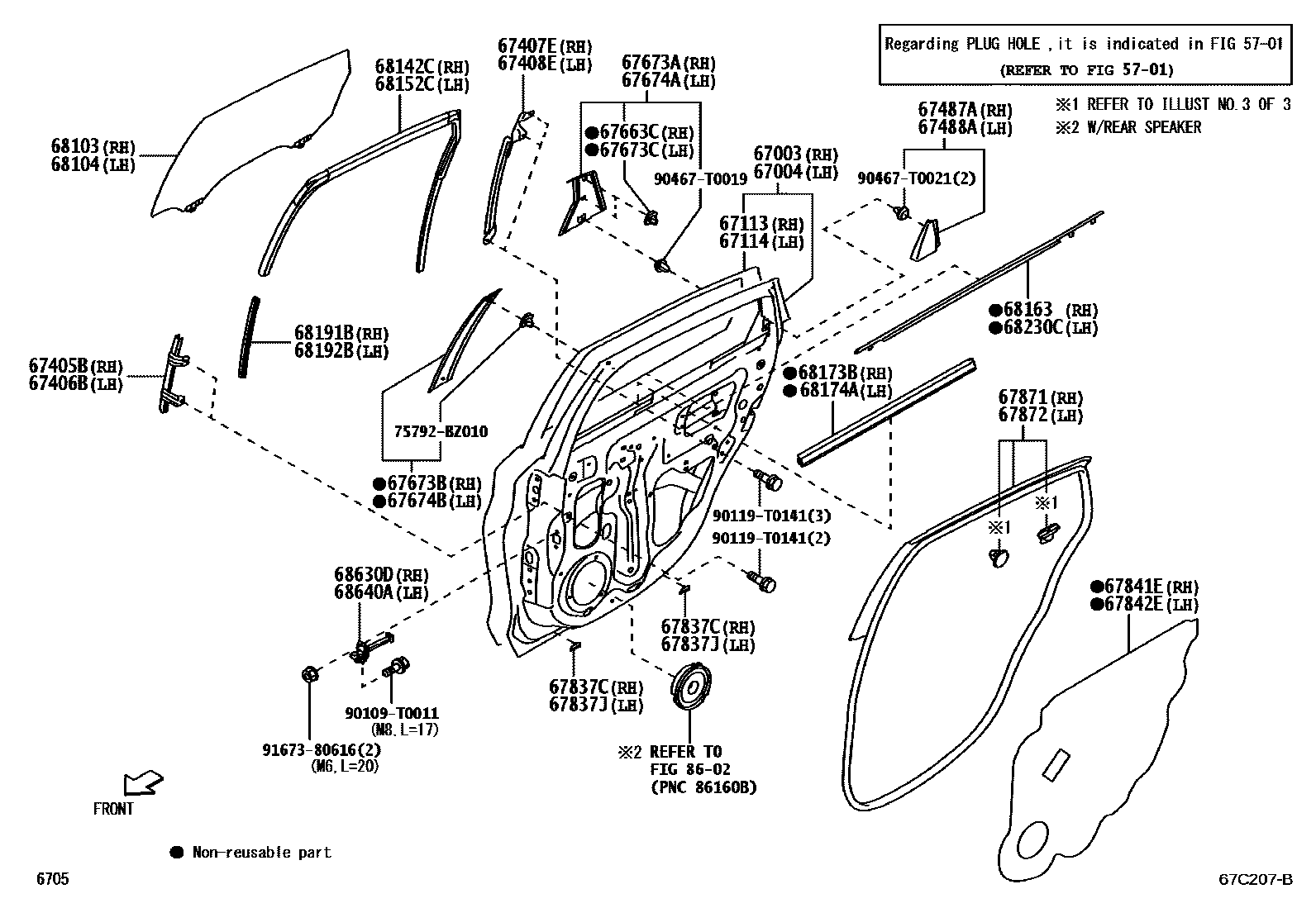

Toyota YARIS 后门板和后门玻璃 — Figure 6705
Toyota YARIS EPC diagram 6705, 后门板和后门玻璃, with 3 images and 40 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67003 | Right rear door panel sub-assembly | 67003-BZ760 · 67003-BZ770 |
| 67004 | Left rear door panel sub-assembly | 67004-BZ760 · 67004-BZ770 |
| 67113 | Right rear door outer panel | 67113-BZ440 |
| 67114 | Left rear door outer panel | 67114-BZ440 |
| 67405B | Right rear door window glass front guide groove sub-assembly | 67405-BZ110 |
| 67406B | Left rear door window glass front guide groove sub-assembly | 67406-BZ110 |
| 67407E | Right rear door window divider sub-assembly | 67407-BZ220 |
| 67408E | Left rear door window divider sub-assembly | 67408-BZ220 |
| 67487A | Right rear door rear rail bracket decorative strip | 67487-BZ110 |
| 67488A | Left rear door rear guide rail bracket decorative strip | 67488-BZ110 |
| 67603B | Catch (for rear door trim panel) | 90467-T0019 |
| 67603E | Catch (for rear door trim panel) | 90467-T0019 |
| 67663C | Clips (for door frame decorative strips) | 75792-BZ010 |
| 67673A | Right rear door frame decorative strip | 75765-BZ020 |
| 67673B | Right rear door frame decorative strip | 75761-BZ010 |
| 67673C | Clip (for rear door frame trim) | 75792-BZ010 |
| 67674A | Left rear door frame decorative strip | 75766-BZ020 |
| 67674B | Left rear door frame decorative strip | 75762-BZ010 |
| 67837C | Rear door dust seal retainer | 67837-0K090 |
| 67837J | Door dust seal retainer | 67837-0K090 |
| 67841E | Right rear door access hole cover | 67841-BZ480 · 67841-BZ490 |
| 67842E | Left rear door access hole cover | 67842-BZ260 · 67842-BZ270 |
| 67867D | Right rear door seal strip fixing | 67867-BZ460 · 67867-BZ580 |
| 67867K | Left door seal strip clip (for rear door) | 9004A-46317 · 90467-06084 |
| 67868D | Left rear door seal strip fixing | 67867-BZ440 · 67867-BZ600 |
| 67871 | Right rear door sealing strip | 67871-BZ280 |
| 67872 | Left rear door sealing strip | 67872-BZ280 |
| 67887B | Catch (for rear door seal strip) | 9004A-46317 · 90467-06084 |
| 68103 | Right rear door glass sub-assembly | 68103-BZ490 · 68103-BZ520 |
| 68104 | Left rear door glass sub-assembly | 68104-BZ490 · 68104-BZ520 |
| 68142C | Right rear door glass lift slot | 68142-BZ250 |
| 68152C | Left rear door glass lift slot | 68152-BZ250 |
| 68163 | Rear door glass outer seal strip | 68163-BZ260 · 68163-BZ270 · 68163-BZ330 |
| 68173B | Right rear door glass inner sealing strip | 68173-BZ290 |
| 68174A | Left rear door glass inner sealing strip | 68174-BZ290 |
| 68191B | Right rear door No. 2 glass lift slot | 68144-BZ150 |
| 68192B | Left rear door No. 2 glass lift slot | 68144-BZ150 |
| 68230C | Left rear door glass outer sealing strip assembly | 68164-BZ260 · 68164-BZ270 · 68164-BZ330 |
| 68630D | Right rear door opening limiter assembly | 68630-BZ210 · 68630-BZ230 |
| 68640A | Left rear door opening limiter assembly | 68630-BZ210 · 68630-BZ230 |
