Toyota YARIS 前门板和前门玻璃 — Figure 6701
Toyota YARIS EPC diagram 6701, 前门板和前门玻璃, with 3 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

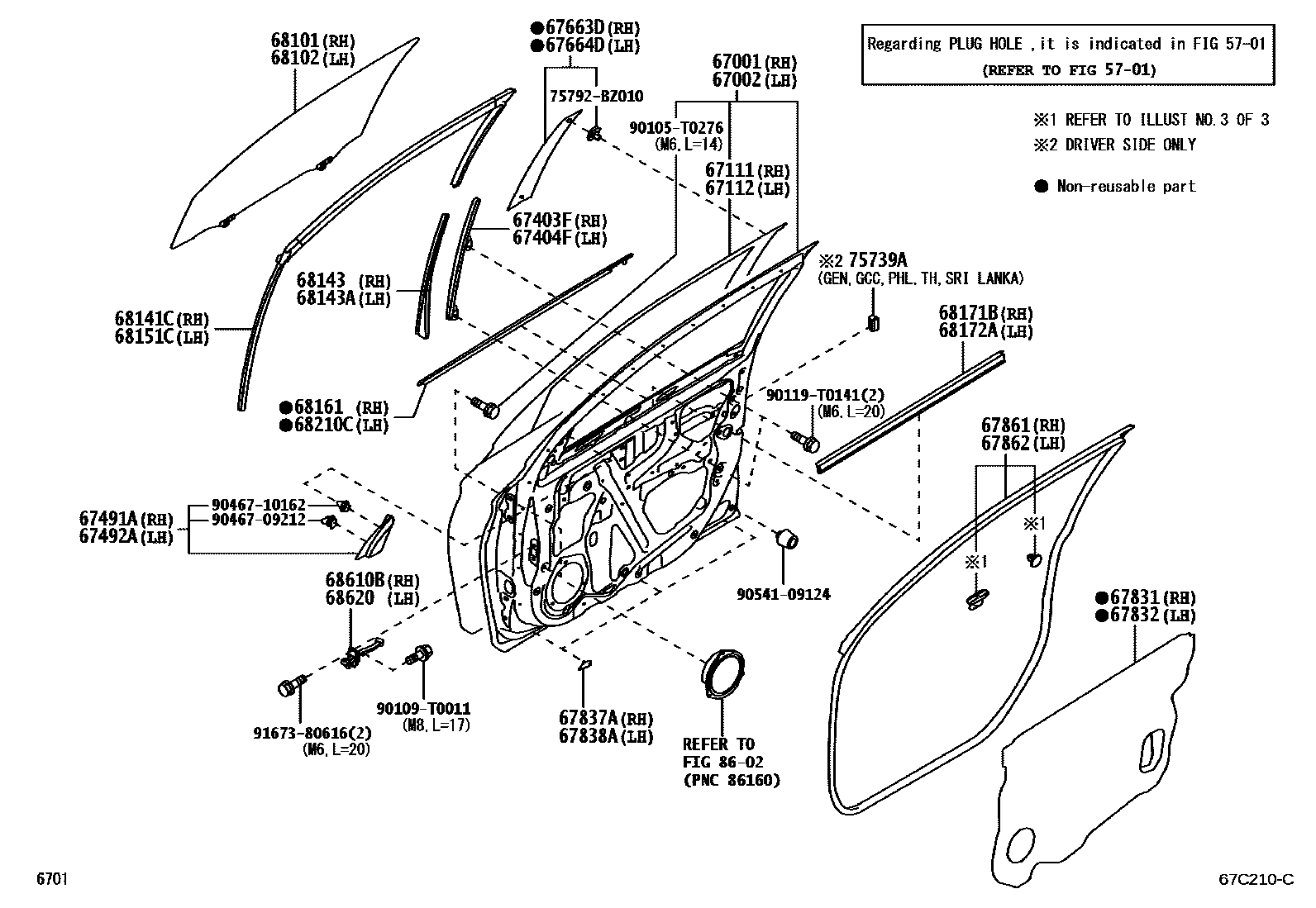

| 67001 | Right front door panel sub-assembly | 67001-BZ750 · 67001-BZ760 |
| 67002 | Left front door panel sub-assembly | 67002-BZ750 · 67002-BZ760 |
| 67111 | Outer right front door panel | 67111-BZ420 |
| 67112 | Outer left front door panel | 67112-BZ420 |
| 67403F | Right front door rear lower door frame sub-assembly | 67403-BZ190 |
| 67404F | Left front door rear lower door frame sub-assembly | 67404-BZ190 |
| 67491A | Right front door lower door frame bracket decorative strip | 67491-BZ190 |
| 67492A | Left front door lower door frame bracket decorative strip | 67492-BZ190 |

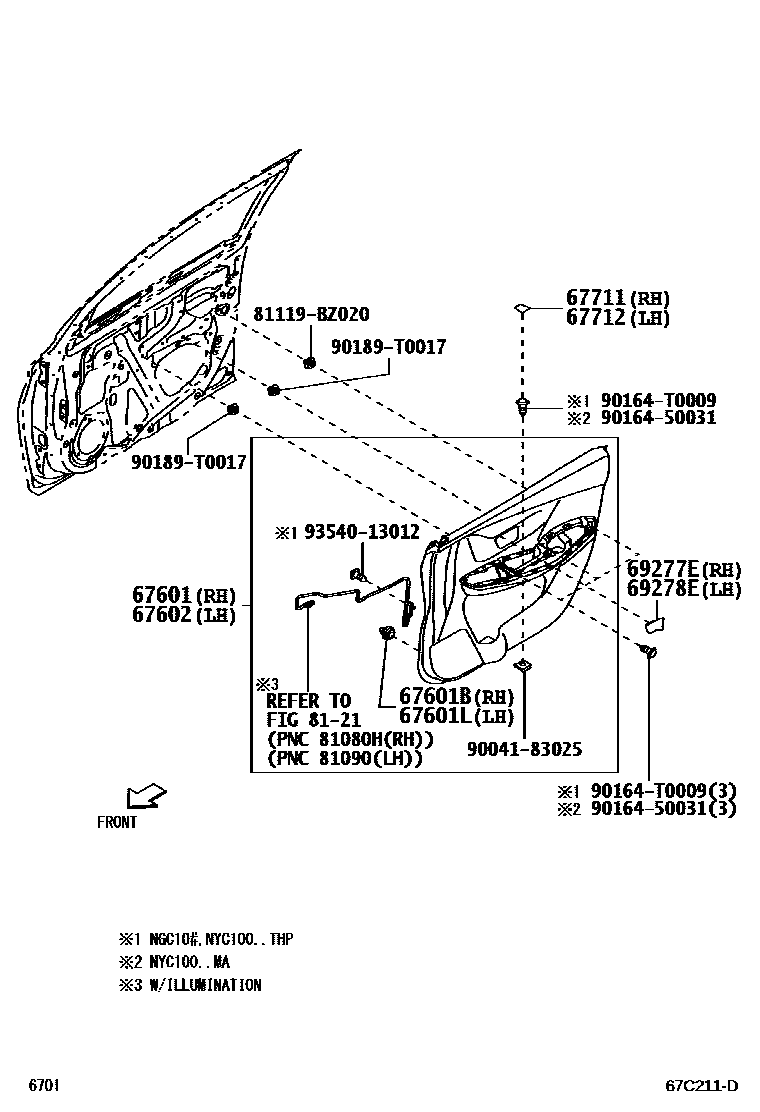

| 67601B | Catch (for front door trim panel) | 90467-09206 · 90467-T0019 |
| 67601L | Catch (for front door trim panel) | 90467-09206 · 90467-T0019 |
| 67663D | Right door frame decorative strip | 75755-BZ010 |
| 67664D | Left door frame decorative strip | 75756-BZ010 |
| 67831 | Right front door access hole cover | 67831-BZ510 |
| 67832 | Left front door access hole cover | 67831-BZ510 |
| 67837A | Right front door ventilator seal | 67837-0K090 |
| 67838A | Left front door ventilator seal | 67837-0K090 |
| 67861 | Right front door seal | 67861-BZ280 |
| 67862 | Left front door seal | 67862-BZ270 |

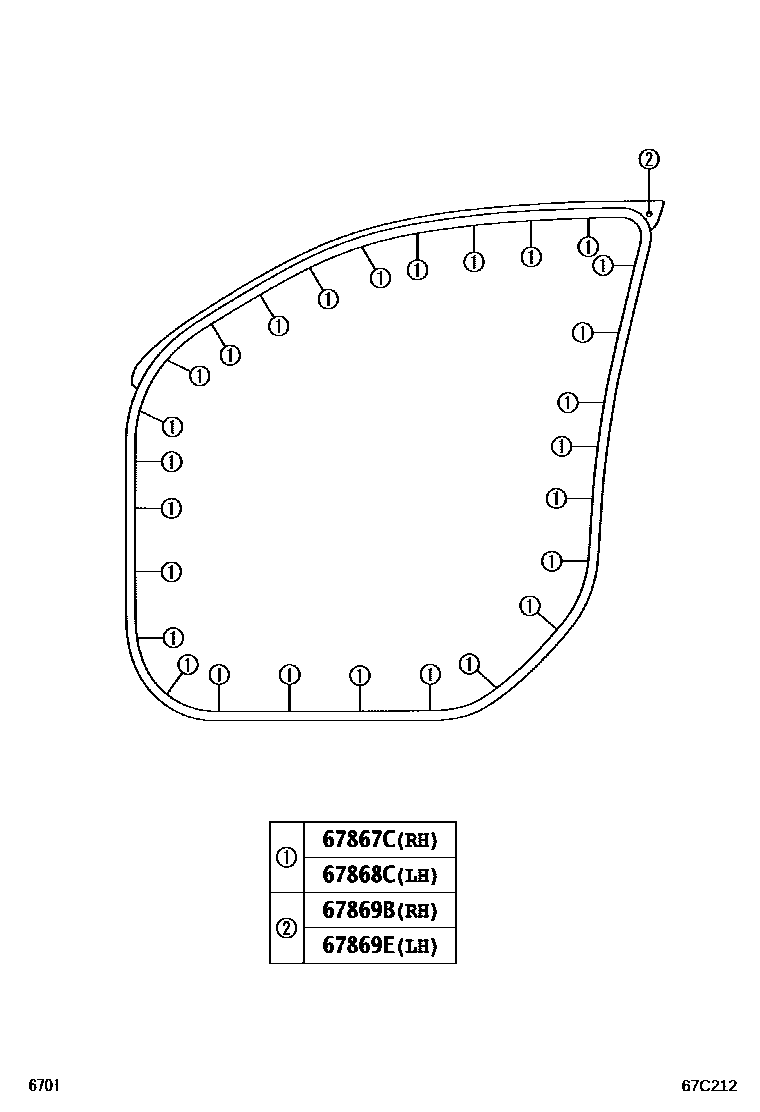

| 67867C | Right front door seal strip fixing | 67867-BZ450 · 67867-BZ570 |
| 67868C | Left front door seal strip fixing | 67867-BZ260 · 67867-BZ590 |
| 67869B | Front door seal strip clip | 9004A-46317 · 90467-06084 |
| 67869E | Front door seal strip clip | 9004A-46317 · 90467-06084 |
| 68101 | Right front door glass sub-assembly | 68101-BZ420 · 68101-BZ430 · 68101-BZ450 |
| 68102 | Left front door glass sub-assembly | 68102-BZ420 · 68102-BZ430 · 68102-BZ450 |
| 68141C | Right front door glass lift channel | 68141-BZ240 |
| 68143 | Lift chute under front door glass | 68143-BZ160 |
| 68143A | Front door glass lift channel No. 2 | 68143-BZ160 |
| 68151C | Left front door glass lift channel | 68151-BZ240 |
| 68161 | Front door glass outer seal strip | 68161-BZ260 · 68161-BZ270 · 68161-BZ330 |
| 68171B | Right front door glass inner sealing strip | 68171-BZ290 |
| 68172A | Left front door glass inner sealing strip | 68172-BZ290 |
| 68210C | Left front door glass outer sealing strip assembly | 68162-BZ260 · 68162-BZ270 · 68162-BZ330 |
| 68610B | Right front door opening limiter assembly | 68610-BZ240 · 68610-BZ260 |
| 68620 | Left front door opening limiter assembly | 68610-BZ240 · 68610-BZ260 |
| 75739A | Door edge protection strip | 75739-0K010 |
