Toyota YARIS 杂物箱板和行李箱垫 — Figure 6403

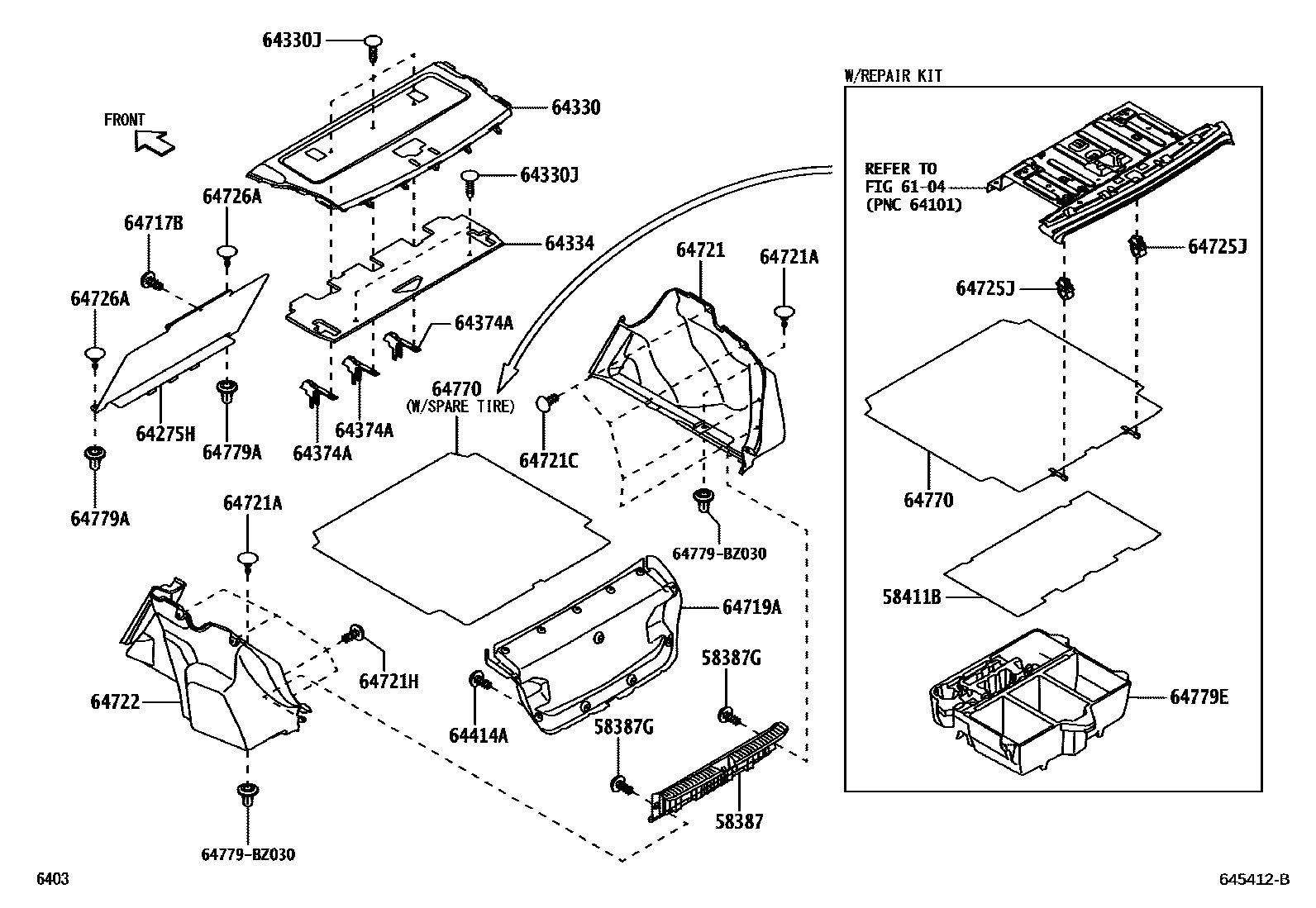

Toyota YARIS EPC diagram 6403, 杂物箱板和行李箱垫, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64334 | Glove box decorative panel muffler pad | 64334-BZ010 |
| 64374A | Glove box decorative panel bracket | 64374-BZ010 |
| 64721A | Clip (for trunk interior decoration cover) | 64726-0D020 |
| 64725J | Luggage decorative hook No. 1 | 58492-BZ010 |
| 64726A | Luggage rear trim clip | 64726-0D020 |
| 64779A | Spare tire cover stop | 64779-BZ030 |
| 64779E | Spare tire cover bracket | 64779-BZ021 · 64779-BZ040 |
