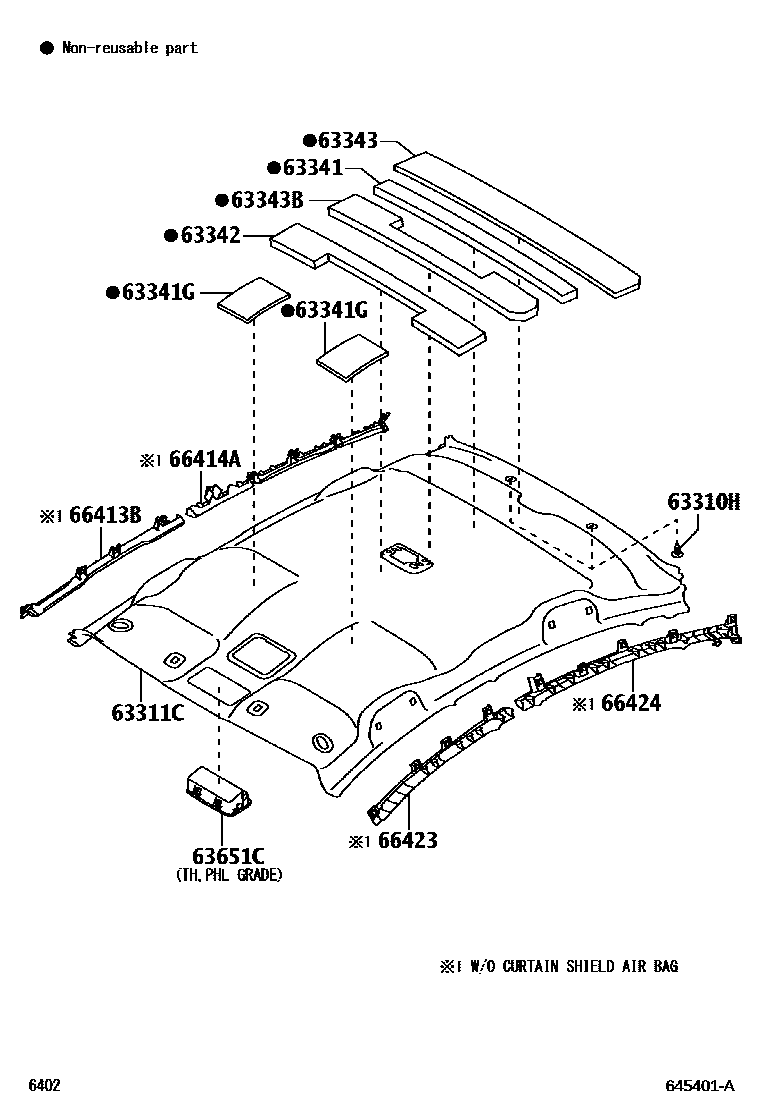

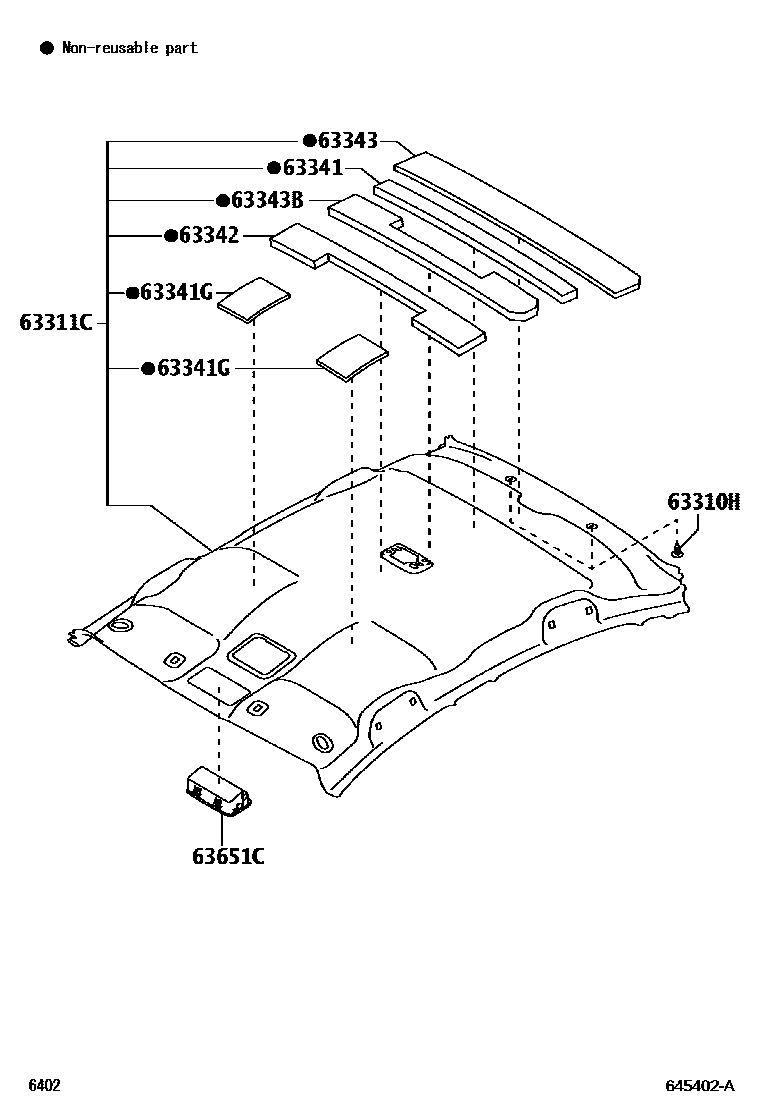

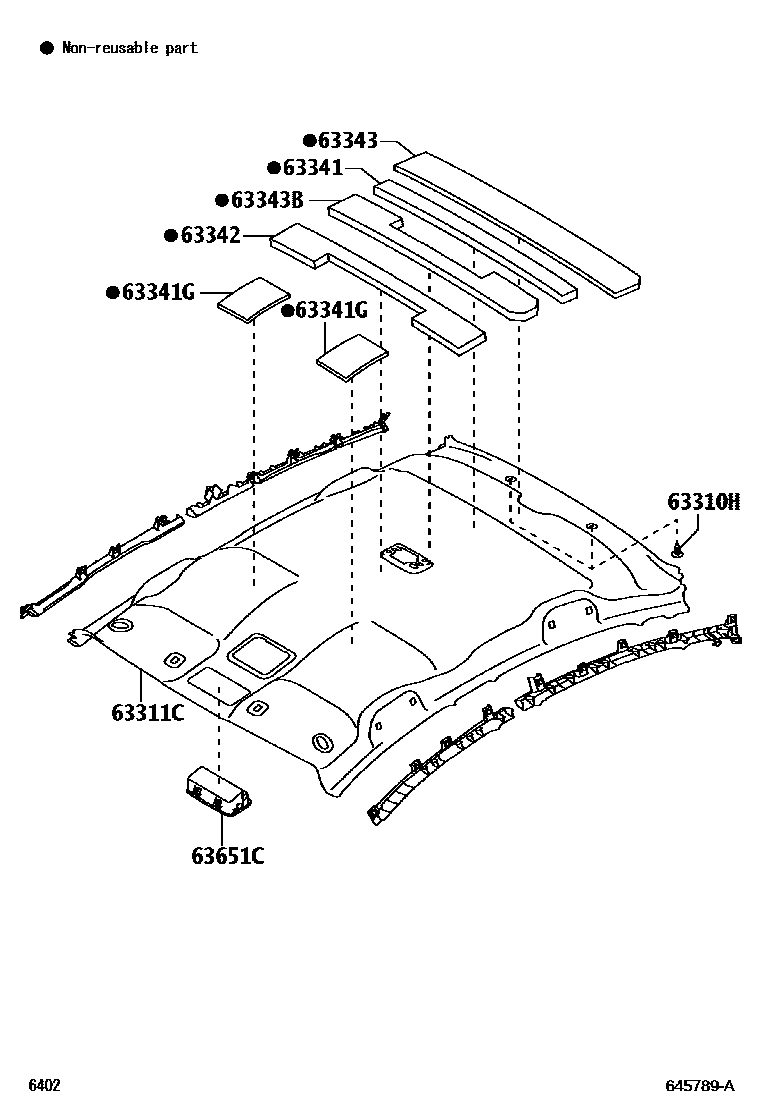

Toyota YARIS 车顶内衬和消声垫 — Figure 6402
Toyota YARIS EPC diagram 6402, 车顶内衬和消声垫, with 3 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63341 | No. 1 roof silencer mat | 63343-BZ180 |
| 63341G | roof muffler mat | 63341-BZ220 |
| 63342 | No. 2 roof muffler pad | 63343-BZ120 |
| 63343 | No. 3 roof muffler pad | 63343-BZ190 |
| 63343B | Rear roof silencer pad | 63343-BZ170 |
| 66413B | Right front longitudinal member spacer | 66413-BZ020 |
| 66414A | Right rear longitudinal member spacer | 66414-BZ020 |
| 66423 | Left front longitudinal member spacer | 66423-BZ020 |
| 66424 | Left rear longitudinal member spacer | 66424-BZ020 |
