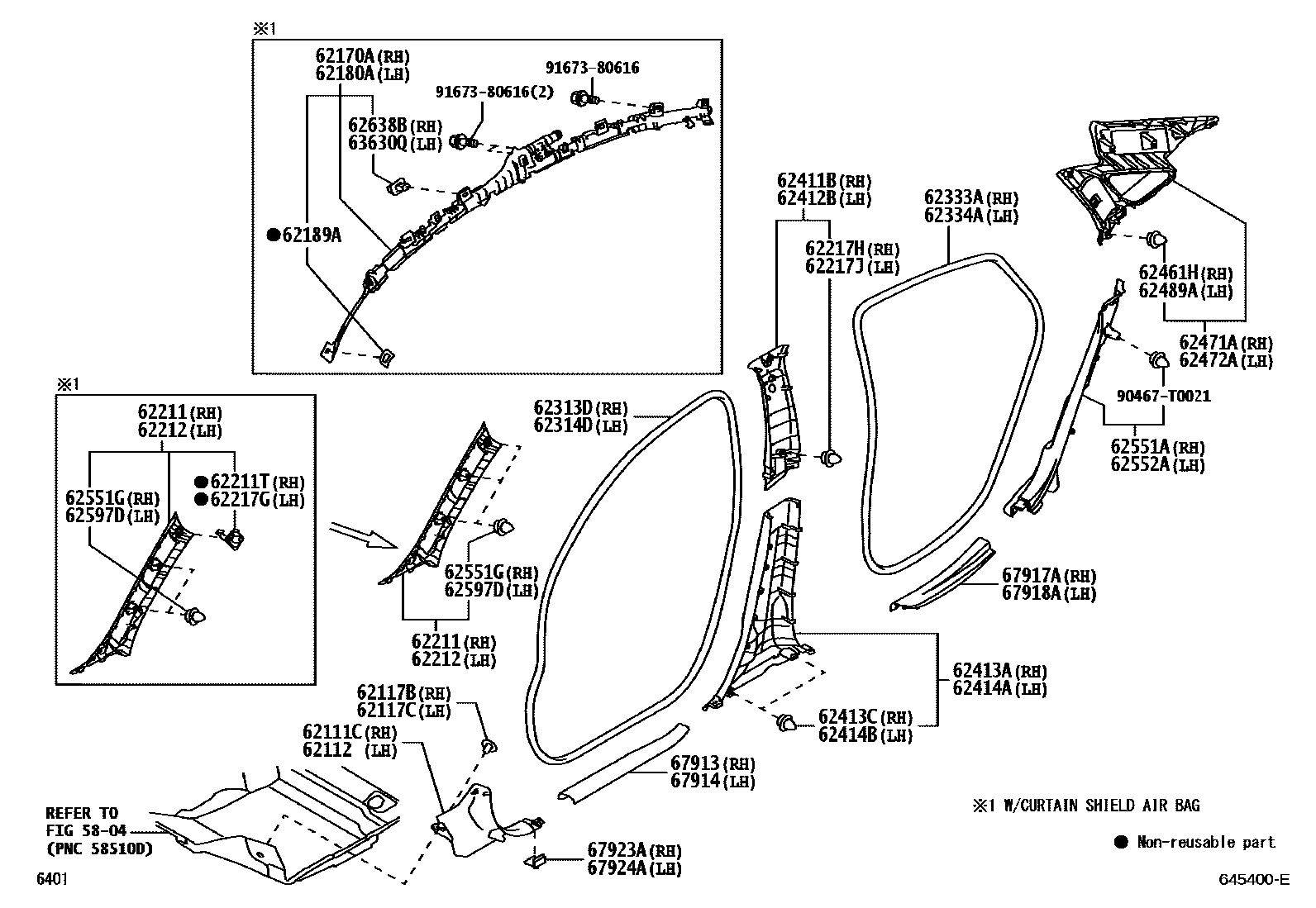

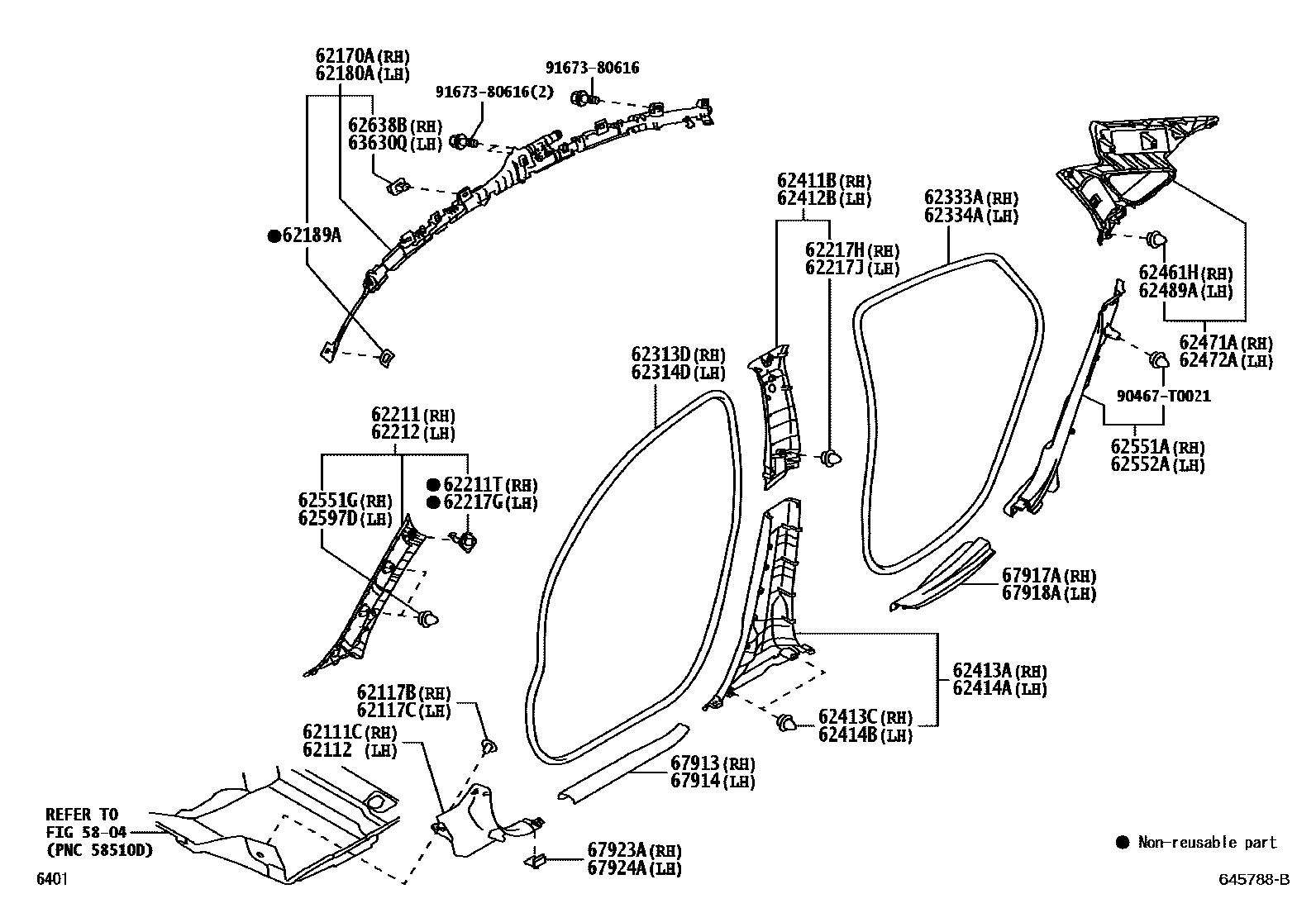

Toyota YARIS 内饰板和车门防水胶条 — Figure 6401
Toyota YARIS EPC diagram 6401, 内饰板和车门防水胶条, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62170A | Right curtain air bag assembly | 62170-BZ090 · 62170-BZ130 |
| 62180A | Left curtain air bag assembly | 62180-BZ090 · 62180-BZ130 |
| 62189A | Curtain air bag clip spacer | 62189-42010 |
| 62211T | Clip (for front pillar decorative panel) | 62217-52120 |
| 62217G | Front pillar decorative plate clip | 62217-52120 |
| 62217H | Center pillar decorative plate clip | 90467-T0021 |
| 62217J | Center pillar decorative plate clip | 90467-T0021 |
| 62413C | Clip (for the decorative panel under the center pillar) | 90467-T0021 |
| 62414B | Clip (for the decorative panel under the center pillar) | 90467-T0021 |
| 62461H | Clips (for roof side interior panels) | 90467-T0021 |
| 62489A | Roof side interior panel clips | 90467-T0021 |
| 62551G | clip | 90467-T0021 |
| 62597D | clip | 90467-T0021 |
| 62638B | clip | 90467-18017 |
| 63630Q | clip | 90467-18017 |
| 67923A | Car door No. 1 wear plate clip | 67924-BZ020 |
| 67924A | Door No. 2 wear plate clip | 67924-BZ020 |
